◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#37692) — 60 parça

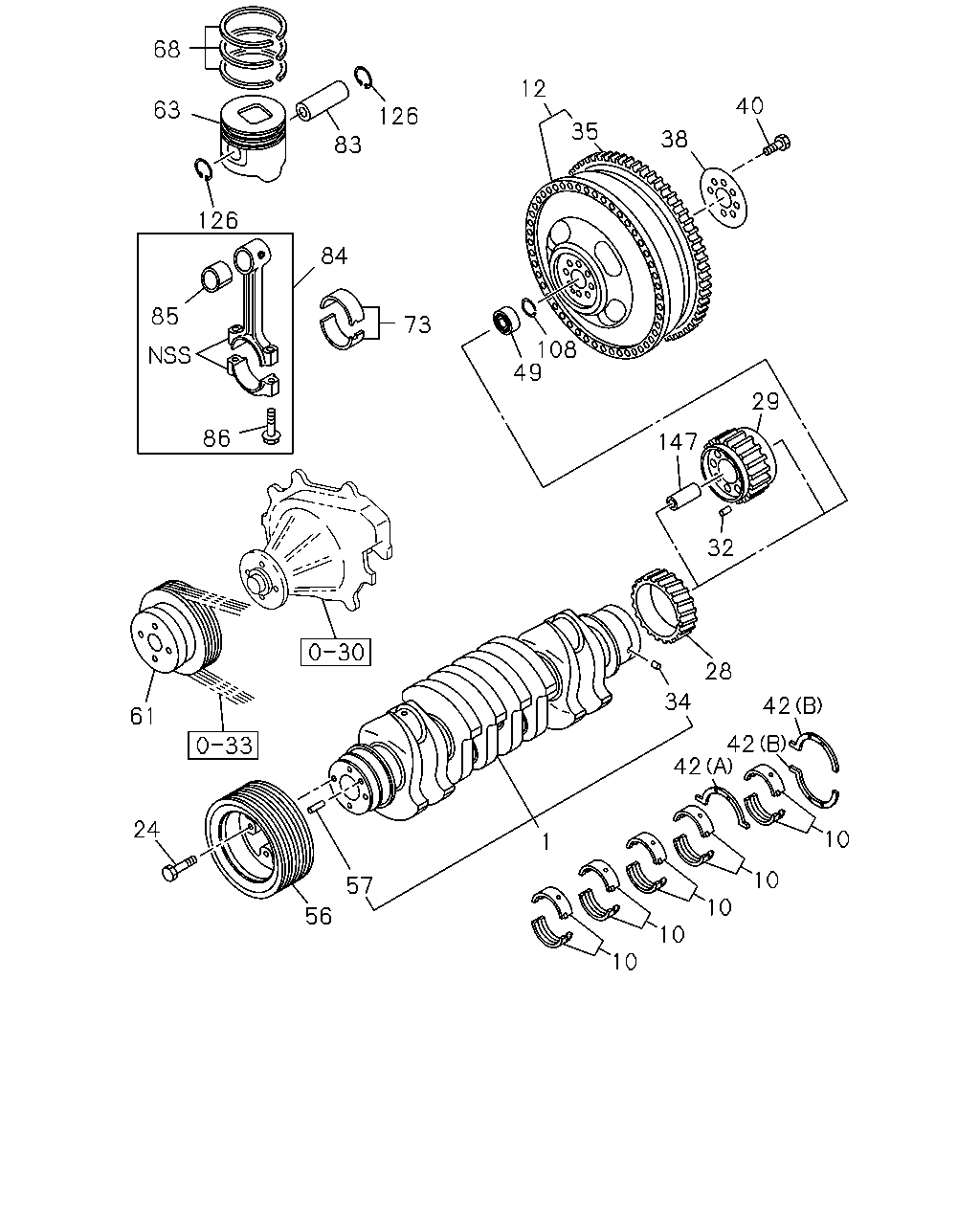

çizim 181642
68 63 83 126 12 38 40 35 108 49 73 84 126 85 86 147 29 32 28 42 34 42 42 10 10 10 10 10 1 57 56 24 61
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT
FSS STD CAB(FC****) 		8-98029-270-0 01 1 0712-0811
1 CRANKSHAFT 8-98029-270-0 01 1 0812-
10 METAL SET; CRANKSHAFT,STANDARD
FSS STD CAB(FC****) BLUE 		8-97372-076-1 05 1 0712-0811
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97372-076-1 05 1 0812-
10 METAL SET; CRANKSHAFT,STANDARD
FSS STD CAB(FC****) BLACK 		8-97372-077-1 05 1 0712-0811
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97372-077-1 05 1 0812-
10 METAL SET; CRANKSHAFT,STANDARD
FSS STD CAB(FC****) BROWN 		8-97372-078-1 05 1 0712-0811
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97372-078-1 05 1 0812-
12 FLYWHEEL
FSS STD CAB(FC****) 		8-98056-355-0 01 1 0712-0811
12 FLYWHEEL 8-98056-355-2 01 1 0812-
24 BOLT; DAMPER
FSS STD CAB(FC****) M16X42 		8-97028-733-0 04 1 0712-0811
24 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 0812-
28 GEAR; CR/SHF
FSS STD CAB(FC****) Z=42 		8-94394-342-4 01 1 0712-0811
28 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 0812-
29 GEAR; CR/SHF,PTO
POWER TAKE OFF-FLYWHEEL(6SZ) Z=42 		8-98089-224-1 01 1 0712-1006
29 GEAR; CR/SHF,PTO
POWER TAKE OFF-FLYWHEEL(6SZ) Z=42 		8-98011-443-1 01 1 1007-
32 PIN; FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ) OD=8 L=20 		9-08150-820-0 01 1 0712-
34 PIN; GEAR SETTING
FSS STD CAB(FC****) OD=5 L=6 		9-09878-626-0 01 1 0712-0811
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 0812-
35 GEAR; RING
FSS STD CAB(FC****) Z=143 		8-97375-675-0 01 1 0712-0811
35 GEAR; RING
Z=143 		8-97375-675-1 01 1 0812-
38 WASHER; FLYWHEEL
FSS STD CAB(FC****) ID=55 OD=110 		8-94397-496-1 01 1 0712-0811
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 0812-
40 BOLT; FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ) M16X108 		8-97142-880-0 08 1 0712-
40 BOLT; FLYWHEEL
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M16X51 		8-94334-870-1 08 1 0712-
42 WASHER; THRUST,CR/SHF
FSS STD CAB(FC****) (A) 		8-97386-548-0 01 1 0712-0811
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 0812-
42 WASHER; THRUST,CR/SHF
FSS STD CAB(FC****) (B) 		8-97386-549-0 02 1 0712-0811
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 0812-
49 BEARING; PILOT
FSS STD CAB(FC****) 		8-97258-239-0 01 1 0712-0811
49 BEARING; PILOT 8-97258-239-0 01 1 0812-
49 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 0907-
56 PULLEY; CR/SHF DAMPER
FSS STD CAB(FC****) 3-GROOVE 		8-98004-024-3 01 1 0712-0811
56 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-98004-024-3 01 1 0812-
57 PIN; PULLEY
FSS STD CAB(FC****) OD=8 L=20 		9-08150-820-0 02 1 0712-0811
57 PIN; PULLEY
OD=8 L=20 		9-08150-820-0 02 1 0812-
61 PULLEY; FAN DRIVE
FSS STD CAB(FC****) 1-GROOVE 		8-98003-384-1 01 1 0712-0811
61 PULLEY; FAN DRIVE
1-GROOVE 		8-98003-384-1 01 1 0812-
63 PISTON
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) NON GRADE 		8-98041-141-0 04 1 0712-0811
63 PISTON
ALSO INCLUDED IN LINER SET. NON GRADE 		8-98041-141-2 04 1 0812-
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) 		8-98040-125-0 04 1 0712-0811
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-98040-125-0 04 1 0812-
73 METAL SET; CONN ROD,STANDARD
FSS STD CAB(FC****) YELLOW 		8-98055-479-0 04 1 0712-0811
73 METAL SET; CONN ROD,STANDARD
YELLOW 		8-98055-479-0 04 1 0812-
73 METAL SET; CONN ROD,STANDARD
FSS STD CAB(FC****) GREEN 		8-98055-480-0 04 1 0712-0811
73 METAL SET; CONN ROD,STANDARD
GREEN 		8-98055-480-0 04 1 0812-
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) 		8-98018-863-1 04 1 0712-0811
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-98018-863-1 04 1 0812-
84 ROD ASM; CONN
FSS STD CAB(FC****) 		8-98018-425-0 04 1 0712-0811
84 ROD ASM; CONN 8-98018-425-3 04 1 0812-
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) 		8-94391-794-0 04 1 0712-0811
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		8-94391-794-1 04 1 0812-
86 BOLT; CONNROD
FSS STD CAB(FC****) M13X57 FLANGE 		1-12235-035-0 08 1 0712-0811
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 08 1 0812-1004
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1005-
108 RING; SNAP,BRG SET
FSS STD CAB(FC****) OD=59.2 		9-09180-155-0 01 1 0712-0811
108 RING; SNAP,BRG SET
OD=59.2 		9-09180-155-0 01 1 0812-1006
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) OD=43.7 		8-98006-828-0 08 1 0712-0811
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7 		8-98006-828-0 08 1 0812-
147 SPACER; CRANK GEAR
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97064-107-1 01 1 0712-1006
