0-14 — CAMSHAFT AND VALVE (#37691) — 116 parça

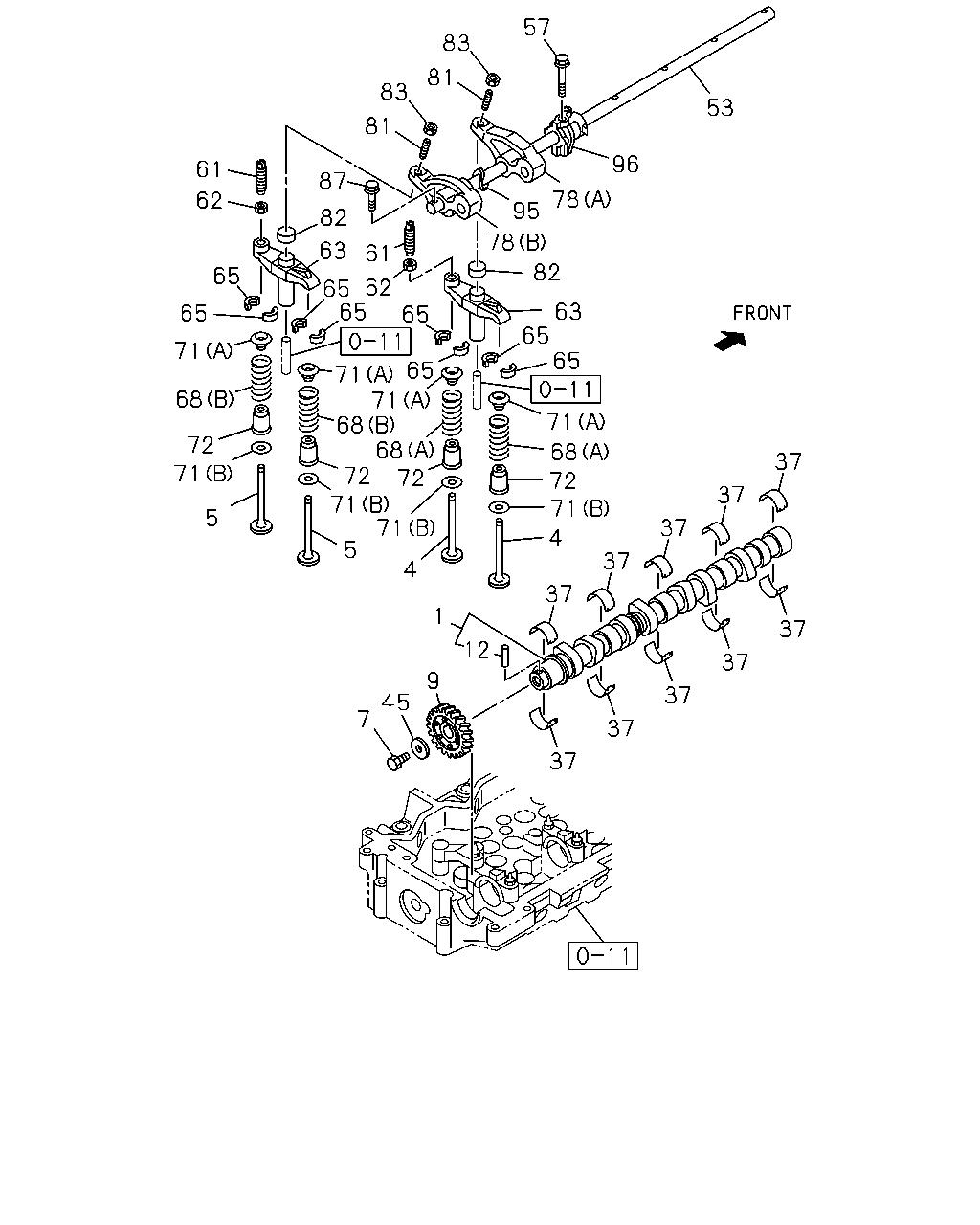

57 83 81 83 81 87 61 62 82 63 61 65 62 65 65 65 71 68 72 71 5 71 5 71 4 72 68 72 68 71 65 65 71 78 95 78 96 53 82 65 63 65 71 68 71 72 4 1 12 9 45 7 37 37 37 37 37 37 37 37 37 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CAMSHAFT FSS STD CAB(FC****)	8-97262-166-0	01	1	0712-0811
1	CAMSHAFT	8-97262-166-0	01	1	0812-
4	VALVE; INL FSS STD CAB(FC****)	8-94395-882-2	08	1	0712-0811
4	VALVE; INL	8-94395-882-2	08	1	0812-
5	VALVE; EXH FSS STD CAB(FC****)	8-97209-876-3	08	1	0712-0811
5	VALVE; EXH	8-97209-876-4	08	1	0812-
7	BOLT; CM/SHF GEAR FSS STD CAB(FC****) M14X40	8-94396-439-0	01	1	0712-0811
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0812-
9	GEAR; CM/SHF FSS STD CAB(FC****) Z=35	8-98018-935-3	01	1	0712-0811
9	GEAR; CM/SHF Z=35	8-98018-935-3	01	1	0812-
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	02	1	0907-
12	KEY; CAM GEAR SET FSS STD CAB(FC****) OD=7 L=7.5	8-94399-487-0	01	1	0712-0811
12	KEY; CAM GEAR SET OD=7 L=7.5	8-94399-487-0	01	1	0812-0906
37	METAL; CM/SHF FSS STD CAB(FC****) B=16	8-97386-189-0	10	1	0712-0811
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0812-
45	WASHER; GEAR CAM FSS STD CAB(FC****) ID=14.5	9-09851-850-3	01	1	0712-0811
45	WASHER; GEAR CAM ID=14.5	9-09851-850-3	01	1	0812-
53	SHAFT; ROCKER ARM FSS STD CAB(FC****)	8-97389-921-0	01	1	0712-0811
53	SHAFT; ROCKER ARM	8-97389-921-0	01	1	0812-
57	BOLT; ROCKER ARM BRKT FSS STD CAB(FC****) M10X62 FLANGE	8-94393-131-0	03	1	0712-0811
57	BOLT; ROCKER ARM BRKT M10X62 FLANGE	8-94393-131-0	03	1	0812-
61	SCREW; ADJ,BRIDGE FSS STD CAB(FC****) M8X21	8-94394-803-0	08	1	0712-0811
61	SCREW; ADJ,BRIDGE M8X21	8-94394-803-0	08	1	0812-
62	NUT; ADJ SCREW LK BRIDGE FSS STD CAB(FC****) M8 FLANGE	9-09844-574-0	08	1	0712-0811
62	NUT; ADJ SCREW LK BRIDGE M8 FLANGE	9-09844-574-0	08	1	0812-
63	BRIDGE FSS STD CAB(FC****)	8-94392-002-3	08	1	0712-0811
63	BRIDGE	8-94392-002-3	08	1	0812-
65	COLLAR; SPLIT FSS STD CAB(FC****)	5-12565-004-0	32	1	0712-0811
65	COLLAR; SPLIT	5-12565-004-0	32	1	0812-
68	SPRING; VLV FSS STD CAB(FC****) (B) EXHAUST MARK RED	8-97210-682-0	08	1	0712-0811
68	SPRING; VLV (B) EXHAUST MARK RED	8-97210-682-0	08	1	0812-
68	SPRING; VLV FSS STD CAB(FC****) (A) INLET MARK BLUE	8-97352-888-0	08	1	0712-0811
68	SPRING; VLV (A) INLET MARK BLUE	8-97352-888-0	08	1	0812-
71	SEAT; SPR FSS STD CAB(FC****) (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	0712-0811
71	SEAT; SPR (A) UPPER OD=32.8 T=12.75	8-94390-783-2	16	1	0812-
71	SEAT; SPR FSS STD CAB(FC****) (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	0712-0811
71	SEAT; SPR (B) LOWER ID=14.3 T=1.0	8-94391-468-0	16	1	0812-
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) FSS STD CAB(FC****)	8-97376-720-0	16	1	0712-0811
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97376-720-0	16	1	0812-
78	ARM; ROCKER FSS STD CAB(FC****) (A) INLET	8-97306-421-2	04	1	0712-0811
78	ARM; ROCKER (A) INLET	8-97306-421-3	04	1	0812-
78	ARM; ROCKER FSS STD CAB(FC****) (B) EXHAUST	8-97306-424-2	04	1	0712-0811
78	ARM; ROCKER (B) EXHAUST	8-97306-424-3	04	1	0812-
81	SCREW; ADJ,ROCKER ARM FSS STD CAB(FC****) M10 L=32	8-94395-024-0	08	1	0712-0811
81	SCREW; ADJ,ROCKER ARM M10 L=32	8-94395-024-0	08	1	0812-
82	CAP; ROCKER SHAFT FSS STD CAB(FC****)	8-94396-015-2	08	1	0712-0811
82	CAP; ROCKER SHAFT	8-94396-015-2	08	1	0812-
83	NUT; ADJ SCREW,LK FSS STD CAB(FC****) M10	0-91111-510-0	08	1	0712-0811
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0812-
87	BOLT; ROCKER SHAFT FSS STD CAB(FC****) M8X40 FLANGE	0-28050-840-0	02	1	0712-0811
87	BOLT; ROCKER SHAFT M8X40 FLANGE	0-28050-840-0	02	1	0812-
95	SPRING; ROCKER SHAFT FSS STD CAB(FC****)	8-94392-999-0	04	1	0712-0811
95	SPRING; ROCKER SHAFT	8-94392-999-0	04	1	0812-
96	BRACKET; ROCKER ARM SHAFT FSS STD CAB(FC****)	8-97334-414-0	03	1	0712-0811
96	BRACKET; ROCKER ARM SHAFT	8-97334-414-0	03	1	0812-

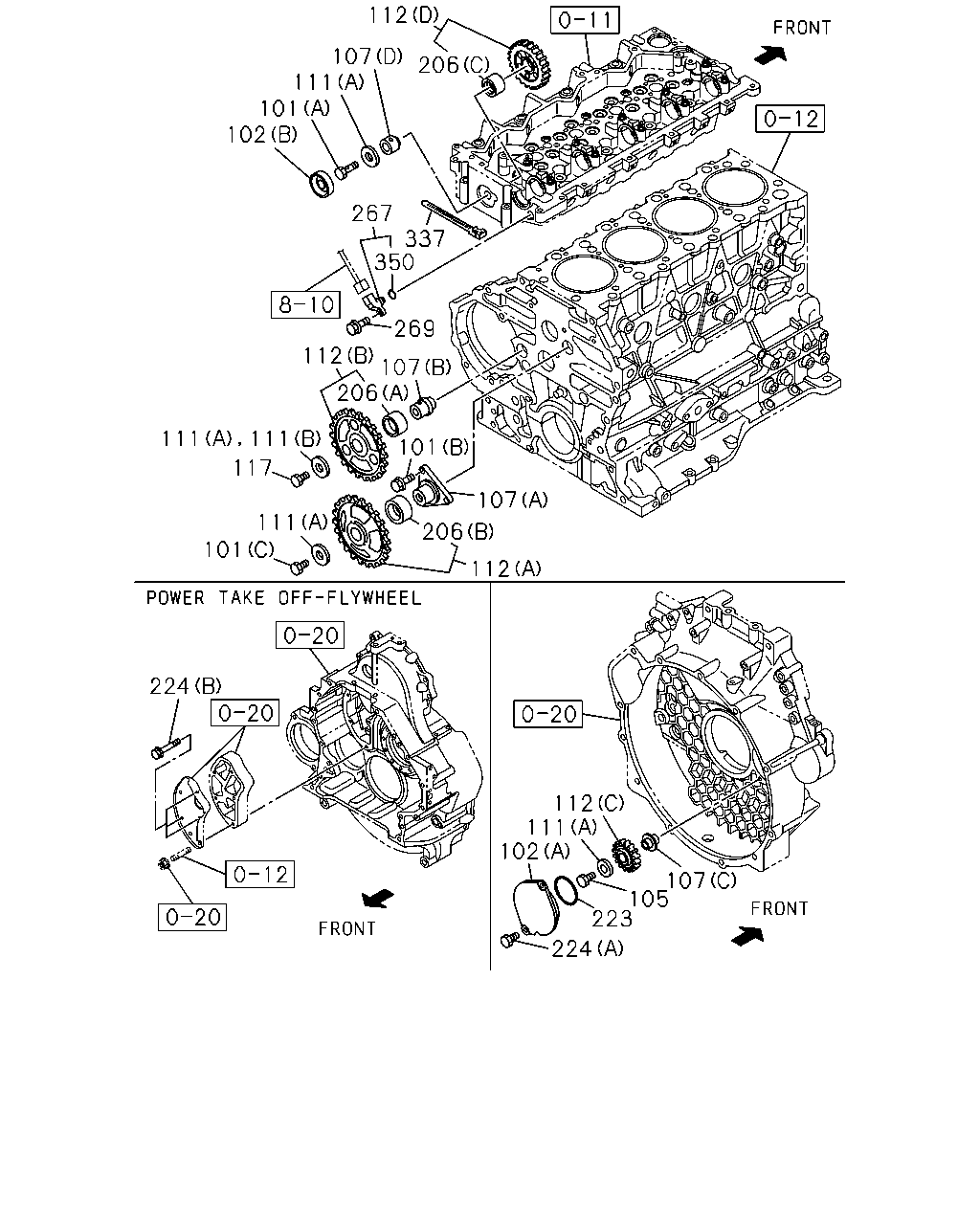

112 107 111 101 102 206 337 350 267 269 112 107 206 111 111 101 117 107 111 101 206 112 224 112 111 102 107 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
101	BOLT; THRUST COLLAR FSS STD CAB(FC****) (B) M8X16 FLANGE	0-28060-816-0	03	1	0712-0811
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0812-
101	BOLT; THRUST COLLAR FSS STD CAB(FC****) (A) M14X36.5	8-94372-221-1	01	1	0712-0811
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0812-
101	BOLT; THRUST COLLAR FSS STD CAB(FC****) (C) M14X25	9-92361-425-0	01	1	0712-0811
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0812-1310
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-
102	COVER; IDLE GEAR FSS STD CAB(FC****) (A)	8-94334-681-1	01	1	0712-0811
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0812-
102	COVER; IDLE GEAR FSS STD CAB(FC****) (B) OD=51	8-97096-826-0	01	1	0712-0811
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0812-
105	BOLT; IDLE GEAR SHAFT FSS STD CAB(FC****) M14X60	0-16956-460-0	01	1	0712-0811
105	BOLT; IDLE GEAR SHAFT M14X60	0-16956-460-0	01	1	0812-
107	SHAFT; IDLE GEAR FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D)	8-97186-398-1	01	1	0812-0906
107	SHAFT; IDLE GEAR EURO2 SPECIFICATION<NT2> (D)	8-97186-398-1	01	1	0907-
107	SHAFT; IDLE GEAR FSS STD CAB(FC****) (C)	8-94334-682-0	01	1	0712-0811
107	SHAFT; IDLE GEAR (C)	8-94334-682-1	01	1	0812-
107	SHAFT; IDLE GEAR FSS STD CAB(FC****) (A)	8-97350-021-0	01	1	0712-0811
107	SHAFT; IDLE GEAR (A)	8-97350-021-0	01	1	0812-
107	SHAFT; IDLE GEAR FSS STD CAB(FC****) (D)	8-97606-990-1	01	1	0712-0811
107	SHAFT; IDLE GEAR FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (D)	8-97606-990-1	01	1	0812-0906
107	SHAFT; IDLE GEAR EURO4 SPECIFICATION<NT4> (D)	8-97606-990-1	01	1	0907-
107	SHAFT; IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-98060-780-0	01	1	0712-
111	COLLAR; THRUST,IDLE GEAR FSS STD CAB(FC****) (A) ID=14.5 OD=46	8-97209-728-2	03	1	0712-0811
111	COLLAR; THRUST,IDLE GEAR (A) ID=14.5 OD=46	8-97209-728-2	03	1	0812-
111	COLLAR; THRUST,IDLE GEAR POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=24 OD=60	8-94396-897-0	01	1	0712-
111	COLLAR; THRUST,IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.5 OD=46	8-97209-728-2	01	1	0712-
112	GEAR; IDLE FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> (D) Z=41	8-97606-929-0	01	1	0812-0906
112	GEAR; IDLE EURO2 SPECIFICATION<NT2> (D) Z=41	8-97606-929-0	01	1	0907-
112	GEAR; IDLE FSS STD CAB(FC****) (C) Z=34	8-97120-005-1	01	1	0712-0811
112	GEAR; IDLE (C) Z=34	8-97120-005-1	01	1	0812-
112	GEAR; IDLE FSS STD CAB(FC****) (A) Z=61	8-97606-767-0	01	1	0712-0811
112	GEAR; IDLE (A) Z=61	8-97606-767-0	01	1	0812-
112	GEAR; IDLE FSS STD CAB(FC****) (D) Z=41	8-98058-320-1	01	1	0712-0811
112	GEAR; IDLE FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> (D) Z=41	8-98058-320-1	01	1	0812-0906
112	GEAR; IDLE EURO4 SPECIFICATION<NT4> (D) Z=41	8-98058-320-1	01	1	0907-
112	GEAR; IDLE POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-97306-086-1	01	1	0712-0712
112	GEAR; IDLE POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-98021-069-0	01	1	0712-
112	GEAR; IDLE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-97600-586-1	01	1	0712-1402
112	GEAR; IDLE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) Z=72-60-30	8-98254-970-0	01	1	1403-
117	BOLT; FLANGE EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M14X65 FLANGE	8-97113-167-0	01	1	0712-
206	BUSHING; IDLE GEAR FSS STD CAB(FC****) (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0712-0811
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0812-
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-028-0	01	1	0712-1402
206	BUSHING; IDLE GEAR EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	8-98255-899-0	01	1	1403-
206	BUSHING; IDLE GEAR FSS STD CAB(FC****) (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0712-0811
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0812-
206	BUSHING; IDLE GEAR POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	8-94396-047-0	01	1	0712-0712
206	BUSHING; IDLE GEAR POWER TAKE OFF-FLYWHEEL(6SZ) (A) AFTER PRESS FITTING, MACHINE IT.	8-98021-070-0	01	1	0712-
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=105.6	1-09623-423-0	01	1	0712-0811
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0812-
224	BOLT; COVER FSS STD CAB(FC****) (A) M8X16 FLANGE	0-28050-816-0	02	1	0712-0811
224	BOLT; COVER (A) M8X16 FLANGE	0-28050-816-0	02	1	0812-
224	BOLT; COVER POWER TAKE OFF-FLYWHEEL(6SZ) (B) M8X50 FLANGE	0-28050-850-0	03	1	0712-
267	SENSOR; CAM ANGLE FSS STD CAB(FC****)	8-98019-024-0	01	1	0712-0811
267	SENSOR; CAM ANGLE	8-98019-024-0	01	1	0812-
269	BOLT; SENSOR FSS STD CAB(FC****) M6X12 FLANGE	0-28050-612-0	01	1	0712-0811
269	BOLT; SENSOR M6X12 FLANGE	0-28050-612-0	01	1	0812-
337	CLIP; SENSOR FSS STD CAB(FC****) L=170	5-09707-054-0	01	1	0712-0712
350	GASKET; SENSOR,CAM ANGLE FSS STD CAB(FC****) ID=14.2 OD=18.8	8-97369-404-0	01	1	0712-0811
350	GASKET; SENSOR,CAM ANGLE ID=14.2 OD=18.8 ALSO INCLUDED IN GASKET SET(ENGINE).	8-97369-404-0	01	1	0812-
