0-13 — OIL PAN AND LEVEL GAUGE (#37690) — 66 parça

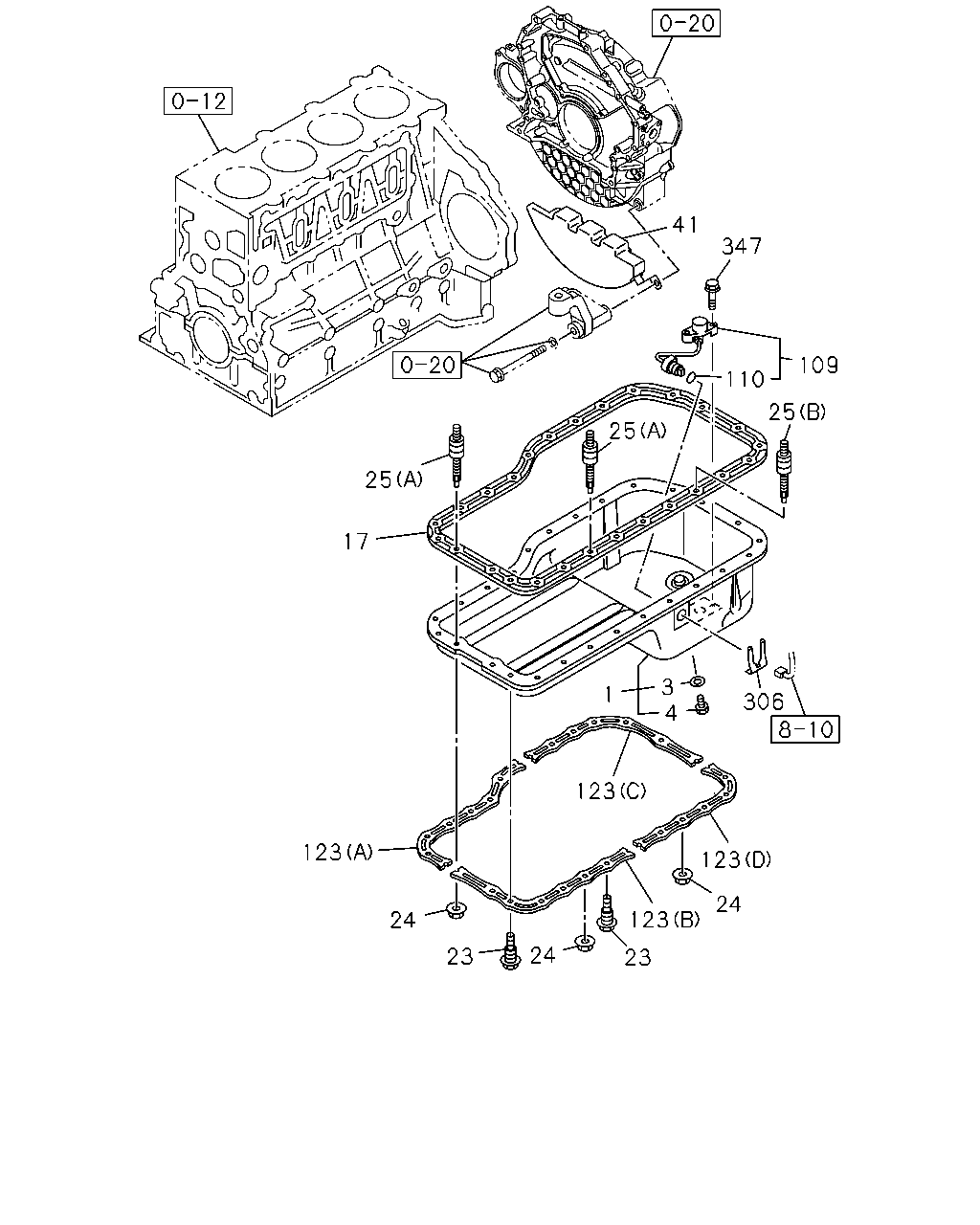

çizim 181634
41 347 109 110 25 25 25 17 3 4 1 306 123 123 123 24 123 24 24 23 23
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
FSS STD CAB(FC****) EURO2 SPECIFICATION<NT2> 		8-97385-244-1 01 1 0812-0906
1 PAN ASM; OIL
EURO2 SPECIFICATION<NT2> 		8-97385-244-1 01 1 0907-
1 PAN ASM; OIL
FSS STD CAB(FC****) 		8-98039-422-0 01 1 0712-0811
1 PAN ASM; OIL
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> 		8-98039-422-0 01 1 0812-0906
1 PAN ASM; OIL
EURO4 SPECIFICATION<NT4> 		8-98039-422-0 01 1 0907-
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=14.2 OD=24 		8-94158-328-0 01 1 0712-0811
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0812-
4 PLUG; DRAIN,OIL
FSS STD CAB(FC****) M14X14 		8-94152-613-0 01 1 0712-0811
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0812-
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) 		8-97364-386-0 01 1 0712-0811
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0812-
23 BOLT; OIL PAN
FSS STD CAB(FC****) M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0712-0811
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0812-
24 NUT; OIL PAN
FSS STD CAB(FC****) M8 FLANGE 		0-91180-108-0 13 1 0712-0811
24 NUT; OIL PAN
M8 FLANGE 		0-91180-108-0 13 1 0812-
25 STUD; OIL PAN
FSS STD CAB(FC****) (A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0712-0811
25 STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0812-
25 STUD; OIL PAN
FSS STD CAB(FC****) (B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0712-0811
25 STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0812-
41 RUBBER; SPACE 8-97380-615-0 01 1 0712-1010
41 RUBBER; SPACE
EURO4 SPECIFICATION<NT4> 		8-97380-615-0 01 1 1011-
109 SWITCH; OIL LEVEL
FSS STD CAB(FC****) 		8-97328-993-1 01 1 0712-0811
109 SWITCH; OIL LEVEL
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> 		8-97328-993-1 01 1 0812-0906
109 SWITCH; OIL LEVEL
EURO4 SPECIFICATION<NT4> 		8-97328-993-1 01 1 0907-
110 GASKET; SW,OIL LEVEL
FSS STD CAB(FC****) 		8-98048-191-0 01 1 0712-0811
110 GASKET; SW,OIL LEVEL
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> 		8-98048-191-0 01 1 0812-0906
110 GASKET; SW,OIL LEVEL
EURO4 SPECIFICATION<NT4> 		8-98048-191-0 01 1 0907-
123 RUBBER; SEAL OIL
FSS STD CAB(FC****) (A) 		8-97186-988-0 01 1 0712-0811
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0812-
123 RUBBER; SEAL OIL
FSS STD CAB(FC****) (B) 		8-97186-994-0 01 1 0712-0811
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0812-
123 RUBBER; SEAL OIL
FSS STD CAB(FC****) (C) 		8-97186-998-0 01 1 0712-0811
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0812-
123 RUBBER; SEAL OIL
FSS STD CAB(FC****) (D) 		8-97187-000-0 01 1 0712-0811
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0812-
306 CLIP; CONNECTOR
FSS STD CAB(FC****) 		8-97229-219-0 01 1 0712-0811
306 CLIP; CONNECTOR
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> 		8-97229-219-0 01 1 0812-0906
306 CLIP; CONNECTOR
EURO4 SPECIFICATION<NT4> 		8-97229-219-0 01 1 0907-
347 BOLT; OIL LEVEL SW
FSS STD CAB(FC****) M6X25 FLANGE 		0-28650-625-0 02 1 0712-0811
347 BOLT; OIL LEVEL SW
FSS STD CAB(FC****) EURO4 SPECIFICATION<NT4> M6X25 FLANGE 		0-28650-625-0 02 1 0812-0906
347 BOLT; OIL LEVEL SW
EURO4 SPECIFICATION<NT4> M6X25 FLANGE 		0-28650-625-0 02 1 0907-

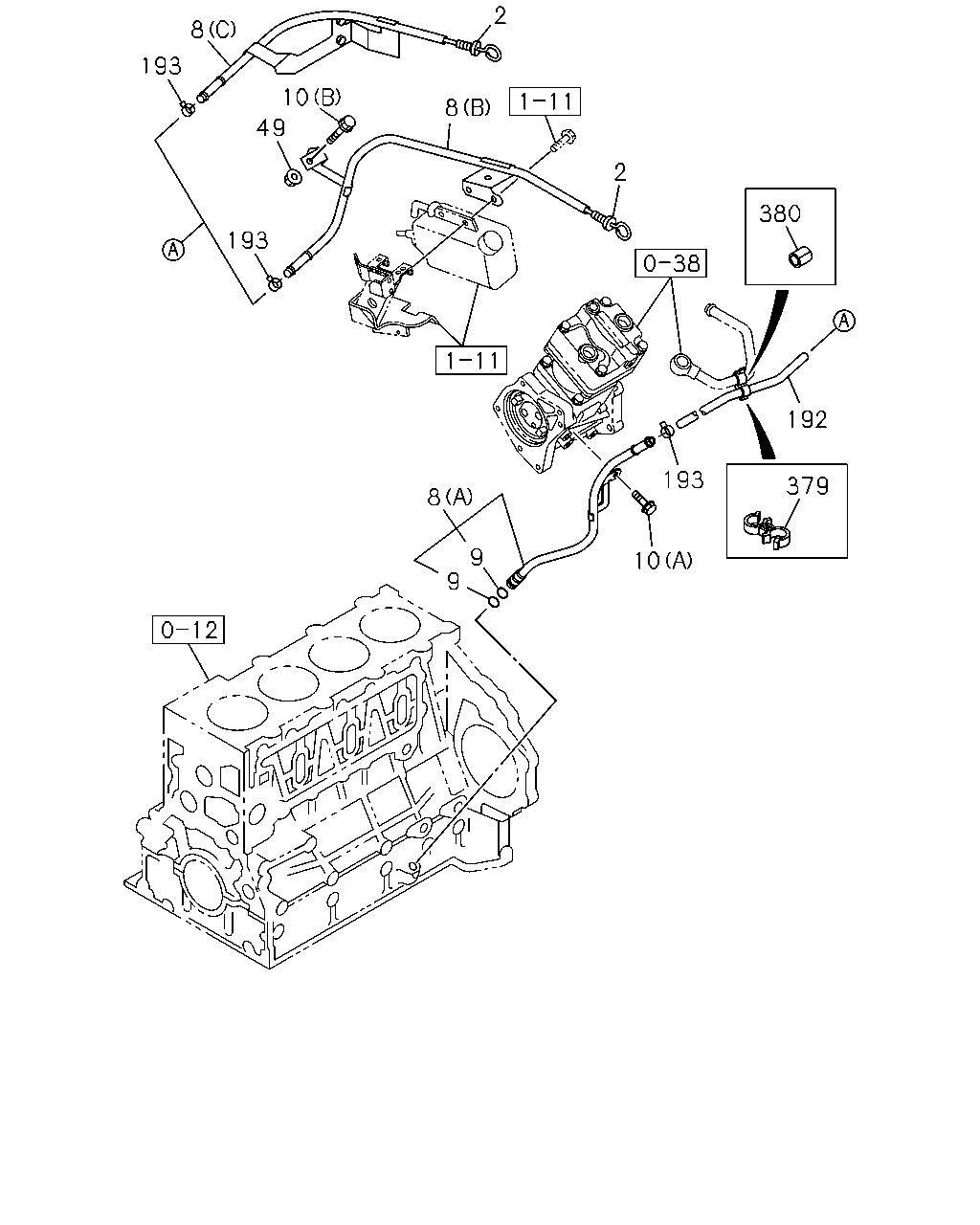

çizim 181644
2 8 193 10 8 49 2 380 193 192 193 379 8 9 10 9
BalonParca AdiParca NoAdetTipApplied Date
2 GAUGE; OIL LEVEL
FSS STD SGL CAB(FC**M*) 		8-97620-578-1 01 1 0712-1003
2 GAUGE; OIL LEVEL
FSS STD SGL CAB(FC**M*) FSS WIDE CAB(FG****) 		8-97620-578-1 01 1 1004-1406
2 GAUGE; OIL LEVEL
FSS STD SGL CAB(FC**M*) FSS WIDE CAB(FG****) 		8-98245-513-0 01 1 1407-
2 GAUGE; OIL LEVEL
FSS STD DBL CAB(FC**W*) 		8-98095-655-0 01 1 0712-0712
2 GAUGE; OIL LEVEL
FSS STD DBL CAB(FC**W*) 		8-98110-261-0 01 1 0801-1406
2 GAUGE; OIL LEVEL
FSS STD DBL CAB(FC**W*) 		8-98245-518-0 01 1 1407-
8 TUBE; GUIDE,OIL LEVEL GAUGE
FSS STD CAB(FC****) (A) 		8-98009-115-1 01 1 0712-0811
8 TUBE; GUIDE,OIL LEVEL GAUGE
(A) 		8-98009-115-1 01 1 0812-
8 TUBE; GUIDE,OIL LEVEL GAUGE
FSS STD SGL CAB(FC**M*) (B) 		8-98084-771-0 01 1 0712-1003
8 TUBE; GUIDE,OIL LEVEL GAUGE
FSS STD SGL CAB(FC**M*) FSS WIDE CAB(FG****) (B) 		8-98084-771-0 01 1 1004-
8 TUBE; GUIDE,OIL LEVEL GAUGE
FSS STD DBL CAB(FC**W*) (C) 		8-98091-027-0 01 1 0712-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		1-09623-469-0 02 1 0712-
10 BOLT; GUIDE TUBE
FSS STD CAB(FC****) (A) M6X12 FLANGE 		0-28050-612-0 01 1 0712-0811
10 BOLT; GUIDE TUBE
(A) M6X12 FLANGE 		0-28050-612-0 01 1 0812-
10 BOLT; GUIDE TUBE
FSS STD SGL CAB(FC**M*) (B) M8X20 FLANGE 		0-28650-820-0 01 1 0712-1003
10 BOLT; GUIDE TUBE
FSS STD SGL CAB(FC**M*) FSS WIDE CAB(FG****) (B) M8X20 FLANGE 		0-28650-820-0 01 1 1004-
49 NUT; GUIDE TUBE
FSS STD SGL CAB(FC**M*) M8 FLANGE 		0-91180-108-0 01 1 0712-1003
49 NUT; GUIDE TUBE
FSS STD SGL CAB(FC**M*) FSS WIDE CAB(FG****) M8 FLANGE 		0-91180-108-0 01 1 1004-
49 NUT; GUIDE TUBE
FSS STD DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 02 1 0712-
192 HOSE; GUIDE TUBE
FSS STD SGL CAB(FC**M*) L=338 		8-98054-843-0 01 1 0712-1003
192 HOSE; GUIDE TUBE
FSS STD SGL CAB(FC**M*) FSS WIDE CAB(FG****) L=338 		8-98054-843-0 01 1 1004-
192 HOSE; GUIDE TUBE
FSS STD DBL CAB(FC**W*) L=310 		8-98092-068-0 01 1 0712-
193 CLIP; HOSE,GUIDE TUBE
ID=17 		1-09707-158-0 02 1 0712-
379 CLIP; PIPE TO HOSE
ID=18 & 18 		8-94323-068-0 01 1 0712-
380 PROTECTOR; PIPE
ID=18 L=40 		8-98070-445-0 01 1 0712-
