◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10705 - FVR(LHD) EXC.EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35A - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35A — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#3769) — 85 parça

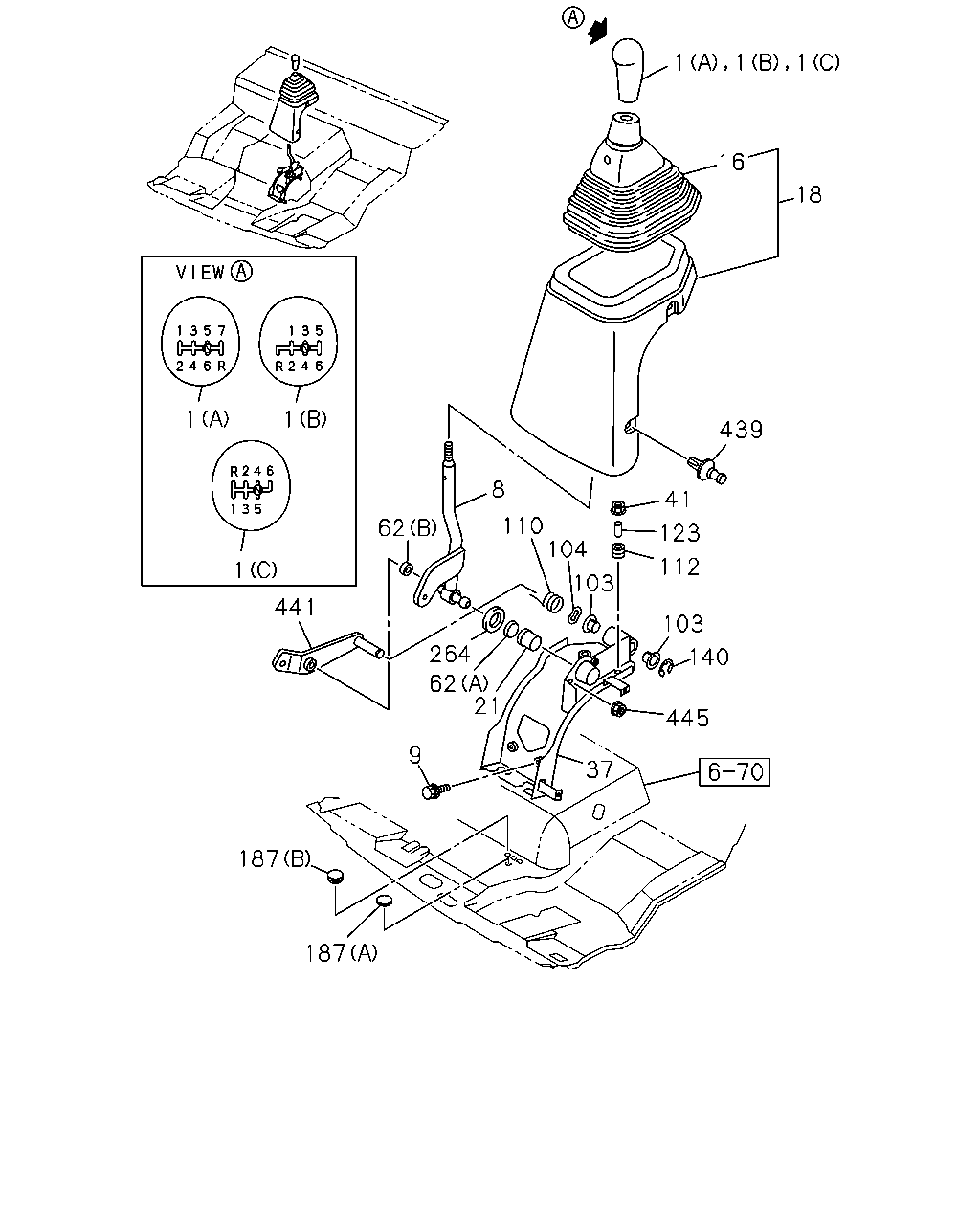

çizim 40256
1 1 1 16 18 1 1 439 8 41 110 104 62 123 112 1 103 441 103 264 140 62 21 445 37 9 187 187
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 KNOB; CHANGE LEVER
(C) 		1-33611-068-1 01 1 9601- ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-070-0 01 1 9601-9803 ● ● ●
1 KNOB; CHANGE LEVER
(B) 		1-33611-070-1 01 1 9804- ● ●
1 KNOB; CHANGE LEVER
(A) 		1-33611-092-1 01 1 9601- ● ●
8 LEVER; CHANGE 1-33619-462-0 01 1 9601-9803 ● ● ● ● ● ●
8 LEVER; CHANGE 1-33619-462-0 01 1 9804-1102 ● ● ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-462-0 01 1 9804-1102 ● ●
8 LEVER; CHANGE 1-33619-462-0 01 1 1103- ● ● ●
8 LEVER; CHANGE
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-462-0 01 1 1103- ● ●
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-604-0 01 1 9804- ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9601-9803 ● ● ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 9804-0607 ● ● ● ● ●
9 BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 0608- ● ● ● ● ●
16 BOOT; CHANGE LEVER 1-79998-913-0 01 1 9601-9803 ● ● ● ● ● ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 9804-0607 ● ● ● ● ●
16 BOOT; CHANGE LEVER 1-79998-913-1 01 1 0608- ● ● ● ● ●
18 BOOT; CHANGE LEVER 1-79998-910-0 01 1 9601-9803 ● ● ● ● ● ●
18 BOOT; CHANGE LEVER 1-79998-910-0 01 1 9804-0004 ● ● ● ● ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0005-0607 ● ● ● ● ●
18 BOOT; CHANGE LEVER 1-79996-415-1 01 1 0608- ● ● ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9601-9803 ● ● ● ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 9804-1102 ● ● ● ● ●
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 1103- ● ● ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 9601-9803 ● ● ● ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 9804-1102 ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-461-0 01 1 9804-1102 ● ●
37 BRACKET; CHANGE LEVER SUPPORT 1-33619-461-0 01 1 1103- ● ● ●
37 BRACKET; CHANGE LEVER SUPPORT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-461-0 01 1 1103- ● ●
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-603-0 01 1 9804- ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9601-9803 ● ● ● ● ● ●
41 NUT; CHANGE LEVER
M8 W/LK WASHER 		8-97065-435-0 02 1 9804-0107 ● ● ● ● ●
41 NUT; CHANGE LEVER
M8 FLANGE 		8-97046-127-0 02 1 0108-0805 ● ● ● ● ●
41 NUT; CHANGE LEVER
M8 W/DISHED WASHER 		8-97329-625-0 02 1 0806- ● ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9601-9803 ● ● ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 9804-1102 ● ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 1103- ● ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9601-9803 ● ● ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 9804-1102 ● ● ● ● ●
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97011-900-0 01 1 1103- ● ● ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9601-9803 ● ● ● ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 9804-1102 ● ● ● ● ●
103 BUSHING; RELAY LEVER
ID=14 OD=16 		8-94252-671-0 02 1 1103- ● ● ● ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9601-9803 ● ● ● ● ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 9804-1102 ● ● ● ● ●
104 WASHER; WAVED 1-09550-009-0 01 1 1103- ● ● ● ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9601-9803 ● ● ● ● ● ●
110 SPRING; RETURN,CHANGE LEVER 1-33619-435-0 01 1 9804- ● ● ●
110 SPRING; RETURN,CHANGE LEVER
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-435-0 01 1 9804- ● ●
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 9804- ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9601-9803 ● ● ● ● ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 9804-1102 ● ● ● ● ●
112 RUBBER; CUSHION 1-33619-442-0 04 1 1103- ● ● ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9601-9803 ● ● ● ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 9804-1102 ● ● ● ● ●
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 1103- ● ● ● ● ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 9601-9803 ● ● ● ● ● ●
140 RING; SNAP
ID=10 		9-09185-410-0 01 1 9804-0604 ● ● ● ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0605-1102 ● ● ● ● ●
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 1103- ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 9601-9803 ● ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 9804-0004 ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 0005-0607 ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(A) 		1-09983-016-0 01 1 0608- ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 9601-9803 ● ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 9804-0004 ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 0005-0607 ● ● ● ● ●
187 GROMMET; HOLE,CHANGE LEVER
(B) 		1-09983-098-0 01 1 0608- ● ● ● ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9601-9803 ● ● ● ● ● ●
264 PLATE; COVER 1-33619-430-0 01 1 9804-1102 ● ● ● ● ●
264 PLATE; COVER 1-33619-430-0 01 1 1103- ● ● ● ● ●
439 FASTENER; COVER 1-09987-245-0 04 1 9601-9606 ● ● ● ●
439 FASTENER; COVER 1-09987-245-1 04 1 9607-9803 ● ● ● ● ● ●
439 FASTENER; COVER 1-09987-245-1 04 1 9804-0004 ● ● ● ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0005-0607 ● ● ● ● ●
439 FASTENER; COVER
D8X13.5 		1-09987-270-0 04 1 0608- ● ● ● ● ●
441 LEVER; SELECT 1-33619-437-1 01 1 9601-9803 ● ● ● ● ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 9804-1102 ● ● ●
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-437-2 01 1 9804-1102 ● ●
441 LEVER; SELECT 1-33619-437-2 01 1 1103- ● ● ●
441 LEVER; SELECT
EXC. ASSISTOR SHIFT CONTROL<WX8> 		1-33619-437-2 01 1 1103- ● ●
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-551-1 01 1 9804- ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9601-9803 ● ● ● ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91150-106-0 02 1 9804-0602 ● ● ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0603-1102 ● ● ● ● ●
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 1103- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
