◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11124 - FSS(RHD)EURO2/4 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#37689) — 82 parça

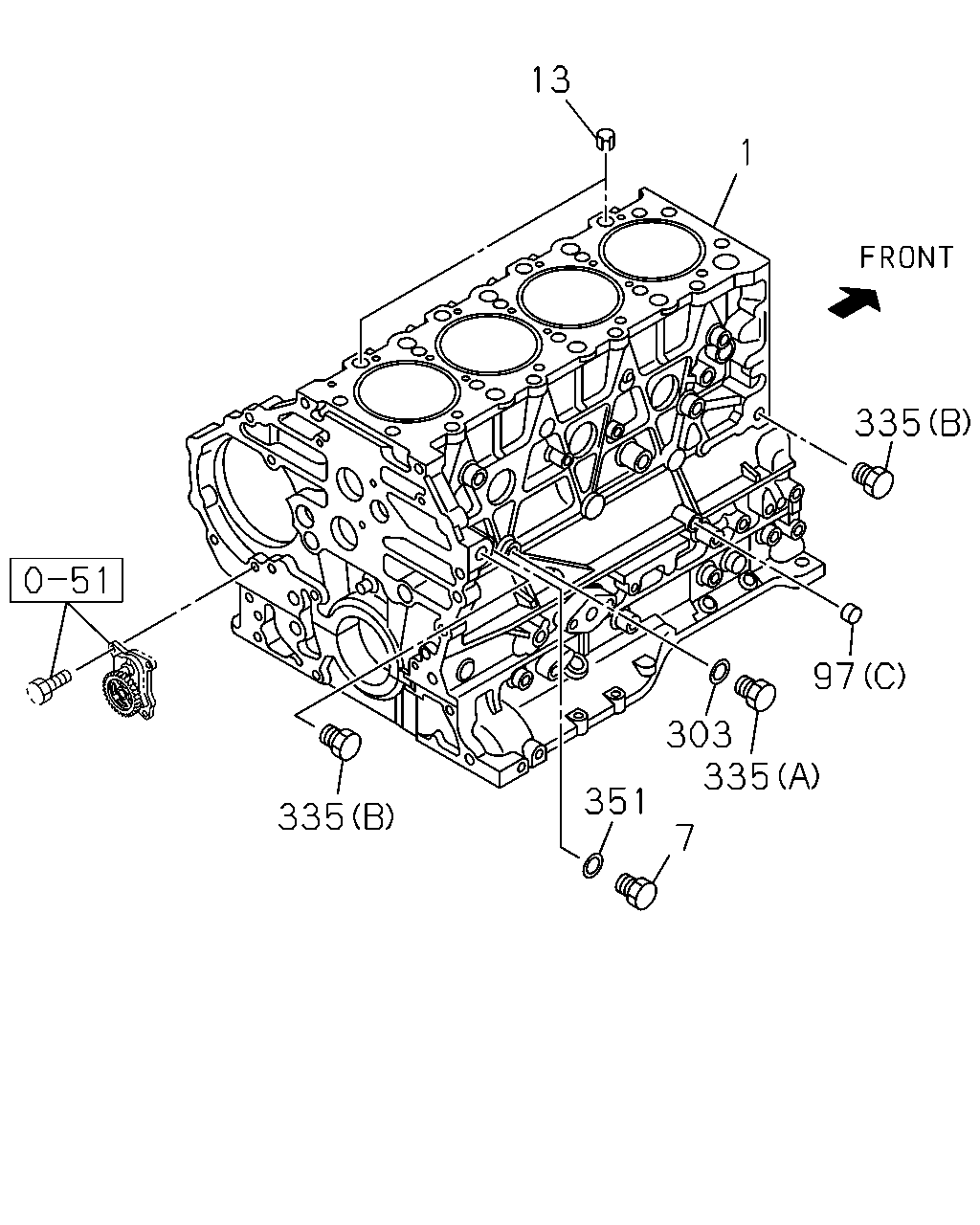

çizim 181638
13 1 335 97 303 335 351 335 7
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
FSS STD CAB(FC****) 		8-98046-721-0 01 1 0712-0811
1 BLOCK ASM; CYL 8-98046-721-3 01 1 0812-1209
1 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405
1 BLOCK ASM; CYL 8-98204-528-0 01 1 1406-
7 PLUG; WATER DRAIN
FSS STD CAB(FC****) M10X10 		8-97352-537-0 01 1 0712-0811
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0812-
13 DOWEL; C/BL TO HD
FSS STD CAB(FC****) OD=18.15 		8-94399-688-1 02 1 0712-0811
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0812-
97 CUP; SEALING
FSS STD CAB(FC****) (A) OD=16 		5-11129-006-0 01 1 0712-0811
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 0812-
97 CUP; SEALING
FSS STD CAB(FC****) (C) OD=12 		8-97036-335-1 01 1 0712-0811
97 CUP; SEALING
(C) OD=12 		8-97036-335-1 01 1 0812-
97 CUP; SEALING
FSS STD CAB(FC****) (B) OD=22 		8-97209-609-0 03 1 0712-0811
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 0812-
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=14.2 OD=19.2 		1-09630-085-0 01 1 0712-0811
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		1-09630-085-0 01 1 0812-1312
303 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 		8-98251-345-0 01 1 1401-
335 PLUG; C/BL,SIDE
FSS STD CAB(FC****) (A) M14X18 		0-20801-418-0 01 1 0712-0805
335 PLUG; C/BL,SIDE
FSS STD CAB(FC****) (A) M14X18 		8-98038-403-0 01 1 0806-0811
335 PLUG; C/BL,SIDE
(A) M14X18 		8-98038-403-0 01 1 0812-
335 PLUG; C/BL,SIDE
FSS STD CAB(FC****) (B) M14X16.5 		8-97018-606-0 02 1 0712-0712
335 PLUG; C/BL,SIDE
FSS STD CAB(FC****) (B) M14X16.5 		8-97329-617-0 02 1 0801-0811
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 02 1 0812-
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0712-0811
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0812-

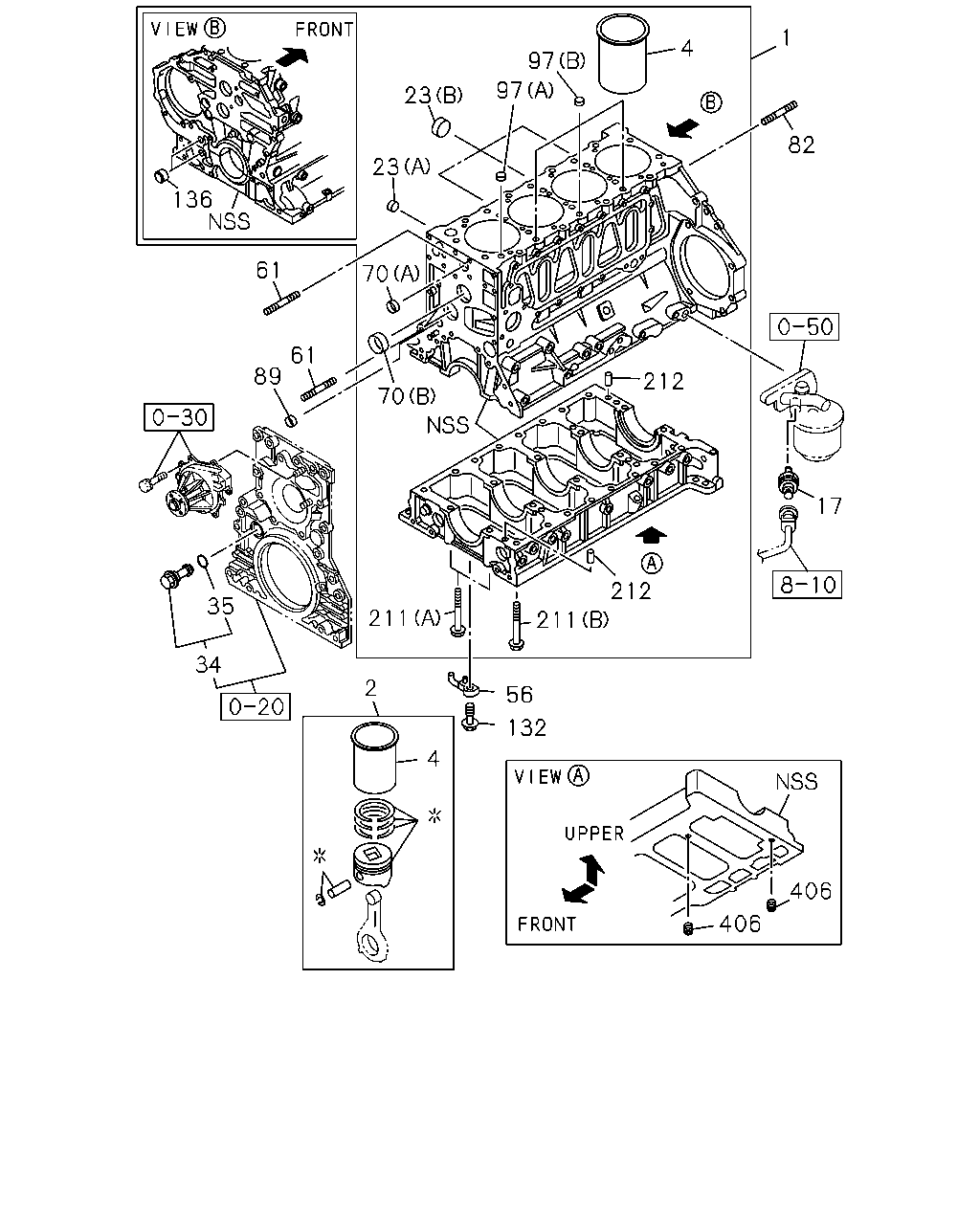

çizim 181651
1 4 97 97 23 82 23 136 61 70 61 89 212 70 17 212 35 211 211 34 2 56 132 4 406 406
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL
FSS STD CAB(FC****) 		8-98046-721-0 01 1 0712-0811
1 BLOCK ASM; CYL 8-98046-721-3 01 1 0812-1209
1 BLOCK ASM; CYL 8-98204-529-0 01 1 1210-1405
1 BLOCK ASM; CYL 8-98204-528-0 01 1 1406-
2 LINER SET; ENG CYL
FSS STD CAB(FC****) GRADE=1X 		1-87813-119-1 04 1 0712-0811
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-119-6 04 1 0812-1405
2 LINER SET; ENG CYL
GRADE=1X 		1-87814-726-0 04 1 1406-
2 LINER SET; ENG CYL
FSS STD CAB(FC****) GRADE=3X 		1-87813-120-1 04 1 0712-0811
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-120-6 04 1 0812-1405
2 LINER SET; ENG CYL
GRADE=3X 		1-87814-727-0 04 1 1406-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) OD GRADE=1X,ID GRADE=NON 		8-98014-046-0 04 1 0712-0811
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-98014-046-1 04 1 0812-1405
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-602-1 04 1 1406-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. FSS STD CAB(FC****) OD GRADE=3X,ID GRADE=NON 		8-98014-047-0 04 1 0712-0811
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-98014-047-1 04 1 0812-1405
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-603-1 04 1 1406-
17 SWITCH; OIL PRESSURE
FSS STD CAB(FC****) 		8-97176-230-0 01 1 0712-0811
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0812-
23 CUP; SEALING,C/BL FRT & RR
FSS STD CAB(FC****) (A) OD=25 		1-09600-016-0 01 1 0712-0811
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0812-
23 CUP; SEALING,C/BL FRT & RR
FSS STD CAB(FC****) (B) OD=45 		8-97036-550-1 03 1 0712-0811
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0812-
34 VALVE; OIL RELIEF
FSS STD CAB(FC****) 		8-97328-859-0 01 1 0712-0811
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 0812-
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). FSS STD CAB(FC****) ID=23.3 		8-94173-412-0 01 1 0712-0811
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3 		8-94173-412-0 01 1 0812-
56 JET; OIL,PISTON COOLING
FSS STD CAB(FC****) 		8-98020-649-0 04 1 0712-0811
56 JET; OIL,PISTON COOLING 8-98020-649-0 04 1 0812-1007
56 JET; OIL,PISTON COOLING 8-98173-342-0 04 1 1008-
61 PIN; STRAIGHT
FSS STD CAB(FC****) L=22 		8-94483-674-0 04 1 0712-0811
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0812-
70 CUP; SEALING,FRT & RR
FSS STD CAB(FC****) (A) OD=25 		1-09600-016-0 01 1 0712-0811
70 CUP; SEALING,FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0812-
70 CUP; SEALING,FRT & RR
FSS STD CAB(FC****) (B) OD=40 		8-97096-824-0 04 1 0712-0811
70 CUP; SEALING,FRT & RR
(B) OD=40 		8-97096-824-0 04 1 0812-
82 STUD; FLYWHEEL HSG
POWER TAKE OFF-FLYWHEEL(6SZ) M8X50 L=61 		8-94109-890-0 02 1 0712-
89 CUP; SEALING,OIL GALLERY
FSS STD CAB(FC****) OD=20 		9-11129-128-0 03 1 0712-0811
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0812-
97 CUP; SEALING
FSS STD CAB(FC****) (A) OD=16 		5-11129-006-0 01 1 0712-0811
97 CUP; SEALING
(A) OD=16 		5-11129-006-0 01 1 0812-
97 CUP; SEALING
FSS STD CAB(FC****) (C) OD=12 		8-97036-335-1 01 1 0712-0811
97 CUP; SEALING
(C) OD=12 		8-97036-335-1 01 1 0812-
97 CUP; SEALING
FSS STD CAB(FC****) (B) OD=22 		8-97209-609-0 03 1 0712-0811
97 CUP; SEALING
(B) OD=22 		8-97209-609-0 03 1 0812-
132 VALVE; CHECK,OIL
FSS STD CAB(FC****) M10X18.5 		8-97329-618-0 04 1 0712-0811
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0812-
136 BUSHING; DRIVE SHAFT,OIL PUMP
FSS STD CAB(FC****) 		8-94393-596-1 02 1 0712-0811
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0812-0812
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-
211 BOLT; CRANKCASE
FSS STD CAB(FC****) (B) M10X82 		8-94399-553-2 17 1 0712-0811
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0812-
211 BOLT; CRANKCASE
FSS STD CAB(FC****) (A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0712-0811
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0812-
212 PIN; CRANKCASE
FSS STD CAB(FC****) OD=10 L=20 		8-97135-423-0 02 1 0712-0811
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0812-
406 PLUG; CRANK CASE
FSS STD CAB(FC****) PT3/8 		5-09605-005-0 02 1 0712-0811
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 0812-
