Isuzu WW
▶
TRUCKS
▶
FSR
▶
11123 - FSR(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶

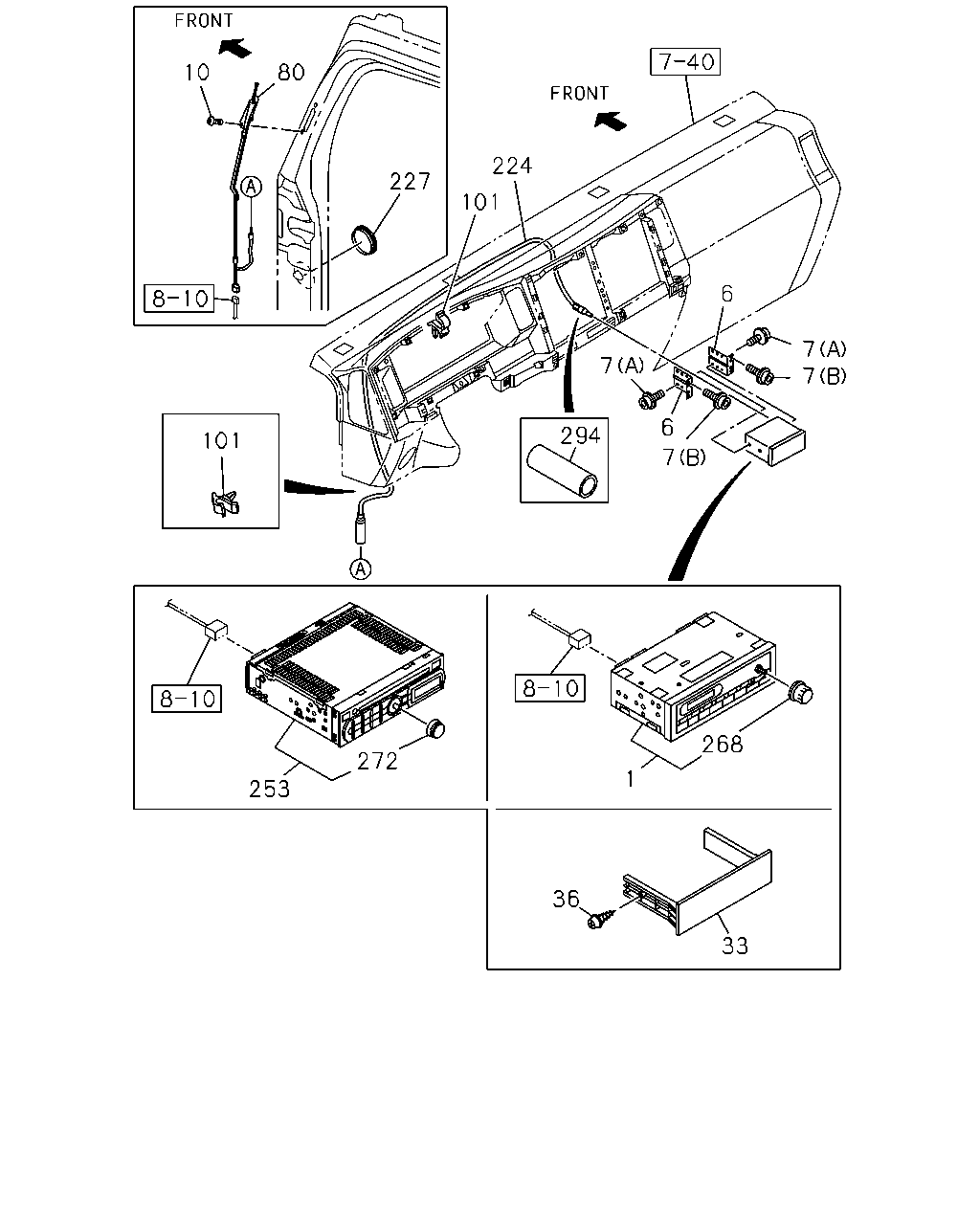

8-90 — RADIO AND TV
(#37683) — 21 parça
◀

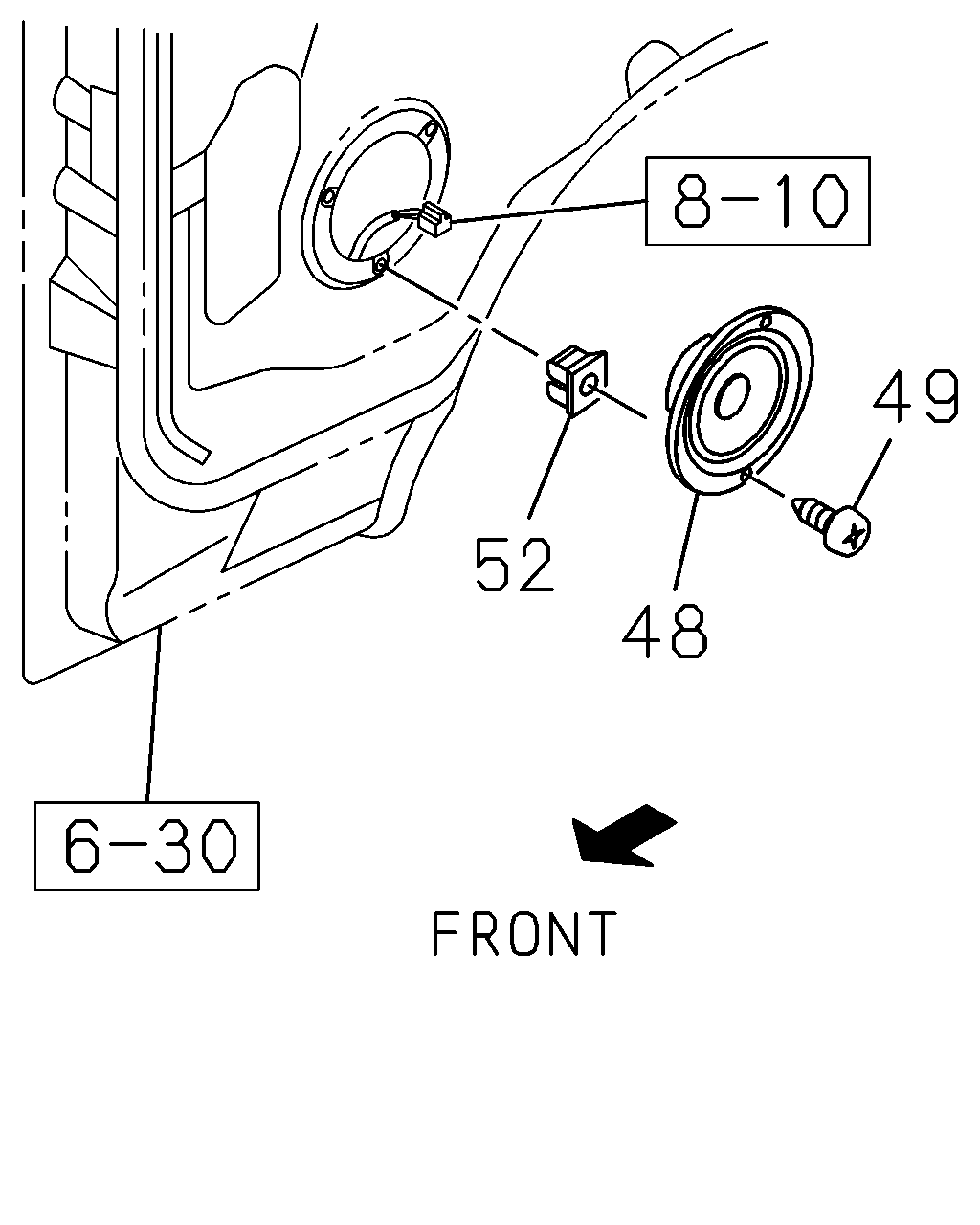

[890A] NO.2 (3 parça)
[890A] NO.1 (18 parça)
▶
49
52
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95>
8-97317-001-1
02
1
0809-
49
SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
0809-
52
GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5
8-94279-078-0
06
1
0809-
10
80
224
227
101
6
7
7
7
6
294
101
7
268
272
1
253
36
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RADIO
RADIO AM/FM<U69>
8-98032-643-0
01
1
0809-
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
0809-
7
SCREW; RADIO
(B) M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
0809-
7
SCREW; RADIO
RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> (A) M5X7 HEXALOBULAR SOCKET
8-98063-767-0
04
1
0809-
10
SCREW; ANTENNA CABLE
M5X11
1-09981-536-1
02
1
0809-
33
COVER; RADIO
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> BLACK
8-97407-896-2
01
1
0809-
36
SCREW; COVER
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69> T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
0809-
80
ANTENNA
8-98074-576-1
01
1
0809-0904
80
ANTENNA
8-98139-014-0
01
1
0905-
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
03
1
0809-
224
CABLE; EXT,FEEDER
8-98063-002-1
01
1
0809-
227
PROTECTOR; EDGE
8-98053-117-0
01
1
0809-0904
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> TUNER BAND LATIN AMERICA<7DM>
8-98112-329-0
01
1
0911-
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3>
8-98017-752-0
01
1
0809-0910
253
DECK ASM; RADIO & CD
RADIO AM/FM STEREO CD<UT3> EXC. TUNER BAND LATIN AMERICA<7DM>
8-98017-752-0
01
1
0911-
268
KNOB; VOL
RADIO AM/FM<U69> CLARION
8-97375-820-0
01
1
0809-
272
KNOB; AUDIO CONTROL
RADIO AM/FM STEREO CD<UT3> CLARION
8-98048-329-0
01
1
0809-
294
CAP; ANTENNA CABLE
EXC. RADIO AM/FM STEREO CD<UT3>,RADIO AM/FM<U69>
8-98095-617-1
01
1
0809-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
