8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-71 - COMPRESSOR; AIR CONDITIONING
▶
8-71 — COMPRESSOR; AIR CONDITIONING
(#37679) — 28 parça
◀

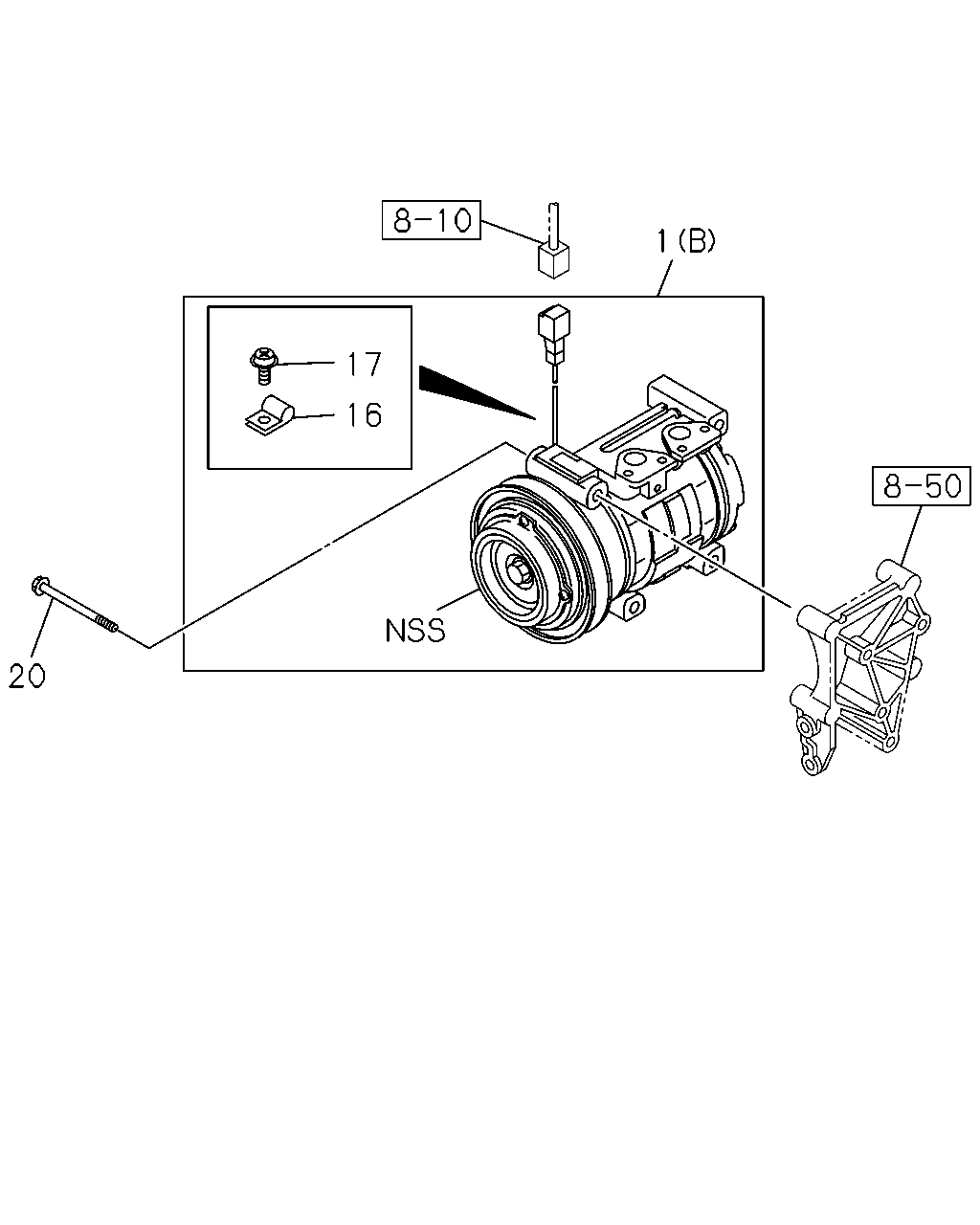

[871A] 6HK1 (13 parça)

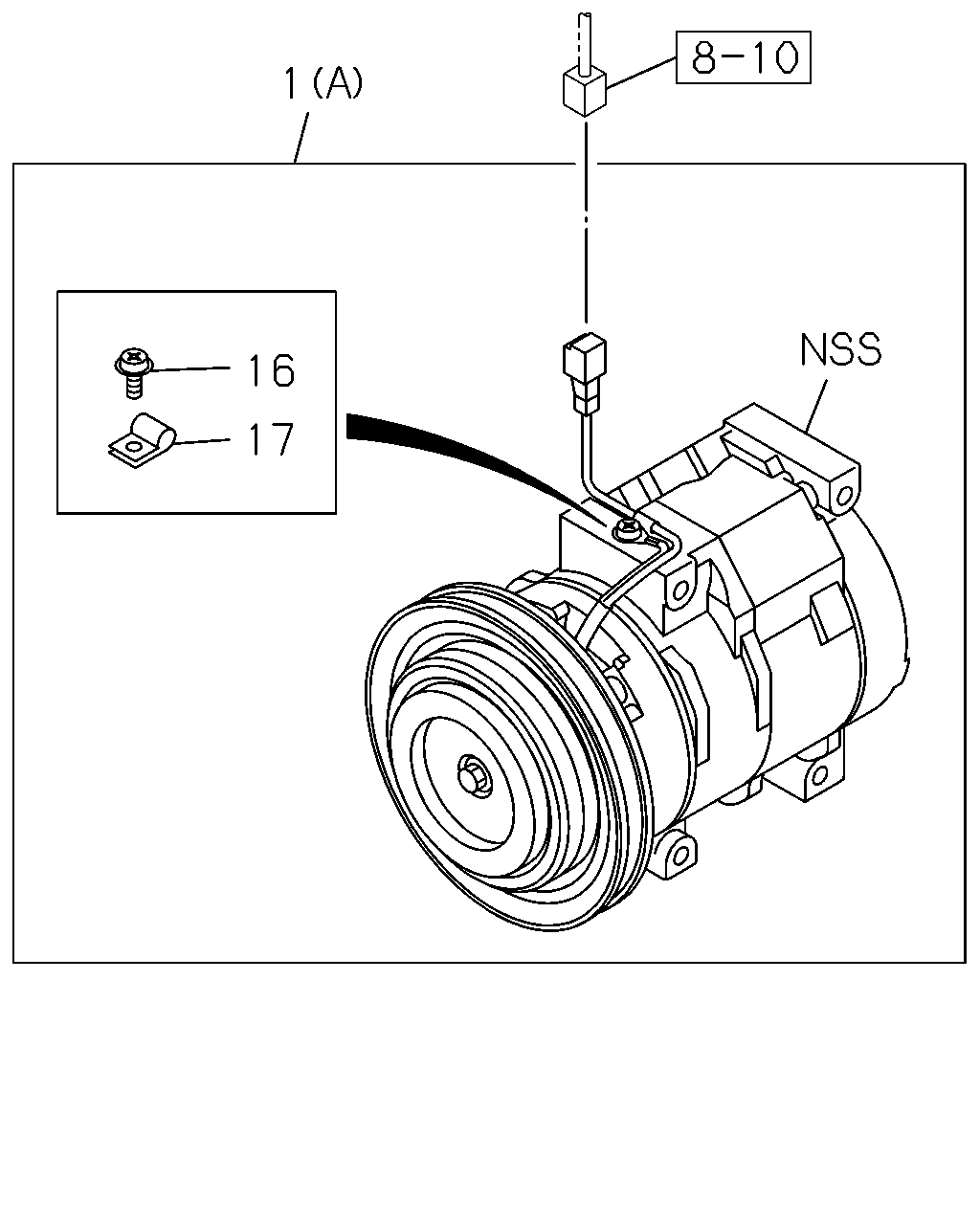

[871A] 4HK1 (15 parça)
▶
1
16
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) (B)
1-83532-326-1
01
1
1012-1306
1
COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83532-326-1
01
1
1307-
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83532-328-0
01
1
0809-0910
1
COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83532-328-0
01
1
0911-
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0809-0910
16
CLIP; WIRE,MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0911-1011
16
CLIP; WIRE,MAGNET CLU
4HK1-TCS ENG(RJS)
1-83579-893-0
01
1
1012-1306
16
CLIP; WIRE,MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
1012-1306
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
1307-
17
SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS)
5-81129-130-0
02
1
1012-1306
17
SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
02
1
1307-
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0809-0910
17
SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0911-
1
17
16
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) (B)
1-83532-326-1
01
1
1012-1306
1
COMPRESSOR ASM; A/C
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (B)
1-83532-326-1
01
1
1307-
1
COMPRESSOR ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83532-328-0
01
1
0809-0910
1
COMPRESSOR ASM; A/C
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) (A)
1-83532-328-0
01
1
0911-
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0809-0910
16
CLIP; WIRE,MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
0911-1011
16
CLIP; WIRE,MAGNET CLU
4HK1-TCS ENG(RJS)
1-83579-893-0
01
1
1012-1306
16
CLIP; WIRE,MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
1012-1306
16
CLIP; WIRE,MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
1-83579-893-0
01
1
1307-
17
SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS)
5-81129-130-0
02
1
1012-1306
17
SCREW; WIRE CLIP MAGNET CLU
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
02
1
1307-
17
SCREW; WIRE CLIP MAGNET CLU
AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0809-0910
17
SCREW; WIRE CLIP MAGNET CLU
6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60)
5-81129-130-0
01
1
0911-
20
BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE
1-09044-073-0
04
1
1102-
20
BOLT; CMPR
4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) M8X75 FLANGE
1-09044-073-0
04
1
1012-
