Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#37668) — 593 parça

14 16 22 48 206 305 14 48 194 206 217 225 81 225 14 14 14 16 305 14 16 102 208 48 225 1 1 305 178 178 503 503 503 530 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

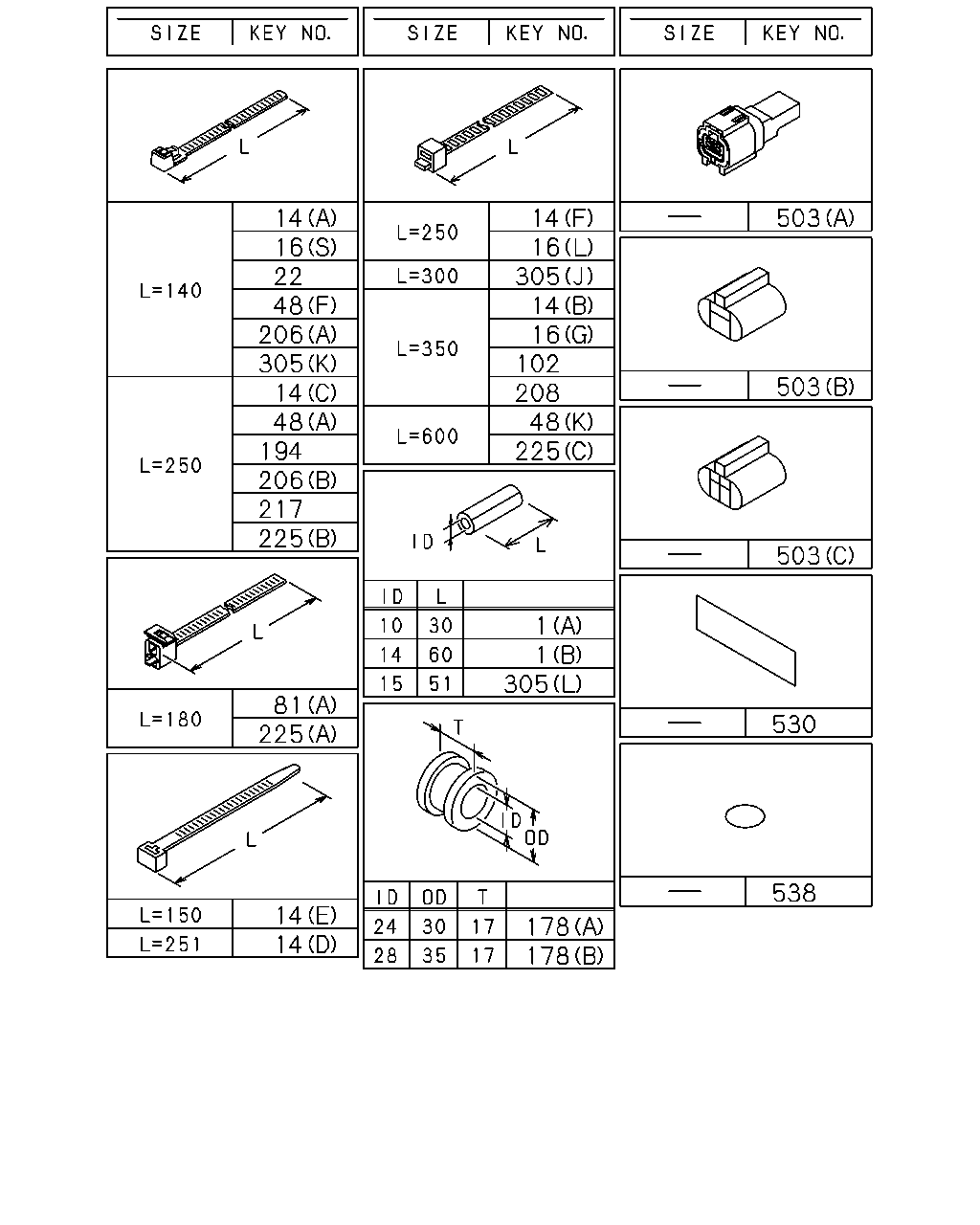

1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0809-1011
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1012-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	0809-1011
1	SLEEVE; RUBBER 6HK1-TCN ENG(82L) (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1012-

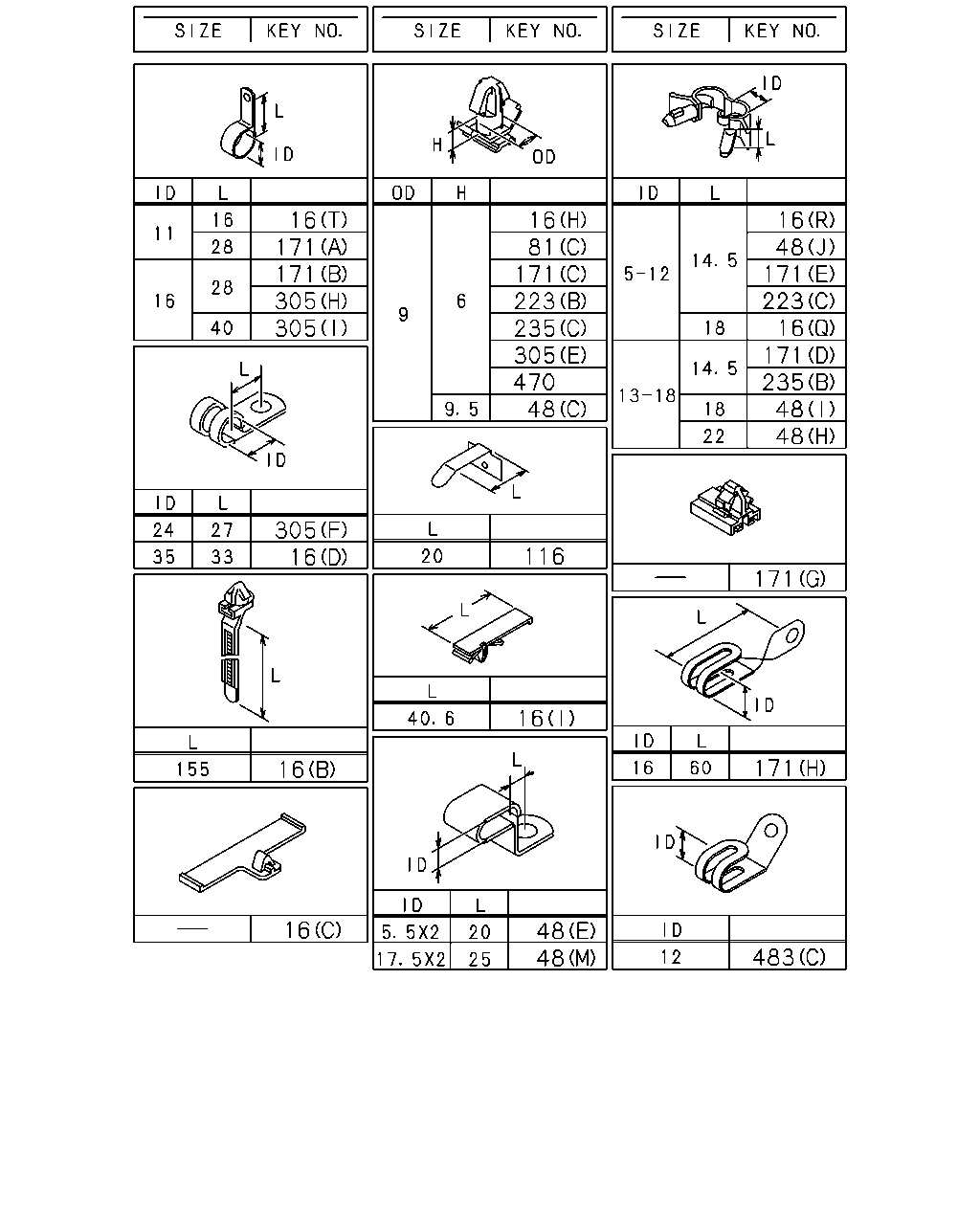

14	CLIP; BAND,HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) L=250	1-09707-126-0	02	1	1510-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) GLOW SYSTEM DELETE<7RK> (A) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) GLOW SYSTEM DELETE<7RK> (C) L=250	8-98216-430-0	01	1	1312-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (D) L=251	8-97619-917-0	01	1	1102-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) AIR CONDITIONER MANUAL CONTROL(C60) (A) L=140	5-09707-031-1	02	1	1102-1107
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=140	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (C) L=250	5-09707-030-1	02	1	1012-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (A) L=140	5-09707-031-1	04	1	1012-
14	CLIP; BAND,HARNESS 4HK1-TCS ENG(RJS) (E) L=150	8-97355-273-0	01	1	1012-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	0809-1011
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (B) L=350	1-09707-183-0	01	1	1012-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	08	1	0809-1011
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	5-09707-030-1	08	1	1012-1205
14	CLIP; BAND,HARNESS (C) L=250	8-98216-430-0	08	1	1206-1311
14	CLIP; BAND,HARNESS 6HK1-TCN ENG(82L) (C) L=250	8-98216-430-0	08	1	1312-
14	CLIP; BAND,HARNESS (A) L=140	5-09707-031-1	01	1	0809-1109

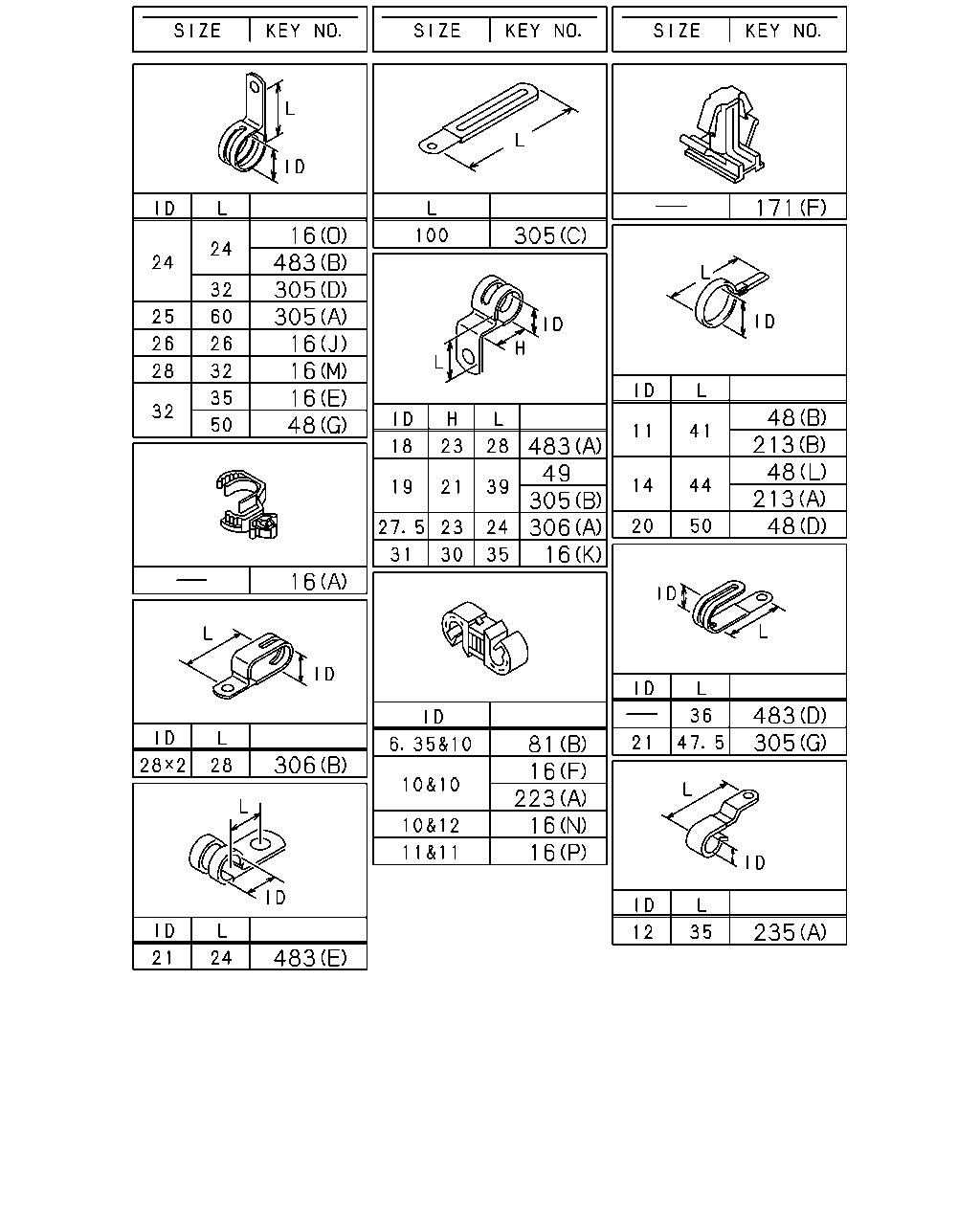

16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (Q) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=5-12 L=14.5	1-09987-221-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (S) L=140	5-09707-031-1	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	04	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) ID=28 L=32	1-09701-107-1	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (K) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) L=250	1-09707-126-0	02	1	1012-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=10 & 10	1-09709-277-1	04	1	1012-1012
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=10 & 12	1-09709-278-1	01	1	1012-1012
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0809-1005
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (D) ID=35 L=33	1-09700-945-0	01	1	1006-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0809-1101
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (G) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0809-0811
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0812-
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=32 L=35	1-09701-244-0	01	1	0809-0811
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	0812-
22	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) L=140	5-09707-031-1	02	1	1012-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1510-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (M) ID=17.5X2 L=25	5-09700-358-0	01	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	0907-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	15	1	0809-0902
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-0811
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0812-1509
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1510-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0809-0809
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=600	1-09707-107-1	01	1	0810-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0809
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0810-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	0809-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	02	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	12	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	10	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (L) ID=14 L=44	9-09917-427-0	13	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	14	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (L) ID=14 L=44	9-09917-427-0	15	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. ECUADOR EQUIPMENT(E46) (L) ID=14 L=44	9-09917-427-0	15	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (L) ID=14 L=44	9-09917-427-0	15	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	13	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	0809-0910
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	0911-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	17	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	0809-0906
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-1010
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1011-
102	CLIP; BAND L=350	1-09707-183-0	01	1	0809-0911
178	GROMMET; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1510-
178	GROMMET; HARNESS 4HK1-TCS ENG(RJS) (A) ID=24 OD=30 T=17	9-09956-092-1	01	1	1012-1012
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	0809-0811
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-1509
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	0812-1509
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1510-
178	GROMMET; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1510-
178	GROMMET; HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (B) ID=28 OD=35 T=17	9-09956-256-2	02	1	1510-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	04	1	0809-0811
178	GROMMET; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-
194	CLIP; BAND L=250	5-09707-030-1	01	1	0809-1011
194	CLIP; BAND 6HK1-TCN ENG(82L) L=250	5-09707-030-1	01	1	1012-
206	CLIP; FUEL TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	01	1	0809-0901
206	CLIP; FUEL TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	03	1	0902-
206	CLIP; FUEL TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	02	1	0809-0901
206	CLIP; FUEL TANK HARNESS WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=140	5-09707-031-1	02	1	0809-0810
206	CLIP; FUEL TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=140	5-09707-031-1	03	1	0811-
206	CLIP; FUEL TANK HARNESS WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=140	5-09707-031-1	03	1	0809-0810
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	0809-
217	CLIP; RR BODY HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> EXC. REVERSING WARNING BUZZER<YM9> L=250	5-09707-030-1	01	1	1510-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0809-0811
217	CLIP; RR BODY HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> L=250	5-09707-030-1	02	1	0809-0811
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0812-
225	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	06	1	0809-
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=180	1-09707-162-1	01	1	0809-
225	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) L=250	5-09707-030-1	01	1	0809-1011
225	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) L=600	1-09707-107-1	01	1	0809-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) L=300	1-09707-001-1	01	1	1102-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	02	1	1102-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-1311
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	02	1	1312-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (L) L=51	1-11369-157-0	01	1	1012-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0809-0910
503	CONNECTOR 6HK1-TCN ENG(82L) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B)	1-82690-668-0	01	1	0911-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0809-0811
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	0812-
503	CONNECTOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. AIR DRYER<PS7> (C)	1-82690-666-0	01	1	0809-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0809-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0809-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0809-

137 137 137 137 137 137 137 308 308 308 308 312 324 324 335 428 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

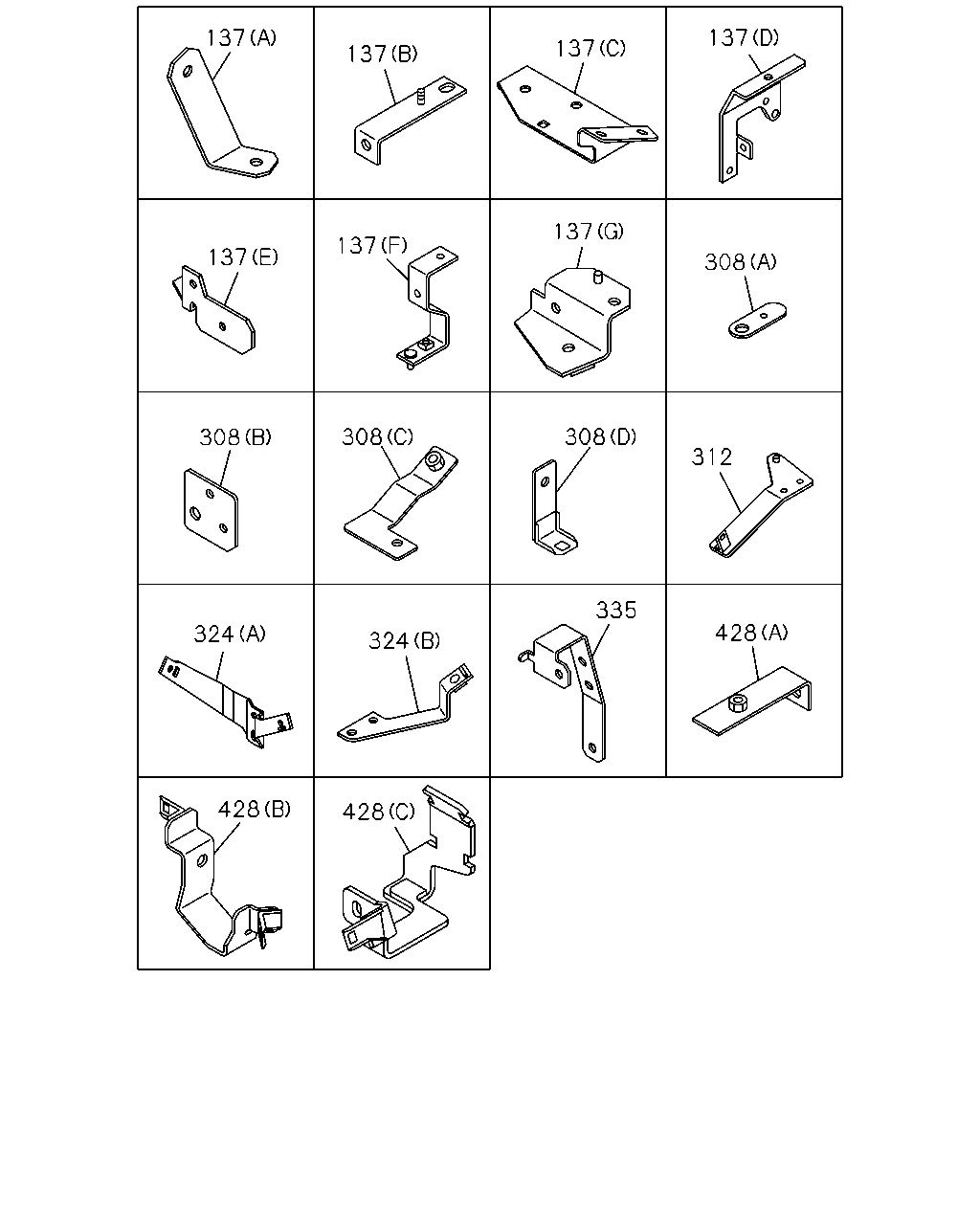

137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (D)	8-97618-098-2	01	1	1510-
137	BRACKET; HARNESS CLAMP ANTI LOCK BRAKE(JE5) (F)	8-98065-904-0	01	1	1510-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) (G)	8-98058-354-1	01	1	1510-
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (E)	8-98059-231-1	01	1	1510-
137	BRACKET; HARNESS CLAMP 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-97616-565-1	01	1	1012-
137	BRACKET; HARNESS CLAMP (A)	8-97614-728-1	01	1	0809-1011
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (A)	8-97614-728-1	01	1	1012-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	0809-1011
137	BRACKET; HARNESS CLAMP 6HK1-TCN ENG(82L) (B)	8-97624-013-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (A)	8-97601-310-0	02	1	1012-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98021-692-1	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (B)	8-98021-692-1	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98032-178-0	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (C)	8-98032-178-0	01	1	1012-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98075-824-0	01	1	0809-1011
308	BRACKET; CLIP,ENG HARNESS 6HK1-TCN ENG(82L) (D)	8-98075-824-0	01	1	1012-
312	BRACKET; CLIP HARNESS 4HK1-TCS ENG(RJS)	8-98143-865-0	01	1	1012-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-648-1	01	1	1510-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98051-649-1	01	1	1510-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-653-2	01	1	1510-
324	BRACKET; CLIP ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98061-654-2	01	1	1510-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	0809-
428	BRACKET 4HK1-TCS ENG(RJS) (C)	8-98151-455-3	01	1	1012-
428	BRACKET (B)	8-98090-952-0	01	1	0809-1011
428	BRACKET 6HK1-TCN ENG(82L) (B)	8-98090-952-0	01	1	1012-
428	BRACKET EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-47475-519-0	01	1	0809-

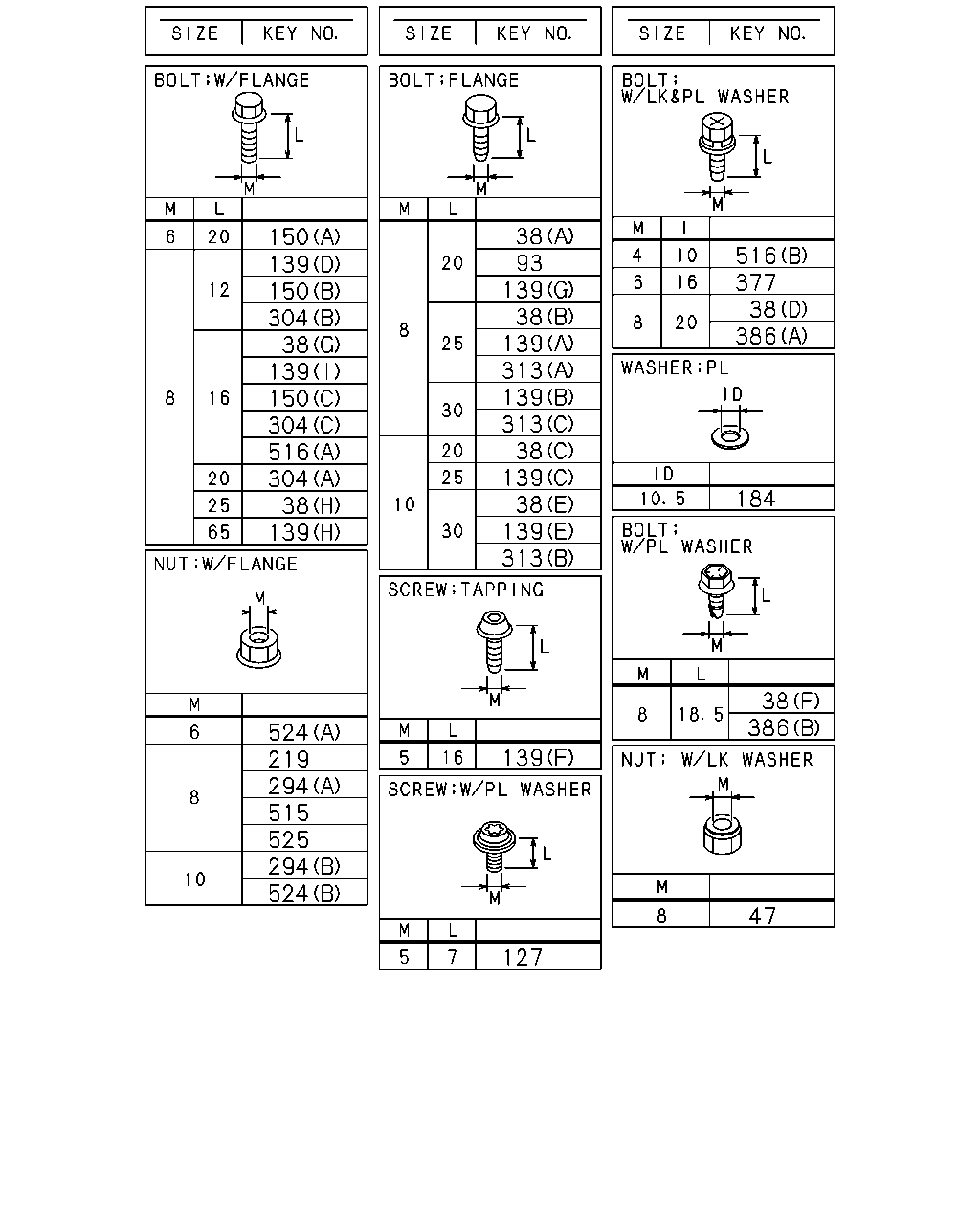

150 150 38 150 516 38 139 304 139 304 304 139 524 219 294 515 525 294 524 38 38 93 139 139 313 313 139 38 38 139 313 139 139 127 516 38 377 386 184 38 386 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (G) M8X16 FLANGE	0-28050-816-0	03	1	1510-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) M8X25 FLANGE	0-28050-825-0	02	1	1510-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-0906
38	BOLT; CLIP,HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	01	1	0809-0906
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0907-1509
38	BOLT; CLIP,HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	01	1	0907-1509
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28650-820-0	01	1	1510-
38	BOLT; CLIP,HARNESS ANTI LOCK BRAKE(JE5) (A) M8X20 FLANGE	0-28650-820-0	01	1	1510-
38	BOLT; CLIP,HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X20 FLANGE	0-28650-820-0	01	1	1510-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0809-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	03	1	0809-1011
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) (B) M8X25 FLANGE	0-28650-825-0	03	1	1012-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE	0-28651-030-0	01	1	0809-0811
38	BOLT; CLIP,HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) M10X30 FLANGE	0-28651-030-0	01	1	0812-
38	BOLT; CLIP,HARNESS (D) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0809-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) M10X20 FLANGE	0-28751-020-0	01	1	0809-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
93	BOLT; ECM HARNESS CLIP 4HK1-TCS ENG(RJS) M8X20 FLANGE	0-28650-820-0	02	1	1102-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0809-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (I) M8X25 FLANGE	0-28050-825-0	02	1	1510-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (A) M8X25 FLANGE	0-28650-825-0	02	1	1510-
139	BOLT; BRKT ANTI LOCK BRAKE(JE5) (B) M8X30 FLANGE	0-28650-830-0	04	1	1510-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	1102-
139	BOLT; BRKT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (G) M8X20 FLANGE	0-28650-820-0	01	1	1012-
139	BOLT; BRKT (D) M8X12 FLANGE	0-28050-812-0	01	1	0809-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
139	BOLT; BRKT 6HK1-TCN ENG(82L) (A) M8X25 FLANGE	0-28650-825-0	01	1	0809-0809
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-0906
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	0810-0906
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	0907-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0812
139	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 FLANGE	0-28650-830-0	02	1	0809-0812
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0809-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28651-030-0	02	1	0809-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0809-
139	BOLT; BRKT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 FLANGE	0-28650-830-0	03	1	0809-0812
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-
139	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M8X30 FLANGE	0-28650-830-0	02	1	0901-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (A) M6X20 FLANGE	0-28050-620-0	01	1	1012-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (B) M8X12 FLANGE	0-28050-812-0	01	1	1012-
150	BOLT; CLIP 4HK1-TCS ENG(RJS) (C) M8X16 FLANGE	0-28050-816-0	02	1	1012-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0809-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0809-1509
219	NUT M8 FLANGE	0-91180-108-0	01	1	1510-
219	NUT ANTI LOCK BRAKE(JE5) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	1510-
294	NUT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	1510-
294	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	05	1	1510-
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	0901-1011
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509
294	NUT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1012-1509
294	NUT 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT 4HK1-TCS ENG(RJS) (A) M8 FLANGE	0-91180-108-0	01	1	1510-
294	NUT (B) M10 FLANGE	0-91180-210-0	03	1	0809-0811
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0809-0811
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	0812-0906
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	0812-0906
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-0906
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	0907-1011
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	0907-1011
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0907-1011
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	1012-1012
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1012-1012
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1012-1012
294	NUT 6HK1-TCN ENG(82L) (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	1012-
294	NUT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	03	1	0809-0810
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0811-0812
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0901-1509
294	NUT 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	04	1	1510-
294	NUT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8 FLANGE	0-91180-108-0	02	1	0809-0810
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	0809-1011
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (B) M8X12 FLANGE	0-28050-812-0	06	1	1012-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE	0-28050-816-0	04	1	0809-1011
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (C) M8X16 FLANGE	0-28050-816-0	04	1	1012-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	0809-1011
304	BOLT; ENG HARNESS CLIP 6HK1-TCN ENG(82L) (A) M8X20 FLANGE	0-28050-820-0	04	1	1012-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (C) M8X30 FLANGE	0-28650-830-0	01	1	1012-
313	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	0811-1011
313	BOLT; BRKT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
313	BOLT; BRKT 4HK1-TCS ENG(RJS) (A) M8X25 FLANGE	0-28650-825-0	01	1	1012-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0809-0811
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE	0-28651-030-0	01	1	0812-0906
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0812-0906
313	BOLT; BRKT 6HK1-TCN ENG(82L) (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0907-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	0809-0811
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0809-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0809-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
515	NUT; BRKT 4HK1-TCS ENG(RJS) M8 FLANGE	0-91180-108-0	01	1	1102-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0809-1011
516	BOLT; HARNESS 6HK1-TCN ENG(82L) (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1012-
516	BOLT; HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) M8X16 FLANGE	0-28050-816-0	02	1	0809-
524	NUT; HARNESS 4HK1-TCS ENG(RJS) (B) M10 FLANGE	0-91180-110-0	01	1	1102-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0809-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0809-1011
525	NUT; CLIP 6HK1-TCN ENG(82L) M8 FLANGE	0-91180-108-0	02	1	1012-

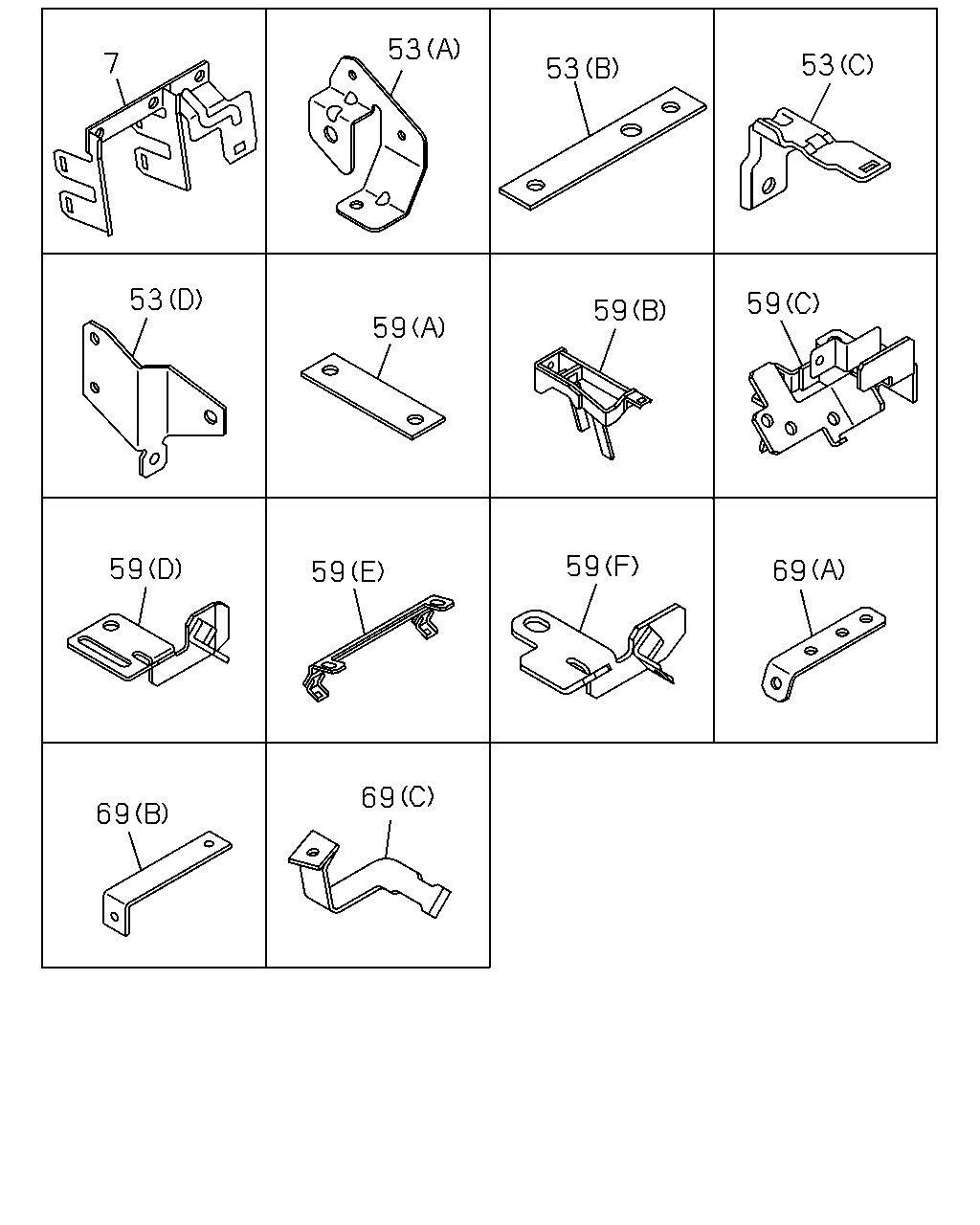

7 53 53 53 53 59 59 59 59 59 69 69 69 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0809-
53	BRACKET; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98047-890-0	01	1	1510-
53	BRACKET; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D)	8-98047-891-0	01	1	1510-
53	BRACKET; HARNESS (B) L=170	1-47479-380-0	01	1	0809-
53	BRACKET; HARNESS (C)	8-98052-458-0	01	1	0809-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0809-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-97619-535-0	01	1	1012-1401
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (C)	8-97622-828-0	01	1	1402-
59	BRACKET; FRAME HARNESS 4HK1-TCS ENG(RJS) (B)	8-98099-963-0	01	1	1012-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	0809-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (A) L=85	8-98044-743-0	01	1	0809-0809
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=85	8-98044-743-0	01	1	0810-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0809-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	0809-1011
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) (C)	8-97619-534-0	01	1	1012-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B)	8-97627-325-0	01	1	0809-
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MZX6P M/T(RSW) (B)	8-97609-264-2	01	1	0809-0906
59	BRACKET; FRAME HARNESS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	0907-
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	0809-0812
69	BRACKET; CLIP (B) L=95	1-82699-085-0	01	1	0901-
69	BRACKET; CLIP (C)	8-97616-357-3	01	1	0809-1011
69	BRACKET; CLIP 6HK1-TCN ENG(82L) (C)	8-97616-357-3	01	1	1012-

16 483 305 305 16 16 16 48 16 306 483 305 483 49 305 306 16 81 16 223 16 16 171 48 213 48 213 48 483 305 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (Q) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=5-12 L=14.5	1-09987-221-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (S) L=140	5-09707-031-1	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	04	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) ID=28 L=32	1-09701-107-1	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (K) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) L=250	1-09707-126-0	02	1	1012-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=10 & 10	1-09709-277-1	04	1	1012-1012
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=10 & 12	1-09709-278-1	01	1	1012-1012
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0809-1005
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (D) ID=35 L=33	1-09700-945-0	01	1	1006-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0809-1101
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (G) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0809-0811
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0812-
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=32 L=35	1-09701-244-0	01	1	0809-0811
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	0812-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1510-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (M) ID=17.5X2 L=25	5-09700-358-0	01	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	0907-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	15	1	0809-0902
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-0811
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0812-1509
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1510-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0809-0809
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=600	1-09707-107-1	01	1	0810-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0809
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0810-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	0809-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	02	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	12	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	10	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (L) ID=14 L=44	9-09917-427-0	13	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	14	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (L) ID=14 L=44	9-09917-427-0	15	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. ECUADOR EQUIPMENT(E46) (L) ID=14 L=44	9-09917-427-0	15	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (L) ID=14 L=44	9-09917-427-0	15	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	13	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	0809-0910
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	0911-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	17	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	0809-0906
49	CLIP; GEN HARNESS 4HK1-TCS ENG(RJS) ID=19 L=39 H=21	1-09700-972-1	01	1	1102-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-1010
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1011-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (H)	8-97101-436-0	01	1	1102-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (G) OD=8 H=3.8	1-09709-309-0	01	1	1012-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-0809
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
213	CLIP; END CROSS HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (B) ID=11 L=41	1-09700-403-0	02	1	1510-
213	CLIP; END CROSS HARNESS ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (A) ID=14 L=44	9-09917-427-0	03	1	1510-
213	CLIP; END CROSS HARNESS EXC. ECUADOR EQUIPMENT(E46) (A) ID=14 L=44	9-09917-427-0	03	1	1510-
213	CLIP; END CROSS HARNESS (A) ID=14 L=44	9-09917-427-0	03	1	0809-1509
213	CLIP; END CROSS HARNESS ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (A) ID=14 L=44	9-09917-427-0	07	1	1510-
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 10	1-09709-277-1	01	1	0809-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 10	1-09709-277-1	02	1	0809-0905
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0809-1011
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	03	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (C) OD=9 H=6	1-09709-178-0	01	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=12 L=35	5-09700-206-0	01	1	0809-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) L=300	1-09707-001-1	01	1	1102-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	02	1	1102-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-1311
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	02	1	1312-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (L) L=51	1-11369-157-0	01	1	1012-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0809-1011
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1012-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	0809-1011
306	CLIP; HARNESS,ELEC GOV 6HK1-TCN ENG(82L) (B) ID=28X2 L=28	1-09701-302-0	02	1	1012-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1012-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 L=24	1-09701-001-1	01	1	1012-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1012-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=36	8-94224-891-1	03	1	1012-

16 171 171 305 16 305 305 16 16 16 81 223 305 171 235 470 116 16 48 48 48 16 171 48 223 171 16 235 48 171 171 48 483

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) (P) ID=11X2 L=16	1-09700-734-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (Q) ID=5-12 L=18	1-09709-287-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=5-12 L=14.5	1-09987-221-0	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (S) L=140	5-09707-031-1	01	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (R) ID=5-12 L=14.5	1-09987-221-0	03	1	1510-
16	CLIP; HARNESS ANTI LOCK BRAKE(JE5) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	02	1	1510-
16	CLIP; HARNESS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (T) ID=11 L=16	0-95235-025-0	04	1	1510-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (O) ID=24 L=24	1-09701-001-1	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (M) ID=28 L=32	1-09701-107-1	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (K) ID=31 H=30 L=35	1-09700-994-0	01	1	1012-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (L) L=250	1-09707-126-0	02	1	1012-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (F) ID=10 & 10	1-09709-277-1	04	1	1012-1012
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (N) ID=10 & 12	1-09709-278-1	01	1	1012-1012
16	CLIP; HARNESS (D) ID=35 L=33	1-09700-945-0	01	1	0809-1005
16	CLIP; HARNESS 6HK1-TCN ENG(82L) (D) ID=35 L=33	1-09700-945-0	01	1	1006-
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	0809-1101
16	CLIP; HARNESS (G) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS 4HK1-TCS ENG(RJS) (G) L=350	1-09707-183-0	02	1	1102-
16	CLIP; HARNESS (F) ID=10 & 10	1-09709-277-1	01	1	0809-
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0809-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (B) L=155	8-97173-307-0	18	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (I) L=40.6	8-97229-357-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (I) L=40.6	8-97229-357-0	02	1	1203-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0809-1202
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87> (C)	8-98052-679-0	02	1	1203-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0809-0811
16	CLIP; HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. H.S.A SYSTEM<6EP> (H) OD=9 H=6	1-09709-178-0	01	1	0812-
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=32 L=35	1-09701-244-0	01	1	0809-0811
16	CLIP; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=26 L=26	1-09701-236-0	01	1	0812-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) (B) ID=11 L=41	1-09700-403-0	01	1	1510-
48	CLIP; FRAME HARNESS ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (M) ID=17.5X2 L=25	5-09700-358-0	01	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	0907-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	15	1	0809-0902
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	01	1	0809-1201
48	CLIP; FRAME HARNESS (L) ID=14 L=44	9-09917-427-0	01	1	1202-
48	CLIP; FRAME HARNESS (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0809-0811
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (E) ID=5.5X2 L=35	1-09700-974-0	01	1	0812-1509
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (E) ID=5.5X2 L=35	1-09700-974-0	01	1	1510-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	0809-
48	CLIP; FRAME HARNESS (K) L=600	1-09707-107-1	01	1	0809-0809
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (K) L=600	1-09707-107-1	01	1	0810-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0809-
48	CLIP; FRAME HARNESS (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0809-0809
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (J) ID=5-12 L=14.5	1-09987-221-0	02	1	0810-
48	CLIP; FRAME HARNESS (F) L=140	5-09707-031-1	02	1	0809-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0809-0901
48	CLIP; FRAME HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	04	1	0809-
48	CLIP; FRAME HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) L=250	5-09707-030-1	02	1	0809-0809
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	12	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (D) ID=20 L=50	9-09917-430-0	10	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) (L) ID=14 L=44	9-09917-427-0	10	1	1008-
48	CLIP; FRAME HARNESS WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	10	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (D) ID=20 L=50	9-09917-430-0	13	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) (L) ID=14 L=44	9-09917-427-0	13	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF> (L) ID=14 L=44	9-09917-427-0	13	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	14	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (D) ID=20 L=50	9-09917-430-0	15	1	0903-1007
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) (L) ID=14 L=44	9-09917-427-0	15	1	1008-1509
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. ECUADOR EQUIPMENT(E46) (L) ID=14 L=44	9-09917-427-0	15	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> (L) ID=14 L=44	9-09917-427-0	15	1	1510-
48	CLIP; FRAME HARNESS WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	13	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	0809-0910
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) ID=13-18 L=22	1-09709-292-0	01	1	0911-
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (D) ID=20 L=50	9-09917-430-0	17	1	0809-0902
48	CLIP; FRAME HARNESS WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (I) ID=13-18 L=18	1-09709-291-0	01	1	0809-0906
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	0809-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) L=180	1-09707-162-1	01	1	0809-0901
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (C) OD=9 H=6	1-09709-178-0	01	1	0809-1010
81	CLIP; HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1011-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	04	1	1510-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0809-1509
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE	1-09987-246-2	03	1	1510-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) (H)	8-97101-436-0	01	1	1102-
171	CLIP; STARTER HARNESS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ) (G) OD=8 H=3.8	1-09709-309-0	01	1	1012-
171	CLIP; STARTER HARNESS MLD6W M/T(Y2C) (F) OD=8.95 H=6.25	8-97375-754-0	01	1	0809-0809
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=11 L=28	0-95235-055-0	01	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (B) ID=16 L=28	0-95235-556-0	01	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (C) OD=9 H=6	1-09709-178-0	02	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	0809-
171	CLIP; STARTER HARNESS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 10	1-09709-277-1	01	1	0809-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A) ID=10 & 10	1-09709-277-1	02	1	0809-0905
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	0809-1011
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	03	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	0809-1011
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) OD=9 H=6	1-09709-178-0	01	1	1012-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
223	CLIP; AIR TANK HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0809-
223	CLIP; AIR TANK HARNESS HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
235	CLIP; HARNESS,SPD SENSOR,SSPS ANTI LOCK BRAKE(JE5) (B) ID=13-18 L=14.5	1-09709-290-0	01	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) ANTI LOCK BRAKE(JE5) (C) OD=9 H=6	1-09709-178-0	01	1	1510-
235	CLIP; HARNESS,SPD SENSOR,SSPS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C) (A) ID=12 L=35	5-09700-206-0	01	1	0809-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (J) L=300	1-09707-001-1	01	1	1102-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (K) L=140	5-09707-031-1	02	1	1102-
305	CLIP; ENG HARNESS (H) ID=16 L=28	0-95235-556-0	02	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (H) ID=16 L=28	0-95235-556-0	02	1	1012-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (I) ID=16 L=40	0-95235-576-0	01	1	1012-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (D) ID=24 L=32	1-09700-766-1	01	1	1012-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (F) ID=24 L=27	1-09700-809-0	03	1	1012-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1012-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (A) ID=25 L=60	1-09701-041-1	01	1	1012-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (E) OD=9 H=6	1-09709-178-0	01	1	1012-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (G) ID=21 L=47.5	8-94178-108-0	01	1	1012-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	0809-1011
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	01	1	1012-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-1311
305	CLIP; ENG HARNESS 6HK1-TCN ENG(82L) (C) L=100	8-94443-021-1	02	1	1312-
305	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (L) L=51	1-11369-157-0	01	1	1012-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0809-1509
470	CLIP; HARNESS,LICENSE LAMP ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF> OD=9 H=6	1-09709-178-0	01	1	1510-
470	CLIP; HARNESS,LICENSE LAMP EXC. ECUADOR EQUIPMENT(E46) OD=9 H=6	1-09709-178-0	01	1	1510-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (E) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1012-1112
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (B) ID=24 L=24	1-09701-001-1	01	1	1012-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (C) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	1012-
483	CLIP; ENG HARNESS 4HK1-TCS ENG(RJS) (D) L=36	8-94224-891-1	03	1	1012-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
