Sayfa 8-10 - Isuzu EPC

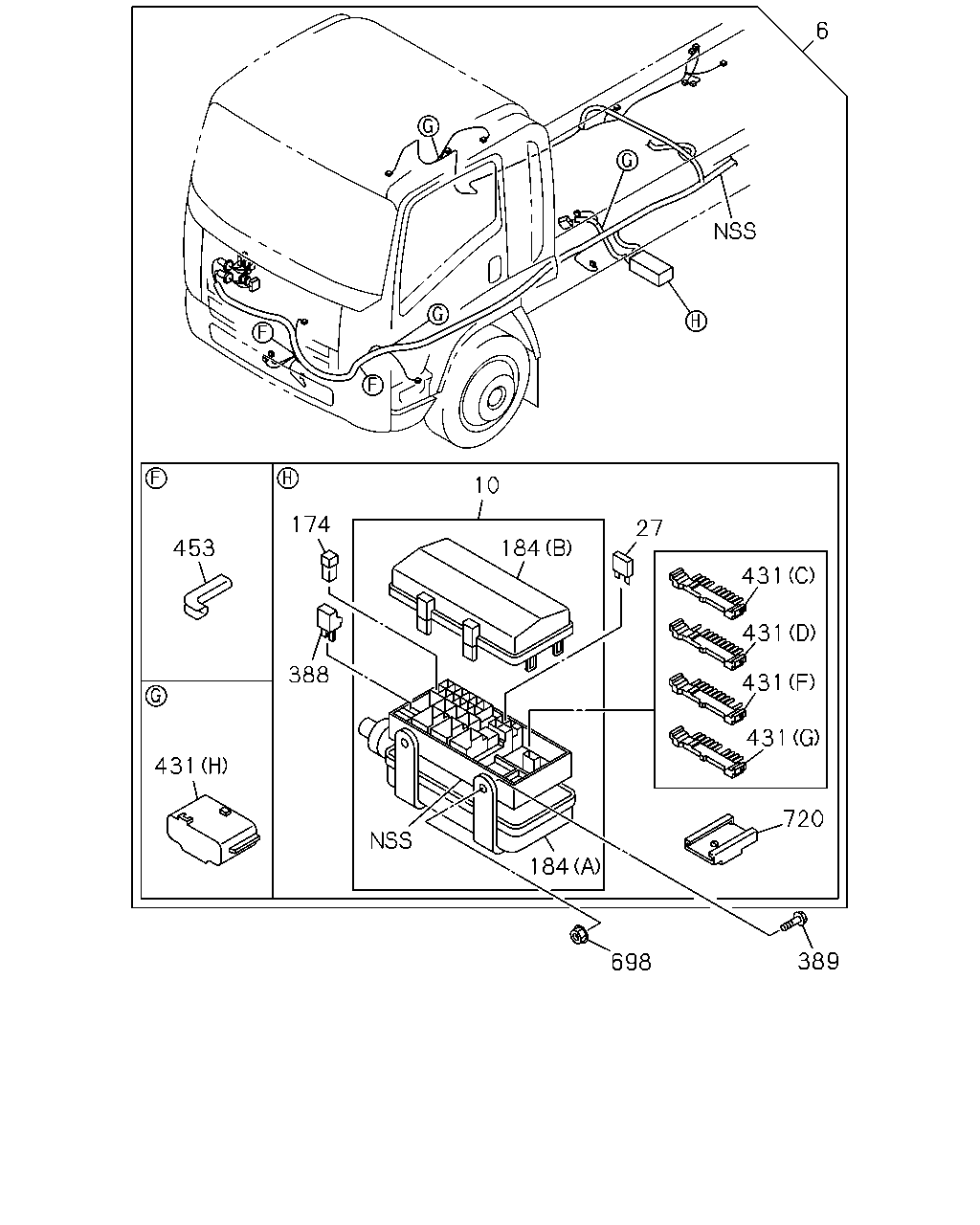

8-10 — WIRING HARNESS AND FUSE (#37667) — 591 parça

6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

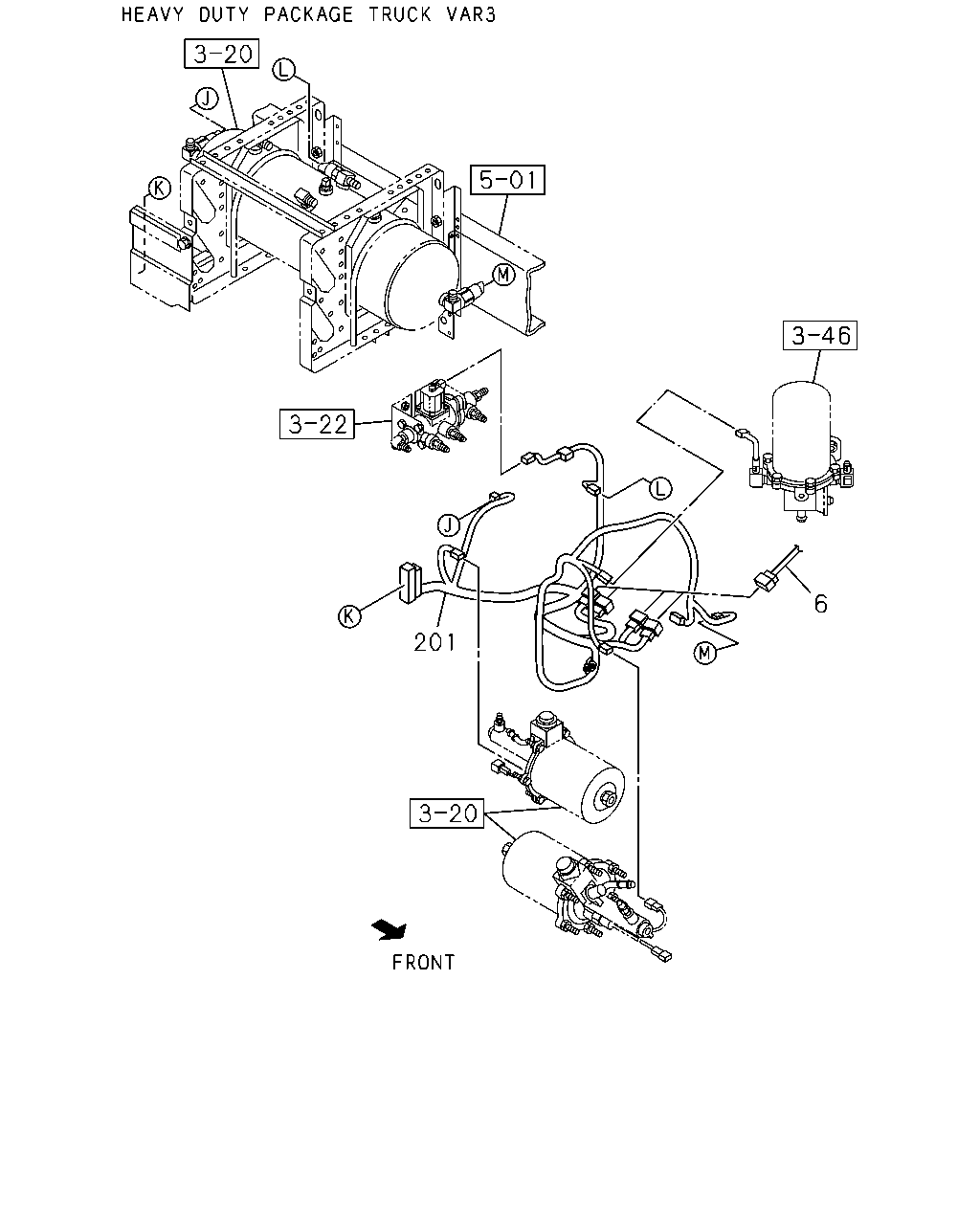

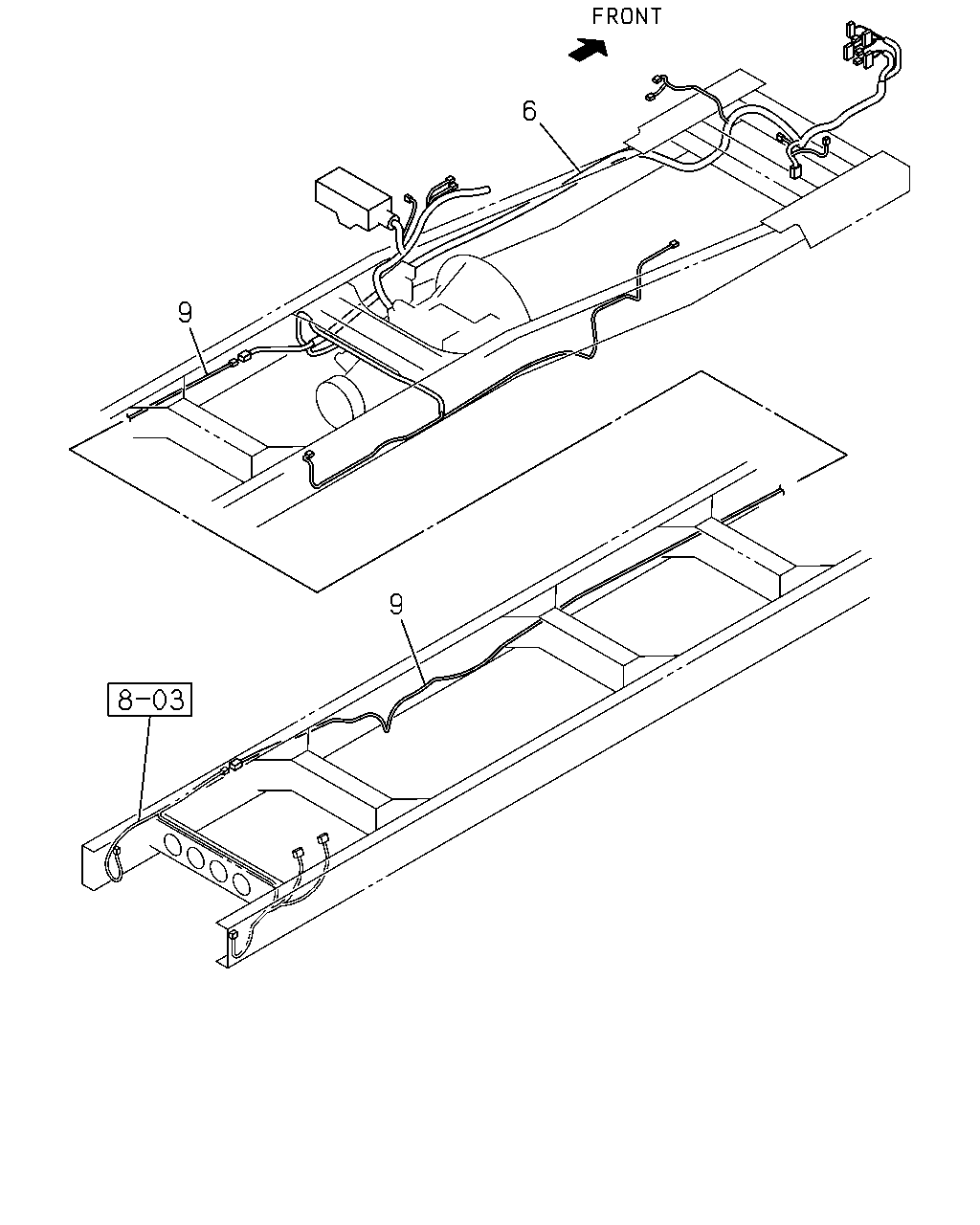

6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98327-597-0	01	1	1510-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-507-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-507-1	01	1	1510-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-508-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-508-1	01	1	1510-
6	HARNESS; FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	0809-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	1008-1010
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1011-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1008-1509
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98064-987-3	01	1	1510-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	0809-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	0809-
27	FUSE UNIT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	03	1	0809-1011
27	FUSE UNIT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	03	1	1012-1405
27	FUSE UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	02	1	0809-1011
27	FUSE UNIT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	02	1	1012-1405
27	FUSE UNIT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 15A BLUE	8-98054-258-0	02	1	1012-1405
27	FUSE UNIT 15A BLUE	8-98054-258-0	02	1	1406-
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	02	1	1510-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	0809-
174	FUSE; SLOW BLOW 60A YELLOW	8-98079-194-0	03	1	0809-0906
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	03	1	0907-1106
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1107-
174	FUSE; SLOW BLOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	02	1	0809-1011
174	FUSE; SLOW BLOW 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	02	1	1012-1405
174	FUSE; SLOW BLOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	02	1	0809-1310
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	01	1	1311-1405
174	FUSE; SLOW BLOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	01	1	1311-1405
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	01	1	1406-
174	FUSE; SLOW BLOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	0809-1011
174	FUSE; SLOW BLOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	1012-1405
174	FUSE; SLOW BLOW 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 30A PINK	8-98079-191-0	01	1	1012-1405
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	01	1	1406-
174	FUSE; SLOW BLOW EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	01	1	0809-1310
174	FUSE; SLOW BLOW HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 40A GREEN	8-98079-192-0	02	1	1311-1405

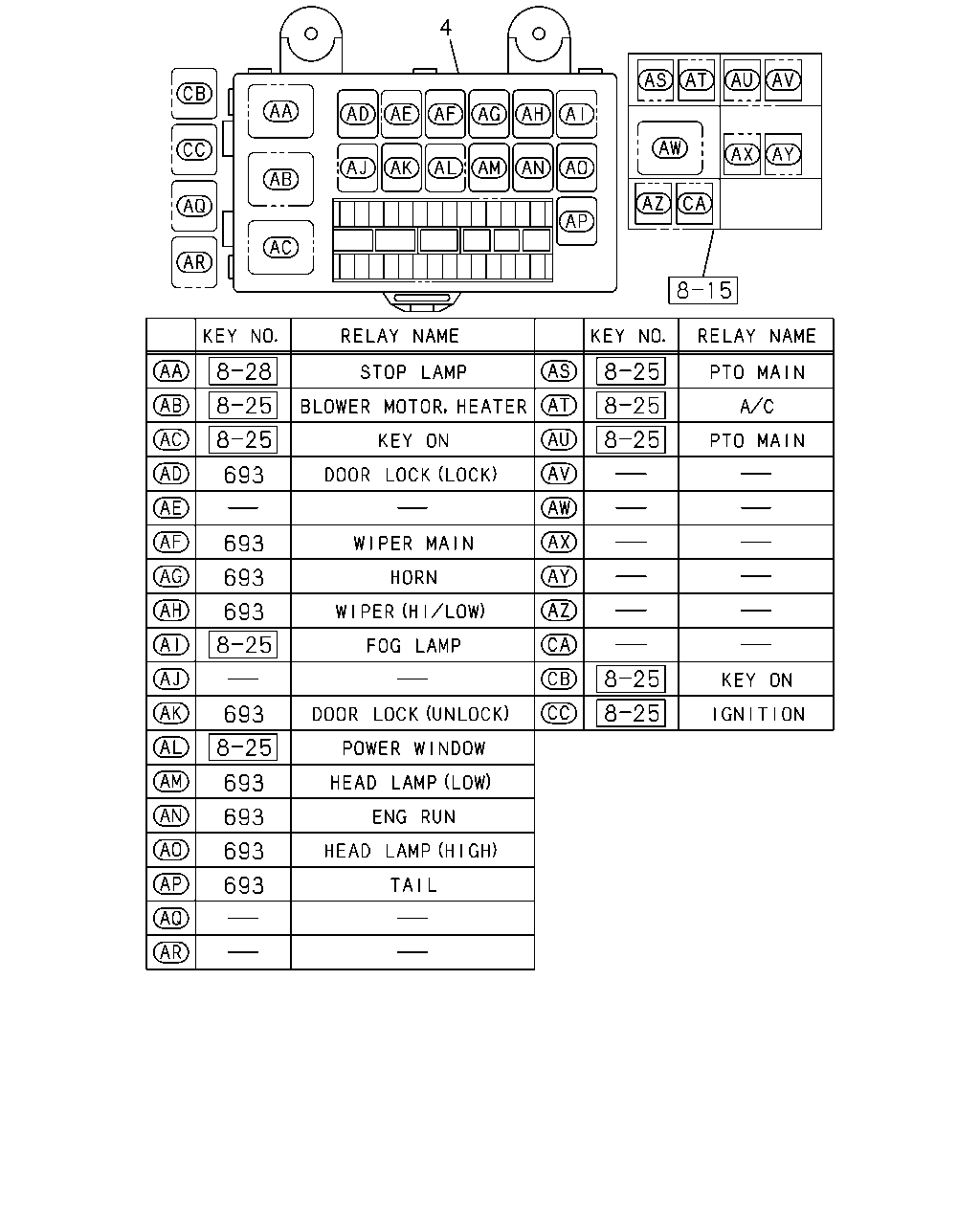

184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	0809-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	0809-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	0809-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0809-
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1012-1405
431	CONNECTOR; JOINT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1406-1509
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (H) 6P BLACK	8-97616-194-0	01	1	1510-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1510-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0809-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0809-
431	CONNECTOR; JOINT (G) 10P BLUE	1-82699-598-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (G) 10P BLUE	1-82699-598-0	01	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (G) 10P BLUE	1-82699-598-0	01	1	1510-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	04	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (D) 10P GREEN	1-82699-599-0	01	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (D) 10P GREEN	1-82699-599-0	01	1	1510-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	0809-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (C) 10P BROWN	1-82699-601-0	09	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (C) 10P BROWN	1-82699-601-0	09	1	1510-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (E) 10P	8-97077-943-0	02	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (E) 10P	8-97077-943-0	02	1	1510-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0809-1011
431	CONNECTOR; JOINT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1012-1405
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1012-1405
431	CONNECTOR; JOINT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (A) WHITE	8-98056-374-0	01	1	1207-1211
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1212-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (B) WHITE	8-98056-375-0	01	1	1207-1211
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1212-
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82699-709-0	01	1	1012-1509
453	PROTECTOR; HARNESS 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	1-82699-709-0	01	1	1510-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	0809-1011
453	PROTECTOR; HARNESS EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82699-709-0	02	1	1012-
453	PROTECTOR; HARNESS 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-82699-709-0	02	1	1012-
698	NUT; COVER,RELAY BOX M8 FLANGE	0-91180-108-0	02	1	0809-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	0809-

1 2 2 314 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

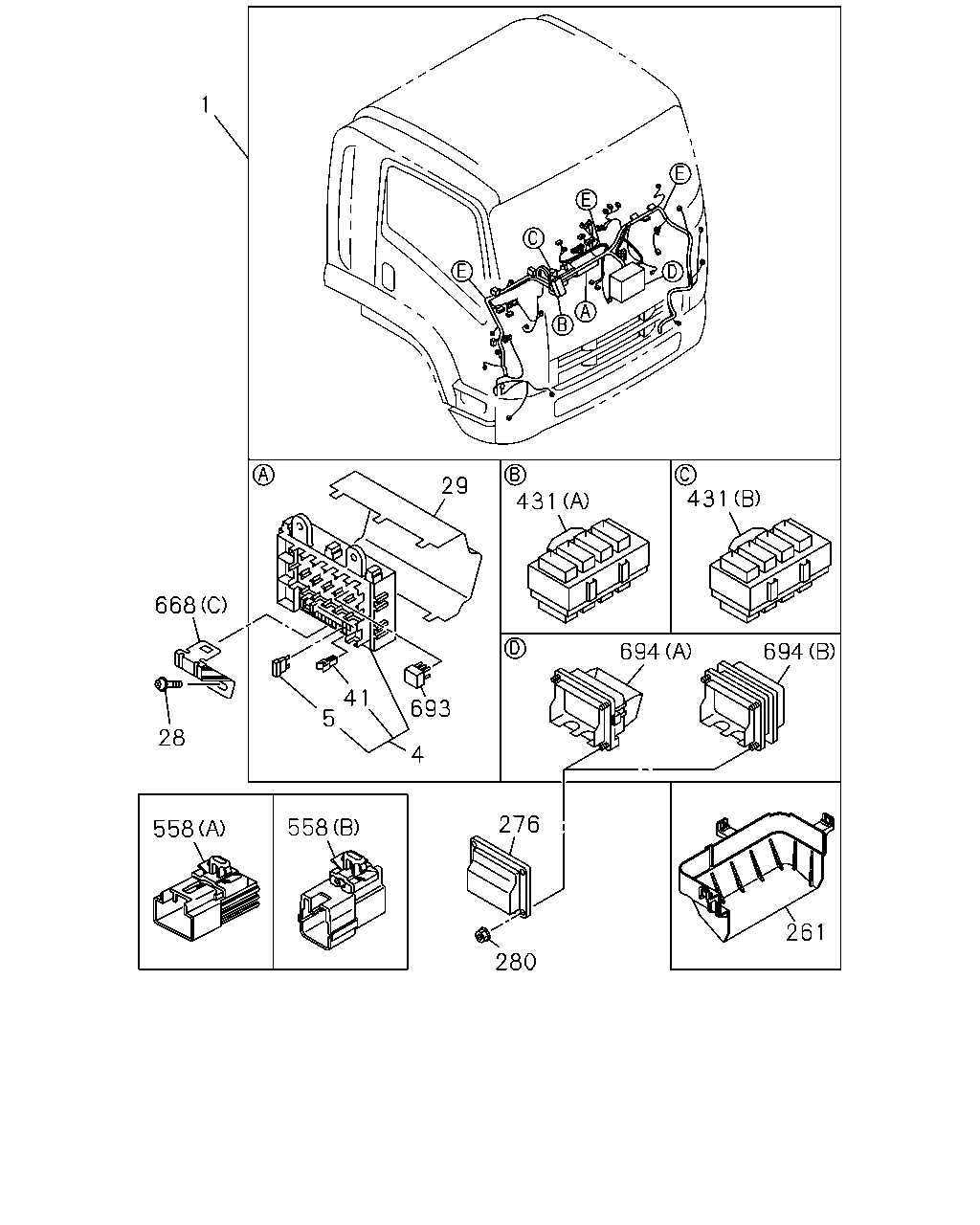

1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3)	8-98212-166-2	01	1	1510-
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5)	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1207-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1210-1509
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98224-593-1	01	1	1212-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5)	8-98224-593-1	01	1	1510-
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1206
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,C ORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1207-1209
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1207-1209
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3) (A) BLACK 10P	1-82699-703-0	AR	1	1212-1509
2	DIODE; CABLE HARNESS ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3) (A) BLACK 10P	1-82699-703-0	AR	1	1510-
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5) (A) BLACK 10P	1-82699-703-0	AR	1	1510-
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3) (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1212-1509
2	DIODE; CABLE HARNESS ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3) (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1510-
2	DIODE; CABLE HARNESS AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5) (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1510-
2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0809-1206
2	DIODE; CABLE HARNESS EXC. AIR BAG DRIVER(AJ3) (A) BLACK 10P	1-82699-703-0	01	1	1207-1509
2	DIODE; CABLE HARNESS EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (A) BLACK 10P	1-82699-703-0	01	1	1510-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	02	1	0809-1206
2	DIODE; CABLE HARNESS EXC. AIR BAG DRIVER(AJ3) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1207-1509
2	DIODE; CABLE HARNESS EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (B) BLACK 2P-1.5A	8-94422-639-1	02	1	1510-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0809-1206
314	RESISTOR; HARNESS EXC. AIR BAG DRIVER(AJ3) BLUE	1-82691-204-0	01	1	1207-1509
314	RESISTOR; HARNESS EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) BLUE	1-82691-204-0	01	1	1510-
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1012-1405
431	CONNECTOR; JOINT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1406-1509
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (H) 6P BLACK	8-97616-194-0	01	1	1510-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1510-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0809-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0809-
431	CONNECTOR; JOINT (G) 10P BLUE	1-82699-598-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (G) 10P BLUE	1-82699-598-0	01	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (G) 10P BLUE	1-82699-598-0	01	1	1510-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	04	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (D) 10P GREEN	1-82699-599-0	01	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (D) 10P GREEN	1-82699-599-0	01	1	1510-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	0809-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (C) 10P BROWN	1-82699-601-0	09	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (C) 10P BROWN	1-82699-601-0	09	1	1510-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (E) 10P	8-97077-943-0	02	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (E) 10P	8-97077-943-0	02	1	1510-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0809-1011
431	CONNECTOR; JOINT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1012-1405
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1012-1405
431	CONNECTOR; JOINT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (A) WHITE	8-98056-374-0	01	1	1207-1211
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1212-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (B) WHITE	8-98056-375-0	01	1	1207-1211
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1212-

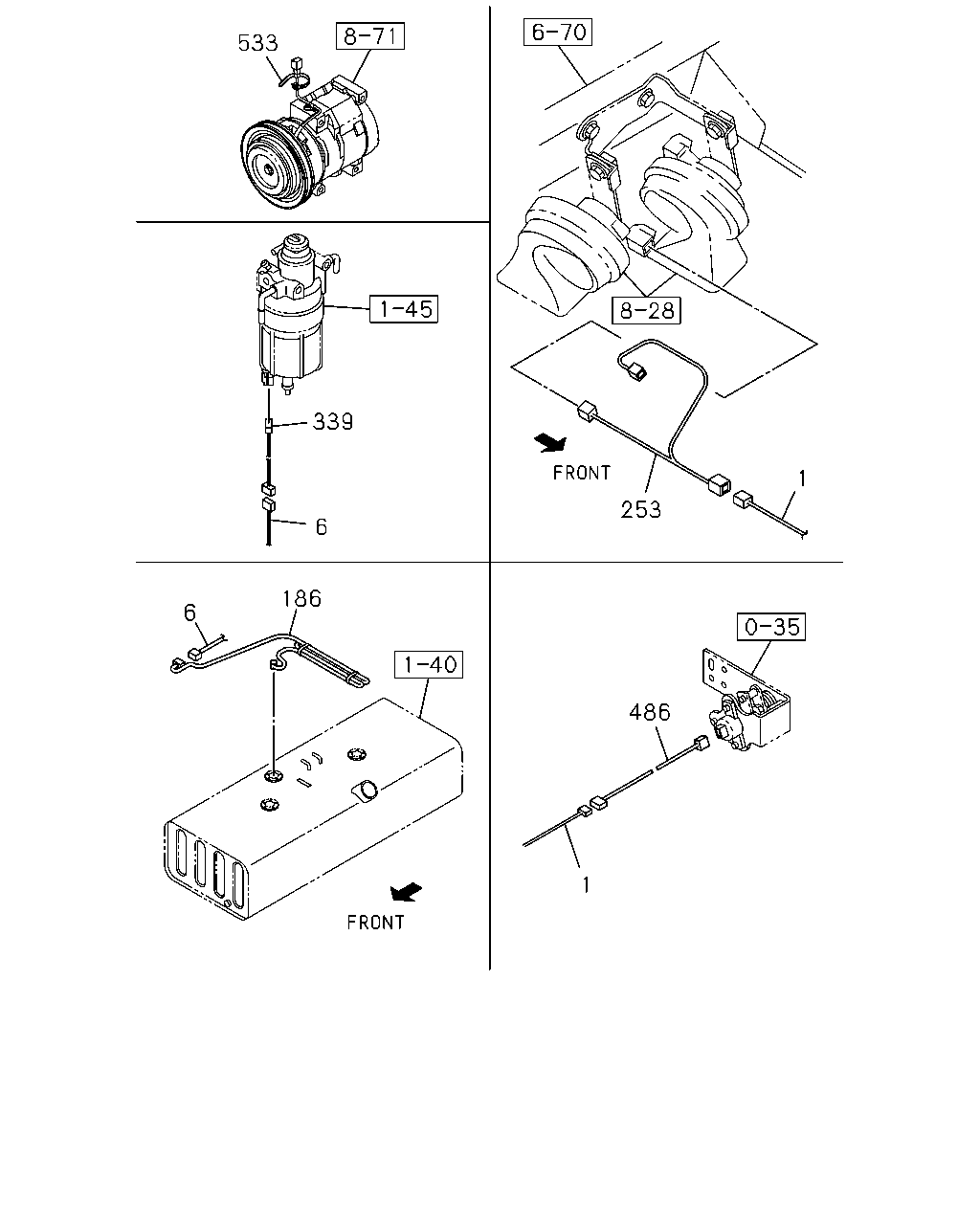

533 339 1 253 6 186 6 486 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3)	8-98212-166-2	01	1	1510-
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5)	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1207-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1210-1509
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98224-593-1	01	1	1212-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5)	8-98224-593-1	01	1	1510-
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1206
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,C ORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1207-1209
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1207-1209
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98327-597-0	01	1	1510-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-507-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-507-1	01	1	1510-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-508-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-508-1	01	1	1510-
6	HARNESS; FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	0809-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	1008-1010
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1011-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1008-1509
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98064-987-3	01	1	1510-
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W)	8-97619-079-0	01	1	0809-1010
186	HARNESS; FUEL TANK WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-97619-079-0	01	1	1011-
253	HARNESS; EXT,HORN EXC. DUAL HEAVY DUTY HORN<6KK>	8-98159-227-2	01	1	1002-
253	HARNESS; EXT,HORN	8-98074-080-1	01	1	0809-1001
253	HARNESS; EXT,HORN DUAL HEAVY DUTY HORN<6KK>	8-98074-080-3	01	1	1002-
339	HARNESS; EXT,FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98119-943-0	01	1	1012-
339	HARNESS; EXT,FUEL 4HK1-TCS ENG(RJS) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98118-331-1	01	1	1012-
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98129-979-0	01	1	0809-1102
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-132-0	01	1	1103-
339	HARNESS; EXT,FUEL WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98117-681-1	01	1	0809-
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-756-0	01	1	0809-1011
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-756-0	01	1	1012-
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98117-682-1	01	1	0809-1102
339	HARNESS; EXT,FUEL WHEEL BASE 4300MM(43W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-131-0	01	1	1103-
339	HARNESS; EXT,FUEL WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-758-0	01	1	0809-1011
339	HARNESS; EXT,FUEL 6HK1-TCN ENG(82L) WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-758-0	01	1	1012-
486	HARNESS; ALL SPEED ACCEL 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	0809-0906
486	HARNESS; ALL SPEED ACCEL 6HK1-TCN ENG(82L) TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	0907-1011
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-82675-898-0	01	1	1012-
533	CLIP EXC. INTERMITTENT WIPER<C13> L=100	5-09707-036-1	01	1	0910-
533	CLIP L=180	1-09707-162-1	01	1	0809-1011
533	CLIP 6HK1-TCN ENG(82L) L=180	1-09707-162-1	01	1	1012-1206
533	CLIP 6HK1-TCN ENG(82L) AIR CONDITIONER MANUAL CONTROL(C60) L=180	1-09707-162-1	01	1	1207-

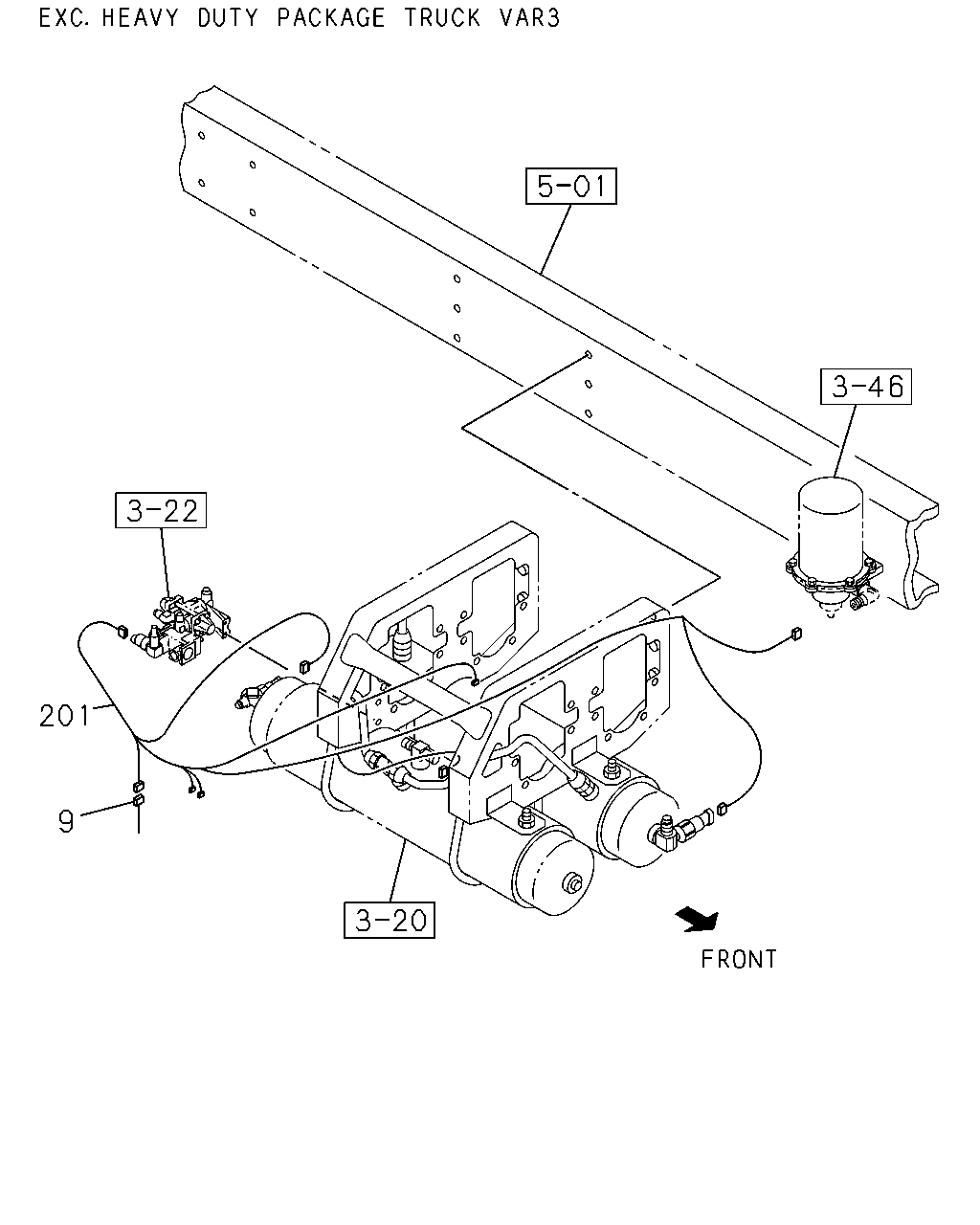

201 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5)	8-98168-579-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5)	8-98168-595-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF>	8-98271-109-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. ECUADOR EQUIPMENT(E46)	8-98168-583-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF>	8-98168-583-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98064-325-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-580-0	01	1	1008-1509
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-580-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98064-327-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-582-0	01	1	1008-1509
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-582-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98064-329-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98168-584-0	01	1	1008-1509
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-584-0	01	1	1510-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH)	8-98156-711-2	01	1	1510-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-710-2	01	1	1510-
201	HARNESS; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-496-0	01	1	0809-1001
201	HARNESS; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-713-1	01	1	1002-1509
201	HARNESS; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98156-713-1	01	1	1510-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-495-0	01	1	0809-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98156-712-1	01	1	1002-1509
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98156-712-1	01	1	1510-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-498-2	01	1	0809-1509
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-498-2	01	1	1510-

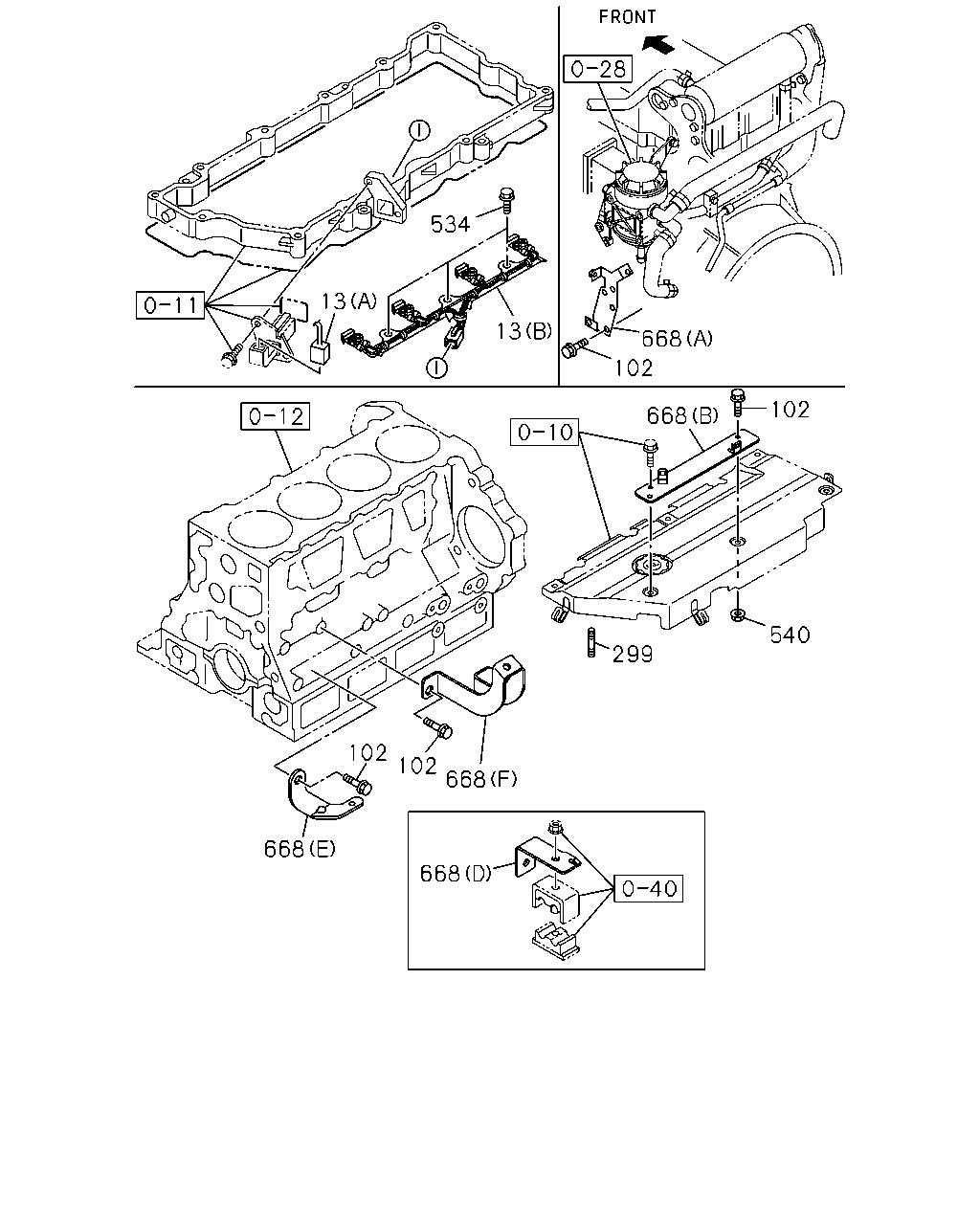

534 13 13 668 102 102 668 540 299 102 102 668 668 668

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98077-325-4	01	1	1012-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98274-014-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1012-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98075-901-4	01	1	1012-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98274-013-0	01	1	1406-
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	0809-1011
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1012-
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	0809-1011
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1012-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M6X25 FLANGE	0-28050-625-0	01	1	1012-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M8X16 FLANGE	0-28050-816-0	03	1	1012-
102	BOLT; BRKT,HARNESS CONNECTOR 4HK1-TCS ENG(RJS) M10X16 FLANGE	0-28151-016-0	03	1	1012-
299	STUD; BRKT 4HK1-TCS ENG(RJS) M6X20 L=28	0-41010-620-0	02	1	1110-1110
534	BOLT 4HK1-TCS ENG(RJS) M10X55 FLANGE	8-97365-449-0	03	1	1012-
540	NUT; BRKT FIX 4HK1-TCS ENG(RJS) M6 FLANGE	0-91180-106-0	01	1	1012-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98001-095-0	01	1	1012-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1012-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1012-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98022-106-2	01	1	1012-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (A)	8-98024-765-0	01	1	1012-
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0809-

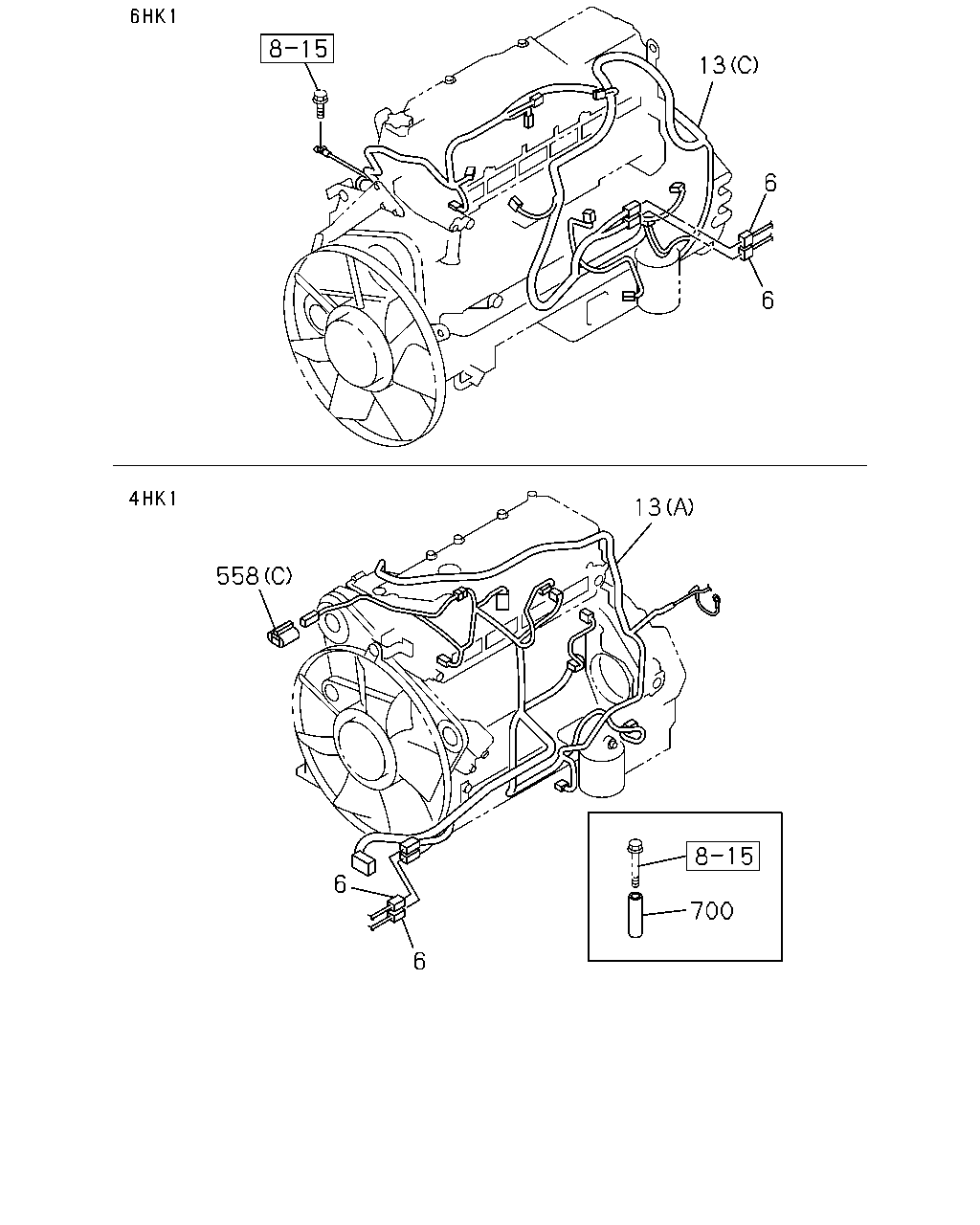

13 6 6 13 558 6 700 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98327-597-0	01	1	1510-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-507-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-507-1	01	1	1510-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-508-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-508-1	01	1	1510-
6	HARNESS; FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	0809-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	1008-1010
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1011-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1008-1509
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98064-987-3	01	1	1510-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98077-325-4	01	1	1012-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V60A(KG2) (A)	8-98274-014-0	01	1	1406-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) (B)	8-98171-638-0	01	1	1012-
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98075-901-4	01	1	1012-1405
13	HARNESS; ENG 4HK1-TCS ENG(RJS) GENERATOR 24V50A(K89) (A)	8-98274-013-0	01	1	1406-
13	HARNESS; ENG GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	0809-1011
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V50A(K89) (C)	8-98075-770-5	01	1	1012-
13	HARNESS; ENG GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	0809-1011
13	HARNESS; ENG 6HK1-TCN ENG(82L) GENERATOR 24V60A(KG2) (C)	8-98075-771-5	01	1	1012-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1012-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	0809-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	0809-
700	TUBE; DISTANCE 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51	1-11369-157-0	01	1	1102-

1 29 431 431 694 694 261 276 558 558 28 668 5 4 41 693 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3)	8-98212-166-2	01	1	1510-
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5)	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1207-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1210-1509
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98224-593-1	01	1	1212-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5)	8-98224-593-1	01	1	1510-
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1206
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,C ORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1207-1209
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1207-1209
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0809-1206
4	BOX ASM; FUSE,HARNESS EXC. AIR BAG DRIVER(AJ3)	8-98065-666-0	01	1	1207-1211
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1212-
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3) 25A WHITE	8-98062-982-0	AR	1	1212-1509
5	FUSE; FACIA HARNESS ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3) 25A WHITE	8-98062-982-0	AR	1	1510-
5	FUSE; FACIA HARNESS AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5) 25A WHITE	8-98062-982-0	AR	1	1510-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0809-1206
5	FUSE; FACIA HARNESS EXC. AIR BAG DRIVER(AJ3) 10A RED	8-98054-257-0	AR	1	1207-1211
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1212-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0809-1206
5	FUSE; FACIA HARNESS EXC. AIR BAG DRIVER(AJ3) 15A BLUE	8-98054-258-0	AR	1	1207-1211
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1212-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0809-1206
5	FUSE; FACIA HARNESS EXC. AIR BAG DRIVER(AJ3) 20A YELLOW	8-98054-259-0	AR	1	1207-1211
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1212-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	01	1	0809-1206
5	FUSE; FACIA HARNESS EXC. AIR BAG DRIVER(AJ3) 25A WHITE	8-98062-982-0	01	1	1207-1509
5	FUSE; FACIA HARNESS EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) 25A WHITE	8-98062-982-0	01	1	1510-
28	SCREW; FUSE BOX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE	0-28650-616-0	01	1	0909-
28	SCREW; FUSE BOX T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0809-0908
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	0909-
29	COVER; FUSE BOX	8-98056-968-0	01	1	0809-1206
29	COVER; FUSE BOX EXC. AIR BAG DRIVER(AJ3)	8-98056-968-0	01	1	1207-1211
29	COVER; FUSE BOX	8-98056-968-0	01	1	1212-
41	PULLER; FUSE	8-98054-260-0	01	1	0809-1206
41	PULLER; FUSE EXC. AIR BAG DRIVER(AJ3)	8-98054-260-0	01	1	1207-1211
41	PULLER; FUSE	8-98054-260-0	01	1	1212-
261	COVER; CONNECTOR BOX AIR BAG DRIVER(AJ3)	8-98065-986-1	01	1	1212-1509
261	COVER; CONNECTOR BOX ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3)	8-98065-986-1	01	1	1510-
261	COVER; CONNECTOR BOX AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5)	8-98065-986-1	01	1	1510-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0809-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0809-
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1012-1405
431	CONNECTOR; JOINT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1406-1509
431	CONNECTOR; JOINT 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5) (H) 6P BLACK	8-97616-194-0	01	1	1510-
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	01	1	1510-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	0809-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	0809-
431	CONNECTOR; JOINT (G) 10P BLUE	1-82699-598-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (G) 10P BLUE	1-82699-598-0	01	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (G) 10P BLUE	1-82699-598-0	01	1	1510-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	04	1	0809-
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (D) 10P GREEN	1-82699-599-0	01	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (D) 10P GREEN	1-82699-599-0	01	1	1510-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	01	1	0809-
431	CONNECTOR; JOINT (C) 10P BROWN	1-82699-601-0	09	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (C) 10P BROWN	1-82699-601-0	09	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (C) 10P BROWN	1-82699-601-0	09	1	1510-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (E) 10P	8-97077-943-0	02	1	1207-1509
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (E) 10P	8-97077-943-0	02	1	1510-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	02	1	0809-1011
431	CONNECTOR; JOINT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1012-1405
431	CONNECTOR; JOINT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1012-1405
431	CONNECTOR; JOINT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (H) 6P BLACK	8-97616-194-0	02	1	1406-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (A) WHITE	8-98056-374-0	01	1	1207-1211
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1212-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0809-1206
431	CONNECTOR; JOINT EXC. AIR BAG DRIVER(AJ3) (B) WHITE	8-98056-375-0	01	1	1207-1211
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1212-
558	CONNECTOR; HARNESS 4HK1-TCS ENG(RJS) EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)	1-82690-668-0	01	1	1012-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	0809-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	0809-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (D)	8-98001-095-0	01	1	1012-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98009-245-0	01	1	1012-1408
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (E)	8-98273-295-0	01	1	1409-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (F)	8-98011-484-0	01	1	1012-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (B)	8-98022-106-2	01	1	1012-
668	BRACKET; HARNESS 4HK1-TCS ENG(RJS) (A)	8-98024-765-0	01	1	1012-
668	BRACKET; HARNESS (C)	8-98111-712-1	01	1	0809-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0809-1206
693	RELAY; FUSE BOX EXC. AIR BAG DRIVER(AJ3) 24V 10A PANASONIC	8-97173-035-1	AR	1	1207-1211
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1212-
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3) (B)	8-98057-771-0	01	1	1212-1509
694	BOX ASM; CONNECTOR ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3) (B)	8-98057-771-0	01	1	1510-
694	BOX ASM; CONNECTOR AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5) (B)	8-98057-771-0	01	1	1510-
694	BOX ASM; CONNECTOR (A)	8-98063-269-1	01	1	0809-1206
694	BOX ASM; CONNECTOR EXC. AIR BAG DRIVER(AJ3) (A)	8-98063-269-1	01	1	1207-1509
694	BOX ASM; CONNECTOR EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5) (A)	8-98063-269-1	01	1	1510-

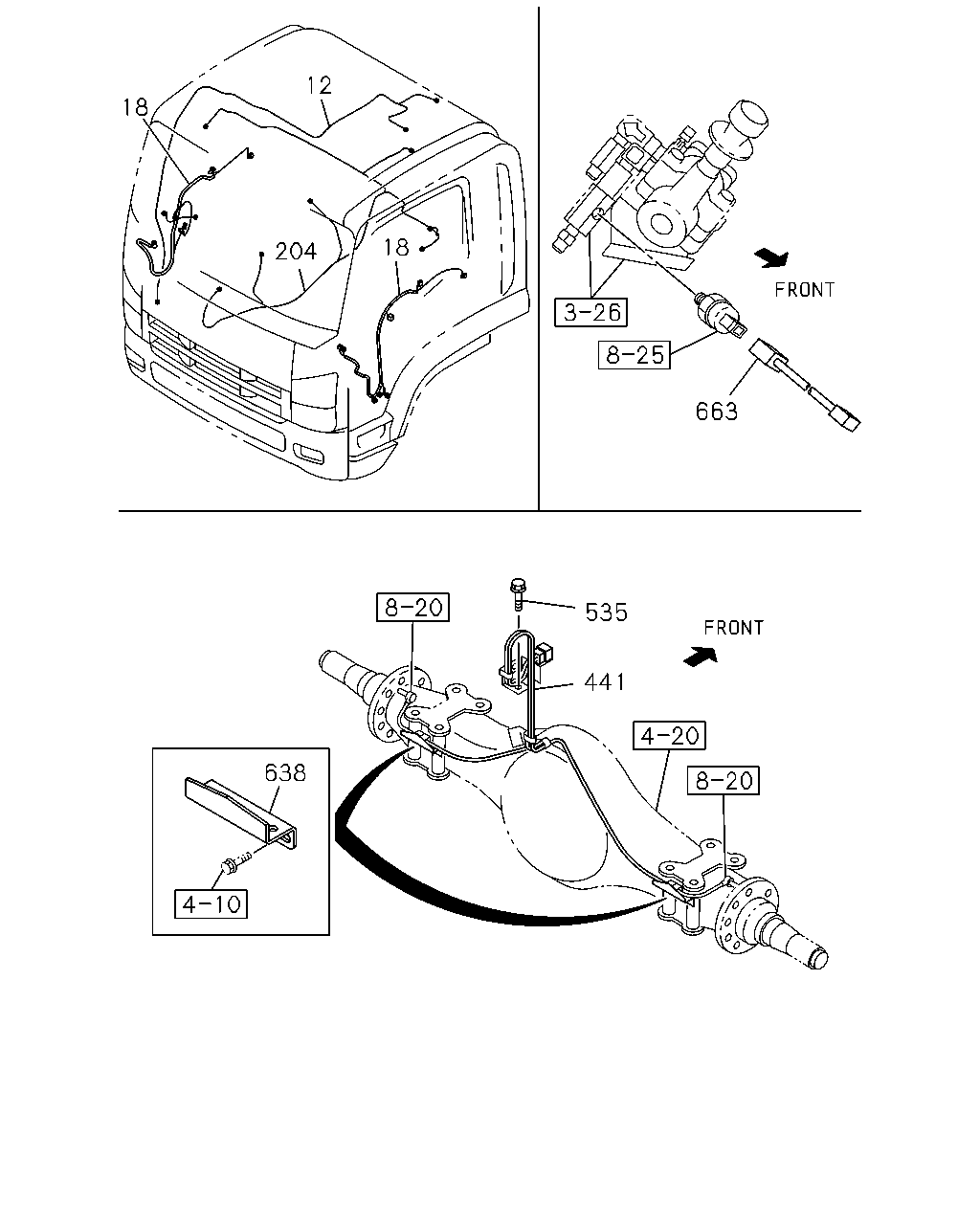

18 12 204 18 663 535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> FLUORESCENT LAMP<6UC>	8-98079-073-2	01	1	1510-
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC> EXC. FLUORESCENT LAMP<6UC>	8-98084-249-1	01	1	1510-
12	HARNESS; ROOF FLUORESCENT LAMP<6UC>	8-98071-441-0	01	1	0809-1509
12	HARNESS; ROOF FLUORESCENT LAMP<6UC> EXC. LAMPS TWO ROOF MARKER<TEC>	8-98071-441-0	01	1	1510-
12	HARNESS; ROOF EXC. FLUORESCENT LAMP<6UC>	8-98084-248-1	01	1	0809-1509
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>,FLUORESCENT LAMP<6UC>	8-98084-248-1	01	1	1510-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98080-127-3	01	1	0809-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87>	8-98178-803-0	01	1	1203-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98080-128-3	01	1	0809-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> EXC. CORNERING LAMP<T87>	8-98178-804-0	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-285-2	01	1	0809-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87>	8-98178-801-0	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-290-2	01	1	0809-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> ,CORNERING LAMP<T87>	8-98178-802-0	01	1	1203-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98084-218-0	01	1	1212-
204	HARNESS; CABLE,FLOOR	8-98084-217-1	01	1	0809-1206
204	HARNESS; CABLE,FLOOR AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3)	8-98084-217-1	01	1	1207-
441	HARNESS; CABLE,SPEED SENSOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)	8-98061-652-0	01	1	1510-
535	BOLT; BRKT FIX HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5) M8X10 W/LK WASHER	8-98029-928-0	02	1	1510-
638	BRACKET; SPD SENSOR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> ANTI LOCK BRAKE(JE5)	8-98012-580-1	02	1	1510-
663	HARNESS; EXTENSION,RR WHEEL PARKING REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98126-779-2	01	1	1008-

6 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98327-597-0	01	1	1510-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-507-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-507-1	01	1	1510-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-508-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-508-1	01	1	1510-
6	HARNESS; FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	0809-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	1008-1010
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1011-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1008-1509
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98064-987-3	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) ANTI LOCK BRAKE(JE5)	8-98168-579-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) ANTI LOCK BRAKE(JE5)	8-98168-595-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) ECUADOR EQUIPMENT(E46) VIN MODEL YEAR 2015<VZF>	8-98271-109-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) EXC. ECUADOR EQUIPMENT(E46)	8-98168-583-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) ECUADOR EQUIPMENT(E46) EXC. VIN MODEL YEAR 2015<VZF>	8-98168-583-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98064-325-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W)	8-98168-580-0	01	1	1008-1509
9	HARNESS; FRAME,RR WHEEL BASE 3700MM(37W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-580-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98064-327-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W)	8-98168-582-0	01	1	1008-1509
9	HARNESS; FRAME,RR WHEEL BASE 4300MM(43W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-582-0	01	1	1510-
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98064-329-1	01	1	0809-1007
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W)	8-98168-584-0	01	1	1008-1509
9	HARNESS; FRAME,RR WHEEL BASE 4800MM(48W) EXC. ANTI LOCK BRAKE(JE5)	8-98168-584-0	01	1	1510-

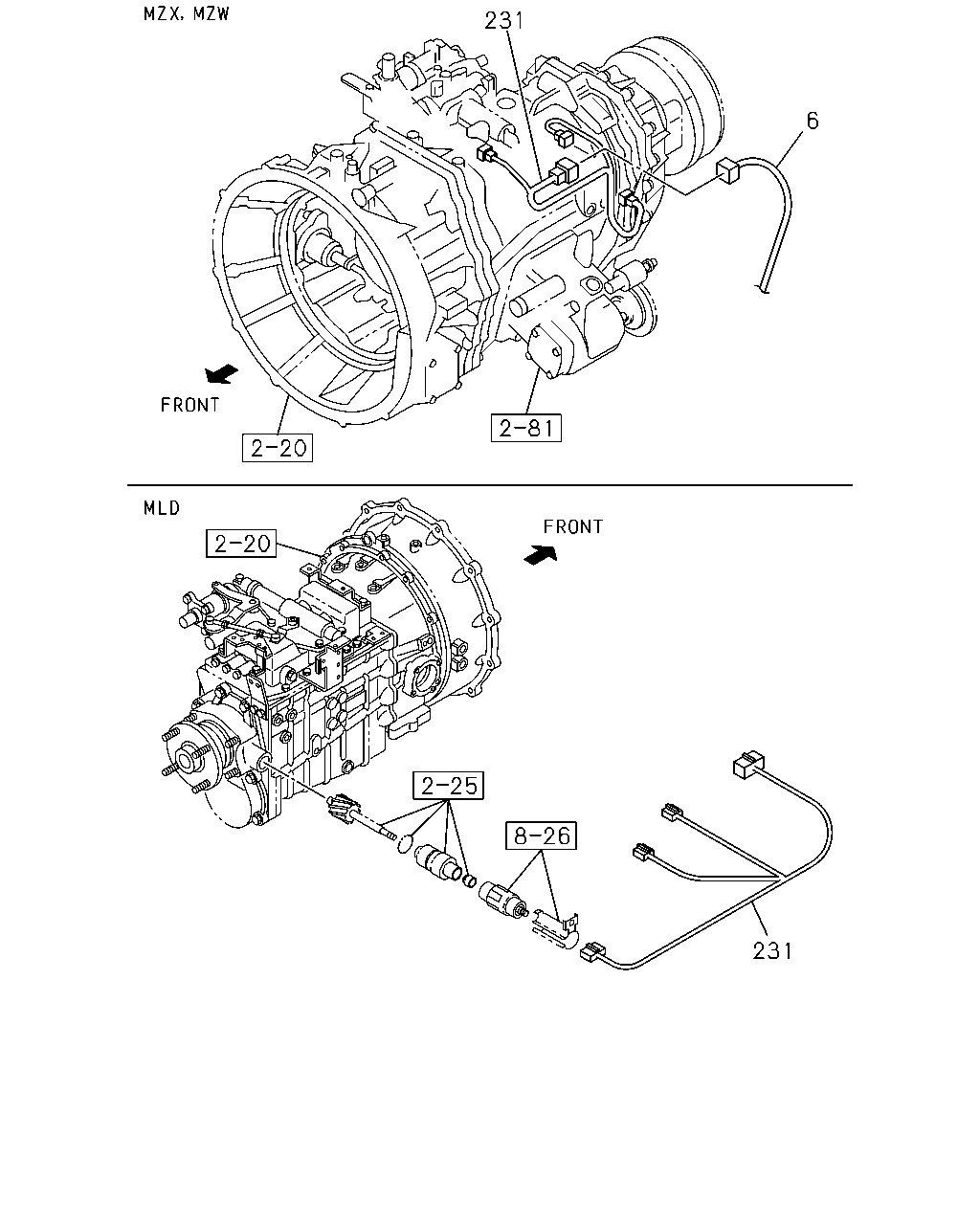

231 6 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98327-597-0	01	1	1510-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-507-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-507-1	01	1	1510-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-508-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-508-1	01	1	1510-
6	HARNESS; FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	0809-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	1008-1010
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1011-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1008-1509
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98064-987-3	01	1	1510-
231	HARNESS; TRANS 4HK1-TCS ENG(RJS) MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-933-2	01	1	1012-
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MLD6W M/T(Y2C)	8-97626-769-1	01	1	0809-
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW)	8-97618-932-1	01	1	0809-0906
231	HARNESS; TRANS 6HK1-TCN ENG(82L) MZX6P M/T(RSW),MZW6P M/T(RSZ)	8-97618-932-2	01	1	0907-

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) ANTI LOCK BRAKE(JE5) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98327-597-0	01	1	1510-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98176-236-0	01	1	1103-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-507-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-507-1	01	1	1510-
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98172-508-1	01	1	1012-1509
6	HARNESS; FRAME 4HK1-TCS ENG(RJS) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98172-508-1	01	1	1510-
6	HARNESS; FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	0809-1102
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-989-2	01	1	1103-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98124-537-1	01	1	1008-1010
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 3700MM(37W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98168-970-1	01	1	1011-
6	HARNESS; FRAME WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-1	01	1	0809-1007
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98064-987-3	01	1	1008-1509
6	HARNESS; FRAME 6HK1-TCN ENG(82L) WHEEL BASE 4300MM(43W),WHEEL BASE 4800MM(48W) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98064-987-3	01	1	1510-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> THROTTLE CONTROL SYSTEM(6XH)	8-98156-711-2	01	1	1510-
201	HARNESS; AIR TANK ANTI LOCK BRAKE(JE5) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98156-710-2	01	1	1510-
201	HARNESS; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98111-496-0	01	1	0809-1001
201	HARNESS; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	8-98156-713-1	01	1	1002-1509
201	HARNESS; AIR TANK HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5)	8-98156-713-1	01	1	1510-
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-495-0	01	1	0809-1001
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98156-712-1	01	1	1002-1509
201	HARNESS; AIR TANK REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> EXC. ANTI LOCK BRAKE(JE5)	8-98156-712-1	01	1	1510-
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-498-2	01	1	0809-1509
201	HARNESS; AIR TANK EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), ANTILOCK BRAKE(JE5),HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98111-498-2	01	1	1510-

4 693 693 693 693 693 693 693 693 693

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0809-1206
4	BOX ASM; FUSE,HARNESS EXC. AIR BAG DRIVER(AJ3)	8-98065-666-0	01	1	1207-1211
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1212-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0809-1206
693	RELAY; FUSE BOX EXC. AIR BAG DRIVER(AJ3) 24V 10A PANASONIC	8-97173-035-1	AR	1	1207-1211
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1212-

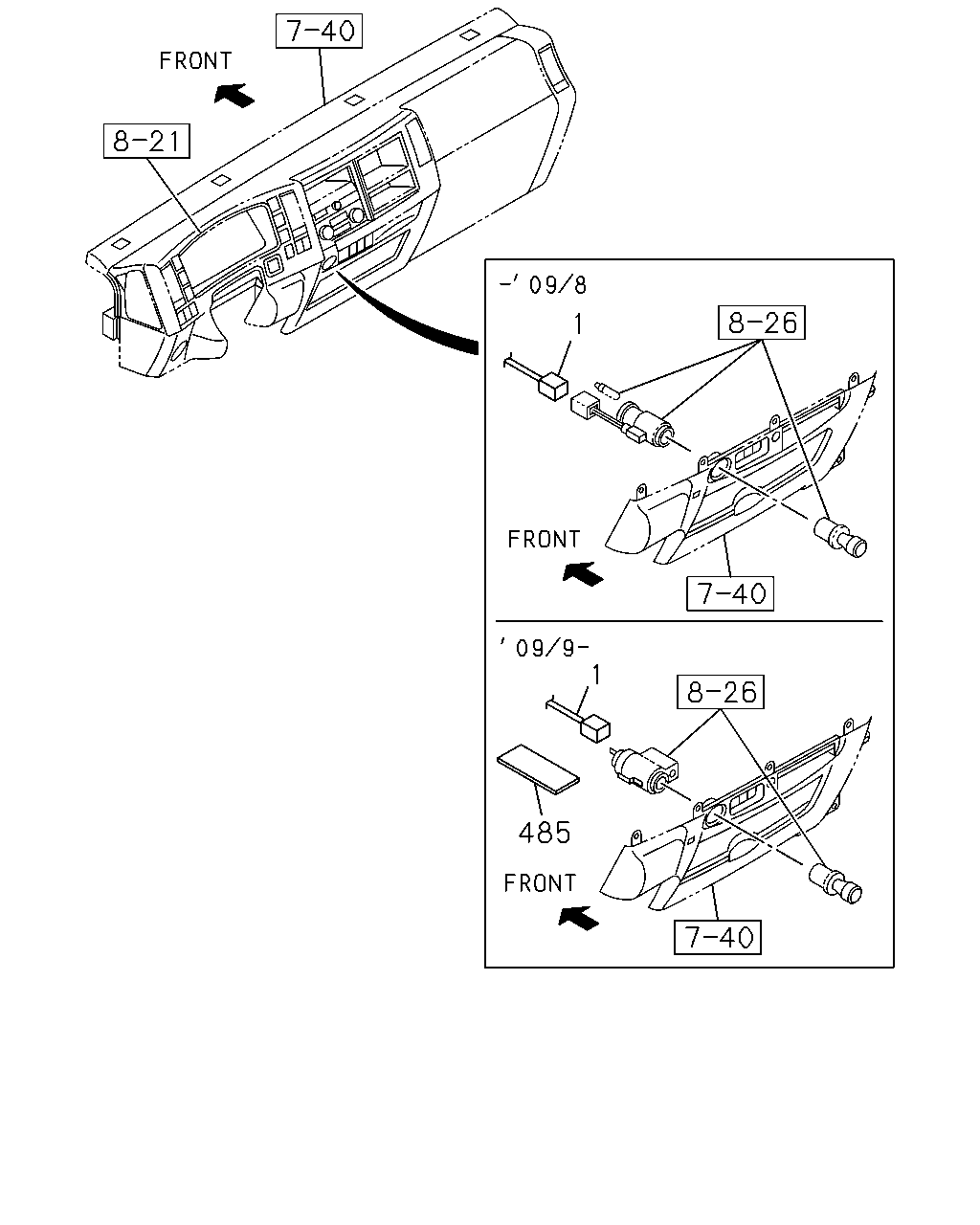

1 1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ANTI LOCK BRAKE(JE5) EXC. AIR BAG DRIVER(AJ3)	8-98212-166-2	01	1	1510-
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87>	8-98187-934-0	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1207-1209
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),CORNERING LAMP<T87>	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3)	8-98187-934-0	01	1	1210-1509
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,ANTI LOCK BRAKE(JE5),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-934-0	01	1	1510-
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),ANTI LOCK BRAKE(JE5)	8-98187-934-0	01	1	1510-
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1110-1206
1	HARNESS; CAB IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1207-1209
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98187-937-0	01	1	1210-1509
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),ANTI LOCK BRAKE(JE5), HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98187-937-0	01	1	1510-
1	HARNESS; CAB AIR BAG DRIVER(AJ3)	8-98224-593-1	01	1	1212-1509
1	HARNESS; CAB AIR BAG DRIVER(AJ3) EXC. ANTI LOCK BRAKE(JE5)	8-98224-593-1	01	1	1510-
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1101-1109
1	HARNESS; CAB EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H .S.A SYSTEM<6EP>	8-98158-056-0	01	1	1110-1206
1	HARNESS; CAB EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,C ORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98158-056-0	01	1	1207-1209
1	HARNESS; CAB	8-98084-005-4	01	1	0809-1012
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB CORNERING LAMP<T87>	8-98084-005-4	01	1	1101-1109
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. IN HOUSE PRODUCTION<TKF>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB CORNERING LAMP<T87> EXC. IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1110-1206
1	HARNESS; CAB H.S.A SYSTEM<6EP> EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AUTO DOOR LOCK<AU4> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNER ING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB AIR CONDITIONER MANUAL CONTROL(C60) EXC. AIR BAG DRIVER(AJ3),AUTO DOOR LOCK<AU4>,IN HOUSE PRODUCTION<TKF>,HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,CORNERING LAMP<T87>,H.S.A SYSTEM<6EP>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, CORNERING LAMP<T87>	8-98084-005-4	01	1	1207-1209
1	HARNESS; CAB CORNERING LAMP<T87> EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-005-4	01	1	1207-1209
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	0909-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
