◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11123 - FSR(LHD) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#37664) — 133 parça
çizim 181526
331 431 357 399 355 432 32 36 15 44 47 49 421 448
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
FOG LAMP<T96> 24V 70W 		1-82194-106-0 02 1 0809-1509
15 BULB; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 24V 70W 		1-82194-106-0 02 1 1510-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1510-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1510-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0809-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0809-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-016-0 01 1 0809-1509
36 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-016-0 01 1 1510-
36 CORD; FOG LAMP
FOG LAMP<T96> 		1-82118-015-0 01 1 0809-1509
36 CORD; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		1-82118-015-0 01 1 1510-
44 NUT; FOG LAMP
FOG LAMP<T96> M6 		8-98217-430-0 02 1 1205-1509
44 NUT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6 		8-98217-430-0 02 1 1510-
47 WASHER; PL,FOG LAMP
FOG LAMP<T96> 		8-98217-429-0 02 1 1205-1509
47 WASHER; PL,FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98217-429-0 02 1 1510-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-435-0 01 1 0809-1509
49 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-435-0 01 1 1510-
49 BRACKET; LAMP
FOG LAMP<T96> 		8-98051-436-0 01 1 0809-1509
49 BRACKET; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-98051-436-0 01 1 1510-
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0809-0911
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0809-0911
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0809-
357 BULB; TURN SIGNAL
24V 21W AMBER 		8-97323-806-0 02 1 0809-
399 SOCKET; TURN SIGNAL 8-98051-387-0 02 1 0809-
421 TUBE; BREATHER,FOG LAMP
FOG LAMP<T96> 		8-97025-128-0 02 1 0809-0906
431 CAP; TURN SIGNAL,LAMP 8-97378-874-0 02 1 0809-
432 FASTENER; TURN SIGNAL,LAMP 8-98051-431-0 04 1 0809-
448 CAP ASM; LAMP
FOG LAMP<T96> 		8-97378-874-0 02 1 0907-1509
448 CAP ASM; LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> 		8-97378-874-0 02 1 1510-
çizim 181537
1 4 338 339 408 420 20 5 382 5 457 23
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0809-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-598-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-639-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-324-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0809-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-597-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-638-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-323-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0809-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-602-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0809-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-601-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-405-0 01 1 0809-1301
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-185-0 01 1 1302-
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-404-0 01 1 0809-1301
4 HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-184-0 01 1 1302-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-407-0 01 1 0809-1301
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-189-0 01 1 1302-
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98051-406-0 01 1 0809-1301
4 HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98226-188-0 01 1 1302-
5 BULB; HEADLAMP
(B) 24V 5W 		1-82194-042-0 02 1 0809-
5 BULB; HEADLAMP
(A) 24V 75/70W 		1-82194-063-0 02 1 0809-
20 SCREW; HEADLAMP 8-97378-871-0 06 1 0809-
23 COVER; BULB,HEADLAMP 8-97232-491-0 02 1 0809-
338 LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98010-256-0 02 1 1209-
339 GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		1-86830-158-0 02 1 1209-
382 PLUG; SOCKET,HEADLAMP 8-98069-364-0 02 1 0809-1208
382 PLUG; SOCKET,HEADLAMP 8-98225-685-0 02 1 1209-
408 CAP; BREATHER,HEADLAMP 8-97378-874-0 02 1 0809-
420 SPRING; BULB,HEADLAMP 8-97378-875-0 02 1 0809-1301
420 SPRING; BULB,HEADLAMP 8-98218-601-0 02 1 1302-
457 GRIP; HEADLAMP 8-98241-354-0 02 1 1306-

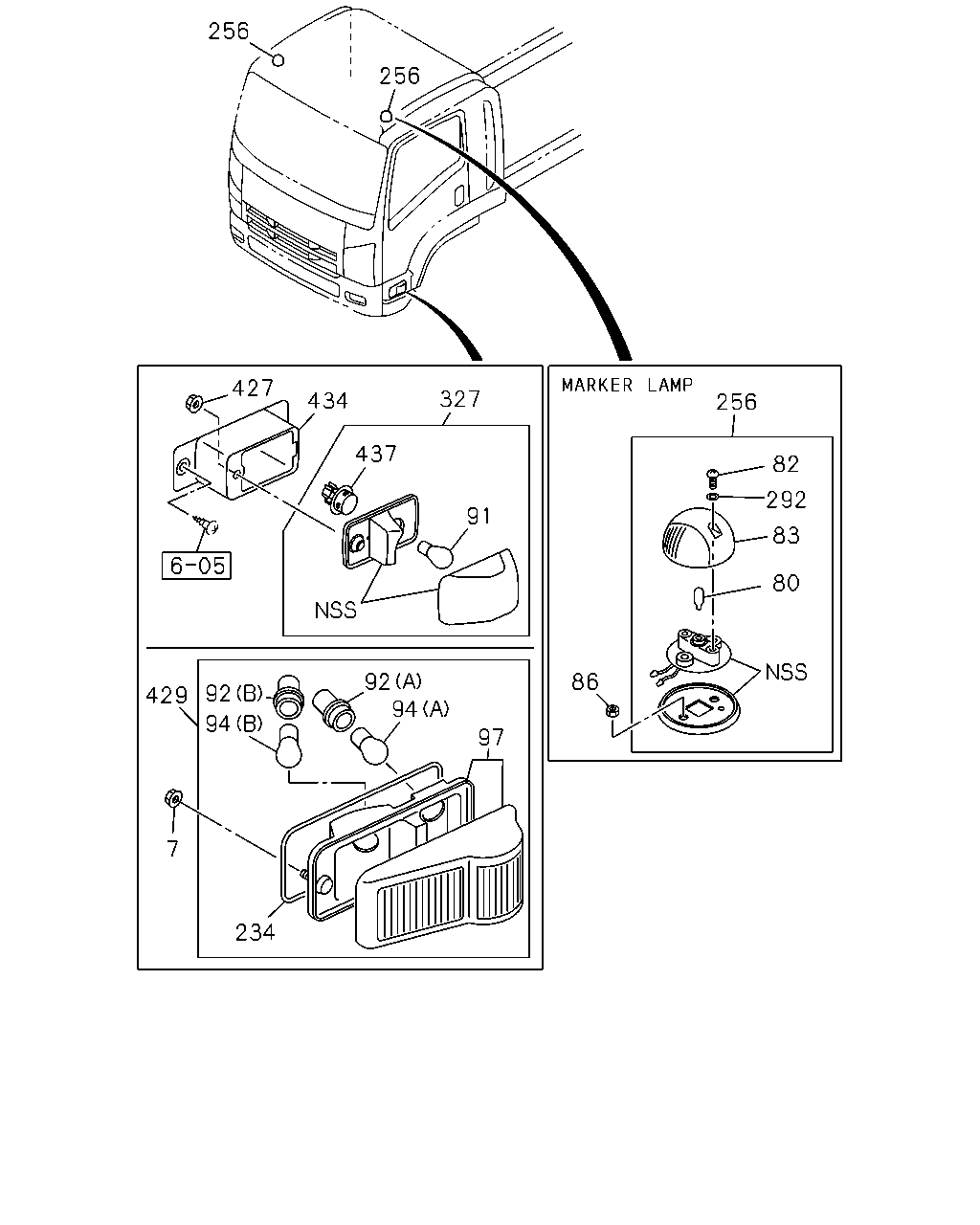

çizim 181548
256 256 427 434 327 437 91 429 7 234 92 94 92 94 97 256 82 292 83 80 86
BalonParca AdiParca NoAdetTipApplied Date
7 NUT; FRT COMB LAMP
CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 0809-
80 BULB; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 24V 5W 		8-94135-397-0 02 1 1510-
82 SCREW; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-011-0 04 1 1510-
83 LENS; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		8-98057-958-0 02 1 1510-
86 NUT; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> M6 FLANGE 		0-91180-106-0 04 1 1510-
91 BULB; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 24V 21W 		8-98051-495-0 02 1 0809-
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 		8-97172-959-0 02 1 0809-
92 SOCKET ASM; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 		8-98051-390-0 02 1 0809-
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (A) 24V 21W 		8-98051-495-0 02 1 0809-
94 BULB; SIDE COMB LAMP
CORNERING LAMP<T87> (B) 24V 21W 		8-98051-496-0 02 1 0809-
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-420-0 01 1 0809-
97 LAMP UNIT; COMB
CORNERING LAMP<T87> 		8-98051-419-0 01 1 0809-
234 GASKET; SIDE COMB LAMP
CORNERING LAMP<T87> 		8-98051-432-0 02 1 0809-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-466-3 01 1 1510-
256 LAMP; MARKER
LAMPS TWO ROOF MARKER<TEC> 		8-98097-467-3 01 1 1510-
292 WASHER; MARKER LAMP
LAMPS TWO ROOF MARKER<TEC> 		1-82219-012-0 04 1 1510-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-181-3 01 1 0809-
327 LAMP ASM; SIDE TURN SIGNAL
EXC. CORNERING LAMP<T87> 		8-97410-180-4 01 1 0809-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0809-
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 0809-
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-777-2 01 1 0809-
429 LAMP ASM; SIDE COMB
CORNERING LAMP<T87> 		8-98039-776-2 01 1 0809-
434 BASE; LAMP,SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 		8-98063-726-1 01 1 1510-
434 BASE; LAMP,SIDE TURN SIGNAL
LIGHTING SYSTEM ECE<SLC> 		8-98063-727-1 01 1 1510-
437 SOCKET; SIDE,TURN
EXC. CORNERING LAMP<T87> 		8-98051-390-0 02 1 0809-

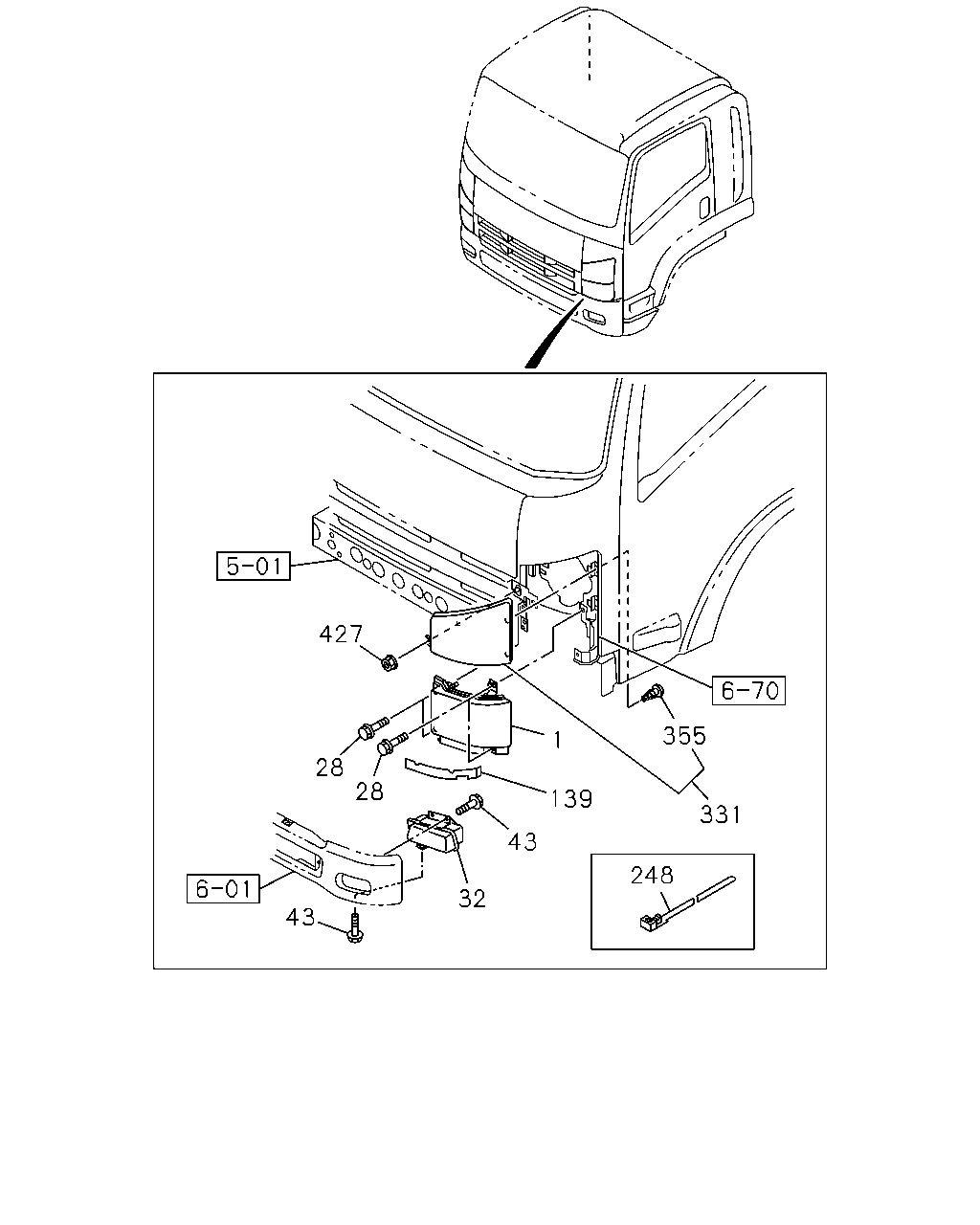

çizim 181551
427 355 1 28 28 139 331 43 248 32 43
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-482-2 01 1 0809-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-598-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-639-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-324-0 01 1 1306-
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-481-2 01 1 0809-1208
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-597-0 01 1 1209-1301
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-638-0 01 1 1302-1305
1 LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-323-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-484-2 01 1 0809-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-602-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-643-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-328-0 01 1 1306-
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98098-483-2 01 1 0809-1208
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-601-0 01 1 1209-1301
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98225-642-0 01 1 1302-1305
1 LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98241-327-0 01 1 1306-
28 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER 		8-98031-842-0 08 1 0809-1005
28 BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER 		8-98164-723-0 08 1 1006-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-070-1 01 1 1510-
32 LAMP ASM; FOG
FOG LAMP FRONT VAR2<X99> 		8-98232-071-1 01 1 1510-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-909-1 01 1 0809-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-144-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-059-1 01 1 1302-
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-97378-908-1 01 1 0809-0906
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98149-143-1 01 1 0907-1301
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98232-058-1 01 1 1302-
43 BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 0809-1509
43 BOLT; FOG LAMP
FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> M6X19.5 W/LK&PL WASHER 		8-97360-226-0 06 1 1510-
139 COVER; HEADLAMP 8-98054-342-0 02 1 0809-
248 CLIP; HARNESS
EXC. FOG LAMP<T96> L=140 		5-09707-031-1 02 1 0809-1510
248 CLIP; HARNESS
EXC. FOG LAMP<T96>,FOG LAMP FRONT VAR2<X99> L=140 		5-09707-031-1 02 1 1511-
331 LAMP; TURN SIGNAL 8-97585-173-2 01 1 0809-0911
331 LAMP; TURN SIGNAL 8-98155-459-0 01 1 0912-
331 LAMP; TURN SIGNAL 8-97585-172-2 01 1 0809-0911
331 LAMP; TURN SIGNAL 8-98155-458-0 01 1 0912-
355 SCREW; TURN SIGNAL 8-98051-428-0 04 1 0809-
427 NUT; TURN SIGNAL LAMP
M6 FLANGE 		0-91180-106-0 02 1 0809-
427 NUT; TURN SIGNAL LAMP
EXC. CORNERING LAMP<T87> M6 FLANGE 		0-91180-106-0 02 1 0809-
