7-20 — MIRROR AND MIRROR STAY (#37655) — 153 parça

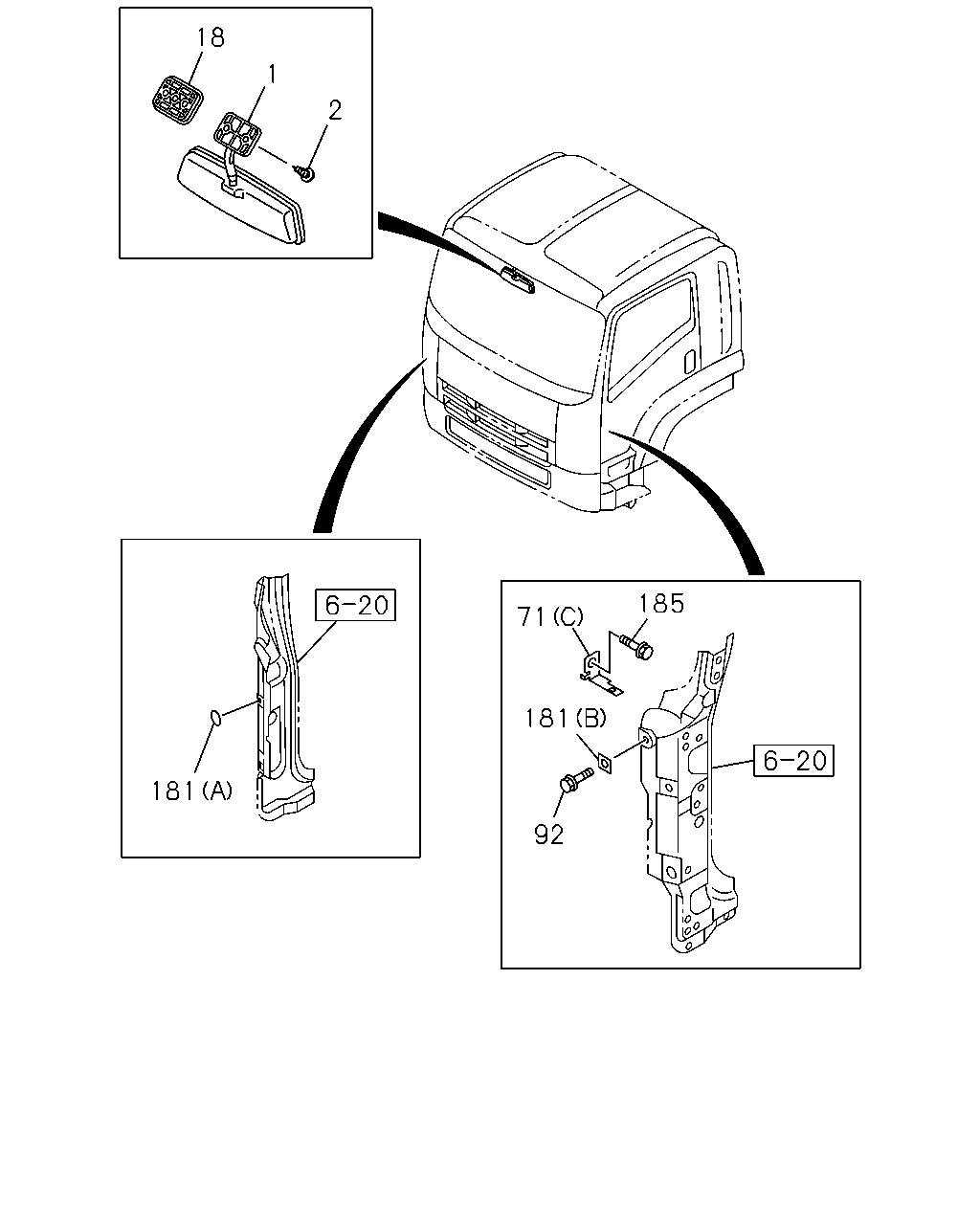

18 1 2 185 71 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM DARK GRAY	8-98097-534-1	01	1	0809-
2	SCREW; MIRROR TO BODY M6X26	8-98033-674-0	02	1	0809-
18	CLIP; MIRROR DARK GRAY	8-97408-241-0	01	1	0809-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0809-1202
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0809-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0809-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	0809-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	0809-
71	BRACKET; OUTSIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71798-484-1	01	1	0809-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	0809-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	02	1	0809-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	0809-
185	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	0809-1202

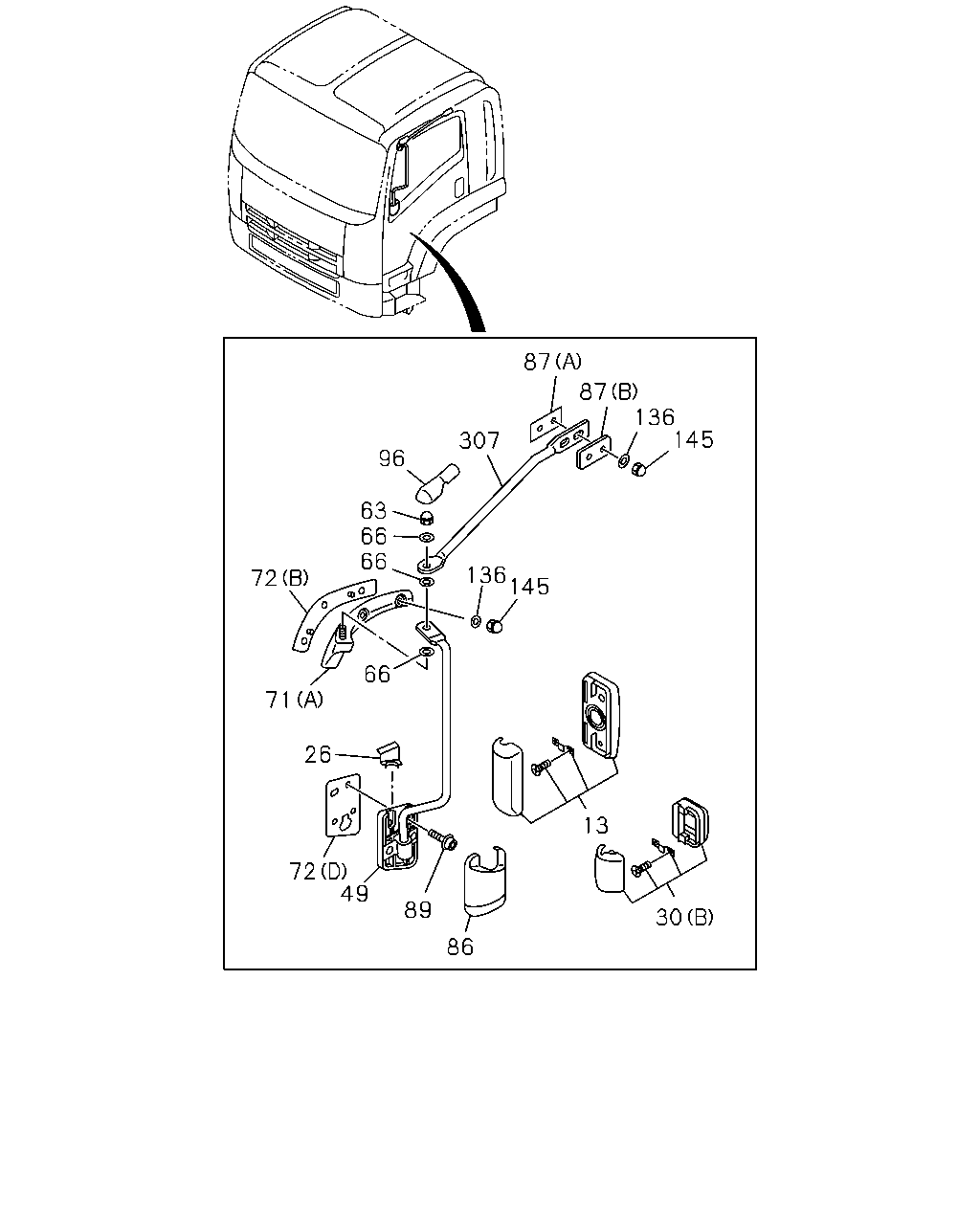

87 87 136 145 307 96 63 66 66 136 145 72 66 71 26 13 72 49 89 30 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	0809-1410
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF>	8-98043-172-2	01	1	1411-1412
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	1501-
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	0809-1410
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF>	8-98043-056-2	01	1	1411-1412
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	1501-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-992-1	01	1	0809-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-991-1	01	1	0809-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	0809-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	0809-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98043-061-0	02	1	0809-1410
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF> (B)	8-98043-061-0	02	1	1411-1412
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98043-061-0	02	1	1501-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98043-065-0	01	1	0809-1410
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF> (A)	8-98043-065-0	01	1	1411-1412
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98043-065-0	01	1	1501-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	0809-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98067-515-1	01	1	0809-1202
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-180-0	01	1	1203-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98067-514-1	01	1	0809-1202
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-181-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-216-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-215-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98075-061-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-207-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98075-060-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-206-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) MIR O/S RR VIEW LONG ARM<DH2>	8-98075-051-1	01	1	0809-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) MIR O/S RR VIEW LONG ARM<DH2>	8-98075-050-1	01	1	0809-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98060-218-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98064-777-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-065-1	01	1	0809-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-064-1	01	1	0809-1202
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	0809-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0809-
66	WASHER; PL SAUDI ARABIA EQUIPMENT(GH3) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0809-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0809-1202
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0809-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0809-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	0809-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	0809-
71	BRACKET; OUTSIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71798-484-1	01	1	0809-
72	SHEET (D)	8-98101-864-0	01	1	0809-1202
72	SHEET (D)	8-98116-604-0	01	1	1203-
72	SHEET (D)	8-98101-865-0	01	1	0809-1202
72	SHEET (D)	8-98116-605-0	01	1	1203-
72	SHEET (B)	8-98031-797-0	01	1	0809-
72	SHEET (C)	8-98031-796-0	01	1	0809-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (E)	8-98060-225-1	01	1	0809-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A)	8-98064-773-0	01	1	0809-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	0809-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	0809-
87	SPACER (A)	8-98063-786-0	02	1	0809-
87	SPACER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98063-789-0	01	1	0809-
87	SPACER EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98063-789-0	02	1	0809-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0809-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0809-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0809-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0809-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0809-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0809-

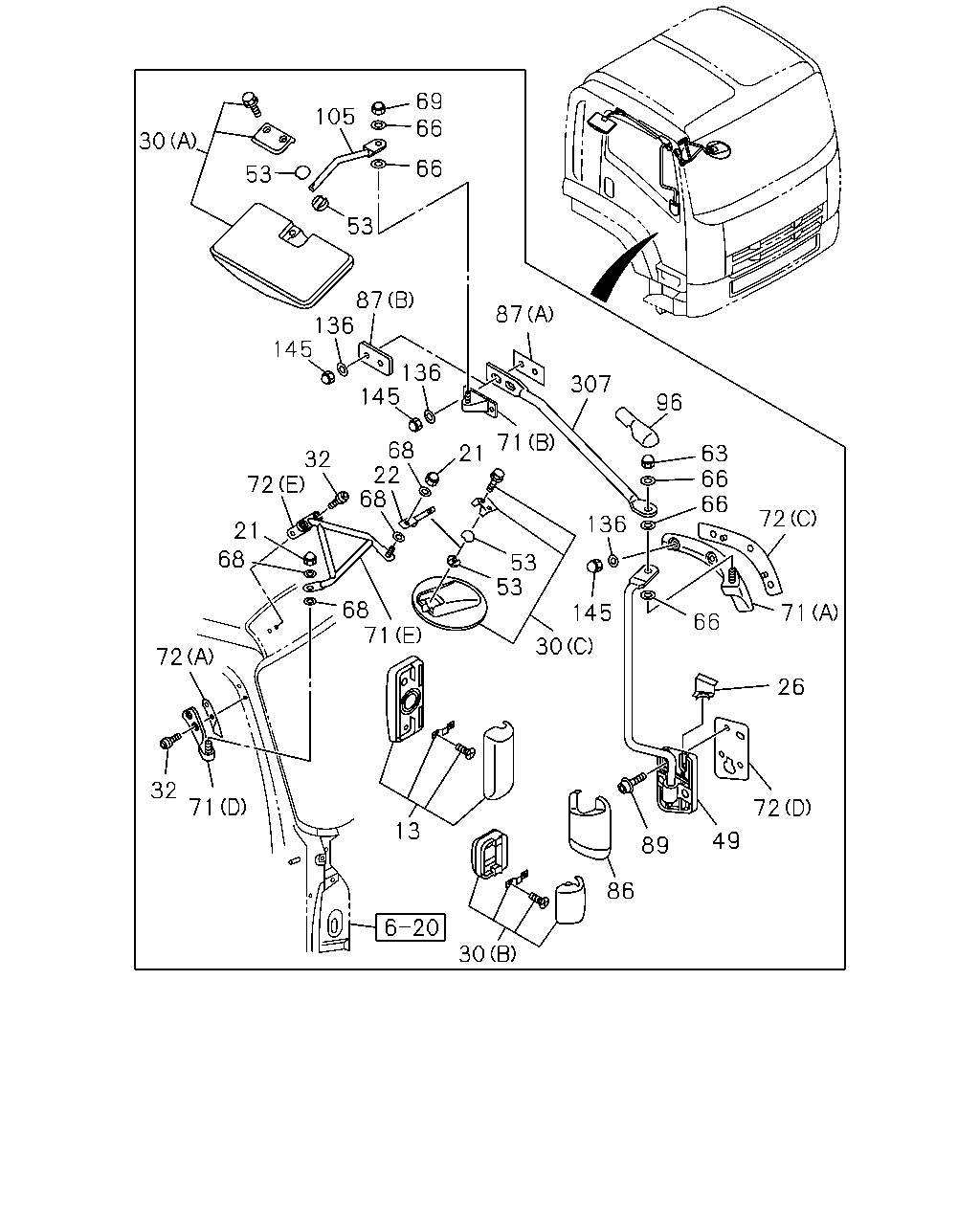

69 66 105 30 66 53 53 87 136 145 87 136 145 307 96 71 68 22 68 21 63 66 66 32 72 72 136 21 68 53 53 68 71 145 71 66 30 72 26 32 71 72 13 49 89 86 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	0809-1410
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF>	8-98043-172-2	01	1	1411-1412
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-172-2	01	1	1501-
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	0809-1410
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF>	8-98043-056-2	01	1	1411-1412
13	MIRROR ASM; OUTSIDE RR VIEW SAUDI ARABIA EQUIPMENT(GH3)	8-98043-056-2	01	1	1501-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-992-1	01	1	0809-
13	MIRROR ASM; OUTSIDE RR VIEW EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98055-991-1	01	1	0809-
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT	1-09984-134-0	02	1	0809-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98092-493-0	01	1	0809-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	0809-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	0809-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98043-061-0	02	1	0809-1410
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF> (B)	8-98043-061-0	02	1	1411-1412
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98043-061-0	02	1	1501-
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98043-065-0	01	1	0809-1410
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF> (A)	8-98043-065-0	01	1	1411-1412
30	MIRROR; UNDER SAUDI ARABIA EQUIPMENT(GH3) (A)	8-98043-065-0	01	1	1501-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98055-994-0	01	1	0809-1504
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (C)	8-98309-725-0	01	1	1505-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER	8-98067-249-2	04	1	0809-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98067-515-1	01	1	0809-1202
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-180-0	01	1	1203-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98067-514-1	01	1	0809-1202
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-181-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-216-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98060-215-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98075-061-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-207-0	01	1	1203-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. SAUDI ARABIA EQUIPMENT(GH3)	8-98075-060-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-206-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) MIR O/S RR VIEW LONG ARM<DH2>	8-98075-051-1	01	1	0809-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) MIR O/S RR VIEW LONG ARM<DH2>	8-98075-050-1	01	1	0809-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98060-218-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-194-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98064-777-1	01	1	0809-1202
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-195-0	01	1	1203-
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-065-1	01	1	0809-1202
49	STAY; MIRROR SIDE SAUDI ARABIA EQUIPMENT(GH3) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98075-064-1	01	1	0809-1202
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	0809-1410
53	PIVOT; SIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) ID=19.1	1-71737-633-2	02	1	0809-1410
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	1411-1412
53	PIVOT; SIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) PRICING MIRROR ASSEMBLY<PVF> ID=19.1	1-71737-633-2	02	1	1411-1412
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	1501-
53	PIVOT; SIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) ID=19.1	1-71737-633-2	02	1	1501-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	0809-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	0809-
66	WASHER; PL SAUDI ARABIA EQUIPMENT(GH3) ID=10.5 OD=26 T=2.6	1-09985-204-0	02	1	0809-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	0809-
69	NUT; CAP SAUDI ARABIA EQUIPMENT(GH3) M10 CAP NUT	1-09984-134-0	01	1	0809-
71	BRACKET; OUTSIDE MIRROR (C)	8-98039-277-2	02	1	0809-1202
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	0809-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	0809-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	8-98064-775-0	01	1	0809-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	8-98092-491-3	01	1	0809-
71	BRACKET; OUTSIDE MIRROR SAUDI ARABIA EQUIPMENT(GH3) (B)	1-71798-484-1	01	1	0809-
72	SHEET (D)	8-98101-864-0	01	1	0809-1202
72	SHEET (D)	8-98116-604-0	01	1	1203-
72	SHEET (D)	8-98101-865-0	01	1	0809-1202
72	SHEET (D)	8-98116-605-0	01	1	1203-
72	SHEET (B)	8-98031-797-0	01	1	0809-
72	SHEET (C)	8-98031-796-0	01	1	0809-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (E)	8-98060-225-1	01	1	0809-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A)	8-98064-773-0	01	1	0809-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	0809-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	0809-
87	SPACER (A)	8-98063-786-0	02	1	0809-
87	SPACER SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98063-789-0	01	1	0809-
87	SPACER EXC. SAUDI ARABIA EQUIPMENT(GH3) (B)	8-98063-789-0	02	1	0809-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	0809-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	0809-
105	STAY; SUB UNDER MIRROR SAUDI ARABIA EQUIPMENT(GH3)	8-98080-109-2	01	1	0809-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	0809-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	0809-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	0809-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	0809-
