Sayfa 2-26A - Isuzu EPC

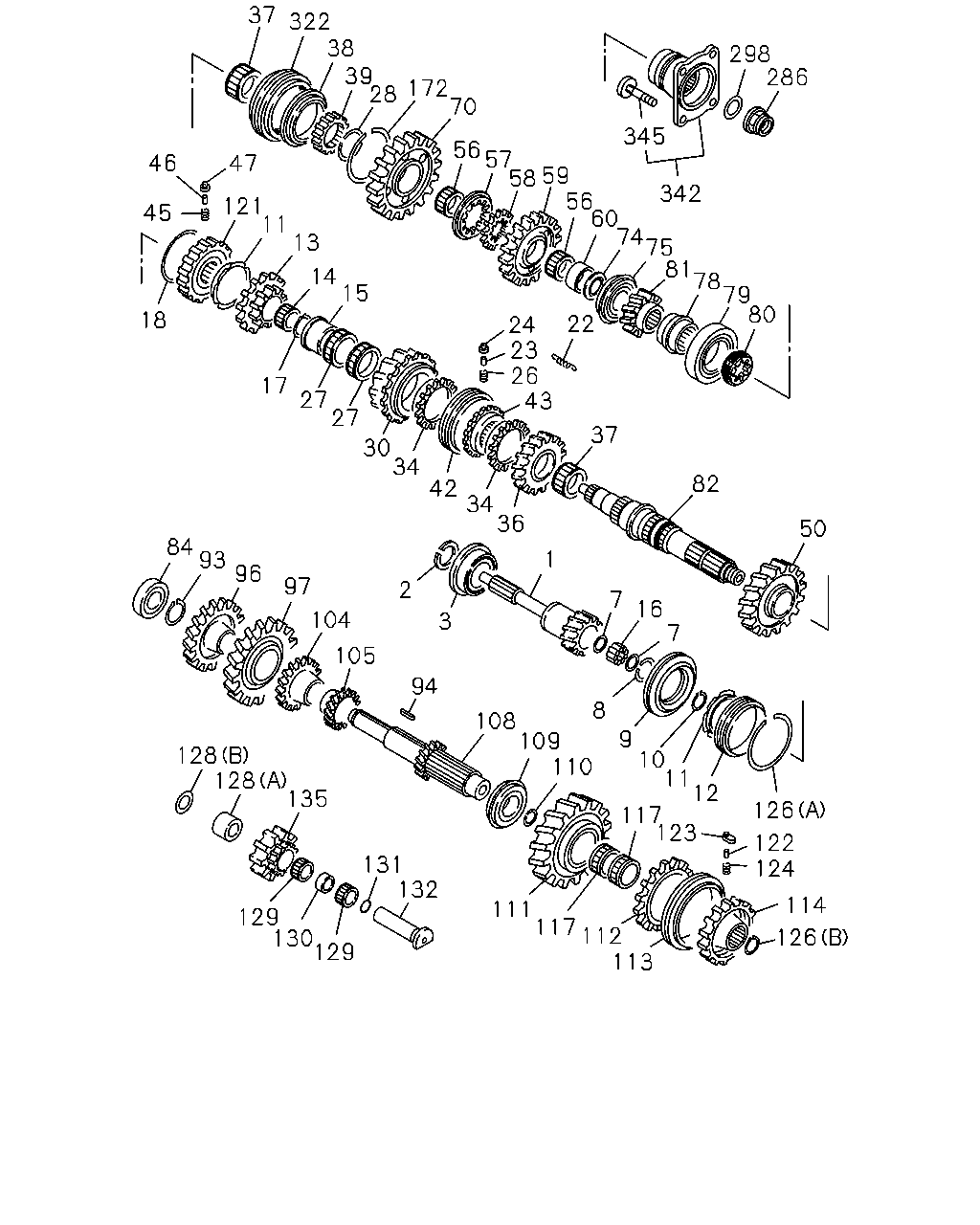

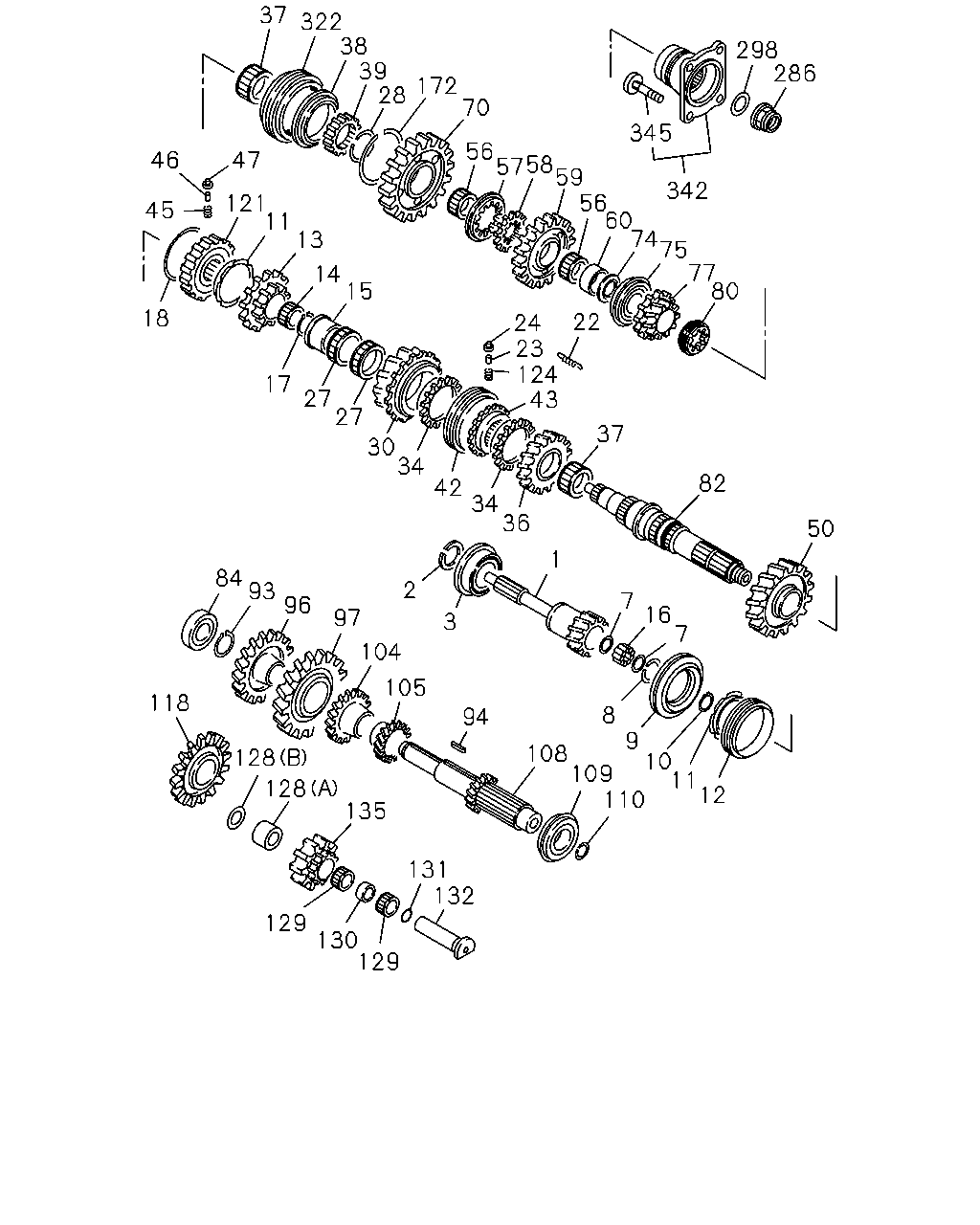

2-26A — MANUAL TRANSMISSION GEAR (#3765) — 814 parça

37 322 38 39 28 298 286 172 70 345 56 57 58 59 56 60 74 75 77 80 46 47 342 121 11 45 13 14 15 18 22 24 23 124 43 17 27 27 37 30 34 42 34 36 82 50 1 84 93 96 2 7 16 7 97 3 104 105 118 8 94 9 10 11 12 108 109 110 128 128 135 131 132 129 130 129

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-897-0	01	1	9601-	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9601-0006		●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9601-0006			●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-			●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9601-9803				●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9804-0006				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9706-0006						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9804-		●	●	●		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9601-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9601-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9601-9803		●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9804-		●	●	●		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9601-9803		●	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9804-		●	●	●		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9601-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9601-9803		●	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9804-		●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9601-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9601-9803		●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9804-		●	●	●		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9601-9803		●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9804-		●	●	●		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9601-9803		●	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9804-		●	●	●		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9601-9803		●	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9804-		●	●	●		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9601-9803		●			●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9804-9908		●				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-		●				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9601-9908				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-712-0	01	1	9909-				●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9601-9803		●	●	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9804-		●	●	●		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9601-9803		●	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9804-		●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9601-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	9601-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9601-9803		●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9804-		●	●	●		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9601-9803		●	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9804-		●	●	●		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9601-9803		●	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9804-		●	●	●		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9601-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9601-9803		●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9804-		●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803		●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-		●	●	●		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-9803		●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9804-		●	●	●		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9601-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9601-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9601-9803		●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9804-		●	●	●		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9601-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9601-9803		●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9804-		●	●	●		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-546-1	01	1	9601-9606	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9607-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9601-9803		●			●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9804-		●				●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9601-1107			●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-			●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9601-				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9601-9803		●	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9804-0312		●	●	●		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-408-1	01	1	9601-9810	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9811-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9601-9803		●		●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9804-		●		●		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9601-			●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9601-9803		●	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9804-		●	●	●		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9601-9803		●	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9804-		●	●	●		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9601-9803		●	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9804-0312		●	●	●		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●	●	●		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9601-9803		●	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9804-		●	●	●		●
42	SLEEVE Z=54	1-33262-154-0	01	1	9601-9803		●	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9804-		●	●	●		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9601-9803		●	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9804-		●	●	●		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9601-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9601-9803		●	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9804-		●	●	●		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9601-9803		●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9804-		●	●	●		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9601-9803		●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9804-		●	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9601-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9601-9803		●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9804-		●	●	●		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-353-0	04	1	9601-9711	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9712-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9601-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9601-9803		●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9804-		●	●	●		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9601-9803		●	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9804-		●	●	●		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9601-9803		●	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9804-		●	●	●		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9601-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9601-9803		●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9804-		●	●	●		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9601-9803		●	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9804-0009		●	●	●		●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-		●	●	●		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9601-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9601-9803		●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9804-		●	●	●		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9601-9803		●	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9804-		●	●	●		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9601-9803		●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9804-		●	●	●		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9601-9803		●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9804-		●	●	●		●
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	9601-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	9601-			●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9601-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9601-9803		●	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9804-		●	●	●		●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9601-9908	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	9909-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9601-9803		●	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9804-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9601-				●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9601-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9601-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9601-9803		●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9804-		●	●	●		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9601-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9601-9803		●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9804-		●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9601-	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9601-9803		●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9804-		●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9601-9803		●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9804-		●	●	●		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9601-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9601-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9601-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9601-9803				●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9804-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9706-						●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9601-9803		●			●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9804-		●				●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9601-				●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9601-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9601-9803		●			●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9804-9805		●				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302		●				●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●				●
104	GEAR; 4TH,COUNTER Z=36	1-33332-096-0	01	1	9601-9805			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9806-1107			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311			●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9601-9805				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-123-0	01	1	9806-1302				●
104	GEAR; 4TH,COUNTER Z=34	8-98240-188-0	01	1	1303-				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9601-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9601-9803		●		●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9804-9805		●		●		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311		●		●		●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-		●		●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-125-0	01	1	9601-9805			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9806-1311			●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-			●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9601-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9601-9803		●	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9804-		●	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9601-				●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9601-	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9601-	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9601-9803		●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9804-		●	●	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9601-9803		●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9804-		●	●	●		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9601-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9601-9803		●	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9804-		●	●	●		●
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	9601-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	9601-			●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9601-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9601-9803		●	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9804-0212		●	●	●		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●	●	●		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9601-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9601-9803		●	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9804-		●	●	●		●
128	WASHER; THRUST,REV SHAFT (C) T=4.0	9-33363-015-0	02	1	9601-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9601-9803		●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9804-		●	●	●		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9601-9803		●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9804-		●	●	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9601-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9601-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9601-9803		●	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9804-		●	●	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9601-9803		●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9804-		●	●	●		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9601-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9601-9803		●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9804-		●	●	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9601-9803		●	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9804-		●	●	●		●
132	SHAFT; REV	1-33351-012-2	01	1	9601-	●
132	SHAFT; REV	1-33351-017-0	01	1	9601-9803		●	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9804-		●	●	●		●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	9601-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9601-9803		●	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9804-		●	●	●		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9601-9803		●	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9804-		●	●	●		●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9601-9908	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	9909-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9601-9709		●		●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9710-9803		●		●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	1-09449-063-0	01	1	9710-9803			●			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9804-0004		●		●		●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	1-09449-063-0	01	1	9804-0004			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0805		●	●	●		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●	●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9601-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9601-9709		●		●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9710-9803		●		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	9710-9803			●			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9804-0004		●		●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	9804-0004			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-		●	●	●		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9601-9803		●	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9804-		●	●	●		●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9601-1204	●
342	FLANGE; OUTPUT	8-98213-222-0	01	1	1205-	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9601-9709		●		●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9710-9803		●		●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE DRUM 10"(B1T)	1-37243-297-0	01	1	9710-9803			●			●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9804-0004		●		●		●
342	FLANGE; OUTPUT EXC. PARKING BRAKE DRUM 10"(B1T)	1-37243-297-0	01	1	9804-0004			●
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0005-		●	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9601-9705	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9706-9709	●	●		●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9710-9803	●	●		●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE DRUM 10"(B1T) M16X51 W/MARK	1-46219-086-0	04	1	9710-9803			●			●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9804-0004	●	●		●		●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE DRUM 10"(B1T) M16X51 W/MARK	1-46219-086-0	04	1	9804-0004			●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0005-	●	●	●	●		●

37 322 38 39 28 298 286 172 70 345 56 57 58 59 56 60 74 75 81 78 79 80 46 47 342 121 11 45 13 14 15 18 22 24 23 26 43 17 27 27 37 30 34 42 34 36 82 50 84 93 96 1 97 2 7 16 7 104 3 105 94 8 108 109 110 9 10 11 12 128 128 135 126 117 123 122 124 131 132 114 111 117 112 113 129 130 129 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-897-0	01	1	9601-	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9601-0006		●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9601-0006			●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-			●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9601-9803				●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9804-0006				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9706-0006						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9804-		●	●	●		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9601-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9601-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9601-9803		●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9804-		●	●	●		●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9601-9803		●	●	●	●	●
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	9804-		●	●	●		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9601-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9601-9803		●	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9804-		●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9601-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9601-9803		●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9804-		●	●	●		●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9601-9803		●	●	●	●	●
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	9804-		●	●	●		●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9601-9803		●	●	●	●	●
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	9804-		●	●	●		●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9601-9803		●	●	●	●	●
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	9804-		●	●	●		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9601-9803		●			●	●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-571-0	01	1	9804-9908		●				●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-711-0	01	1	9909-		●				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-572-0	01	1	9601-9908				●
13	GEAR; 5TH,MAINSHAFT Z=27	1-33253-712-0	01	1	9909-				●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9601-9803		●	●	●	●	●
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	9804-		●	●	●		●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9601-9803		●	●	●	●	●
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	9804-		●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9601-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	9601-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9601-9803		●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9804-		●	●	●		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9601-9803		●	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9804-		●	●	●		●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9601-9803		●	●	●	●	●
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	9804-		●	●	●		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9601-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9601-9803		●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9804-		●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803		●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-		●	●	●		●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-9803		●	●	●	●	●
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9804-		●	●	●		●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9601-	●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9601-				●		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9601-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9601-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9601-9803		●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9804-		●	●	●		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9601-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9601-9803		●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9804-		●	●	●		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-546-1	01	1	9601-9606	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9607-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9601-9803		●			●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9804-		●				●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9601-1107			●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-			●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9601-				●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9601-9803		●	●	●	●	●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	9804-0312		●	●	●		●
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-		●	●	●		●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-408-1	01	1	9601-9810	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9811-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9601-9803		●		●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9804-		●		●		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9601-			●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9601-9803		●	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	9804-		●	●	●		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9601-9803		●	●	●	●	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	9804-		●	●	●		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9601-9803		●	●	●	●	●
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	9804-0312		●	●	●		●
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-		●	●	●		●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9601-9803		●	●	●	●	●
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	9804-		●	●	●		●
42	SLEEVE Z=54	1-33262-154-0	01	1	9601-9803		●	●	●	●	●
42	SLEEVE Z=54	1-33262-154-0	01	1	9804-		●	●	●		●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9601-9803		●	●	●	●	●
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	9804-		●	●	●		●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9601-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9601-9803		●	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9804-		●	●	●		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9601-9803		●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9804-		●	●	●		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9601-9803		●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9804-		●	●	●		●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9601-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9601-9803		●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9804-		●	●	●		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-353-0	04	1	9601-9711	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9712-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9601-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9601-9803		●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9804-		●	●	●		●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9601-9803		●	●	●	●	●
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	9804-		●	●	●		●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9601-9803		●	●	●	●	●
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	9804-		●	●	●		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9601-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9601-9803		●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9804-		●	●	●		●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9601-9803		●	●	●	●	●
60	COLLAR; REV MAIN	1-33234-059-0	01	1	9804-0009		●	●	●		●
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0010-		●	●	●		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9601-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9601-9803		●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9804-		●	●	●		●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9601-9803		●	●	●	●	●
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	9804-		●	●	●		●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9601-9803		●	●	●	●	●
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	9804-		●	●	●		●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9601-9803		●	●	●	●	●
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	9804-		●	●	●		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9601-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9601-				●		●
79	BEARING; BALL,MAINSHAFT JTEKT	1-09800-150-0	01	1	9601-				●		●
79	BEARING; BALL,MAINSHAFT NTN	1-09800-151-0	01	1	9601-				●		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9601-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9601-9803		●	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9804-		●	●	●		●
81	GEAR; 7TH,MAIN Z=19	1-33254-013-0	01	1	9601-				●		●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9601-9908	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	9909-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9601-9803		●	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9804-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9601-				●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9601-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9601-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9601-9803		●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9804-		●	●	●		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9601-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9601-9803		●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9804-		●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9601-	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9601-9803		●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9804-		●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9601-9803		●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9804-		●	●	●		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9601-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9601-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9601-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9601-9803				●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9804-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9706-						●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9601-9803		●			●	●
97	GEAR; 5TH,COUNTER Z=40	1-33332-113-0	01	1	9804-		●				●
97	GEAR; 5TH,COUNTER Z=41	1-33332-114-0	01	1	9601-				●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9601-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9601-9803		●			●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9804-9805		●				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302		●				●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●				●
104	GEAR; 4TH,COUNTER Z=36	1-33332-096-0	01	1	9601-9805			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9806-1107			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311			●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9601-9805				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-123-0	01	1	9806-1302				●
104	GEAR; 4TH,COUNTER Z=34	8-98240-188-0	01	1	1303-				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9601-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9601-9803		●		●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9804-9805		●		●		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311		●		●		●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-		●		●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-125-0	01	1	9601-9805			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9806-1311			●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-			●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9601-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9601-9803		●	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9804-		●	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9601-				●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9601-	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9601-	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9601-9803		●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9804-		●	●	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9601-9803		●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9804-		●	●	●		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9601-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9601-9803		●	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9804-		●	●	●		●
111	GEAR; 7TH COUNTER SHAFT Z=45	1-33338-311-1	01	1	9601-				●		●
112	RING; BLOCK,7TH SYN Z=36	1-33265-281-1	01	1	9601-				●		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-111-3	01	1	9601-				●		●
114	HUB; CLU,7TH	1-33261-159-1	01	1	9601-				●		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-105-0	02	1	9601-				●		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9601-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9601-9803		●	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9804-0212		●	●	●		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●	●	●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-				●		●
123	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-				●		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9601-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9601-9803		●	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9804-		●	●	●		●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9601-	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9601-				●		●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9601-				●		●
128	WASHER; THRUST,REV SHAFT (C) T=4.0	9-33363-015-0	02	1	9601-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9601-9803		●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9804-		●	●	●		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9601-9803		●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9804-		●	●	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9601-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9601-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9601-9803		●	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9804-		●	●	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9601-9803		●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9804-		●	●	●		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9601-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9601-9803		●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9804-		●	●	●		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9601-9803		●	●	●	●	●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	9804-		●	●	●		●
132	SHAFT; REV	1-33351-012-2	01	1	9601-	●
132	SHAFT; REV	1-33351-017-0	01	1	9601-9803		●	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9804-		●	●	●		●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	9601-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9601-9803		●	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9804-		●	●	●		●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9601-9803		●	●	●	●	●
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	9804-		●	●	●		●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9601-9908	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	9909-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9601-9709		●		●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9710-9803		●		●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	1-09449-063-0	01	1	9710-9803			●			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9804-0004		●		●		●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	1-09449-063-0	01	1	9804-0004			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0805		●	●	●		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●	●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9601-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9601-9709		●		●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9710-9803		●		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	9710-9803			●			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9804-0004		●		●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	9804-0004			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-		●	●	●		●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9601-9803		●	●	●	●	●
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	9804-		●	●	●		●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9601-1204	●
342	FLANGE; OUTPUT	8-98213-222-0	01	1	1205-	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9601-9709		●		●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9710-9803		●		●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE DRUM 10"(B1T)	1-37243-297-0	01	1	9710-9803			●			●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9804-0004		●		●		●
342	FLANGE; OUTPUT EXC. PARKING BRAKE DRUM 10"(B1T)	1-37243-297-0	01	1	9804-0004			●
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0005-		●	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9601-9705	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9706-9709	●	●		●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9710-9803	●	●		●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE DRUM 10"(B1T) M16X51 W/MARK	1-46219-086-0	04	1	9710-9803			●			●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9804-0004	●	●		●		●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE DRUM 10"(B1T) M16X51 W/MARK	1-46219-086-0	04	1	9804-0004			●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0005-	●	●	●	●		●

8 48 429 47 1 46 45 49 49 3 2 9 50 32 27 44 48 28 149 80 30 22 78 77 25 23 26 36 33 33 149 27 68 19 67 21 59 76 20 19 17 16 56 70 56 56 126 120 82 125 122 124 286 298 342 56 345 115 126 121 119 118 103 94 115 110 101 103 109 102 96 128 129 108 93 84 135 129 128 130 134 133 105 104 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-897-0	01	1	9601-	●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-502-1	01	1	9601-0006		●
1	SHAFT; TOP GEAR,TRANS Z=19	1-33211-984-0	01	1	0007-		●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-507-1	01	1	9601-0006			●
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0007-			●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9601-9803				●	●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-503-1	01	1	9804-0006				●
1	SHAFT; TOP GEAR,TRANS Z=22	1-33211-985-0	01	1	0007-				●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-505-1	01	1	9706-0006						●
1	SHAFT; TOP GEAR,TRANS Z=24	1-33211-987-0	01	1	0007-						●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	9601-	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	9804-		●	●	●		●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9601-9803		●	●	●	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	9804-		●	●	●		●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	9601-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	9601-	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9601-9803		●	●	●	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	9804-		●	●	●		●
8	CLIP; DOG CLU	1-33219-008-0	01	1	9601-	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9601-9803		●	●	●	●	●
8	CLIP; DOG CLU	1-33219-020-0	01	1	9804-		●	●	●		●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	9601-	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9601-9803		●	●	●	●	●
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	9804-		●	●	●		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	9601-	●
16	BEARING; PILOT,MAINSHAFT NTN	1-09810-208-0	01	1	9601-	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9601-9803		●	●	●	●	●
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	9804-		●	●	●		●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9601-9803		●	●	●	●	●
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	9804-		●	●	●		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-8	01	1	9601-	●
19	RING; BLOCK,4TH & 5TH (B)	1-33265-426-0	01	1	9601-9908	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-1	01	1	9909-	●
20	SLEEVE	1-33262-097-1	01	1	9601-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	9601-	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	9601-	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9601-9803		●	●	●	●	●
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	9804-		●	●	●		●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-9803		●	●	●	●	●
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9804-		●	●	●		●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	9601-	●
26	SPRING; BLOCK,INSERT D=6.2	1-09580-091-1	03	1	9601-	●
26	SPRING; BLOCK,INSERT D=3.8	1-09580-395-0	03	1	9601-				●		●
27	BEARING; 4TH GEAR NSK	1-09811-360-0	02	1	9601-1311	●
27	BEARING; 4TH GEAR NTN	1-09811-391-0	02	1	9601-	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9601-9803		●	●	●	●	●
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	9804-		●	●	●		●
28	RING; SNAP,3RD GEAR ID=74.5	1-09588-118-0	01	1	9601-	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9601-9803		●	●	●	●	●
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	9804-		●	●	●		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-546-1	01	1	9601-9606	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-606-0	01	1	9607-	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9601-9803		●			●	●
30	GEAR; 4TH,MAINSHAFT Z=36	1-33253-502-0	01	1	9804-		●				●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	9601-1107			●
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-			●
30	GEAR; 4TH,MAINSHAFT Z=35	1-33253-503-0	01	1	9601-				●
32	COLLAR; 3RD GEAR	1-33234-075-0	01	1	9601-	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-353-0	02	1	9601-9711	●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-411-0	02	1	9712-	●
33	BEARING; NEEDLE,3RD GEAR NTN	1-09811-389-0	02	1	9601-	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-408-1	01	1	9601-9810	●
36	GEAR; 3RD,MAINSHAFT Z=37	1-33252-461-0	01	1	9811-	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9601-9803		●		●	●	●
36	GEAR; 3RD,MAINSHAFT Z=44	1-33252-374-1	01	1	9804-		●		●		●
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	9601-			●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-209-3	01	1	9601-9907	●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-260-0	01	1	9908-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	03	1	9601-	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9601-9803		●	●	●	●	●
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	9804-		●	●	●		●
46	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9601-9803		●	●	●	●	●
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	9804-		●	●	●		●
47	BLOCK; INDEX,SYN	1-33269-035-1	03	1	9601-	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9601-9803		●	●	●	●	●
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	9804-		●	●	●		●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-445-1	02	1	9601-9704	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-485-0	02	1	9705-9706	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-467-0	02	1	9707-9807	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-507-1	02	1	9808-9907	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-523-0	02	1	9908-9909	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-542-0	02	1	9910-0407	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33265-611-1	02	1	0408-	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-353-0	02	1	9601-9711	●
49	BEARING; NEEDLE,2ND GEAR NSK	1-09811-411-0	02	1	9712-	●
49	BEARING; NEEDLE,2ND GEAR NTN	1-09811-389-0	02	1	9601-	●
50	GEAR; 2ND,MAINSHAFT Z=52	1-33251-327-3	01	1	9601-	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-0	01	1	9601-9803		●	●	●	●	●
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	9804-		●	●	●		●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-353-0	04	1	9601-9711	●
56	BEARING; NEEDLE,1ST,REV NSK	1-09811-411-0	04	1	9712-	●
56	BEARING; NEEDLE,1ST,REV NTN	1-09811-389-0	04	1	9601-	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9601-9803		●	●	●	●	●
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	9804-		●	●	●		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-066-1	01	1	9601-	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-0	01	1	9601-9803		●	●	●	●	●
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	9804-		●	●	●		●
67	HUB; CLU,1ST TO REV	1-33261-208-1	01	1	9601-9606	●
67	HUB; CLU,1ST TO REV	1-33261-223-0	01	1	9607-	●
68	SLEEVE; 1ST TO REV	1-33262-160-0	01	1	9601-	●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-064-0	01	1	9601-	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9601-9803		●	●	●	●	●
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	9804-		●	●	●		●
76	WASHER; THRUST,MAIN LOW	1-33239-146-0	01	1	9601-	●
77	GEAR; 6TH,MAINSHAFT Z=19	1-33253-474-0	01	1	9601-	●
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	9601-			●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	9601-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-085-0	01	1	9601-				●		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	9601-	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9601-9803		●	●	●	●	●
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	9804-		●	●	●		●
82	SHAFT; MAIN,TRANS Z=37-28-28-18	1-33231-264-0	01	1	9601-9908	●
82	SHAFT; MAIN,TRANS Z=28-28-37-18	1-33231-306-0	01	1	9909-	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9601-9803		●	●		●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	9804-		●	●
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-271-0	01	1	9601-				●		●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-221-0	01	1	9601-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-287-1	01	1	1406-	●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-222-0	01	1	9601-1405	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9601-9803		●	●	●	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	9804-		●	●	●		●
93	RING; SNAP,COUNTER FRT BRG ID=74.5	1-09588-118-0	01	1	9601-	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9601-9803		●	●	●	●	●
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	9804-		●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	9601-	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9601-9803		●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=47	1-09735-022-1	02	1	9804-		●	●	●		●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9601-9803		●	●	●	●	●
94	KEY; FEATHER,COUNTER SHAFT L=55	1-09735-025-0	02	1	9804-		●	●	●		●
96	GEAR; COUNTER DRIVE Z=41	1-33331-193-0	01	1	9601-	●
96	GEAR; COUNTER DRIVE Z=46	1-33331-213-1	01	1	9601-		●
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	9601-			●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9601-9803				●	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-214-1	01	1	9804-				●
96	GEAR; COUNTER DRIVE Z=43	1-33331-215-1	01	1	9706-						●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	9601-	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	9601-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	9601-	●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	9601-	●
104	GEAR; 4TH,COUNTER Z=36	1-33338-291-0	01	1	9601-	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9601-9803		●			●	●
104	GEAR; 4TH,COUNTER Z=33	1-33332-097-0	01	1	9804-9805		●				●
104	GEAR; 4TH,COUNTER Z=33	1-33332-122-0	01	1	9806-1302		●				●
104	GEAR; 4TH,COUNTER Z=33	8-98240-187-0	01	1	1303-		●				●
104	GEAR; 4TH,COUNTER Z=36	1-33332-096-0	01	1	9601-9805			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	9806-1107			●
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311			●
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-			●
104	GEAR; 4TH,COUNTER Z=34	1-33332-098-0	01	1	9601-9805				●
104	GEAR; 4TH,COUNTER Z=34	1-33332-123-0	01	1	9806-1302				●
104	GEAR; 4TH,COUNTER Z=34	8-98240-188-0	01	1	1303-				●
105	GEAR; 3RD,COUNTER Z=28	1-33333-147-1	01	1	9601-	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9601-9803		●		●	●	●
105	GEAR; 3RD,COUNTER Z=27	1-33333-124-0	01	1	9804-9805		●		●		●
105	GEAR; 3RD,COUNTER Z=27	1-33333-160-0	01	1	9806-1311		●		●		●
105	GEAR; 3RD,COUNTER Z=27	8-98256-802-0	01	1	1312-		●		●		●
105	GEAR; 3RD,COUNTER Z=28	1-33333-125-0	01	1	9601-9805			●
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	9806-1311			●
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-			●
108	SHAFT; COUNTER Z=23-13	1-33311-276-0	01	1	9601-	●
108	SHAFT; COUNTER Z=19-13	1-33311-235-0	01	1	9601-9803		●	●		●
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	9804-		●	●
108	SHAFT; COUNTER Z=19-13	1-33311-274-1	01	1	9601-				●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	9601-	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	9601-	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9601-9803		●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	9804-		●	●	●		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9601-9803		●	●	●	●	●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	9804-		●	●	●		●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	9601-	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9601-9803		●	●	●	●	●
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	9804-		●	●	●		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	9601-1311	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	9601-	●
118	GEAR; 6TH,COUNTER Z=44	1-33338-307-0	01	1	9601-	●
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	9601-			●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	9601-	●
120	SLEEVE	1-33262-098-2	01	1	9601-	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	9601-	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9601-9803		●	●	●	●	●
121	HUB; CLU,6TH	1-33261-156-2	01	1	9804-0212		●	●	●		●
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-		●	●	●		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	9601-	●
122	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	9601-				●		●
124	SPRING; PLUNGER,CLU HUB D=6.2	1-09580-091-1	03	1	9601-	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9601-9803		●	●	●	●	●
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	9804-		●	●	●		●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	9601-	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	9601-	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	9601-	●
126	RING; SNAP,CLU HUB (A) OD=121.2	1-09587-031-0	01	1	9601-				●		●
126	RING; SNAP,CLU HUB (B) OD=55.8	1-09588-043-0	01	1	9601-				●		●
128	WASHER; THRUST,REV SHAFT (C) T=4.0	9-33363-015-0	02	1	9601-	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9601-9803		●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	9804-		●	●	●		●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9601-9803		●	●	●	●	●
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	9804-		●	●	●		●
129	BEARING; NEEDLE,IDLER NSK	1-09811-388-0	02	1	9601-	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	9601-	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9601-9803		●	●	●	●	●
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	9804-		●	●	●		●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9601-9803		●	●	●	●	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	9804-		●	●	●		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	9601-	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9601-9803		●	●	●	●	●
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	9804-		●	●	●		●
132	SHAFT; REV	1-33351-012-2	01	1	9601-	●
132	SHAFT; REV	1-33351-017-0	01	1	9601-9803		●	●	●	●	●
132	SHAFT; REV	1-33351-017-0	01	1	9804-		●	●	●		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	9601-	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	9601-0603	●
134	WASHER; LK,REV SHAFT ID=8.2	0-91510-508-0	01	1	0604-	●
135	GEAR; REV IDLER Z=27	1-33361-070-1	01	1	9601-	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9601-9803		●	●	●	●	●
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	9804-		●	●	●		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	9601-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	9601-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	9601-	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	9601-	●
286	NUT; LK,MAINSHAFT M42	1-09449-061-0	01	1	9601-9908	●
286	NUT; LK,MAINSHAFT M44	1-09449-076-0	01	1	9909-	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9601-9709		●		●	●	●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9710-9803		●		●	●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	1-09449-063-0	01	1	9710-9803			●			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	9804-0004		●		●		●
286	NUT; LK,MAINSHAFT EXC. PARKING BRAKE DRUM 10"(B1T) M36 FLANGE	1-09449-063-0	01	1	9804-0004			●
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0005-0805		●	●	●		●
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-		●	●	●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	9-09920-607-0	01	1	9601-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	9601-9709		●		●	●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9710-9803		●		●	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	9710-9803			●			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-380-0	01	1	9804-0004		●		●		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). EXC. PARKING BRAKE DRUM 10"(B1T) ID=47 T=5	1-09623-380-0	01	1	9804-0004			●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0005-		●	●	●		●
342	FLANGE; OUTPUT	1-37243-306-0	01	1	9601-1204	●
342	FLANGE; OUTPUT	8-98213-222-0	01	1	1205-	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9601-9709		●		●	●	●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9710-9803		●		●	●
342	FLANGE; OUTPUT EXC. PARKING BRAKE DRUM 10"(B1T)	1-37243-297-0	01	1	9710-9803			●			●
342	FLANGE; OUTPUT	1-37243-297-0	01	1	9804-0004		●		●		●
342	FLANGE; OUTPUT EXC. PARKING BRAKE DRUM 10"(B1T)	1-37243-297-0	01	1	9804-0004			●
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0005-		●	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9601-9705	●	●		●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9706-9709	●	●		●	●	●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9710-9803	●	●		●	●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE DRUM 10"(B1T) M16X51 W/MARK	1-46219-086-0	04	1	9710-9803			●			●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	9804-0004	●	●		●		●
345	BOLT; FLANGE TO YOKE EXC. PARKING BRAKE DRUM 10"(B1T) M16X51 W/MARK	1-46219-086-0	04	1	9804-0004			●
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0005-	●	●	●	●		●
429	SLEEVE; 2ND & 3RD	1-33262-187-2	01	1	9601-0010	●
429	SLEEVE; 2ND & 3RD	1-33262-220-0	01	1	0011-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
