6-47 — MUD GUARD AND INSULATOR (#37642) — 159 parça

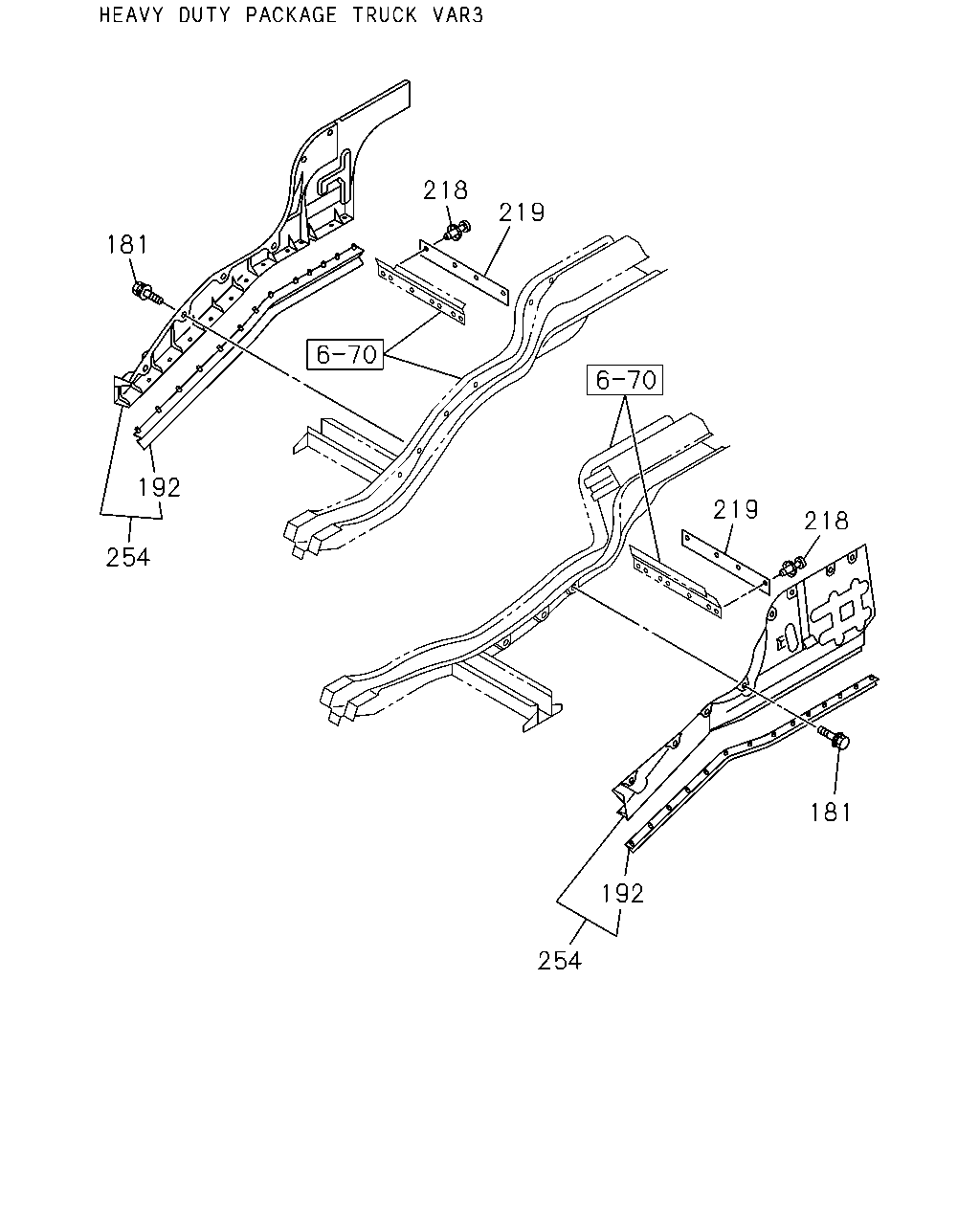

218 219 181 192 219 218 254 181 192 254

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0809-
192	SEAL; MUD COVER	8-98041-159-2	01	1	0809-
192	SEAL; MUD COVER	8-98041-158-1	01	1	0809-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0809-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS)	8-98041-148-1	02	1	1012-
219	FLAP; MUD GUARD	8-98041-150-1	02	1	0809-1011
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1012-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-919-2	01	1	1012-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-920-1	01	1	1012-
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	0809-1011
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1012-
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	0809-1011
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1012-

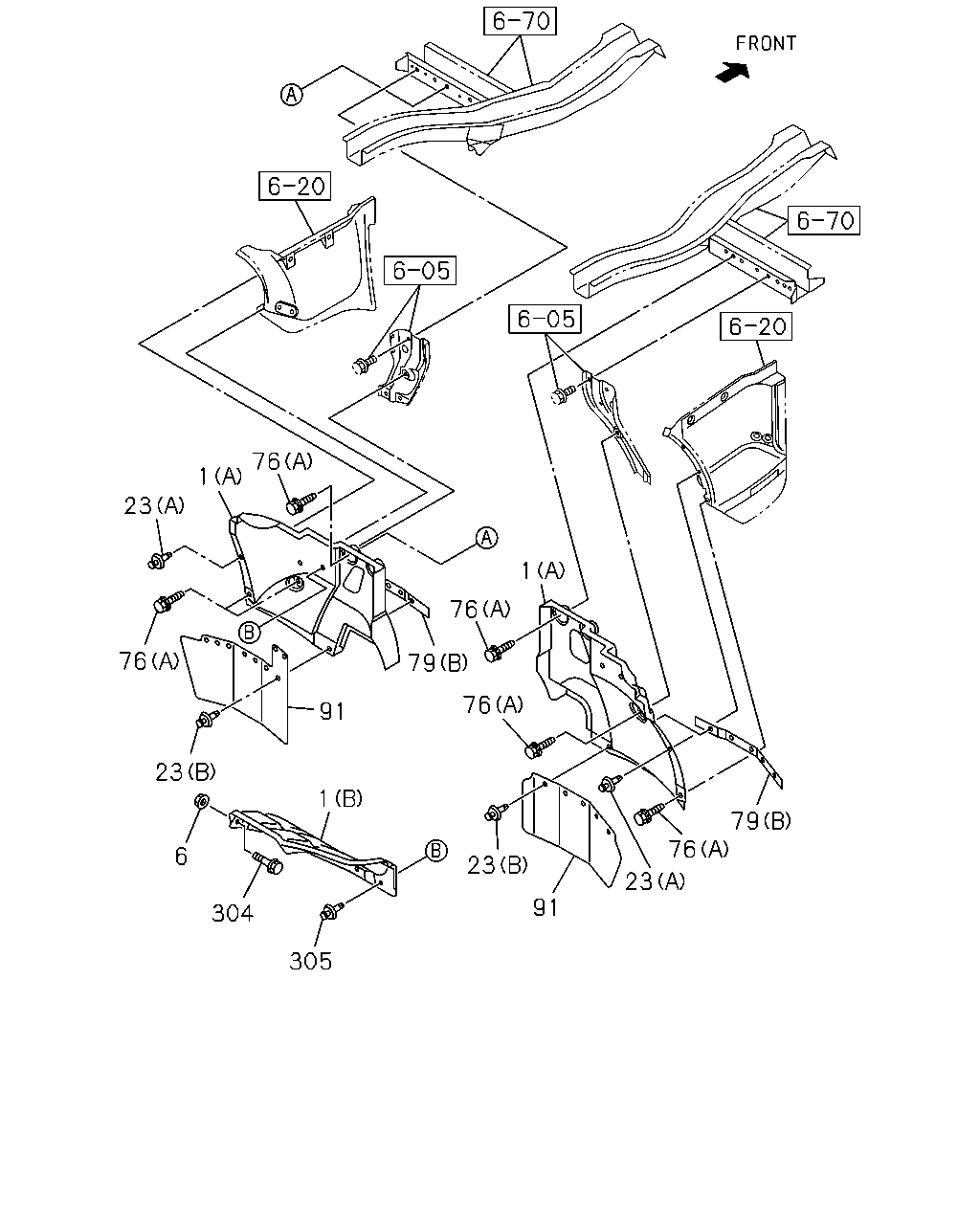

76 1 23 1 76 76 79 76 91 23 1 79 76 6 23 23 91 304 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-191-0	01	1	0907-
1	GUARD; MUD,FRT (A)	8-98039-843-2	01	1	0809-0908
1	GUARD; MUD,FRT (A)	8-98152-647-0	01	1	0909-
1	GUARD; MUD,FRT (A)	8-98039-842-2	01	1	0809-0908
1	GUARD; MUD,FRT (A)	8-98152-646-0	01	1	0909-
1	GUARD; MUD,FRT DUMP CONTROL LEVER<RC4> (B)	8-98075-191-0	01	1	0809-0906
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0907-
6	NUT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6 FLANGE	8-94197-199-0	02	1	0809-0906
23	FASTENER; MUD COVER (B)	1-09470-001-0	08	1	0809-
23	FASTENER; MUD COVER (A) D8X13.5	1-09987-248-1	04	1	0809-
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0809-0908
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0809-1211
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	0809-1211
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1212-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0809-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	0809-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	0809-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	0809-
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS) 428X155	8-98093-463-0	01	1	1012-
91	COVER; MUD,FRT 4HK1-TCS ENG(RJS) 493X155	8-98093-464-0	01	1	1012-
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 417X190	8-98041-214-3	01	1	0809-
91	COVER; MUD,FRT EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 484X190	8-98057-428-2	01	1	0809-
91	COVER; MUD,FRT 407X230	8-98057-430-2	01	1	0809-0809
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 407X230	8-98057-430-2	01	1	0809-1011
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 407X230	8-98057-430-2	01	1	1012-
91	COVER; MUD,FRT 474X230	8-98057-432-2	01	1	0809-0809
91	COVER; MUD,FRT HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 474X230	8-98057-432-2	01	1	0809-1011
91	COVER; MUD,FRT 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 474X230	8-98057-432-2	01	1	1012-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0907-
304	BOLT; SPLASH GUARD DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER	1-09980-495-0	02	1	0809-0906
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0907-
305	FASTENER; SPLASH GUARD DUMP CONTROL LEVER<RC4> D8X13.5	1-09987-248-1	02	1	0809-0906

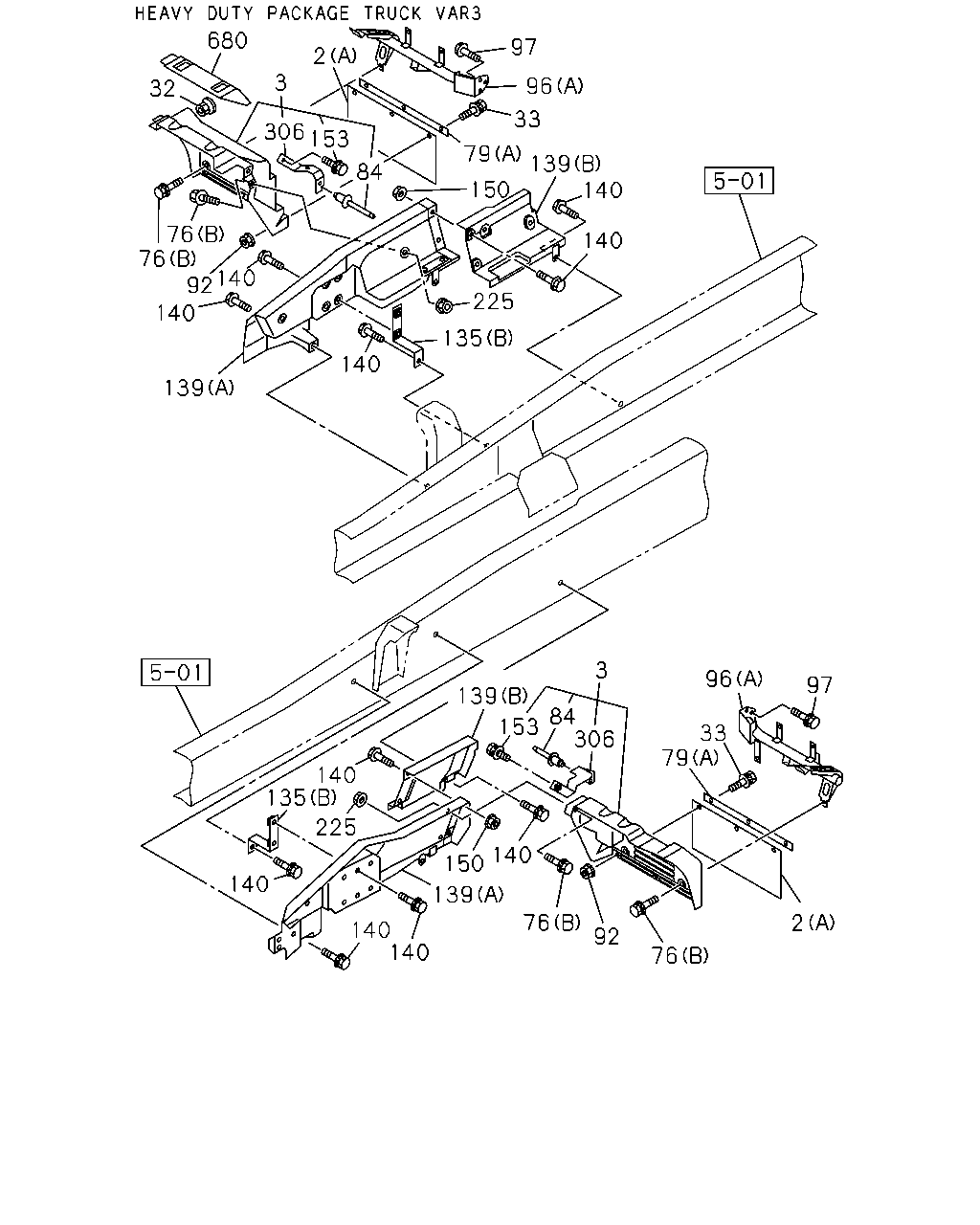

97 96 33 79 150 139 140 140 225 135 140 139 140 92 76 76 140 84 153 306 3 2 680 32 97 96 33 79 2 76 92 76 140 150 139 306 3 84 153 139 140 135 225 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	0809-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	0809-
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-472-2	01	1	1012-1302
3	GUARD; MUD,RR	1-79931-471-0	01	1	0809-1212
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-
3	GUARD; MUD,RR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	0809-1212
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1301-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-542-0	01	1	0809-1212
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1301-
32	NUT; MUD GUARD 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8 W/DISHED WASHER	8-97329-625-0	02	1	1012-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0809-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	0809-
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0809-0908
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0809-1211
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	0809-1211
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1212-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0809-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	0809-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	0809-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	0809-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0809-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98066-745-2	01	1	0809-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-479-3	01	1	0809-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-523-2	01	1	0809-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-522-2	01	1	0809-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	0809-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	0809-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-53457-191-0	02	1	0809-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-388-0	01	1	0809-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-387-0	01	1	0809-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0809-
139	PANEL; SIDE (A)	8-98090-078-0	01	1	0809-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	0809-
139	PANEL; SIDE (A)	8-98090-077-0	01	1	0809-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0809-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0809-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	0809-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0809-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0809-
225	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0809-
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1301-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1301-
680	GUARD; MUD,UPPER 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-477-1	01	1	1012-

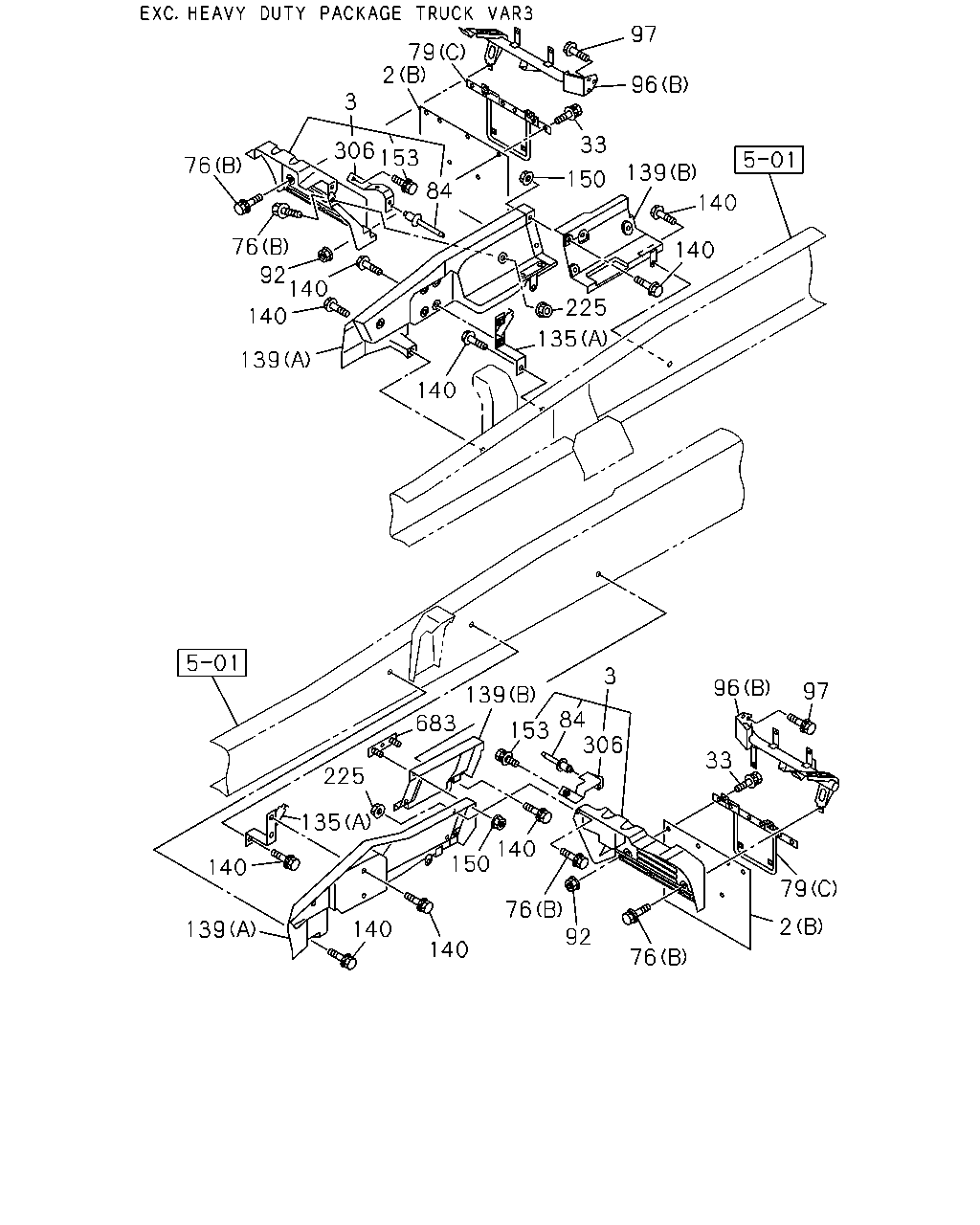

139 140 135 225 150 140 140 76 92 76 2 33 96 97 79 3 306 84 153 139 683 140 135 225 140 140 139 150 33 96 97 140 139 140 140 92 76 76 306 3 2 79 153 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; MUD,TIRE RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-482-0	02	1	0809-
2	COVER; MUD,TIRE RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	8-98121-829-0	02	1	0809-
3	GUARD; MUD,RR 4HK1-TCS ENG(RJS) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-472-2	01	1	1012-1302
3	GUARD; MUD,RR	1-79931-471-0	01	1	0809-1212
3	GUARD; MUD,RR	8-98196-103-0	01	1	1301-
3	GUARD; MUD,RR 6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-475-0	01	1	0809-1212
3	GUARD; MUD,RR HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-111-0	01	1	1301-
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	1-79931-542-0	01	1	0809-1212
3	GUARD; MUD,RR EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-117-0	01	1	1301-
33	BOLT; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	06	1	0809-
33	BOLT; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M6X20 W/LK&PL WASHER	1-09980-495-0	10	1	0809-
76	BOLT; MUD GUARD (A) M8X24.5 W/LK&PL WASHER	8-98059-720-0	08	1	0809-0908
76	BOLT; MUD GUARD (A) M8X25 W/LK&PL WASHER	8-94331-747-1	08	1	0909-
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	08	1	0809-1211
76	BOLT; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	08	1	1212-
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X25 W/LK&PL WASHER	1-09030-093-0	07	1	0809-1211
76	BOLT; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B) M8X30 W/LK&PL WASHER	1-09030-095-0	07	1	1212-
79	RETAINER; MUD COVER (B)	8-98041-217-1	02	1	0809-
79	RETAINER; MUD COVER HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-484-0	02	1	0809-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-144-0	01	1	0809-
79	RETAINER; MUD COVER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (C)	8-98103-145-0	01	1	0809-
84	RIVET; MUD GUARD	5-09734-006-1	02	1	1301-
92	NUT; MUD COVER M6 FLANGE	0-91180-106-0	06	1	0809-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98066-745-2	01	1	0809-
96	STAY; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	1-79931-479-3	01	1	0809-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-523-2	01	1	0809-
96	STAY; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-79931-522-2	01	1	0809-
97	BOLT; STAY TO FRAME HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	07	1	0809-
97	BOLT; STAY TO FRAME EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M10X30 FLANGE	0-28651-030-0	06	1	0809-
135	BRACKET; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (B)	1-53457-191-0	02	1	0809-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-388-0	01	1	0809-
135	BRACKET; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> (A)	8-98089-387-0	01	1	0809-
139	PANEL; SIDE (B)	1-53194-591-0	01	1	0809-
139	PANEL; SIDE (A)	8-98090-078-0	01	1	0809-
139	PANEL; SIDE (B)	1-53194-590-1	01	1	0809-
139	PANEL; SIDE (A)	8-98090-077-0	01	1	0809-
140	BOLT; SIDE PANEL M8X30 W/LK&PL WASHER	1-09030-095-0	10	1	0809-
140	BOLT; SIDE PANEL HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	06	1	0809-
140	BOLT; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> M8X30 W/LK&PL WASHER	1-09030-095-0	05	1	0809-
150	NUT; SIDE PANEL M8 W/DISHED WASHER	8-97329-625-0	04	1	0809-
153	BOLT; BRKT M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	1301-
225	NUT; MUD GUARD M8 FLANGE	0-91180-108-0	02	1	0809-
225	NUT; MUD GUARD M8 W/DISHED WASHER	8-97329-625-0	02	1	0809-
306	BRACKET; MUD GUARD HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-126-0	01	1	1301-
306	BRACKET; MUD GUARD	8-98196-125-0	01	1	1301-
306	BRACKET; MUD GUARD EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98196-127-0	01	1	1301-
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98067-739-0	01	1	0809-1211
683	PLATE; SIDE PANEL EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98199-233-0	01	1	1212-

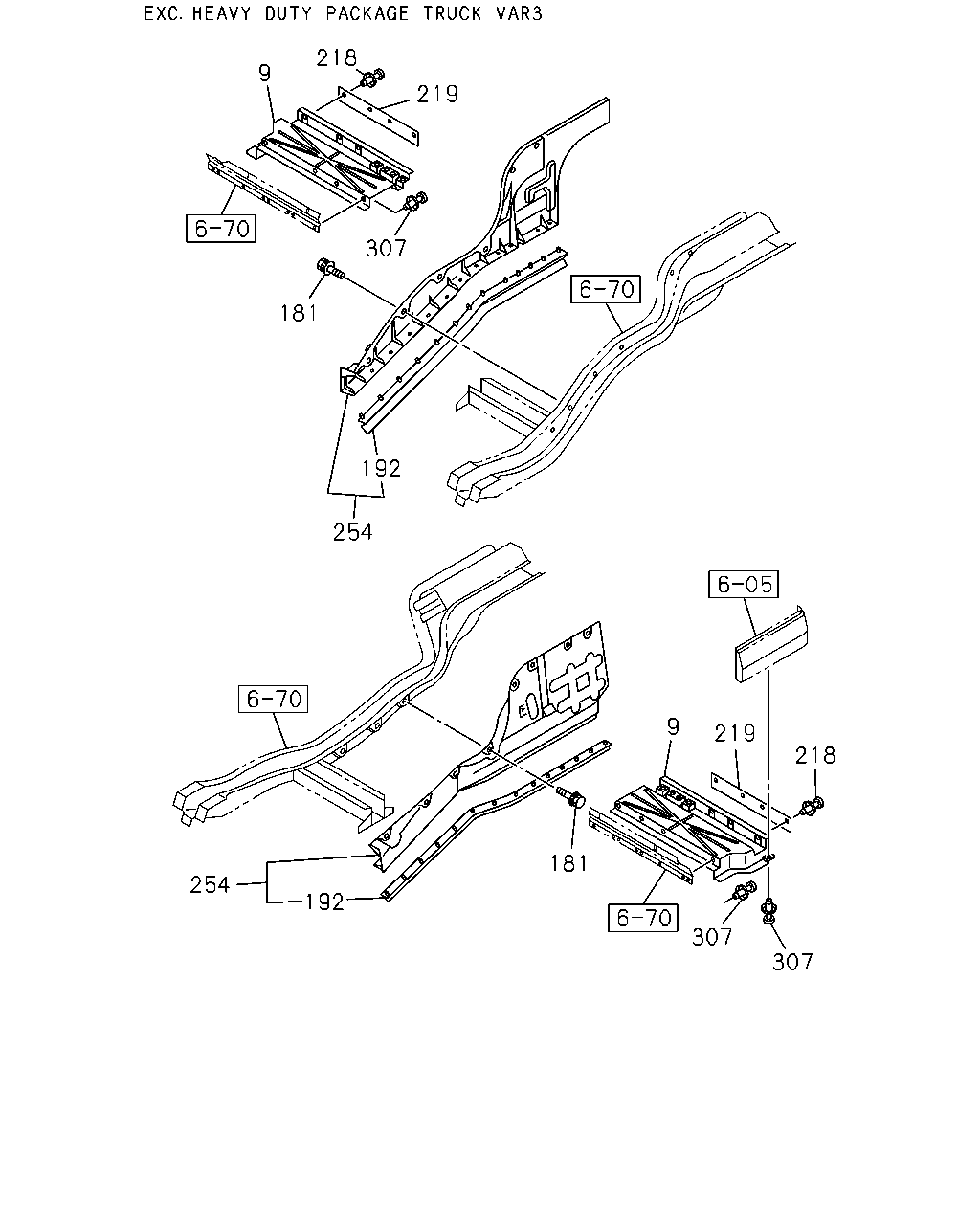

218 9 219 307 181 192 254 9 219 218 181 254 192 307 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-122-0	01	1	0809-
9	GUARD; SPLASH,WHEEL HOUSE EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48>	8-98040-121-0	01	1	0809-
181	BOLT; COVER,SIDE M8X24.5 W/LK&PL WASHER	8-98059-720-0	16	1	0809-
192	SEAL; MUD COVER	8-98041-159-2	01	1	0809-
192	SEAL; MUD COVER	8-98041-158-1	01	1	0809-
218	FASTENER; RUBBER D8X13.5	1-09987-248-1	08	1	0809-
219	FLAP; MUD GUARD 4HK1-TCS ENG(RJS)	8-98041-148-1	02	1	1012-
219	FLAP; MUD GUARD	8-98041-150-1	02	1	0809-1011
219	FLAP; MUD GUARD 6HK1-TCN ENG(82L)	8-98041-150-1	02	1	1012-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-919-2	01	1	1012-
254	COVER; MUD,VALANCE 4HK1-TCS ENG(RJS)	8-98039-920-1	01	1	1012-
254	COVER; MUD,VALANCE	8-98039-926-1	01	1	0809-1011
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-926-1	01	1	1012-
254	COVER; MUD,VALANCE	8-98039-925-2	01	1	0809-1011
254	COVER; MUD,VALANCE 6HK1-TCN ENG(82L)	8-98039-925-2	01	1	1012-
307	RETAINER EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> D8X13.5	1-09987-248-1	08	1	0809-
