6-01 — FRONT BUMPER (#37631) — 33 parça

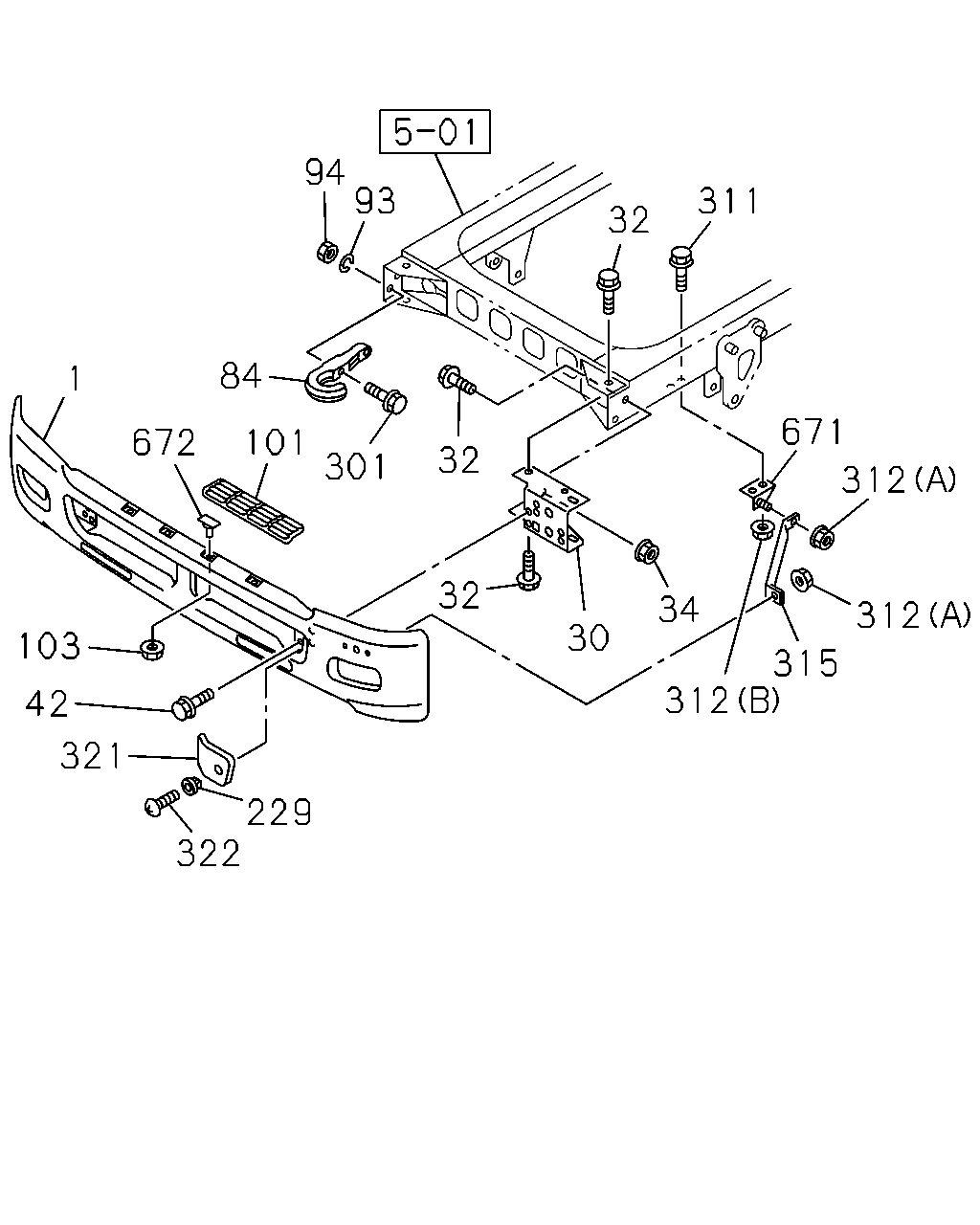

çizim 181406
94 311 32 84 1 671 672 101 32 301 312 32 34 312 30 103 315 312 42 321 229 322 93
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		8-97407-728-3 01 1 0809-1301
1 BUMPER ASM; FRT
WHITE 		8-97425-839-0 01 1 1302-
30 BRACKET; FRT BUMPER
4HK1-TCS ENG(RJS) 		8-97611-515-4 01 1 1012-
30 BRACKET; FRT BUMPER
4HK1-TCS ENG(RJS) 		8-97611-516-4 01 1 1012-
30 BRACKET; FRT BUMPER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-518-4 01 1 0809-
30 BRACKET; FRT BUMPER
6HK1-TCN ENG(82L) HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97611-517-5 01 1 0809-
30 BRACKET; FRT BUMPER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97623-248-0 01 1 0809-
30 BRACKET; FRT BUMPER
6HK1-TCN ENG(82L) EXC. HEAVY DUTY PACKAGE TRUCK VAR3<Y48> 		8-97623-247-0 01 1 0809-
32 BOLT; BRKT,BUMPER
M10X35 FLANGE 		0-28651-035-0 06 1 0809-
34 NUT; BRKT,BUMPER
M10 FLANGE 		0-91180-210-0 02 1 0809-
42 BOLT; BUMPER
M10X30 		8-94324-205-0 06 1 0809-
84 HOOK 1-57181-003-5 01 1 0809-
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0809-
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0809-
101 STEP; BUMPER 8-97611-541-0 01 1 0809-
101 STEP; BUMPER 8-97611-540-0 01 1 0809-
103 NUT; BUMPER STEP
M6 FLANGE 		0-91180-106-0 04 1 0809-
229 GROMMET
D=7X7 L=7.5 		5-09983-007-0 02 1 0809-
301 BOLT; HOOK TO FRAME
M14X60 		0-10861-460-0 02 1 0809-
311 BOLT; BRKT
M14X35 FLANGE 		0-28851-435-0 04 1 0809-1008
311 BOLT; BRKT
M14X45 FLANGE 		0-28851-445-0 04 1 1009-
312 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 04 1 0809-
312 NUT; BRKT
(B) M14 FLANGE 		0-91180-214-0 04 1 0809-
315 STAY; BUMPER
4HK1-TCS ENG(RJS) 		8-97611-497-1 01 1 1012-
315 STAY; BUMPER
4HK1-TCS ENG(RJS) 		8-97611-498-1 01 1 1012-
315 STAY; BUMPER
6HK1-TCN ENG(82L) 		8-97611-500-2 01 1 0809-
315 STAY; BUMPER
6HK1-TCN ENG(82L) 		8-97611-499-2 01 1 0809-
321 COVER; BUMPER FRT SIDE 8-97616-291-1 01 1 0809-
321 COVER; BUMPER FRT SIDE 8-97616-290-1 01 1 0809-
322 SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 0809-
671 BRACKET; STAY 8-97614-063-0 01 1 0809-
671 BRACKET; STAY 8-97614-062-0 01 1 0809-
672 STUD; STEP
M6X20 		8-97611-666-0 04 1 0809-
