8-40 — HEATER SYSTEM (#37626) — 84 parça

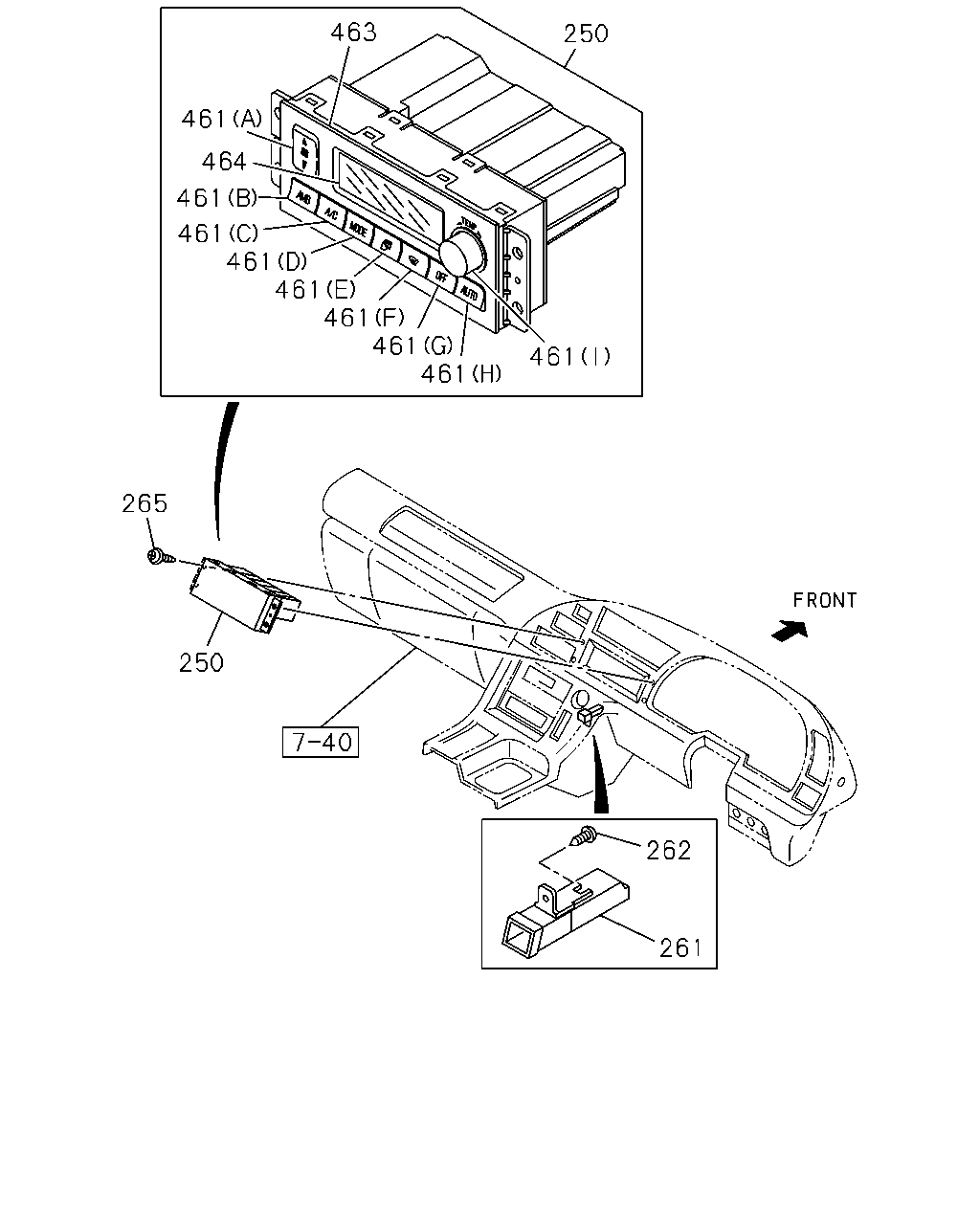

çizim 180790
250 463 461 464 461 461 461 461 461 461 461 461 262 261 250 265
BalonParca AdiParca NoAdetTipApplied Date
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0710-
261 SENSOR; IN CAR 1-83544-023-1 01 1 0710-
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0710-
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(A) FAN 		1-83549-018-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(B) AMB 		1-83549-019-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(C) A/C 		1-83549-020-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(D) MODE 		1-83549-021-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(E) REC 		1-83549-022-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(F) DEF 		1-83549-023-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(G) OFF 		1-83549-024-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(H) AUTO 		1-83549-025-0 01 1 0710-
461 KNOB; CONTROL ASM,A/C
(I) TEMP 		1-83549-026-0 01 1 0710-
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0710-
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0710-

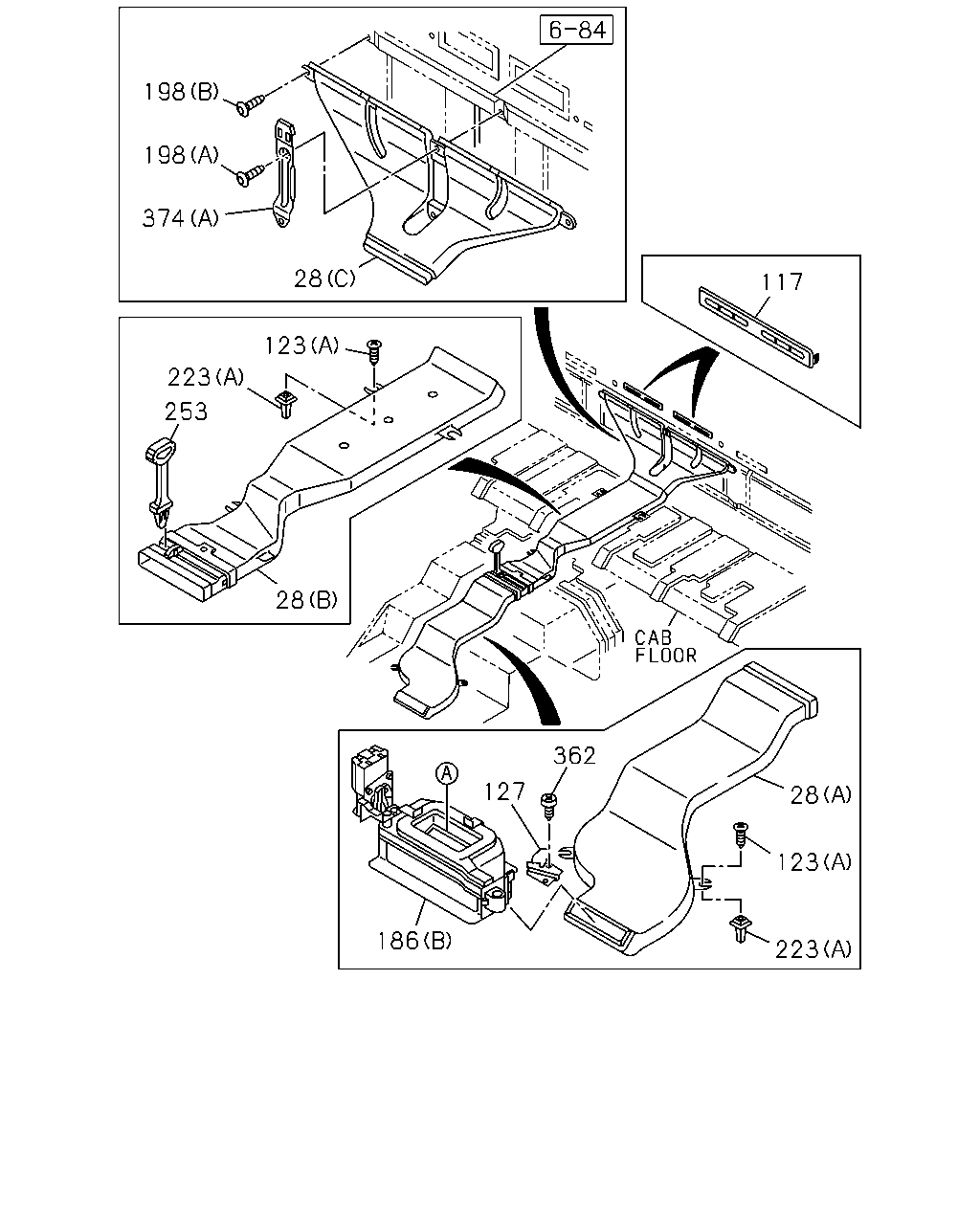

çizim 180794
117 198 198 374 28 123 223 253 28 186 127 362 28 123 223
BalonParca AdiParca NoAdetTipApplied Date
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-76377-180-2 01 1 0710-
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) 		1-76377-186-1 01 1 0710-
28 DUCT; AIR,VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-203-0 01 1 0710-
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-187-5 01 1 0710-
117 GRILLE; VENTILATOR
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-188-5 01 1 0710-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-
127 BRACKET; VENT DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76397-019-0 01 1 0710-
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 BLACK 		1-09987-114-0 02 1 0710-1204
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205-
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-128-1 02 1 0710-1204
198 CLIP; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 1205-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
253 KNOB; CONT LEVER
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-76377-185-1 01 1 0710-
362 SCREW; DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M5X14 		8-94279-325-0 02 1 0710-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 0710-

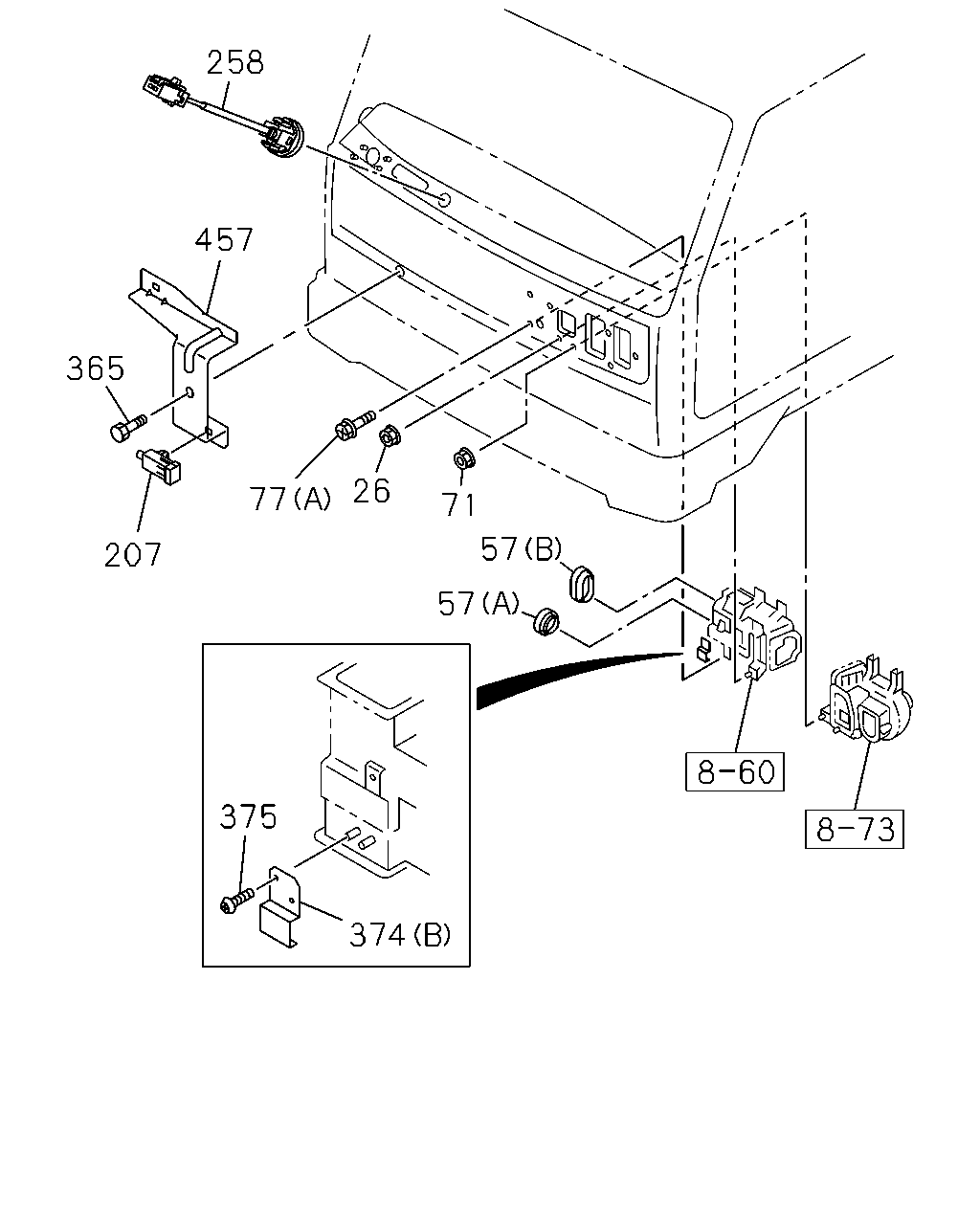

çizim 180802
258 457 365 207 77 26 71 57 57 375 374
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0710-
57 COVER; INL DUCT
EXC. COOL & HOT BOX<TMU> (A) 		1-83579-617-0 02 1 0710-0907
57 COVER; INL DUCT
EXC. COOL & HOT BOX<TMU> (B) 		1-83579-618-0 01 1 0710-0907
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0710-1204
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205-
258 SENSOR; SUN 8-94472-043-2 01 1 0710-
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0710-
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0710-
374 HOLDER; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-189-3 01 1 0710-
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0710-
457 BRACKET; SENSOR 1-71907-603-1 01 1 0710-

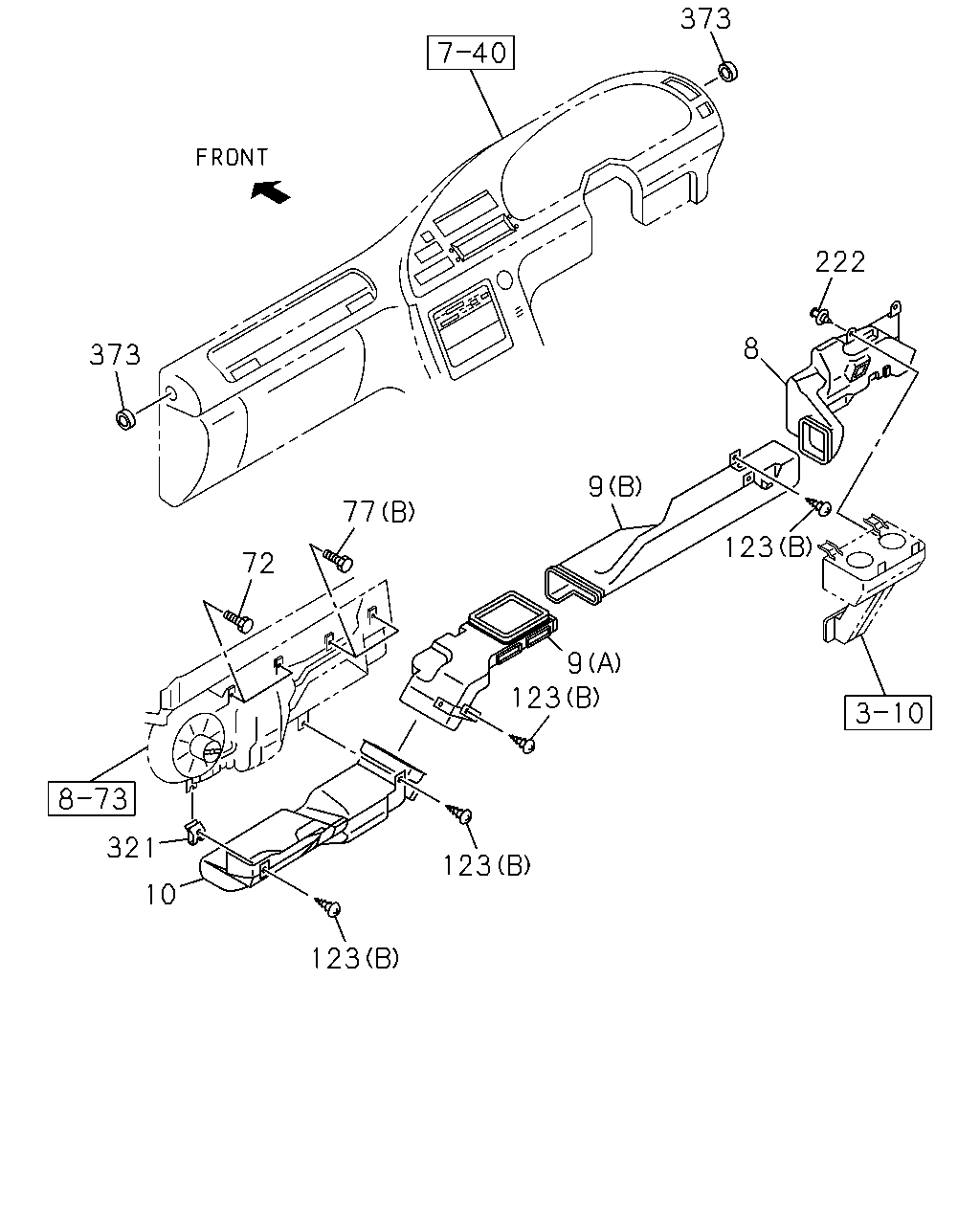

çizim 180806
373 222 8 9 77 72 373 321 10 123 123 123 9 123
BalonParca AdiParca NoAdetTipApplied Date
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-226-2 01 1 0710-
9 DUCT; HTR AIR,FOOT CENTER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-76377-227-2 01 1 0710-
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0710-
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0710-
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0710-
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0710-
373 RUBBER; JOINT 1-76378-291-0 02 1 0710-

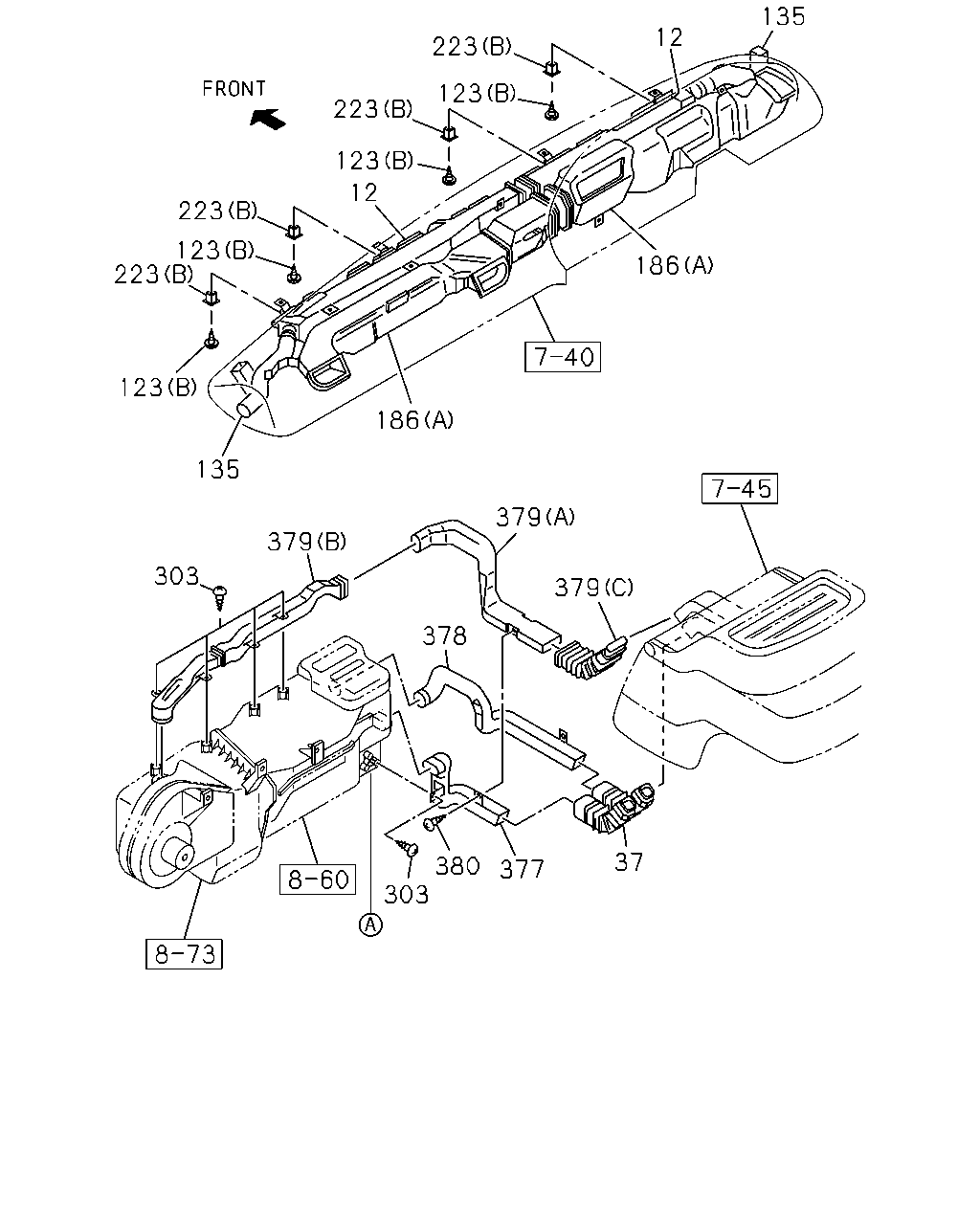

çizim 180836
135 12 223 123 223 123 12 223 123 223 123 135 303 379 186 186 379 378 379 37 377 380 303
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0710-
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0710-
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 0710-
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0710-
123 SCREW; DUCT
CENTER SEAT DELETE(SP9) EXC. AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0710-
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0710-
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0710-
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0710-
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0710-0710
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711-
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0710-
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0710-
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0710-
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 0710-
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 0710-
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 0710-
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 0710-
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 0710-
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 0710-
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 0710-
