◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#37625) — 289 parça

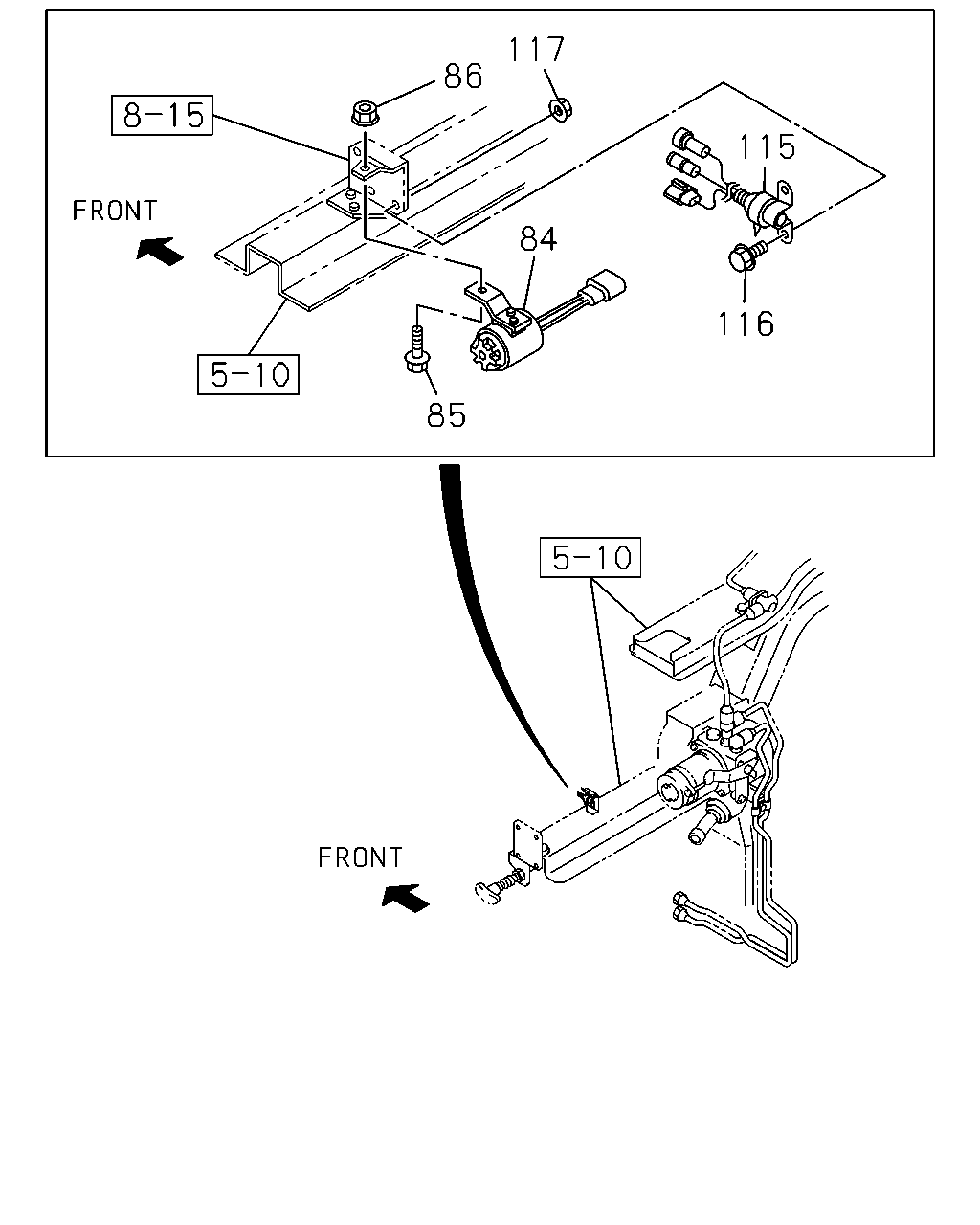

çizim 180777
116 115 117 86 84 85
BalonParca AdiParca NoAdetTipApplied Date
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0710-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0710-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0710-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0710-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
çizim 180780
94
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0710-

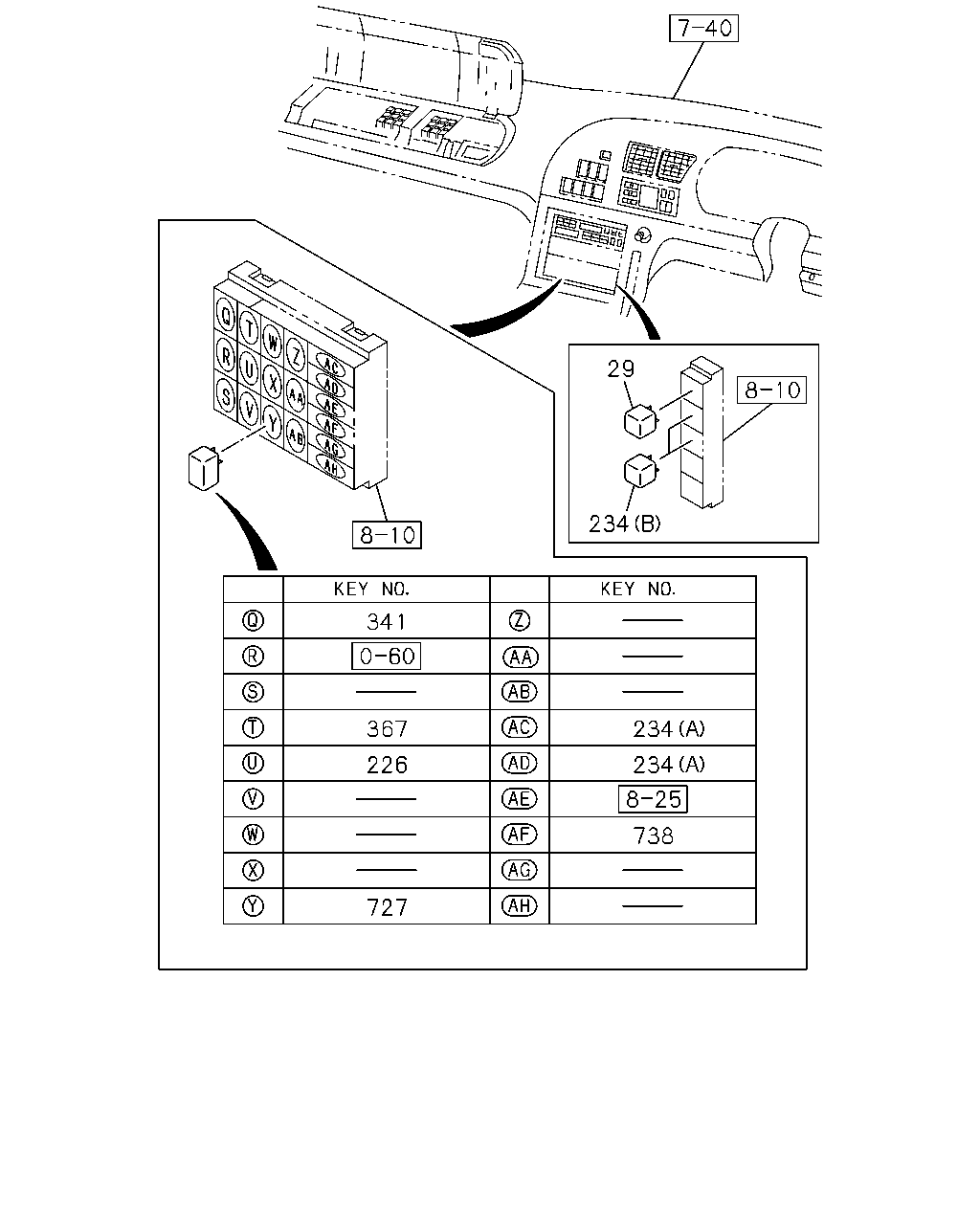

çizim 180781
29 234 341 367 226 727 234 234 738
BalonParca AdiParca NoAdetTipApplied Date
29 RELAY; HORN
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
226 RELAY; EXH BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
234 RELAY; AIR SUSPENSION
(A) 24V 10A PANASONIC 		8-97173-035-1 02 1 0710-
234 RELAY; AIR SUSPENSION
(B) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
727 RELAY; START CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-1306
727 RELAY; START CUT
24V 10A PANASONIC 		8-98167-173-0 01 1 1307-
738 RELAY; EXH & RETARDER CUT
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
çizim 180783
90 285 210 602 89 261 88 284 210 34 89 34
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-
88 CONNECTOR; MAG VLV
(P) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-
88 CONNECTOR; MAG VLV
(J) M16 & PT1/4X2 3WAY 		1-09656-668-0 03 1 0710-
88 CONNECTOR; MAG VLV
(O) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 08 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 07 1 0710-0808
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 06 1 0809-1104
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1105-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 1105-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(N) PT3/8 & PT1/4 ELBOW 		1-09660-709-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(I) DIN12X2 & R1/4 3WAY 		1-09661-071-0 03 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 02 1 0710-1205
89 VALVE; MAG,DIFF LOCK 8-97641-594-0 02 1 1206-
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-

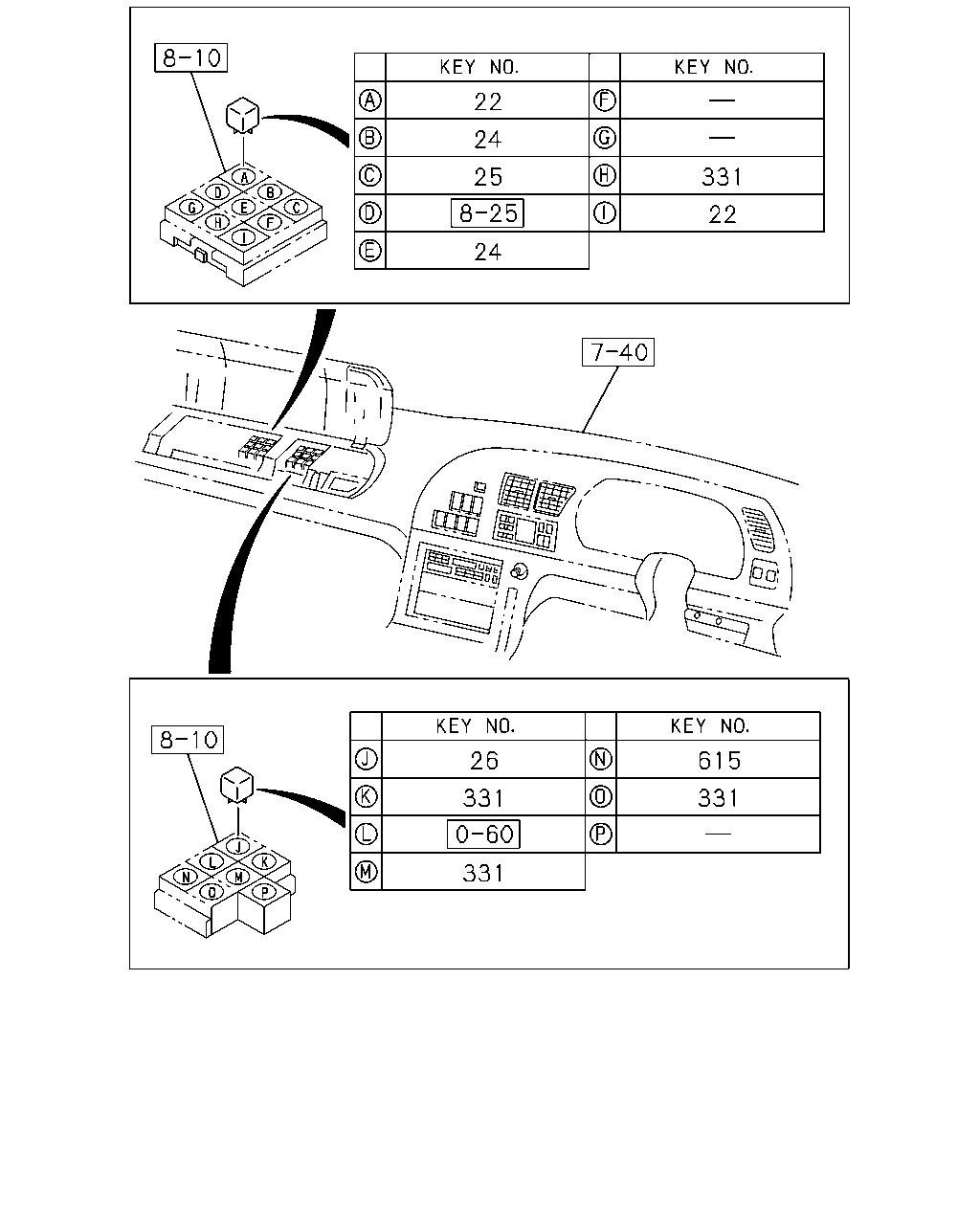

çizim 180786
22 24 25 24 331 22 26 331 331 615 331
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-

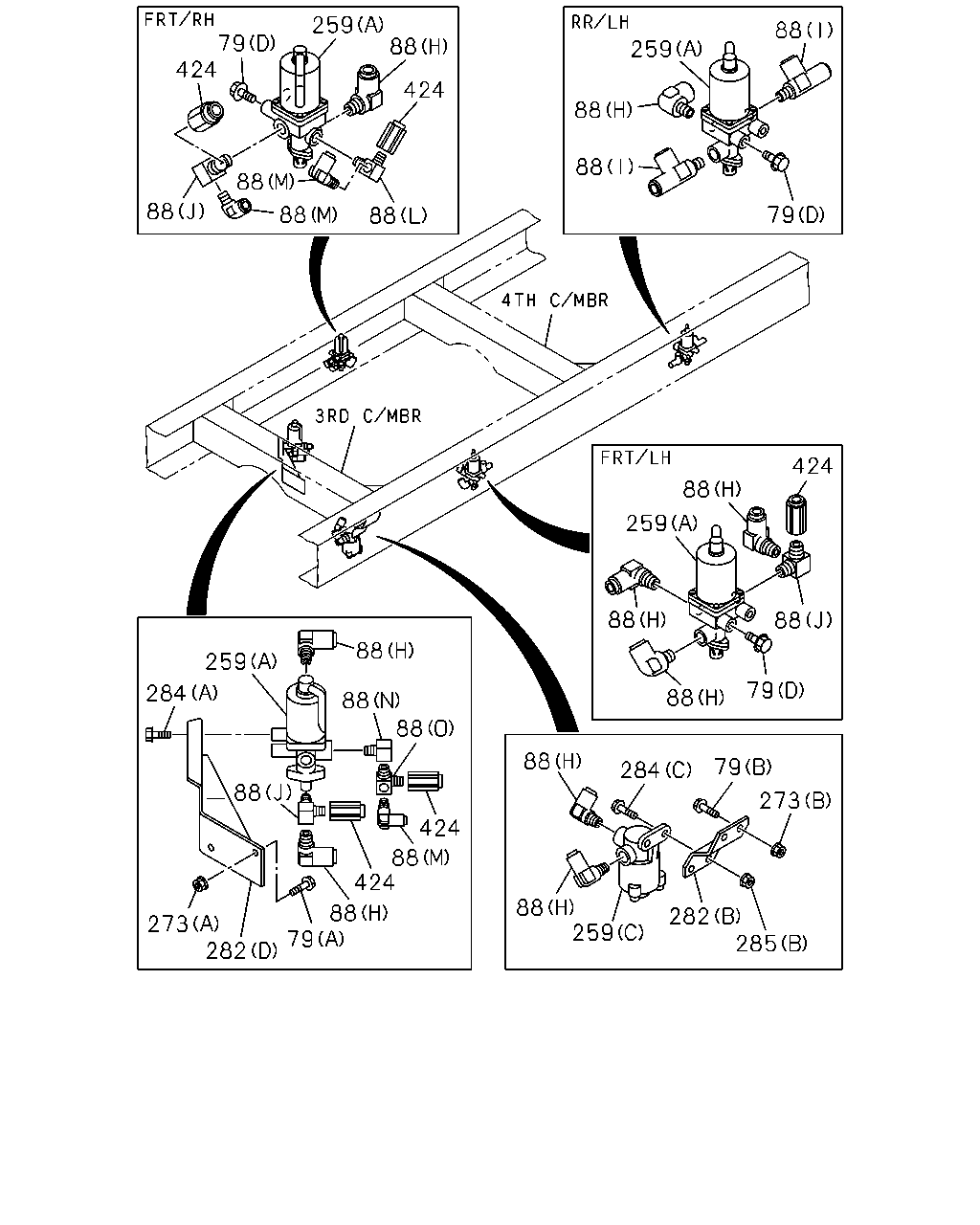

çizim 180788
424 79 259 88 424 88 88 88 88 88 88 259 88 79 424 88 259 88 88 79 88 273 79 284 88 88 259 282 285 88 88 88 424 88 424 88 79 282 273 88 284 259
BalonParca AdiParca NoAdetTipApplied Date
79 BOLT; MAG VLV
(D) M8X25 FLANGE 		0-28650-825-0 08 1 0710-
79 BOLT; MAG VLV
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0710-
79 BOLT; MAG VLV
(C) M8X70 		0-10855-870-0 02 1 0710-
79 BOLT; MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
88 CONNECTOR; MAG VLV
(P) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-
88 CONNECTOR; MAG VLV
(J) M16 & PT1/4X2 3WAY 		1-09656-668-0 03 1 0710-
88 CONNECTOR; MAG VLV
(O) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 08 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 07 1 0710-0808
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 06 1 0809-1104
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1105-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 1105-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(N) PT3/8 & PT1/4 ELBOW 		1-09660-709-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(I) DIN12X2 & R1/4 3WAY 		1-09661-071-0 03 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(C) 		1-48410-722-0 01 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(A) 		1-82563-703-0 02 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(A) 		1-82563-703-0 03 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(B) 		1-82563-713-0 01 1 0710-
273 NUT; MAG VLV
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
273 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
282 BRACKET; MAG VLV
(D) 		8-98097-899-0 01 1 0710-0804
282 BRACKET; MAG VLV
(D) 		8-98120-739-0 01 1 0805-
282 BRACKET; MAG VLV
(C) 		8-98076-313-0 01 1 0710-
282 BRACKET; MAG VLV
(B) 		8-98088-292-0 01 1 0710-
282 BRACKET; MAG VLV
(A) 		8-98088-448-0 01 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
424 ADAPTER
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-
424 ADAPTER
DIN12 & M16 STRAIGHT 		1-09660-876-0 05 1 0710-

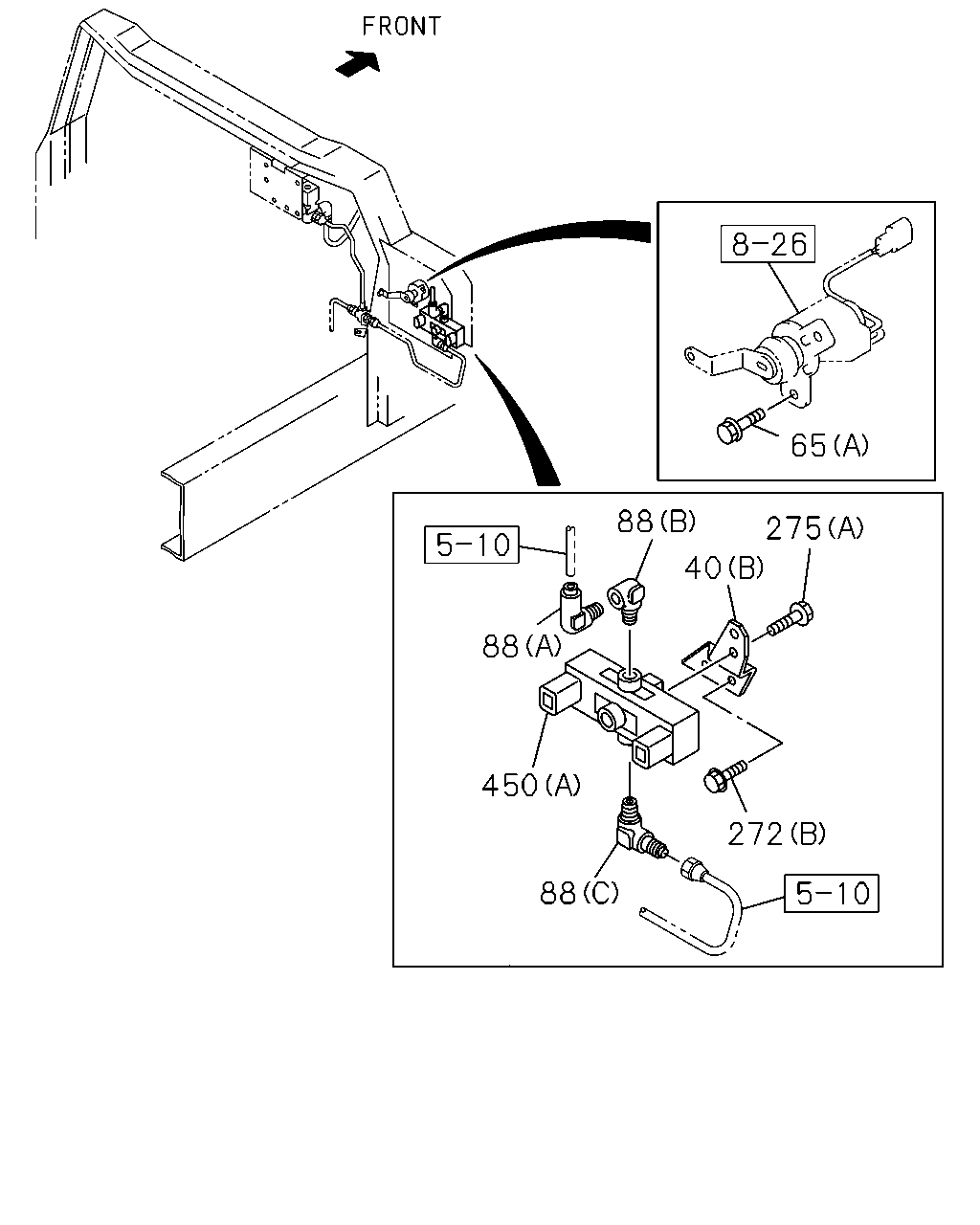

çizim 180791
65 88 275 40 88 450 272 88
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0710-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1005-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
88 CONNECTOR; MAG VLV
(P) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-
88 CONNECTOR; MAG VLV
(J) M16 & PT1/4X2 3WAY 		1-09656-668-0 03 1 0710-
88 CONNECTOR; MAG VLV
(O) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 08 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 07 1 0710-0808
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 06 1 0809-1104
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1105-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 1105-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(N) PT3/8 & PT1/4 ELBOW 		1-09660-709-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(I) DIN12X2 & R1/4 3WAY 		1-09661-071-0 03 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
272 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
272 BOLT; MAG VLV
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0710-1208
272 BOLT; MAG VLV
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0710-
275 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0710-
450 VALVE; MAG
(B) 		8-97376-939-3 01 1 0710-0910
450 VALVE; MAG
(B) 		8-97633-075-0 01 1 0911-

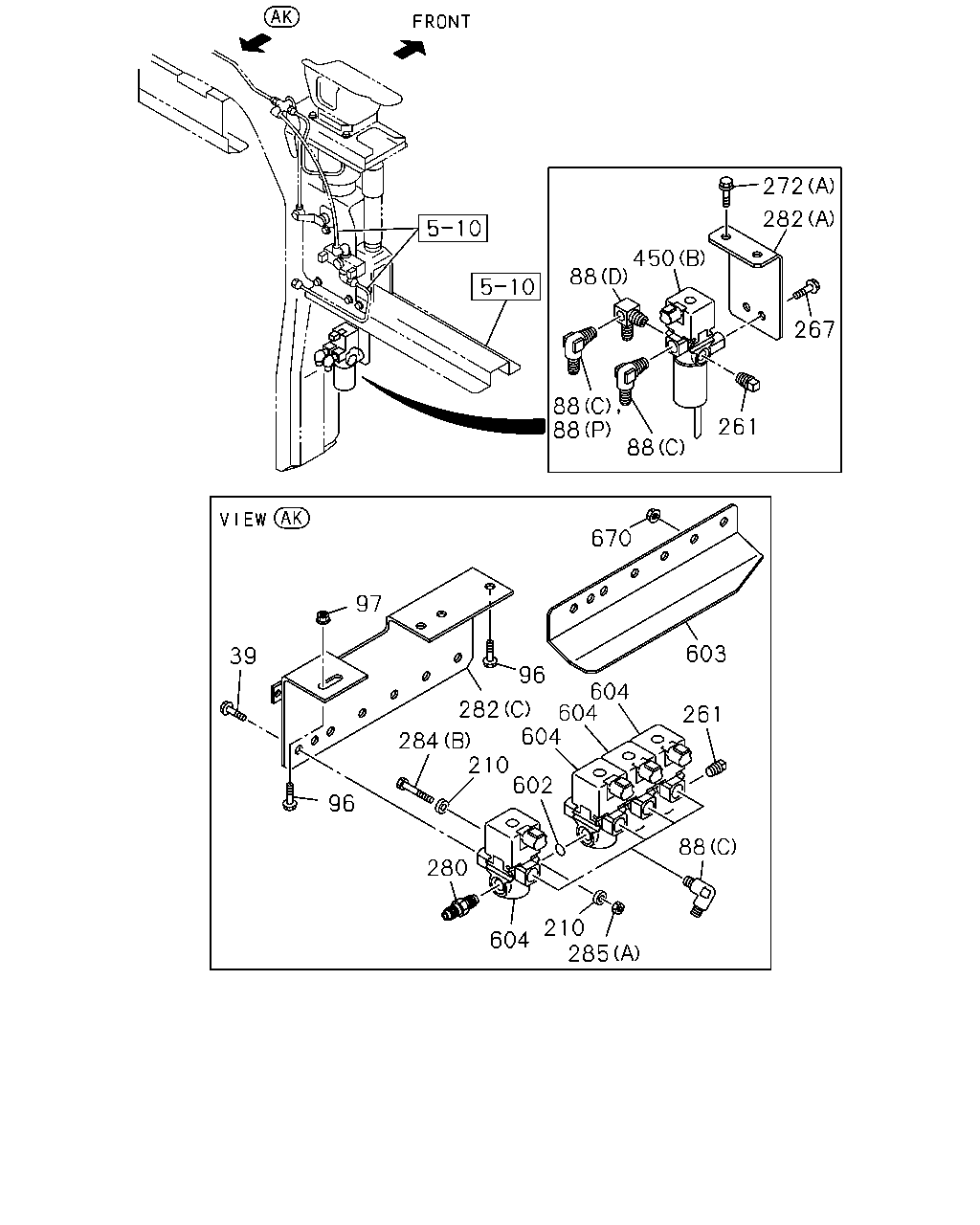

çizim 180792
272 282 450 88 267 88 88 261 88 670 97 603 39 96 604 282 604 604 261 284 210 602 96 88 280 210 285 604
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 04 1 0710-
88 CONNECTOR; MAG VLV
(P) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-
88 CONNECTOR; MAG VLV
(J) M16 & PT1/4X2 3WAY 		1-09656-668-0 03 1 0710-
88 CONNECTOR; MAG VLV
(O) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 08 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 07 1 0710-0808
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 06 1 0809-1104
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1105-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 1105-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(N) PT3/8 & PT1/4 ELBOW 		1-09660-709-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(I) DIN12X2 & R1/4 3WAY 		1-09661-071-0 03 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
96 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 03 1 0710-
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 03 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0710-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 02 1 0710-
267 BOLT; VLV TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
272 BOLT; MAG VLV
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
272 BOLT; MAG VLV
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0710-1208
272 BOLT; MAG VLV
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
280 CONNECTOR; IN,MAG VLV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
282 BRACKET; MAG VLV
(D) 		8-98097-899-0 01 1 0710-0804
282 BRACKET; MAG VLV
(D) 		8-98120-739-0 01 1 0805-
282 BRACKET; MAG VLV
(C) 		8-98076-313-0 01 1 0710-
282 BRACKET; MAG VLV
(B) 		8-98088-292-0 01 1 0710-
282 BRACKET; MAG VLV
(A) 		8-98088-448-0 01 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-
450 VALVE; MAG
(A) 		1-53458-378-2 01 1 0710-
450 VALVE; MAG
(B) 		8-97376-939-3 01 1 0710-0910
450 VALVE; MAG
(B) 		8-97633-075-0 01 1 0911-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-
603 PROTECTOR; MAG VLV 8-98076-312-1 01 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0710-
670 NUT; PROTECTOR
M8 FLANGE 		0-91180-108-0 01 1 0710-

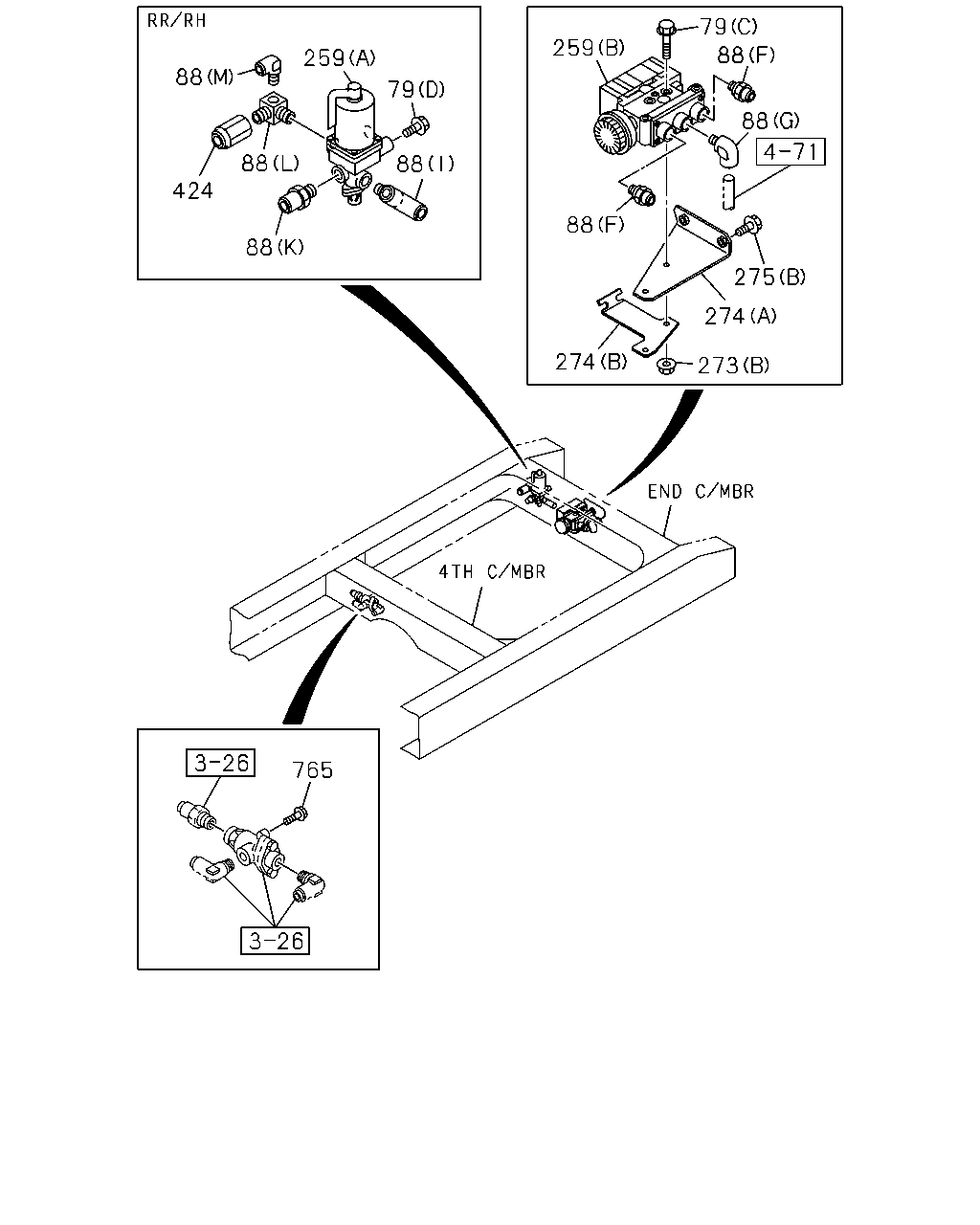

çizim 180796
79 259 88 259 88 79 88 88 88 424 88 88 275 274 274 273 765
BalonParca AdiParca NoAdetTipApplied Date
79 BOLT; MAG VLV
(D) M8X25 FLANGE 		0-28650-825-0 08 1 0710-
79 BOLT; MAG VLV
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0710-
79 BOLT; MAG VLV
(C) M8X70 		0-10855-870-0 02 1 0710-
79 BOLT; MAG VLV
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
88 CONNECTOR; MAG VLV
(P) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0809-
88 CONNECTOR; MAG VLV
(J) M16 & PT1/4X2 3WAY 		1-09656-668-0 03 1 0710-
88 CONNECTOR; MAG VLV
(O) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 08 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 07 1 0710-0808
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 06 1 0809-1104
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1105-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 05 1 1105-
88 CONNECTOR; MAG VLV
(D) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(L) M16 & PT1/4X2 3WAY 		1-09656-669-0 01 1 0710-
88 CONNECTOR; MAG VLV
(N) PT3/8 & PT1/4 ELBOW 		1-09660-709-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(M) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-
88 CONNECTOR; MAG VLV
(H) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN12 & R1/4 STRAIGHT 		1-09660-967-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8X2 & R1/4 3WAY 		1-09661-004-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) DIN12 & M22 STRAIGHT 		1-09661-050-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(I) DIN12X2 & R1/4 3WAY 		1-09661-071-0 03 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN12 & M22 ELBOW 		1-09661-497-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(C) 		1-48410-722-0 01 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(A) 		1-82563-703-0 02 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(A) 		1-82563-703-0 03 1 0710-
259 VALVE; MAG,AIR SUSP CONT
(B) 		1-82563-713-0 01 1 0710-
273 NUT; MAG VLV
(A) M10 FLANGE 		0-91180-210-0 02 1 0710-
273 NUT; MAG VLV
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
274 BRACKET; MAG VLV AIR SUSP
(B) 		8-98168-296-0 01 1 1006-
274 BRACKET; MAG VLV AIR SUSP
(A) 		1-82569-289-0 01 1 0710-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0710-
275 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 0710-
424 ADAPTER
DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0710-
424 ADAPTER
DIN12 & M16 STRAIGHT 		1-09660-876-0 05 1 0710-
765 BOLT; VLV
M8X16 FLANGE 		0-28060-816-0 02 1 0710-0803
765 BOLT; VLV
M8X16 FLANGE 		0-28050-816-0 02 1 0804-

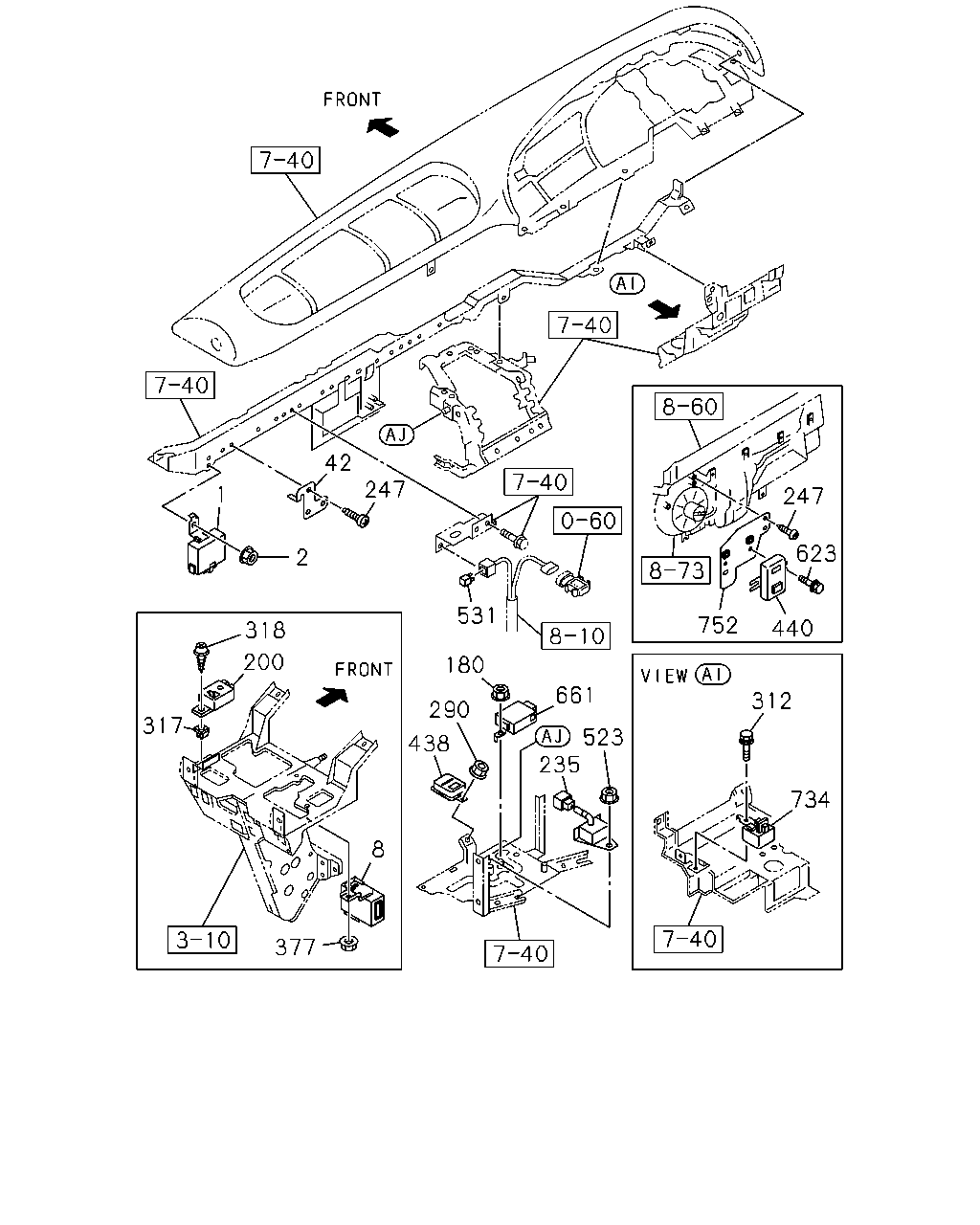

çizim 180800
42 247 1 2 318 200 317 8 377 438 290 180 531 661 523 235 312 734 752 440 623 247
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-062-1 01 1 0710-
8 RELAY; WIPER 1-83316-002-4 01 1 0710-
42 BRACKET; RELAY 1-82698-128-2 01 1 0710-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0710-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0710-
200 BUZZER; WARNING,AIR SUSP 1-83460-040-0 01 1 0710-
235 TIMER; AIR SUSPENSION 1-82540-068-0 01 1 0710-
247 SCREW; BRKT
M5X14 		8-94279-325-0 01 1 0710-
247 SCREW; BRKT
M5X14 		8-94279-325-0 03 1 0710-
290 NUT
M6 FLANGE 		0-91180-106-0 01 1 0710-
312 BOLT; BUZZER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-
317 GROMMET; SCREW
D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0710-
318 SCREW; BUZZER
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0710-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0710-
438 UNIT; SPD CONTROL 1-82550-309-0 01 1 0710-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0710-
523 NUT; TIMER
M6 FLANGE 		0-91180-106-0 01 1 0710-
531 RELAY; MAIN
24V 		1-82550-308-1 01 1 0710-1005
531 RELAY; MAIN
24V 		8-98167-175-0 01 1 1006-
623 BOLT; MODULE
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0710-
734 ALARM; MULTI 1-83460-106-0 01 1 0710-
752 BRACKET; MODULE 8-97611-710-0 01 1 0710-

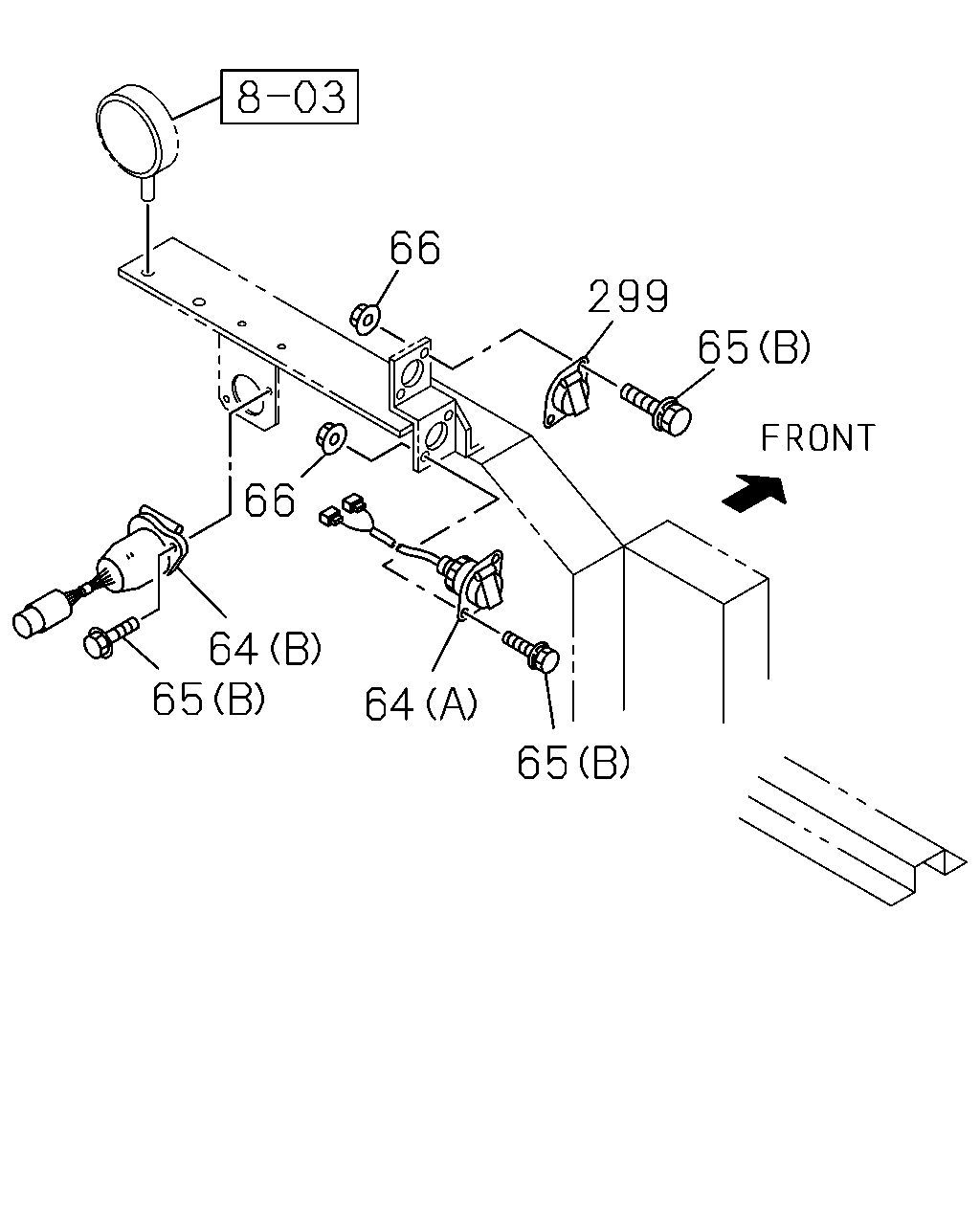

çizim 180820
66 299 65 66 64 65 64 65
BalonParca AdiParca NoAdetTipApplied Date
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 1005-
64 SOCKET; TRAILER
(A) L=940 		1-82698-297-0 01 1 1005-1008
64 SOCKET; TRAILER
(A) L=940 		8-98172-009-0 01 1 1009-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 06 1 1005-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 06 1 1005-
299 SOCKET; PARKING 1-82699-396-2 01 1 1005-

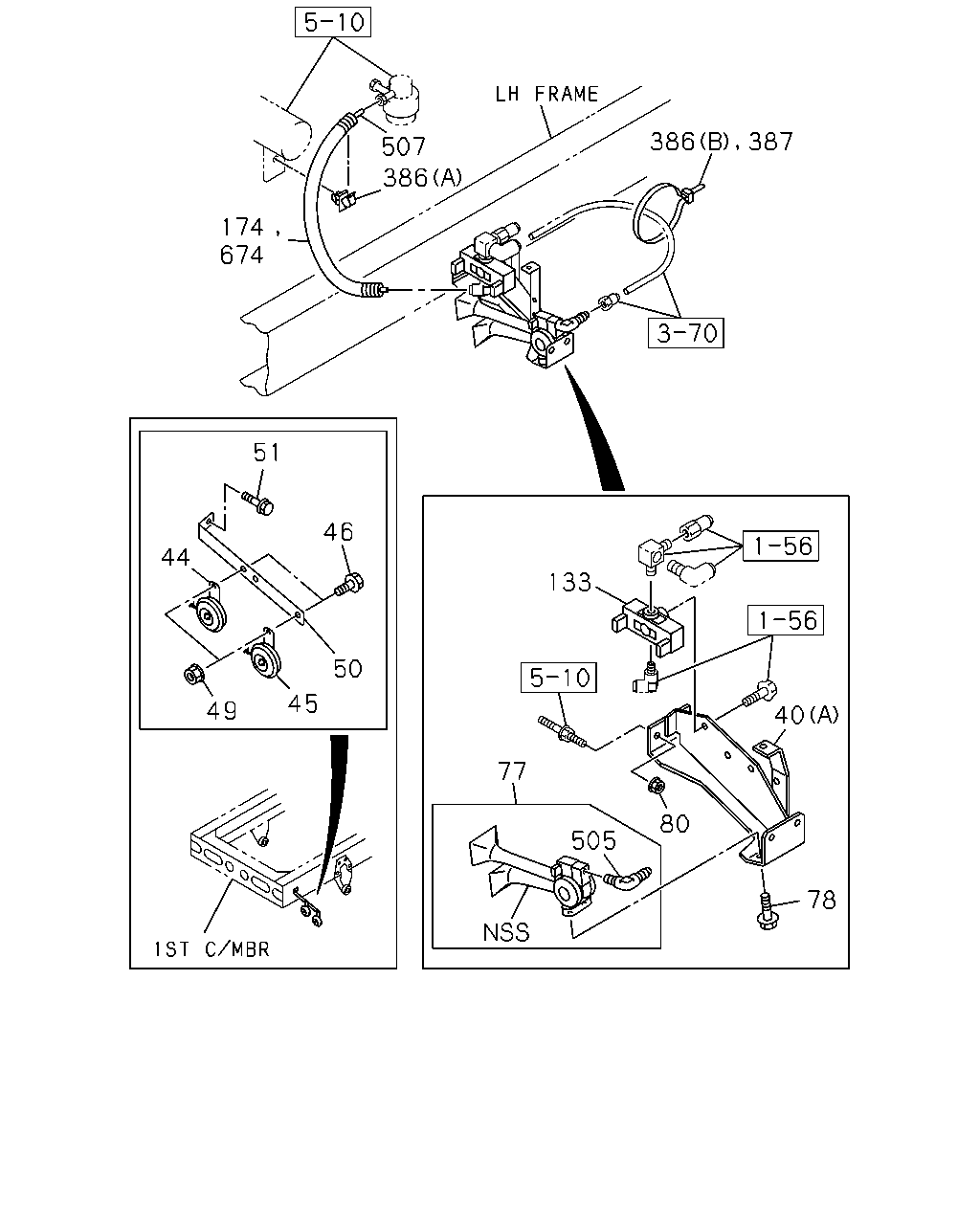

çizim 180830
174 674 51 44 49 45 50 46 133 77 505 80 78 40 386 507 386 387
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(A) 		1-53457-199-0 01 1 0710-1006
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 1007-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
44 HORN; HIGH NOTE 1-83410-061-1 01 1 0710-
45 HORN; LOW NOTE 1-83410-062-1 01 1 0710-
46 BOLT; HORN TO BODY
M8X25 FLANGE 		0-28650-825-0 02 1 0710-
49 NUT; HORN TO BODY
M8 FLANGE 		0-91180-108-0 02 1 0710-
50 BRACKET; HORN 1-53457-196-0 01 1 0710-
51 BOLT; HORN TO BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0710-
77 HORN ASM 1-83430-041-2 01 1 0710-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0710-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0710-
174 COVER
L=600 SERVICED BY L=800 ID=7 		1-83129-031-1 01 1 0710-
386 CLIP; HARNESS
(B) L=350 		1-09707-183-0 02 1 0710-
386 CLIP; HARNESS
(A) ID=9.5 		5-09709-020-0 01 1 0710-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0710-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0710-
507 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0710-
674 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0710-
çizim 507906
782
BalonParca AdiParca NoAdetTipApplied Date
782 REPAIR KIT; VALVE 1-85576-381-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
