◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#37623) — 92 parça
çizim 180771
380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0710-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0710-
657 CONTROL UNIT; MIMAMORI 1-80190-186-0 01 1 0710-0710
657 CONTROL UNIT; MIMAMORI 8-98105-893-1 01 1 0711-

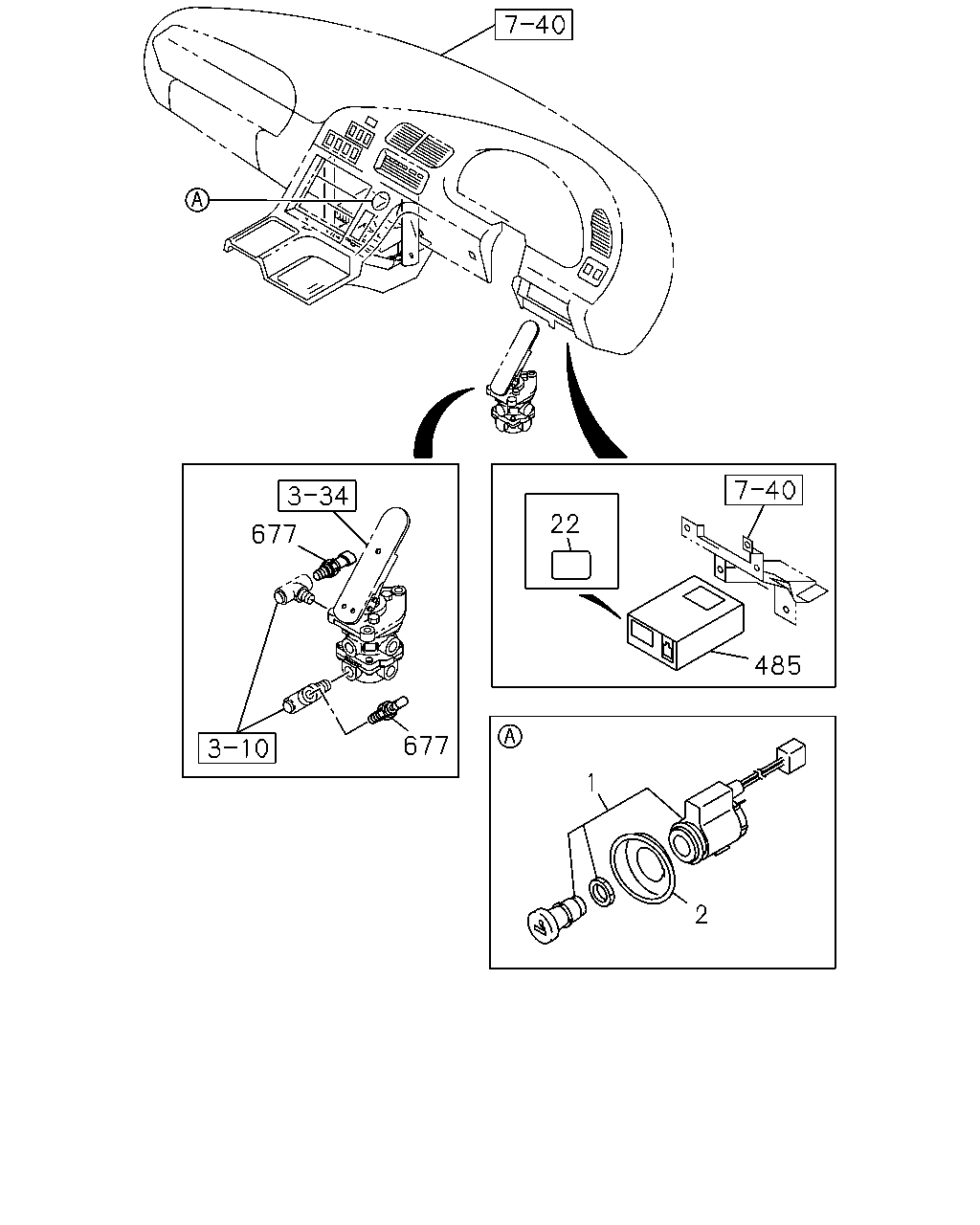

çizim 180773
677 677 1 2 485 22
BalonParca AdiParca NoAdetTipApplied Date
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0710-
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0710-
22 SEAL; TAPE 8-98083-174-0 01 1 0710-
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0710-1008
485 CONTROL UNIT; SPEED SENSOR 8-98140-862-0 01 1 1009-1109
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 1110-
677 SENSOR; AIR METER
THREAD R1/4 		1-80220-023-1 02 1 0710-

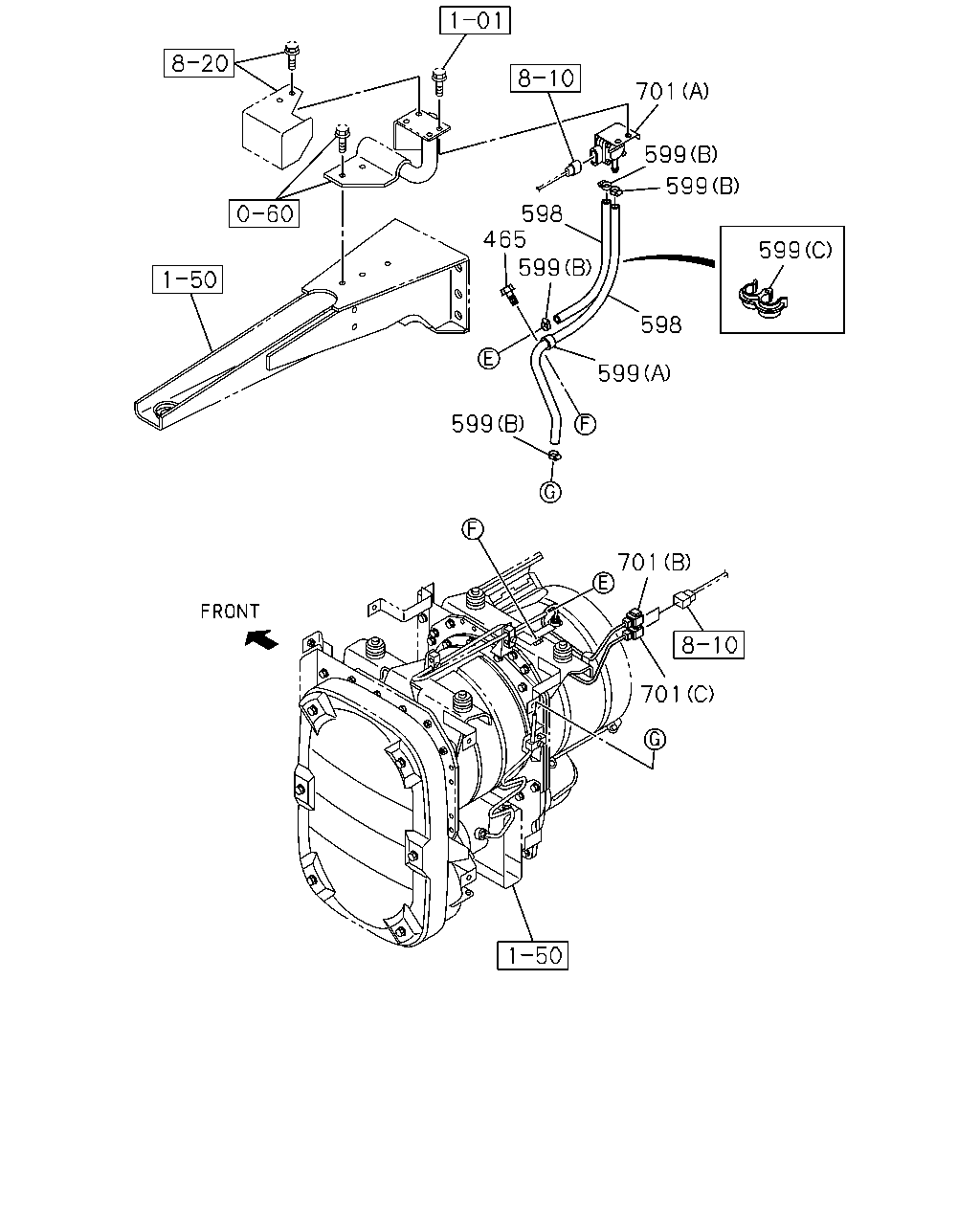

çizim 180776
701 599 599 599 598 465 599 598 599 599 701 701
BalonParca AdiParca NoAdetTipApplied Date
465 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0710-
598 HOSE; RUBBER,SENSOR
L=460 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-
598 HOSE; RUBBER,SENSOR
L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 0710-
599 CLIP; HOSE
(A) 		8-97173-119-0 01 1 0710-
599 CLIP; HOSE
(C) ID=19 L=24 		1-09701-259-0 01 1 0710-
599 CLIP; HOSE
(B) ID=8-16.5 		8-94426-596-0 04 1 0710-0802
599 CLIP; HOSE
(B) ID=13 		8-97329-627-0 04 1 0803-
701 SENSOR; DPD
(A) 		8-97359-985-2 01 1 0710-
701 SENSOR; DPD
(B) 		8-97359-987-5 01 1 0710-
701 SENSOR; DPD
(C) 		8-97359-989-5 01 1 0710-

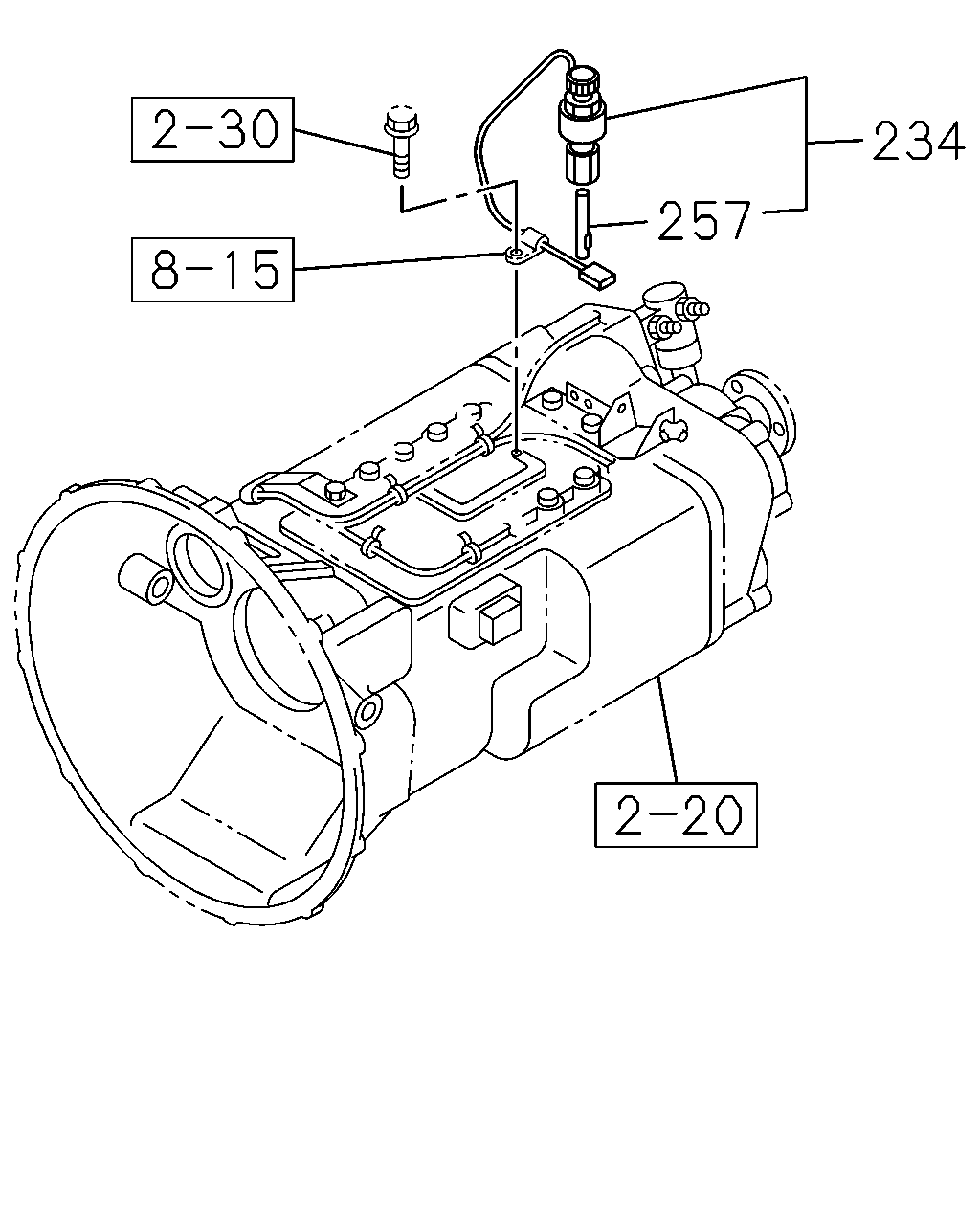

çizim 180779
234 257
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE 		1-83127-414-1 01 1 0710-
257 KEY; SPEED SENSOR 1-83129-073-0 01 1 0710-

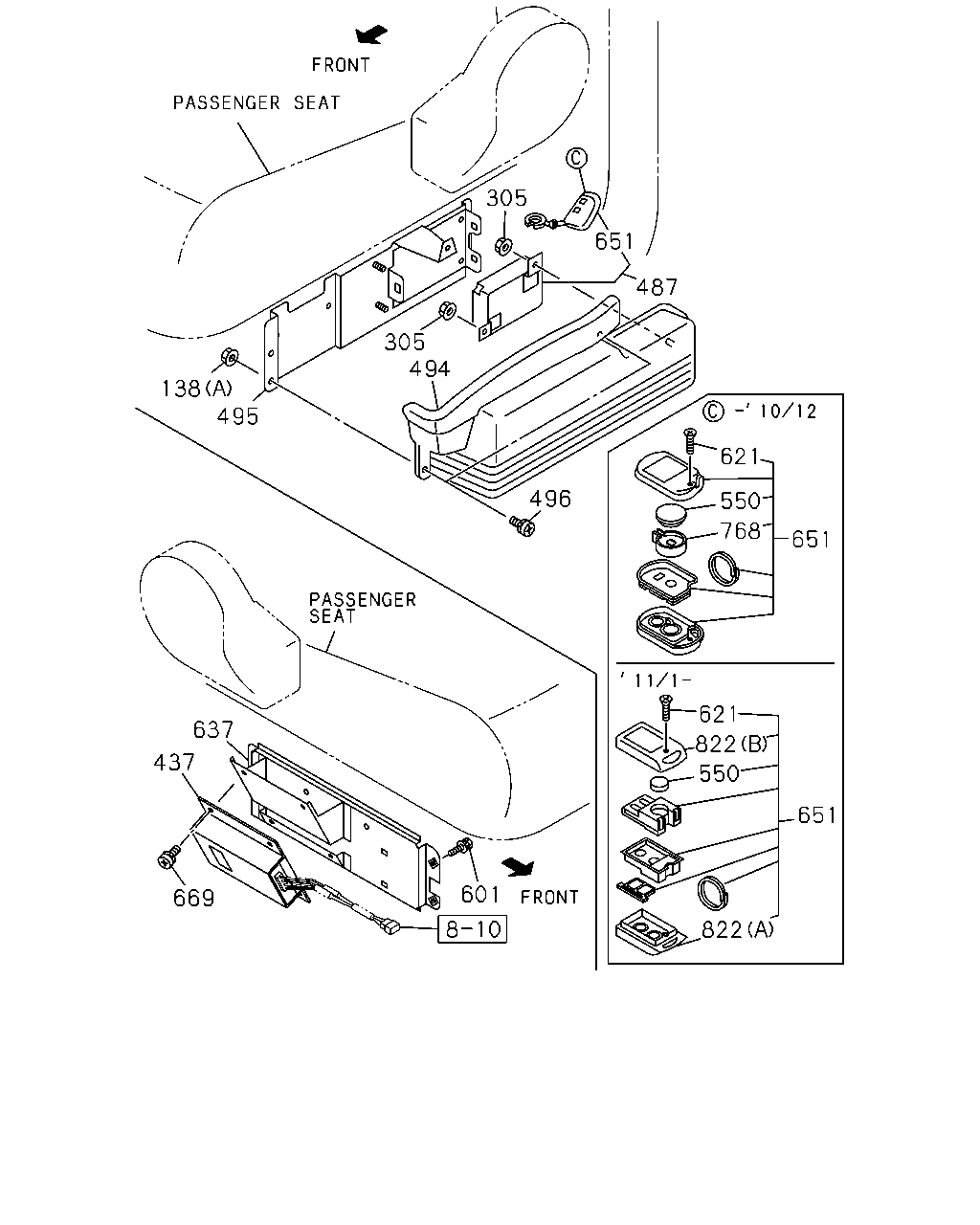

çizim 180785
487 651 305 305 496 495 138 494 621 651 768 550 621 822 550 651 822 601 669 437 637
BalonParca AdiParca NoAdetTipApplied Date
138 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 0710-
138 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-0801
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
437 CONVERTER; DC
METRO DENSO 		8-98046-423-0 01 1 0710-
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98050-457-1 01 1 0710-1012
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98181-808-0 01 1 1101-1205
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 8-98218-230-0 01 1 1206-
494 COVER; ELEC BOX 8-97589-725-0 01 1 0710-
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0710-
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0710-
550 BATTERY; TRANSMITTER 8-98078-061-0 01 1 0710-
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0710-
621 SCREW
M2X5 		8-98078-067-0 01 1 0710-1205
621 SCREW
M2X5 		8-98218-239-0 01 1 1206-
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0710-
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98048-459-1 01 1 0710-1012
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98180-751-0 01 1 1101-1205
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 8-98218-236-0 01 1 1206-
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0710-
768 HOLDER; BATTERY 8-98078-063-0 01 1 0710-1012
822 COVER; TRANSMITTER
(A) 		8-98218-240-0 01 1 1206-
822 COVER; TRANSMITTER
(B) 		8-98218-243-0 01 1 1206-
çizim 180803
305 158 244 296
BalonParca AdiParca NoAdetTipApplied Date
158 CONTROLLER; ABS 1-80119-231-2 01 1 0710-0907
158 CONTROLLER; ABS
TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N),TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) 		1-80119-231-2 01 1 0908-1008
158 CONTROLLER; ABS 1-80119-231-2 01 1 1009-1201
158 CONTROLLER; ABS 8-98196-714-0 01 1 1202-
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0710-
296 COVER; CONT UNIT 8-97388-687-0 01 1 0710-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0811-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0710-0809
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 04 1 0710-0907
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0908-

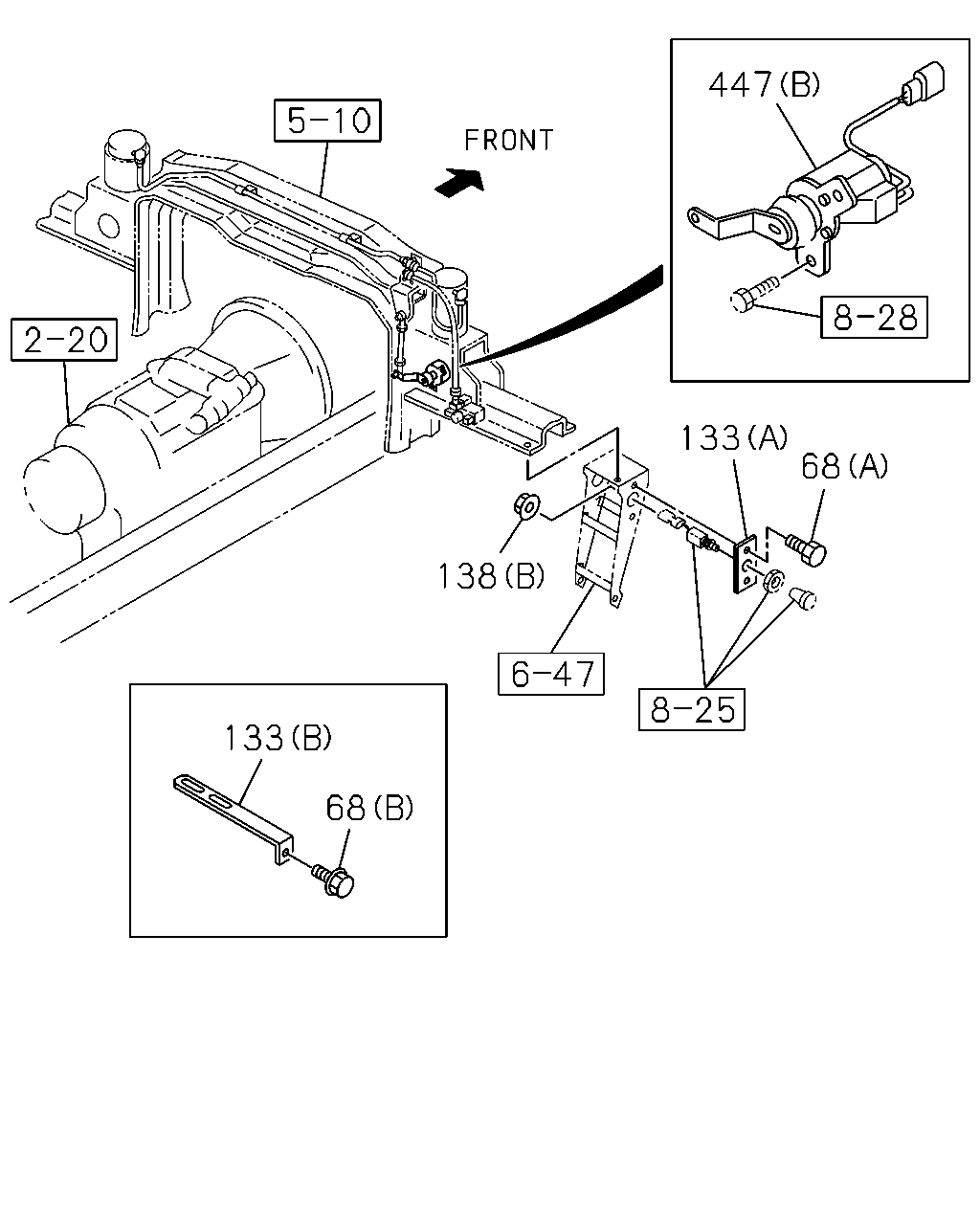

çizim 180811
447 133 68 138 133 68
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
68 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0710-
133 BRACKET; SWITCH
(A) 		1-82699-815-0 01 1 0710-
133 BRACKET; SWITCH
(B) L=150 H=30 		1-47477-629-2 01 1 0710-
138 NUT; BRKT
(A) M6 FLANGE 		0-91180-106-0 02 1 0710-
138 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0710-0801
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-

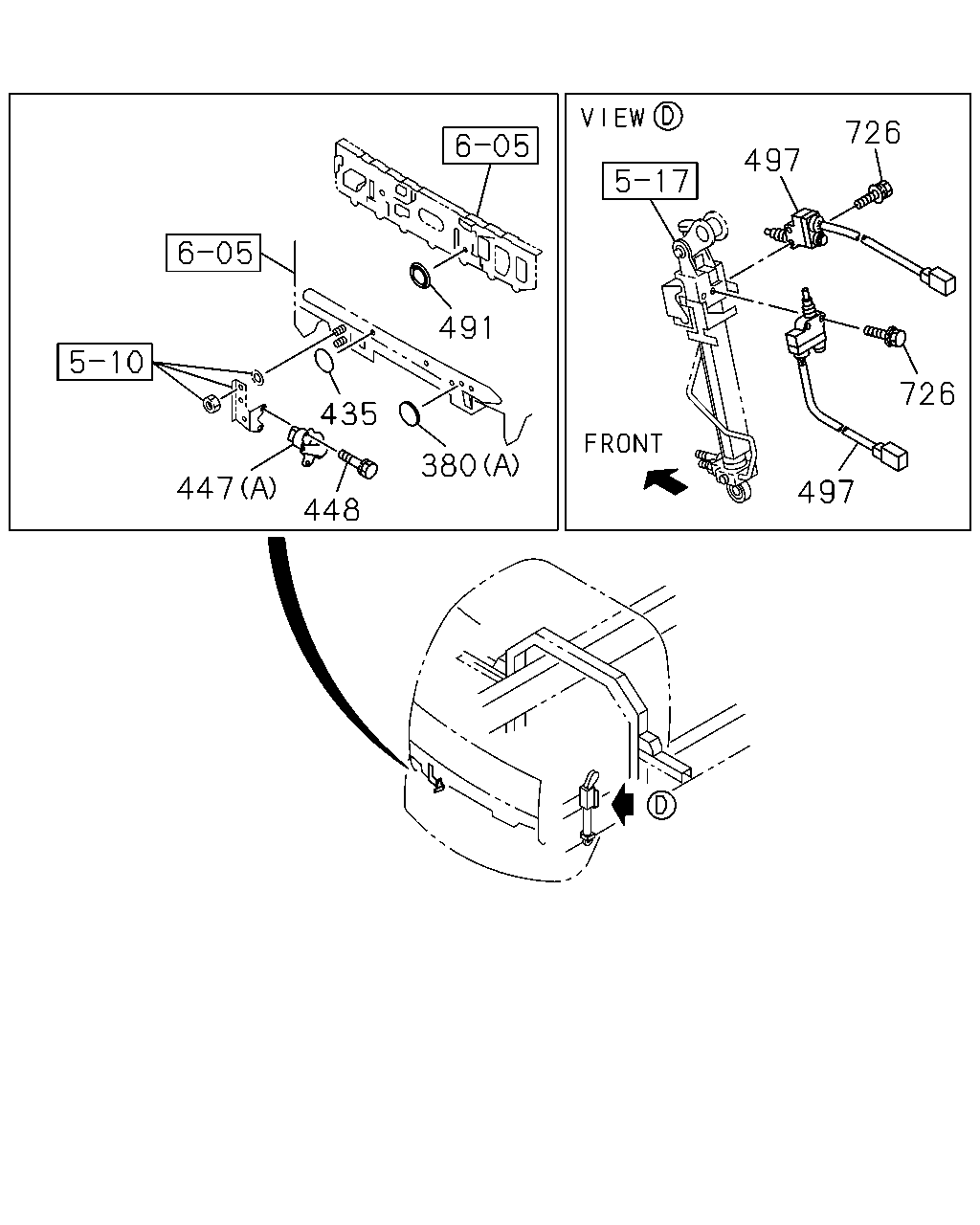

çizim 180829
726 497 726 497 448 447 435 491 380
BalonParca AdiParca NoAdetTipApplied Date
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0710-
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0710-
435 GROMMET
OD=25 BLACK 		1-76798-019-0 03 1 0710-
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0710-
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0710-
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0710-
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 0710-
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 0710-
