Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#37622) — 50 parça
◀

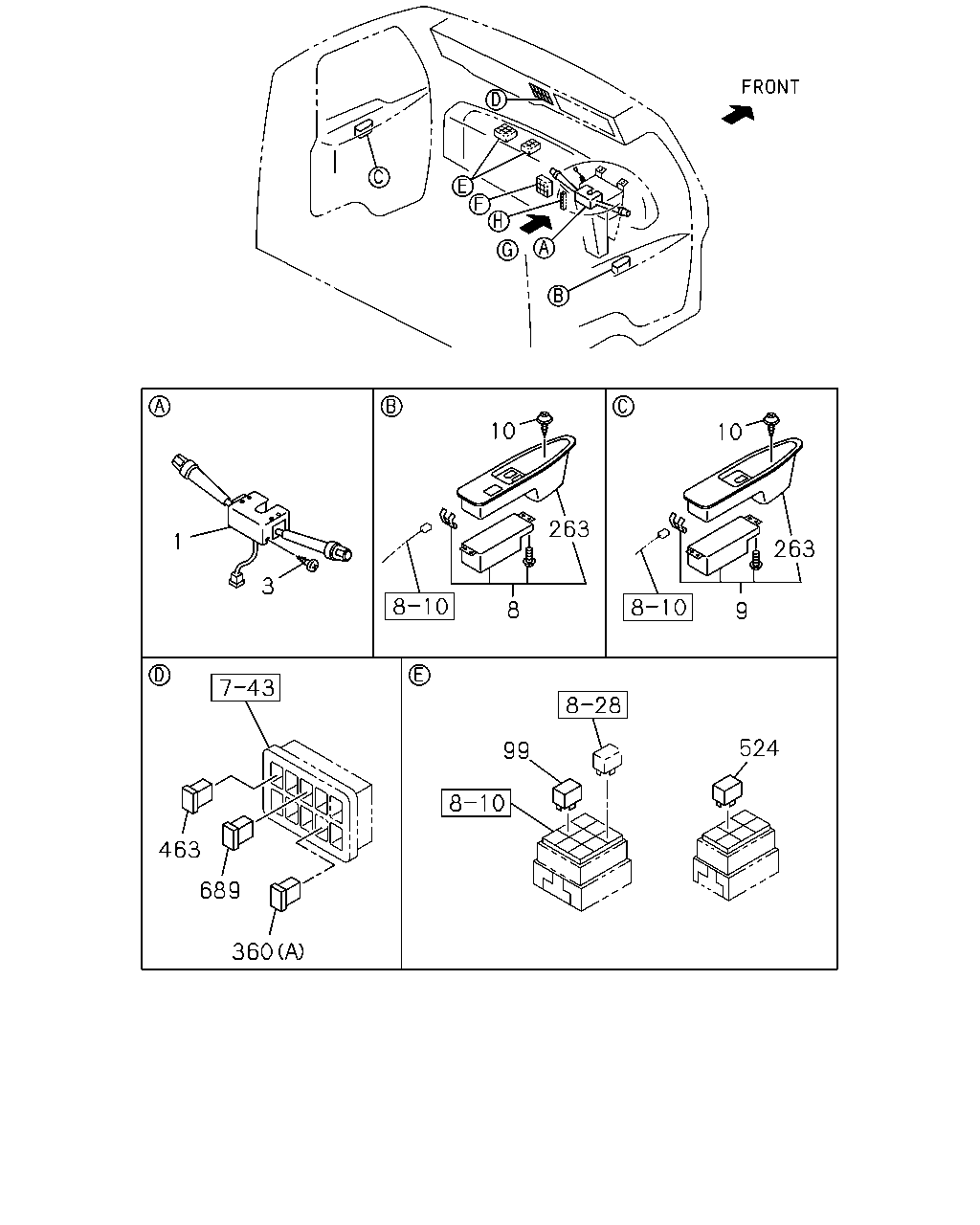

[825A] CAB SIDE NO.1 (13 parça)
[825A] CAB SIDE NO.3 (4 parça)
[825A] FRAME SIDE NO.1 (11 parça)
[825A] FRAME SIDE NO.2 (9 parça)
[825A] CAB SIDE NO.2 (13 parça)
▶
10
263
9
263
8
10
3
1
463
689
360
99
524
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-579-2
01
1
0710-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0710-
8
SWITCH; POWER WINDOW
DRIVER
1-82380-166-2
01
1
0710-
9
SWITCH; POWER WINDOW
PASSENGER
1-82380-167-1
01
1
0710-
10
SCREW; POWER WINDOW SW
M5X16 TAPPING W/PL WASHER
0-74360-516-0
02
1
0710-
99
RELAY; FOG LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0710-
263
COVER; SW
DRIVER
1-82385-005-2
01
1
0710-
263
COVER; SW
PASSENGER
1-82385-006-3
01
1
0710-
360
SWITCH ASM; DIFF LK
(B)
1-82340-660-1
01
1
0710-
360
SWITCH ASM; DIFF LK
(A)
1-82340-677-0
01
1
0710-
463
SWITCH; SPOT LAMP
1-82340-411-0
01
1
0710-
524
RELAY; LAMP
24V 12.5A PANASONIC
8-97262-933-0
02
1
0710-
689
SWITCH; DPD
1-82340-693-0
01
1
0710-
359
30
29
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
8-97855-032-3
02
1
0710-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
02
1
0710-
106
SWITCH; REMOTE CONT MIRROR
1-82350-223-0
02
1
0710-
359
SWITCH; TRAILER BRAKE
GREEN
1-82410-176-1
01
1
0710-

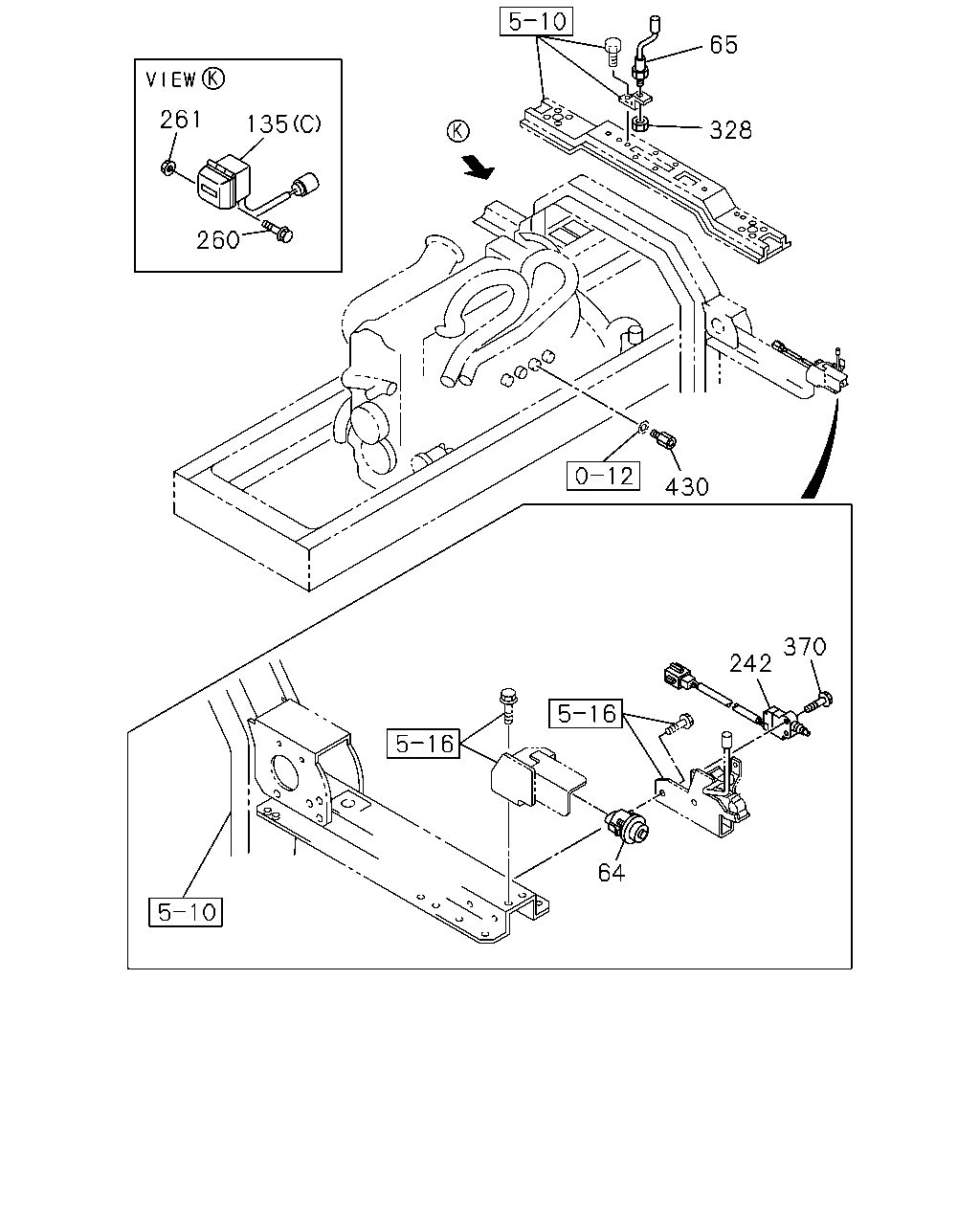

261
135
260
65
328
430
370
242
64
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
64
SWITCH; CAB TILT MAIN
1-82380-173-2
01
1
0710-
65
SWITCH; CAB TILT LK
STAMP NC
1-82380-125-1
01
1
0710-
135
SWITCH; AIR SUSP
(A)
1-82340-401-1
01
1
0710-
135
SWITCH; AIR SUSP
(B)
1-82350-227-0
01
1
0710-
135
SWITCH; AIR SUSP
(C)
1-82360-515-1
01
1
0710-
242
SWITCH
STAMP NO
1-82380-172-1
01
1
0710-
260
BOLT; AIR SUSP SW
M8X20 FLANGE
0-28650-820-0
02
1
0710-
261
NUT; AIR SUSP SW
M8 FLANGE
0-91180-108-0
02
1
0710-
328
NUT; SW
M16
0-91110-516-0
01
1
0710-
370
BOLT; SW
M6X30 FLANGE
0-28650-630-0
02
1
0710-
430
ADAPTER; SW
M14 & PT1/4 STRAIGHT
1-09669-130-0
01
1
0710-

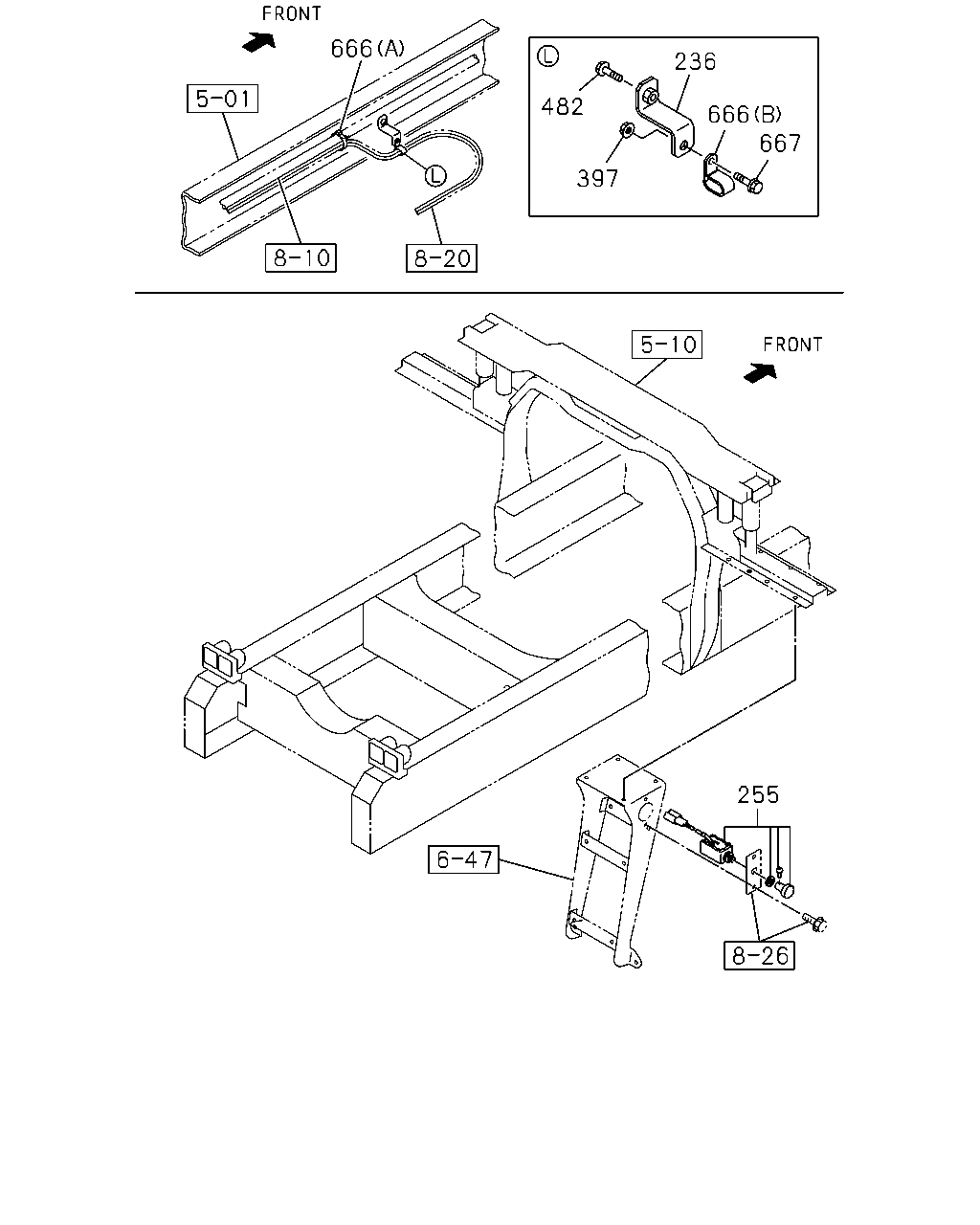

666
482
397
236
666
667
255
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
236
BRACKET; AXLE HARNESS,RR
1-47476-200-0
01
1
0710-
255
SWITCH; SEARCH LIGHT
8-97621-403-0
01
1
0710-0711
255
SWITCH; SEARCH LIGHT
8-98106-483-0
01
1
0712-
397
NUT; BRKT FIX
M8 FLANGE
0-91180-108-0
01
1
0710-
482
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0710-
666
CLIP; AXLE HARNESS
(B) ID=11X2 L=20
0-95325-035-0
01
1
0710-
666
CLIP; AXLE HARNESS
(A) L=350
1-09707-183-0
01
1
0710-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
0710-
667
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0710-

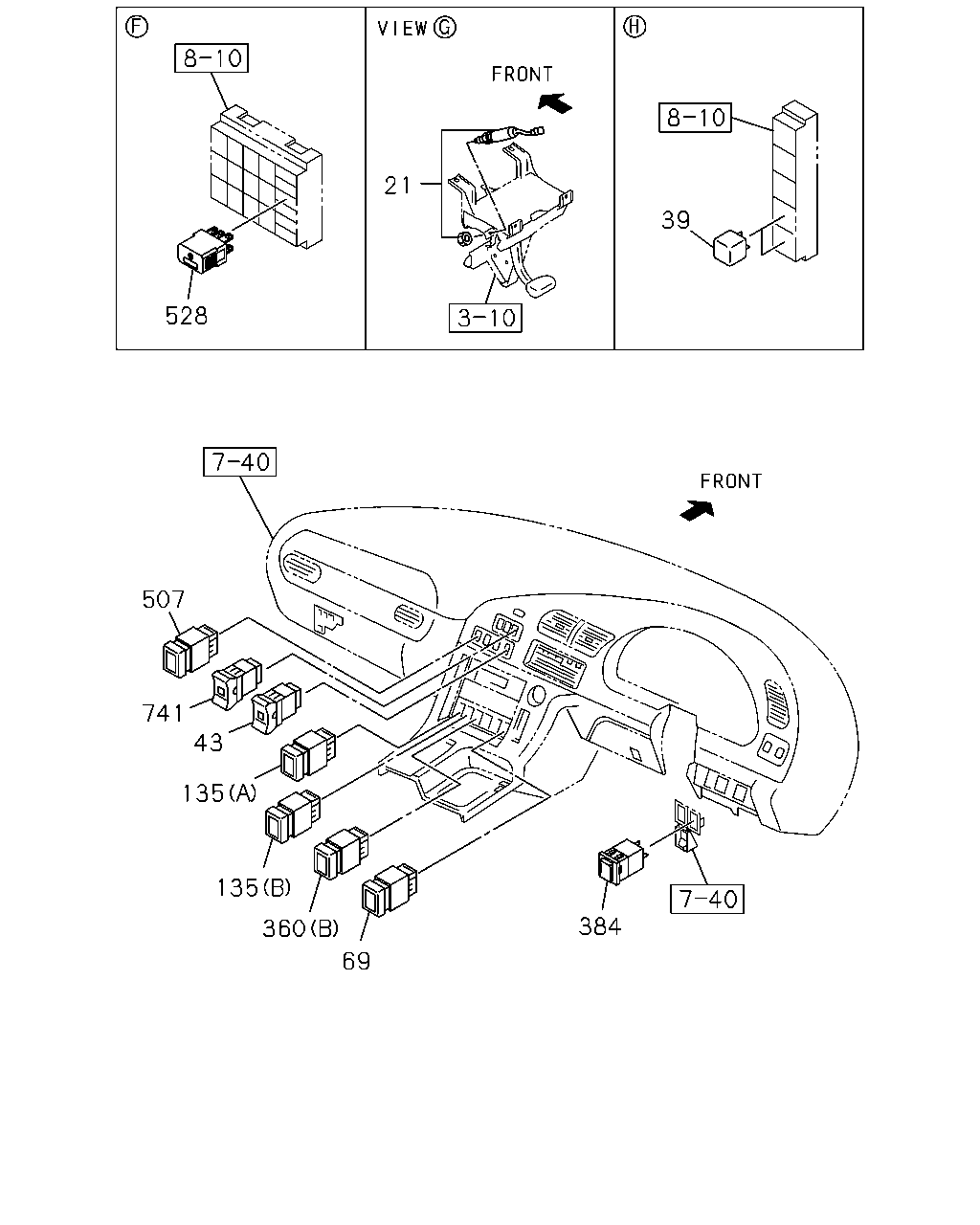

21
39
528
507
741
43
135
135
384
360
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
SWITCH; CLU
1-82380-114-3
01
1
0710-
39
RELAY; DOOR LK
24V 12.5A PANASONIC
8-97262-933-0
02
1
0710-
43
SWITCH; HORN
1-82350-332-0
01
1
0710-
69
SWITCH; AUTO CRUISE
8-97610-834-0
01
1
0710-
135
SWITCH; AIR SUSP
(A)
1-82340-401-1
01
1
0710-
135
SWITCH; AIR SUSP
(B)
1-82350-227-0
01
1
0710-
135
SWITCH; AIR SUSP
(C)
1-82360-515-1
01
1
0710-
360
SWITCH ASM; DIFF LK
(B)
1-82340-660-1
01
1
0710-
360
SWITCH ASM; DIFF LK
(A)
1-82340-677-0
01
1
0710-
384
SWITCH; IDLING CONT,ELEC
1-82350-213-1
01
1
0710-
507
SWITCH; MIRROR HEATER
1-82340-423-0
01
1
0710-
528
RELAY; BUZZER
24V 10A PANASONIC
8-97173-035-1
01
1
0710-
741
SWITCH; TRAILER
8-98147-983-0
01
1
0908-
