Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#37619) — 502 parça

589 373 16 194 171 142 121 111 104 16 369 305 212 206 104 81 51 14 448 208 162 142 51 16 448 194 171 48 16 16 212 16 16 16 128 16 16 16 16

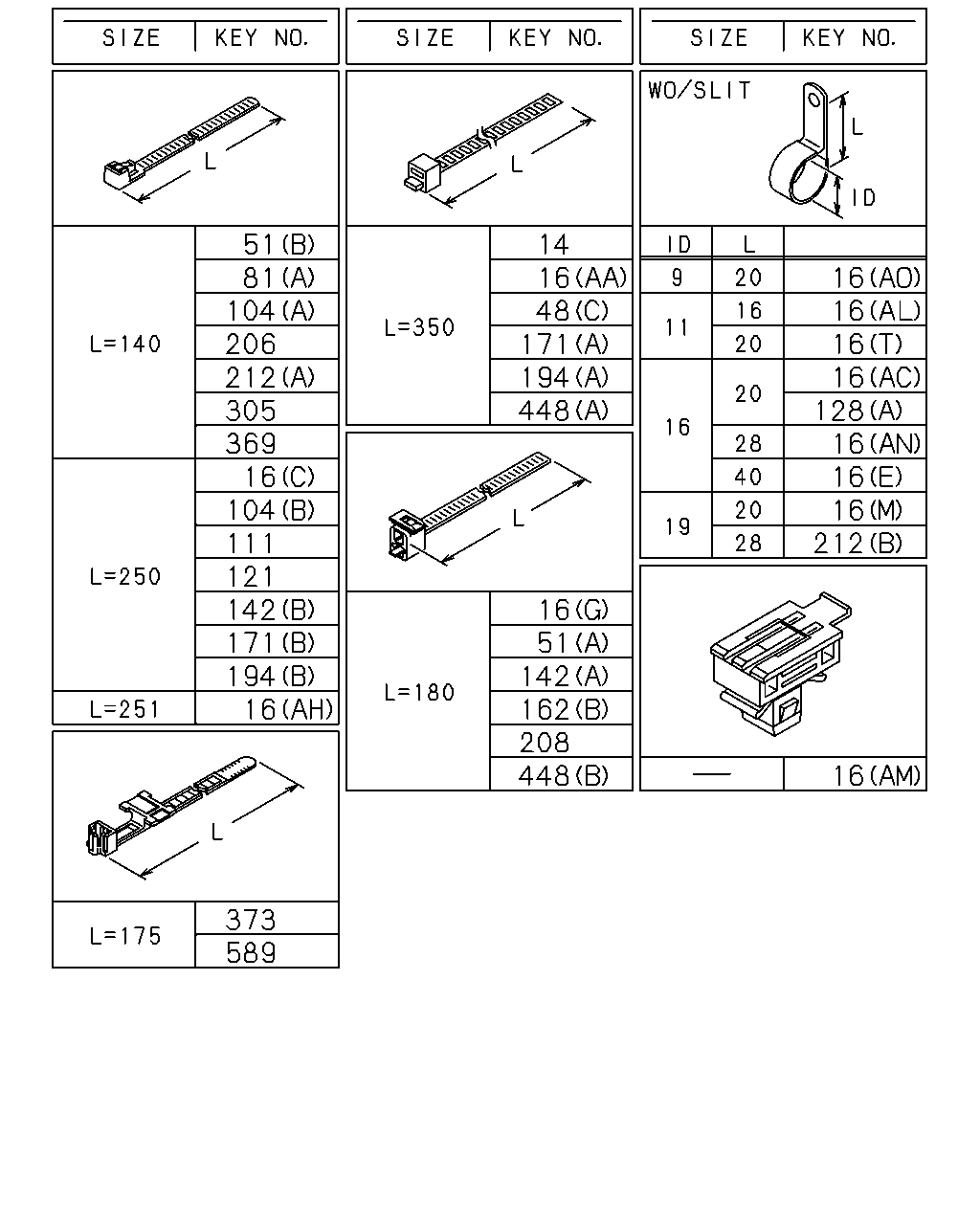

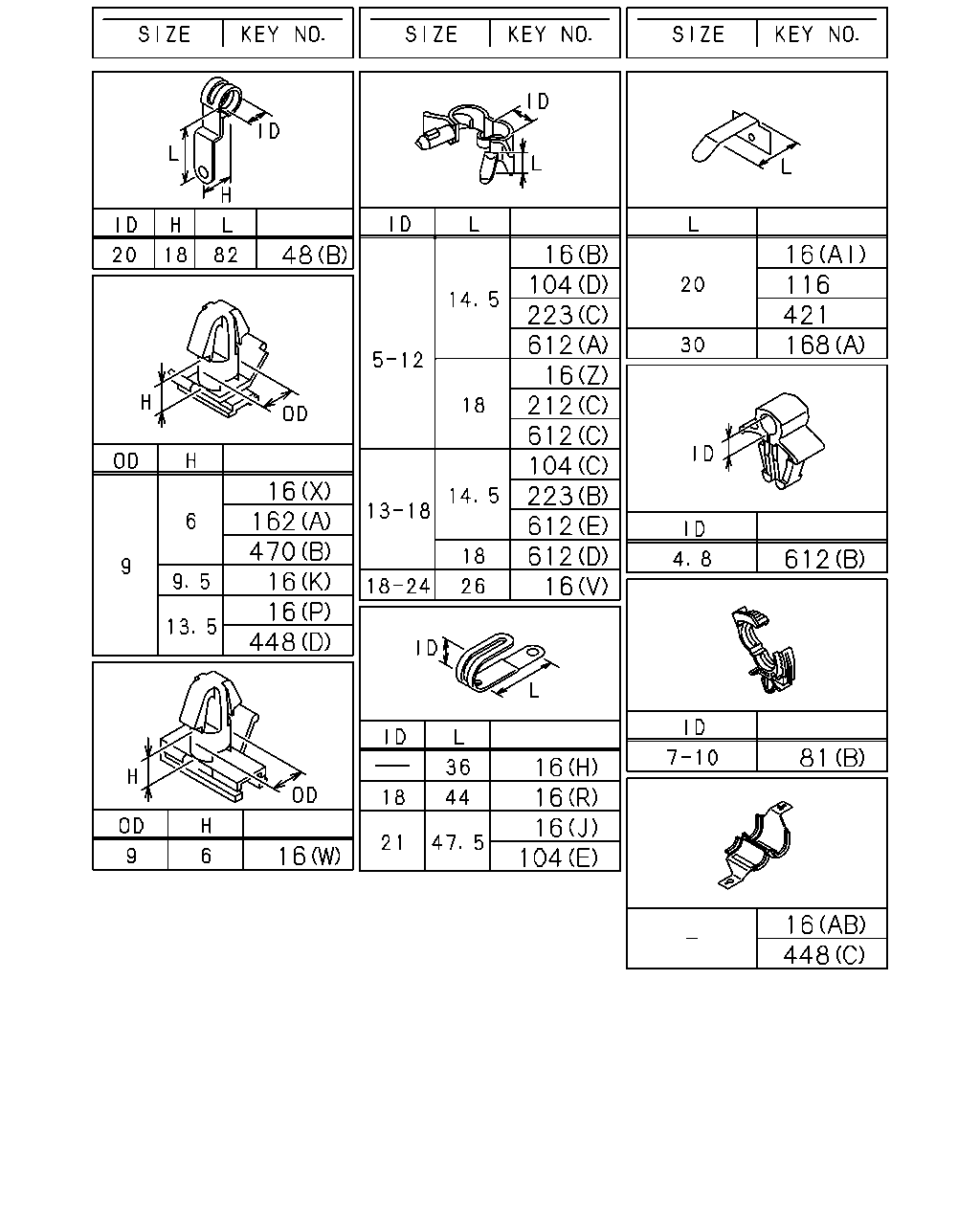

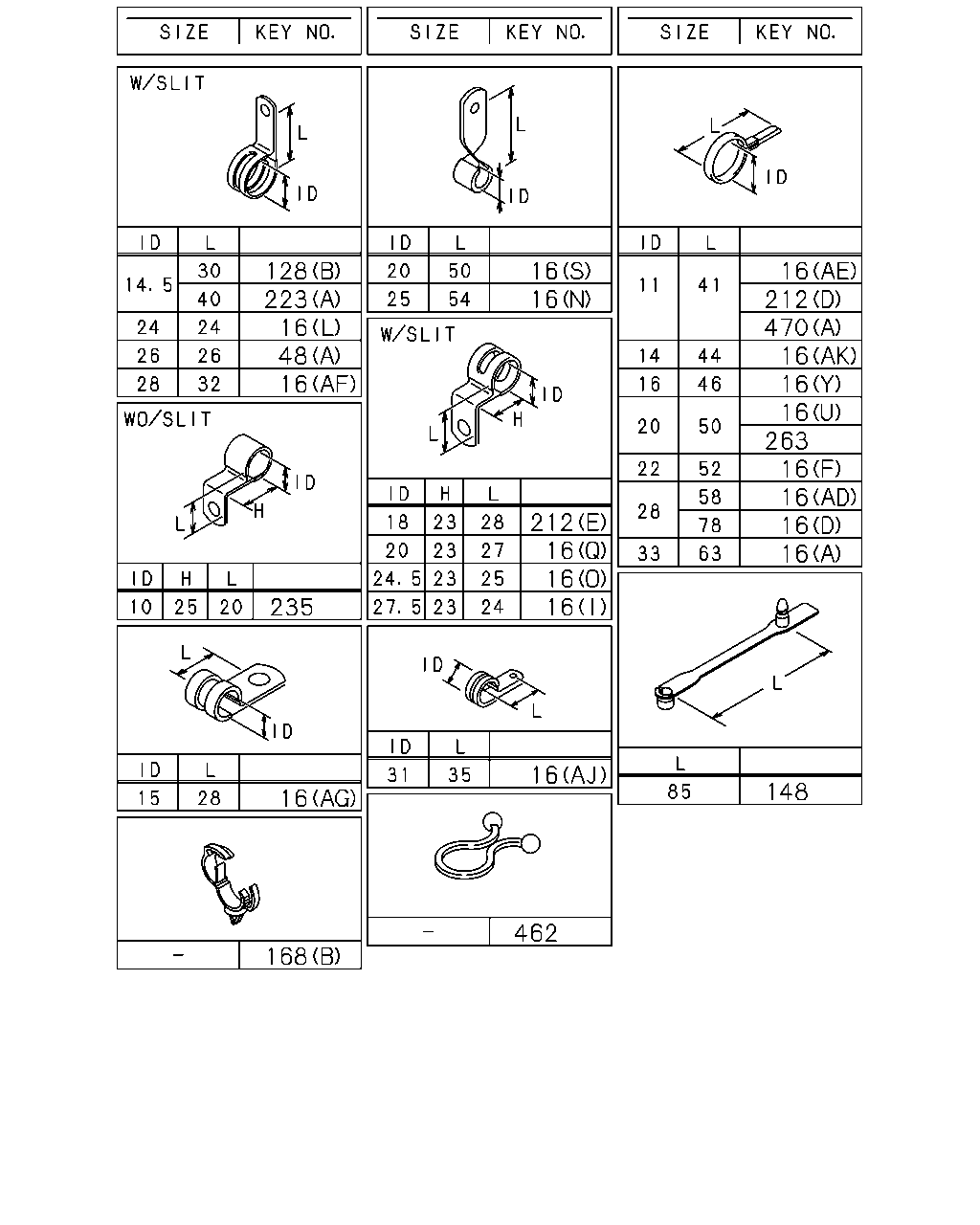

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS L=350	1-09707-183-0	02	1	0710-
16	CLIP; HARNESS (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1105-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1105-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	1105-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	1105-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	1005-
16	CLIP; HARNESS (AM)	8-94377-313-1	01	1	1005-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1005-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1005-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	0909-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	01	1	0710-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	04	1	0710-0712
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	02	1	0801-0806
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	07	1	0807-1104
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	02	1	1105-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	08	1	0710-0806
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	03	1	0807-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	02	1	0710-1104
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	03	1	1105-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	03	1	0710-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	02	1	0710-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	04	1	0710-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	05	1	0710-1105
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AC) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0710-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	09	1	0710-1205
16	CLIP; HARNESS (C) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=21 L=47.5	8-94178-108-0	05	1	0710-
16	CLIP; HARNESS (H) L=36	8-94224-891-1	01	1	0710-
16	CLIP; HARNESS (R) ID=18 L=44	8-94225-185-0	05	1	0710-0801
16	CLIP; HARNESS (R) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	03	1	0710-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54	1-09700-392-1	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32	1-09701-107-1	02	1	0710-1002
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32	1-09701-107-1	01	1	1003-
16	CLIP; HARNESS HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-
16	CLIP; HARNESS (AL) ID=11 L=16	0-95235-025-0	02	1	0710-
16	CLIP; HARNESS (AC) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0710-
16	CLIP; HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	0710-
16	CLIP; HARNESS (AJ) ID=31 L=35	1-09700-329-1	01	1	0710-
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	03	1	0710-0712
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	04	1	0710-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	0710-
16	CLIP; HARNESS (A) ID=33 L=63	1-09700-807-0	01	1	0710-0712
16	CLIP; HARNESS (A) ID=33 L=63	1-09700-807-0	03	1	0801-
16	CLIP; HARNESS (D) ID=28 L=78	1-09700-858-0	01	1	0710-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0710-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	05	1	0909-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	06	1	0710-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	01	1	0710-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	0710-1004
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	06	1	1005-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	0710-0710
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	05	1	0710-1409
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (K) OD=9 H=9.5	1-09709-179-0	01	1	0710-
16	CLIP; HARNESS (P) OD=9 H=13.5	1-09709-180-0	01	1	0710-0710
16	CLIP; HARNESS (V) ID=18-24 L=26	1-09709-296-0	01	1	0710-
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	06	1	0710-1009
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	05	1	1010-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	0710-1004
16	CLIP; HARNESS (AN) ID=16 L=28	0-95235-556-0	02	1	1005-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	04	1	0710-0908
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	01	1	0909-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	01	1	0710-0712
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	03	1	0801-0806
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	04	1	0807-1104
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	01	1	1105-
16	CLIP; HARNESS (Y) ID=16 L=46	9-09917-428-0	02	1	0710-0712
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	01	1	0710-1409
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0710-0712
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0801-0908
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0801-0908
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	06	1	0909-1104
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	05	1	1105-
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0710-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50	1-09700-679-1	01	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24	1-09701-001-1	01	1	0710-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0710-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0710-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0710-
51	CLIP; COOLER CMPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=180	1-09707-162-1	01	1	0710-
51	CLIP; COOLER CMPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) L=140	5-09707-031-1	01	1	0710-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0710-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0710-
104	CLIP; HEADLAMP HARNESS (C) ID=13-18 L=14.5	1-09709-290-0	06	1	0710-
104	CLIP; HEADLAMP HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	0710-
104	CLIP; HEADLAMP HARNESS (B) L=250	5-09707-030-1	02	1	0710-
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	06	1	0710-
104	CLIP; HEADLAMP HARNESS (E) ID=21 L=47.5	8-94178-108-0	02	1	0710-0710
111	CLIP; STOP LAMP SW HARNESS L=250	5-09707-030-1	01	1	0710-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0710-
142	CLIP; HARNESS,ENG (A) L=180	1-09707-162-1	01	1	0710-1207
142	CLIP; HARNESS,ENG (A) L=180	8-98216-427-0	01	1	1208-
142	CLIP; HARNESS,ENG (B) L=250	5-09707-030-1	01	1	0710-1205
142	CLIP; HARNESS,ENG (B) L=250	8-98216-430-0	01	1	1206-
162	CLIP; SW HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0710-0710
162	CLIP; SW HARNESS (B) L=180	1-09707-162-1	01	1	0711-1009
162	CLIP; SW HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1010-
171	CLIP; STARTER HARNESS (A) L=350	1-09707-183-0	02	1	0710-
171	CLIP; STARTER HARNESS (B) L=250	5-09707-030-1	04	1	0710-
194	CLIP; BAND (A) L=350	1-09707-183-0	03	1	0710-1409
194	CLIP; BAND (A) L=350	1-09707-183-0	04	1	1410-
194	CLIP; BAND (B) L=250	5-09707-030-1	05	1	0710-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	03	1	0710-
208	CLIP; HARNESS,MAG VLV PTO CONTROL OPERATION CAB BACK<TBZ> L=180	1-09707-162-1	01	1	0710-
212	CLIP; HORN HARNESS (A) L=140	5-09707-031-1	01	1	0710-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0710-
212	CLIP; HORN HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-
212	CLIP; HORN HARNESS (E) ID=18 H=23 L=28	1-09700-860-0	03	1	0710-
212	CLIP; HORN HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	0710-
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0710-
369	CLIP; BAND EDS HARNESS L=140	5-09707-031-1	01	1	1410-
373	CLIP; BAND,GEN HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175	1-09707-176-1	01	1	1407-
448	CLIP; AIR SUSP HARNESS (C) W/SPONGE RUBBER	1-09709-150-0	01	1	0711-
448	CLIP; AIR SUSP HARNESS (D) OD=9 H=13.5	1-09709-180-0	01	1	0711-
448	CLIP; AIR SUSP HARNESS (A) L=350	1-09707-183-0	05	1	0710-
448	CLIP; AIR SUSP HARNESS (B) L=180	1-09707-162-1	05	1	0710-
589	CLIP; GLOW PLUG GENERATOR NIKKO 24V-90A 2.5KW(SD2) L=175	1-09707-176-1	01	1	1407-

38 242 139 150 38 38 242 313 242 38 38 242 19 38 139 313 86 139 313 38 242 139 516 139 133 239 38 358 88 358 239 38 358 88

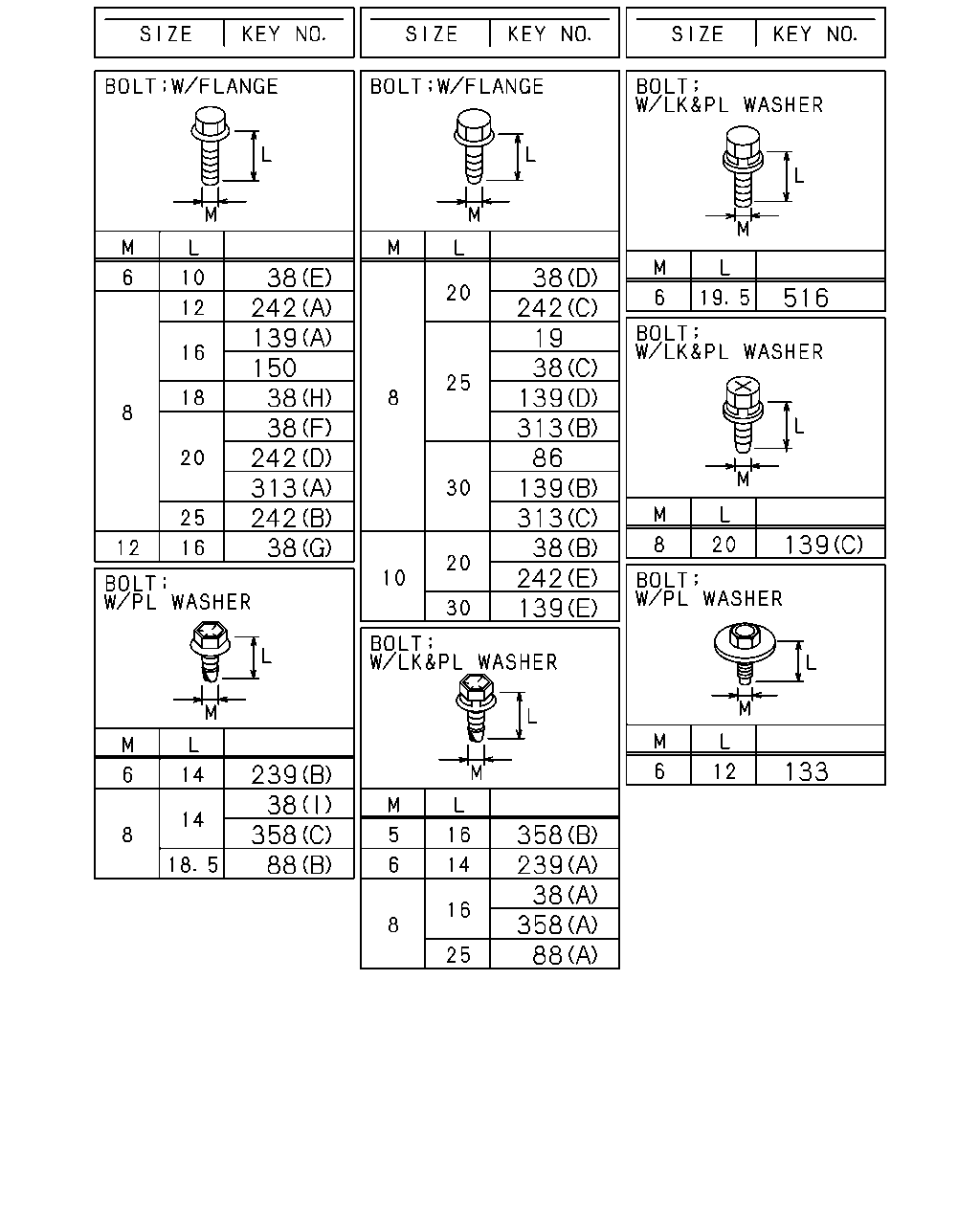

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	BOLT; PROTECTOR M8X25 FLANGE	0-28650-825-0	02	1	0710-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	07	1	1005-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0710-1004
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0710-1004
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	01	1	1005-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	01	1	1005-
38	BOLT; CLIP,HARNESS (E) M6X10 FLANGE	0-28050-610-0	01	1	0710-0802
38	BOLT; CLIP,HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (E) M6X10 FLANGE	0-28050-610-0	01	1	0803-
38	BOLT; CLIP,HARNESS (F) M8X20 FLANGE	0-28050-820-0	05	1	0710-
38	BOLT; CLIP,HARNESS (H) M8X18 FLANGE	0-28080-818-0	01	1	0710-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0710-0710
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0711-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0711-
38	BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28650-825-0	01	1	0710-1004
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	1005-
38	BOLT; CLIP,HARNESS (B) M10X20 FLANGE	0-28751-020-0	01	1	0710-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	1-09044-079-0	01	1	0710-1105
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-1201
38	BOLT; CLIP,HARNESS (I) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0710-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0710-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0710-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0710-
139	BOLT; BRKT (E) M10X30 FLANGE	0-28151-030-0	01	1	1112-
139	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	02	1	0710-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	0710-1004
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1005-
139	BOLT; BRKT (D) M8X25 FLANGE	0-28650-825-0	01	1	1005-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0710-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0710-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0710-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	13	1	0710-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0710-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0710-
242	BOLT; BRKT,HARNESS (D) M8X20 FLANGE	0-28050-820-0	04	1	0710-
242	BOLT; BRKT,HARNESS (B) M8X25 FLANGE	0-28050-825-0	02	1	0710-
242	BOLT; BRKT,HARNESS (C) M8X20 FLANGE	0-28650-820-0	04	1	0710-
242	BOLT; BRKT,HARNESS (E) M10X20 FLANGE	0-28651-020-0	02	1	0710-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0710-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	05	1	0710-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-
313	BOLT; BRKT EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	01	1	0710-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0710-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0710-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-

178 1 1 1 1 178 178 178 178 178 530 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (C) ID=38.1 L=50	5-09360-835-0	01	1	0710-
1	SLEEVE; RUBBER (D) ID=17 OD=21 L=40	1-09337-012-0	01	1	0710-
1	SLEEVE; RUBBER (A) ID=18 OD=22 L=25	8-94412-773-0	01	1	0710-
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0710-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=25	1-09332-011-1	02	1	0710-
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0710-
178	GROMMET; HARNESS (B) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0710-
178	GROMMET; HARNESS (E)	1-82698-551-0	01	1	0710-
178	GROMMET; HARNESS (F) ID=24 OD=30 T=17	9-09956-092-1	02	1	0710-
178	GROMMET; HARNESS (A) ID=19 OD=23 T=18	9-09956-130-1	01	1	0710-
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-
224	SLEEVE; RUBBER,HARNESS ID=6 L=30	5-09360-352-0	01	1	0710-0904
530	SEAL; HARNESS LOW ROOF<6XQ> 100X40	1-72498-022-1	01	1	0710-
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	0710-
530	SEAL; HARNESS 100X40	1-72498-022-1	02	1	0710-

312 312 312 312 312 312 335 334 312 342 375 600

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS (C) L=120 H=35	1-82698-088-0	01	1	0710-
312	BRACKET; CLIP HARNESS (F) L=195.5	1-82698-502-0	01	1	0710-
312	BRACKET; CLIP HARNESS (G)	1-82698-556-0	01	1	0710-
312	BRACKET; CLIP HARNESS (A)	1-82699-199-0	01	1	0710-
312	BRACKET; CLIP HARNESS (D)	8-98035-927-1	01	1	0710-
312	BRACKET; CLIP HARNESS (E)	8-98052-591-0	01	1	0710-
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B)	1-82698-443-0	01	1	0710-
334	BRACKET	1-53457-153-2	01	1	0710-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0710-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0710-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0710-
600	PROTECTOR; HEAT	8-98084-026-0	01	1	0710-

53 53 53 53 53 53 53 53 53 53 53 53 59 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (L)	8-98194-068-0	01	1	1112-
53	BRACKET; HARNESS (K) L=120	1-82699-963-0	01	1	1005-
53	BRACKET; HARNESS (A)	8-97610-339-1	01	1	0710-
53	BRACKET; HARNESS (B)	8-97610-340-1	01	1	0710-
53	BRACKET; HARNESS (C) L=130	1-47478-959-0	02	1	0710-
53	BRACKET; HARNESS (D)	1-47479-537-0	10	1	0710-
53	BRACKET; HARNESS (E)	1-82698-495-2	01	1	0710-
53	BRACKET; HARNESS (I)	8-97616-268-1	01	1	0710-
53	BRACKET; HARNESS (J)	8-97622-857-0	01	1	0710-
53	BRACKET; HARNESS (F)	8-98032-696-0	01	1	0710-
53	BRACKET; HARNESS (G)	8-98050-989-0	01	1	0710-
53	BRACKET; HARNESS (H)	8-98052-592-0	01	1	0710-
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0710-
211	BRACKET; AXLE HARNESS	8-97621-352-1	01	1	0710-
211	BRACKET; AXLE HARNESS	8-97621-353-1	01	1	0710-

16 48 16 223 128 16 16 235 16 168 462 16 148 16 16 16 212 16 16 16 16 263 16 16 16 470 212 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1105-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1105-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	1105-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	1105-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	1005-
16	CLIP; HARNESS (AM)	8-94377-313-1	01	1	1005-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1005-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1005-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	0909-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	01	1	0710-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	04	1	0710-0712
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	02	1	0801-0806
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	07	1	0807-1104
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	02	1	1105-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	08	1	0710-0806
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	03	1	0807-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	02	1	0710-1104
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	03	1	1105-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	03	1	0710-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	02	1	0710-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	04	1	0710-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	05	1	0710-1105
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AC) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0710-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	09	1	0710-1205
16	CLIP; HARNESS (C) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=21 L=47.5	8-94178-108-0	05	1	0710-
16	CLIP; HARNESS (H) L=36	8-94224-891-1	01	1	0710-
16	CLIP; HARNESS (R) ID=18 L=44	8-94225-185-0	05	1	0710-0801
16	CLIP; HARNESS (R) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	03	1	0710-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54	1-09700-392-1	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32	1-09701-107-1	02	1	0710-1002
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32	1-09701-107-1	01	1	1003-
16	CLIP; HARNESS HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-
16	CLIP; HARNESS (AL) ID=11 L=16	0-95235-025-0	02	1	0710-
16	CLIP; HARNESS (AC) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0710-
16	CLIP; HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	0710-
16	CLIP; HARNESS (AJ) ID=31 L=35	1-09700-329-1	01	1	0710-
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	03	1	0710-0712
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	04	1	0710-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	0710-
16	CLIP; HARNESS (A) ID=33 L=63	1-09700-807-0	01	1	0710-0712
16	CLIP; HARNESS (A) ID=33 L=63	1-09700-807-0	03	1	0801-
16	CLIP; HARNESS (D) ID=28 L=78	1-09700-858-0	01	1	0710-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0710-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	05	1	0909-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	06	1	0710-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	01	1	0710-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	0710-1004
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	06	1	1005-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	0710-0710
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	05	1	0710-1409
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (K) OD=9 H=9.5	1-09709-179-0	01	1	0710-
16	CLIP; HARNESS (P) OD=9 H=13.5	1-09709-180-0	01	1	0710-0710
16	CLIP; HARNESS (V) ID=18-24 L=26	1-09709-296-0	01	1	0710-
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	06	1	0710-1009
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	05	1	1010-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	0710-1004
16	CLIP; HARNESS (AN) ID=16 L=28	0-95235-556-0	02	1	1005-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	04	1	0710-0908
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	01	1	0909-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	01	1	0710-0712
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	03	1	0801-0806
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	04	1	0807-1104
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	01	1	1105-
16	CLIP; HARNESS (Y) ID=16 L=46	9-09917-428-0	02	1	0710-0712
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	01	1	0710-1409
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0710-0712
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0801-0908
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0801-0908
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	06	1	0909-1104
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	05	1	1105-
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0710-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50	1-09700-679-1	01	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24	1-09701-001-1	01	1	0710-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0710-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0710-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0710-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	03	1	0710-
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	06	1	0710-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE	1-09987-265-0	01	1	0710-
212	CLIP; HORN HARNESS (A) L=140	5-09707-031-1	01	1	0710-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0710-
212	CLIP; HORN HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-
212	CLIP; HORN HARNESS (E) ID=18 H=23 L=28	1-09700-860-0	03	1	0710-
212	CLIP; HORN HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	0710-
223	CLIP; AIR TANK HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	0710-
223	CLIP; AIR TANK HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	02	1	0710-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=10 H=25 L=20	1-09700-519-0	01	1	0710-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0710-
462	CLIP; HARNESS,HTR EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) ID=20	1-09709-068-0	02	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0710-

16 104 223 612 16 212 612 104 223 612 612 16 16 116 421 168 48 16 162 470 16 16 448 612 81 16 16 16 104 16 16 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (AO) ID=9 L=20	0-95234-835-0	02	1	1106-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1105-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	01	1	1105-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	1105-
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	1105-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	1005-
16	CLIP; HARNESS (AM)	8-94377-313-1	01	1	1005-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1005-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	1005-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	03	1	0909-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	01	1	0710-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	04	1	0710-0712
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	02	1	0801-0806
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	07	1	0807-1104
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	02	1	1105-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	08	1	0710-0806
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	03	1	0807-
16	CLIP; HARNESS (AG) ID=15 L=28	1-09701-216-0	02	1	0710-1104
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	03	1	1105-
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	03	1	0710-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	02	1	0710-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	04	1	0710-
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	05	1	0710-1105
16	CLIP; HARNESS (T) ID=11 L=20	0-95235-035-0	03	1	1106-
16	CLIP; HARNESS (AC) T=1.2 ID=16 L=20	0-95235-536-0	02	1	0710-
16	CLIP; HARNESS (M) ID=19 L=20	0-95235-836-0	03	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	09	1	0710-1205
16	CLIP; HARNESS (C) L=250	8-98216-430-0	09	1	1206-
16	CLIP; HARNESS (J) ID=21 L=47.5	8-94178-108-0	05	1	0710-
16	CLIP; HARNESS (H) L=36	8-94224-891-1	01	1	0710-
16	CLIP; HARNESS (R) ID=18 L=44	8-94225-185-0	05	1	0710-0801
16	CLIP; HARNESS (R) ID=18 L=44	8-97367-985-1	05	1	0802-
16	CLIP; HARNESS (AH) L=251	8-97619-917-0	03	1	0710-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (N) ID=25 L=54	1-09700-392-1	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (O) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32	1-09701-107-1	02	1	0710-1002
16	CLIP; HARNESS GENERATOR NIKKO 24V-90A 2.5KW(SD2) (AF) ID=28 L=32	1-09701-107-1	01	1	1003-
16	CLIP; HARNESS HIGH ROOF<S2F> (AI) L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-
16	CLIP; HARNESS (AL) ID=11 L=16	0-95235-025-0	02	1	0710-
16	CLIP; HARNESS (AC) T=0.8 ID=16 L=20	0-95235-535-0	01	1	0710-
16	CLIP; HARNESS (E) ID=16 L=40	0-95235-576-0	01	1	0710-
16	CLIP; HARNESS (AJ) ID=31 L=35	1-09700-329-1	01	1	0710-
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	03	1	0710-0712
16	CLIP; HARNESS (AD) ID=28 L=58	1-09700-400-0	04	1	0710-
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	01	1	0710-
16	CLIP; HARNESS (A) ID=33 L=63	1-09700-807-0	01	1	0710-0712
16	CLIP; HARNESS (A) ID=33 L=63	1-09700-807-0	03	1	0801-
16	CLIP; HARNESS (D) ID=28 L=78	1-09700-858-0	01	1	0710-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0710-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	05	1	0909-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	06	1	0710-0908
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS (G) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	01	1	0710-
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	02	1	0710-1004
16	CLIP; HARNESS (AA) L=350	1-09707-183-0	06	1	1005-
16	CLIP; HARNESS (AB) W/SPONGE RUBBER	1-09709-150-0	01	1	0710-0710
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	05	1	0710-1409
16	CLIP; HARNESS (X) OD=9 H=6	1-09709-178-0	02	1	1410-
16	CLIP; HARNESS (K) OD=9 H=9.5	1-09709-179-0	01	1	0710-
16	CLIP; HARNESS (P) OD=9 H=13.5	1-09709-180-0	01	1	0710-0710
16	CLIP; HARNESS (V) ID=18-24 L=26	1-09709-296-0	01	1	0710-
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	06	1	0710-1009
16	CLIP; HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	05	1	1010-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	01	1	0710-1004
16	CLIP; HARNESS (AN) ID=16 L=28	0-95235-556-0	02	1	1005-
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	04	1	0710-0908
16	CLIP; HARNESS (W) OD=9 H=6	8-97368-793-0	01	1	0909-
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	01	1	0710-0712
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	03	1	0801-0806
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	04	1	0807-1104
16	CLIP; HARNESS (AK) ID=14 L=44	9-09917-427-0	01	1	1105-
16	CLIP; HARNESS (Y) ID=16 L=46	9-09917-428-0	02	1	0710-0712
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	01	1	0710-1409
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0710-0712
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0801-0908
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	03	1	0801-0908
16	CLIP; HARNESS (U) ID=20 L=50	9-09917-430-0	06	1	0909-1104
16	CLIP; HARNESS (AE) ID=11 L=41	1-09700-403-0	05	1	1105-
16	CLIP; HARNESS (F) ID=22 L=52	9-09917-431-0	01	1	0710-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	0710-
16	CLIP; HARNESS (C) L=250	5-09707-030-1	02	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS (Q) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (S) ID=20 L=50	1-09700-679-1	01	1	0710-
16	CLIP; HARNESS EXC. GENERATOR NIKKO 24V-90A 2.5KW(SD2) (L) ID=24 L=24	1-09701-001-1	01	1	0710-
48	CLIP; FRAME HARNESS (A) ID=26 L=26	1-09701-236-0	01	1	0710-
48	CLIP; FRAME HARNESS (B) ID=20 H=18 L=82	1-09701-288-0	01	1	0710-
48	CLIP; FRAME HARNESS (C) L=350	1-09707-183-0	10	1	0710-
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0710-
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0710-
104	CLIP; HEADLAMP HARNESS (C) ID=13-18 L=14.5	1-09709-290-0	06	1	0710-
104	CLIP; HEADLAMP HARNESS (D) ID=5-12 L=14.5	1-09987-221-0	04	1	0710-
104	CLIP; HEADLAMP HARNESS (B) L=250	5-09707-030-1	02	1	0710-
104	CLIP; HEADLAMP HARNESS (A) L=140	5-09707-031-1	06	1	0710-
104	CLIP; HEADLAMP HARNESS (E) ID=21 L=47.5	8-94178-108-0	02	1	0710-0710
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	0710-1409
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	08	1	1410-
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	06	1	0710-1409
116	CLIP; ROOF HARNESS EXC. HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-
162	CLIP; SW HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0710-0710
162	CLIP; SW HARNESS (B) L=180	1-09707-162-1	01	1	0711-1009
162	CLIP; SW HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1010-
168	CLIP; DASH HARNESS (B) ID=6 & 10-13	8-97069-515-0	06	1	0710-
168	CLIP; DASH HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) L=30 SET=10 PIECE	1-09987-265-0	01	1	0710-
212	CLIP; HORN HARNESS (A) L=140	5-09707-031-1	01	1	0710-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0710-
212	CLIP; HORN HARNESS (D) ID=11 L=41	1-09700-403-0	01	1	0710-
212	CLIP; HORN HARNESS (E) ID=18 H=23 L=28	1-09700-860-0	03	1	0710-
212	CLIP; HORN HARNESS (C) ID=5-12 L=18	1-09709-287-0	01	1	0710-
223	CLIP; AIR TANK HARNESS (A) ID=14.5 L=40	1-09701-014-0	01	1	0710-
223	CLIP; AIR TANK HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	02	1	0710-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
421	CLIP; FLOOR HARNESS L=20 SET=10 PIECE	1-09987-246-2	05	1	0710-
448	CLIP; AIR SUSP HARNESS (C) W/SPONGE RUBBER	1-09709-150-0	01	1	0711-
448	CLIP; AIR SUSP HARNESS (D) OD=9 H=13.5	1-09709-180-0	01	1	0711-
448	CLIP; AIR SUSP HARNESS (A) L=350	1-09707-183-0	05	1	0710-
448	CLIP; AIR SUSP HARNESS (B) L=180	1-09707-162-1	05	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0710-
612	CLIP; HARNESS DPD (D) ID=13-18 L=18	1-09709-291-0	01	1	0712-
612	CLIP; HARNESS DPD (B) ID=4.8	1-09701-218-0	03	1	0710-
612	CLIP; HARNESS DPD (C) ID=5-12 L=18	1-09709-287-0	02	1	0710-0711
612	CLIP; HARNESS DPD (E) ID=13-18 L=14.5	1-09709-290-0	01	1	0712-
612	CLIP; HARNESS DPD (A) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-

119 524 219 294 340 469 515 515 423 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	0710-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	03	1	1005-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-0710
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-0710
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-0710
219	NUT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	0710-0710
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-0710
219	NUT M8 FLANGE	0-91180-108-0	01	1	0711-0907
219	NUT M8 FLANGE	0-91180-108-0	01	1	0711-0907
219	NUT M8 FLANGE	0-91180-108-0	01	1	0711-0907
219	NUT M8 FLANGE	0-91180-108-0	01	1	0711-0907
219	NUT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	0711-0907
219	NUT M8 FLANGE	0-91180-108-0	01	1	0711-0907
219	NUT M8 FLANGE	0-91180-108-0	01	1	0908-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0908-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0908-
219	NUT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ),AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) M8 FLANGE	0-91180-108-0	01	1	0908-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0908-
219	NUT M8 FLANGE	0-91180-108-0	06	1	0710-0907
219	NUT M8 FLANGE	0-91180-108-0	07	1	0908-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-
294	NUT M8 FLANGE	0-91180-108-0	07	1	0710-0907
294	NUT M8 FLANGE	0-91180-108-0	01	1	0908-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0710-0907
294	NUT M8 FLANGE	0-91180-108-0	01	1	0710-0907
294	NUT M8 FLANGE	0-91180-108-0	08	1	0908-
340	NUT; HARNESS CAB TO FRAME M8 CUTTING NUT W/FLANGE	1-09985-340-0	05	1	0710-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0710-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0710-
469	NUT; PROTECTOR M8 FLANGE	0-91180-108-0	02	1	0710-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1005-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	04	1	0710-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0710-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
