8-05 — INTERIOR LAMP (#37617) — 29 parça

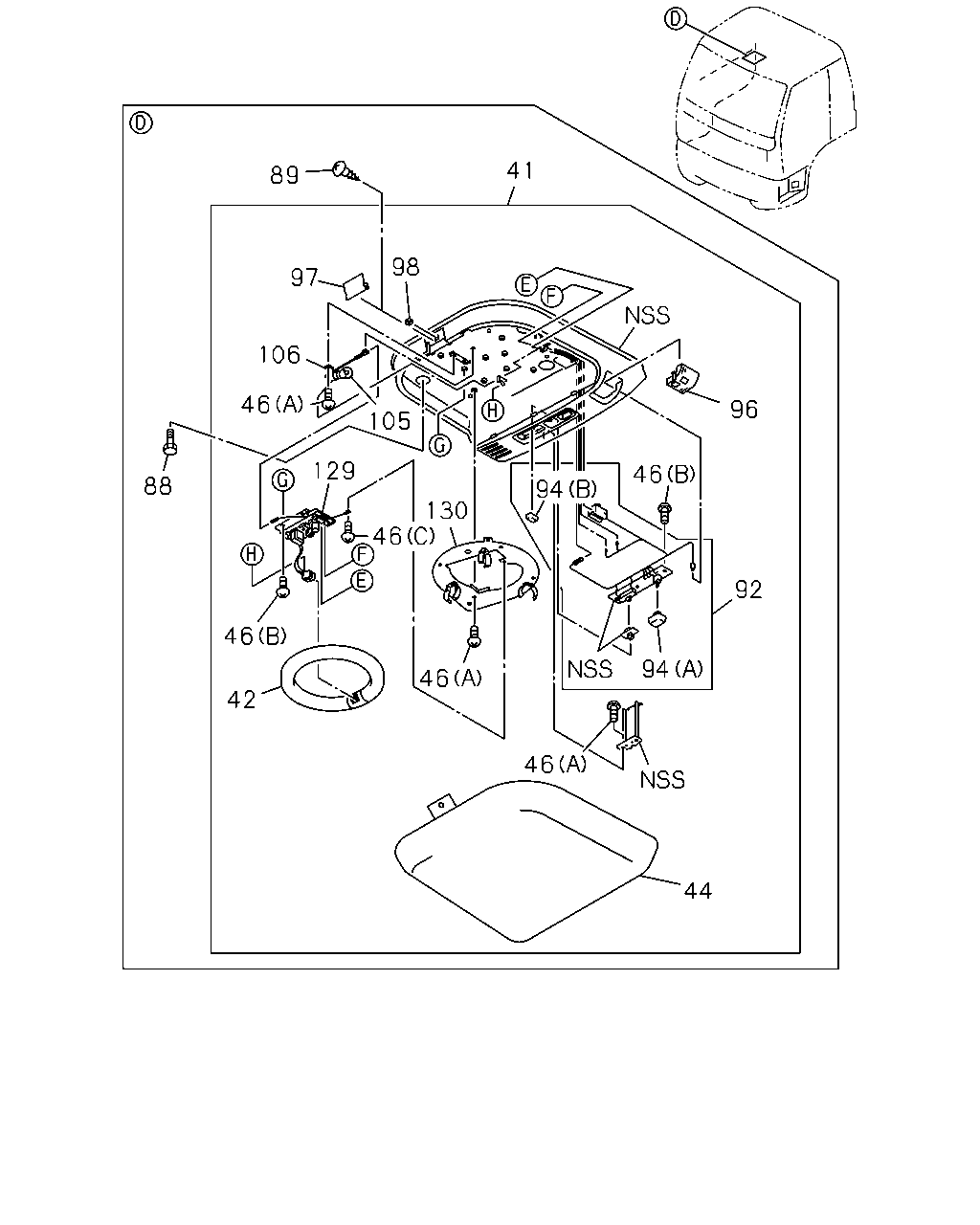

çizim 180744
41 89 97 98 106 46 88 129 105 46 130 46 42 46 46 44 94 92 46 94 96
BalonParca AdiParca NoAdetTipApplied Date
41 LAMP ASM; FLUORESCENT 1-86830-315-2 01 1 0710-
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0710-
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0710-
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0710-
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0710-
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0710-
88 BOLT; LAMP
M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0710-
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 0710-
92 SWITCH ASM; FLUORESCENT 1-86830-306-0 01 1 0710-
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0710-
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0710-
96 CAP; SPOT LAMP 1-86830-385-0 01 1 0710-
97 CAP; LENS FIX 1-86830-311-0 01 1 0710-
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0710-
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0710-
106 SOCKET; BULB 1-86830-201-0 01 1 0710-
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0710-
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0710-
çizim 180746
85 11 27 33 33 24 25 35 34 35
BalonParca AdiParca NoAdetTipApplied Date
11 LAMP ASM; ASH TRAY 1-76458-076-1 01 1 0710-
24 LAMP; STEP 1-82140-052-1 01 1 0710-
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0710-
27 LENS; STEP LAMP 1-82145-019-0 01 1 0710-
33 GROMMET; SCREW,LAMP
M4 		5-09470-002-0 02 1 0710-
34 COVER; STEP LAMP
BODY COLOR TOLL GREEN(543) 		8-98213-903-0 02 1 1203-
34 COVER; STEP LAMP 8-98086-130-0 02 1 0710-1202
34 COVER; STEP LAMP
BODY COLOR ARC WHITE(729) 		8-98086-130-0 02 1 1203-
35 SCREW; STEP LAMP
(B) M4X20 TAPPING W/PL WASHER 		0-74360-420-0 04 1 0710-
35 SCREW; STEP LAMP
(A) M4X20 		1-82149-006-0 02 1 0710-
85 BULB; ASH TRAY
24V 1.4W 		1-76457-041-0 01 1 0710-
