◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#37615) — 109 parça
çizim 180726
256 82 81 83 80 84 174 328 185 325
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710-
81 SEAT; SCREW 1-82219-012-0 04 1 0710-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710-
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0710-
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 0710-
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0710-
185 GROMMET; SCREW
M5 SCREW GROMMET 		1-09983-131-0 12 1 0710-
256 LAMP; MARKER 1-86830-242-3 02 1 0710-
325 SCREW; SPD INDICATOR LAMP
M5X14 TAPPING 		0-71040-514-0 12 1 0710-
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		0-71040-514-0 12 1 0710-
328 COVER; LAMP
LOW ROOF<6XQ> 		1-76217-122-1 03 1 0710-

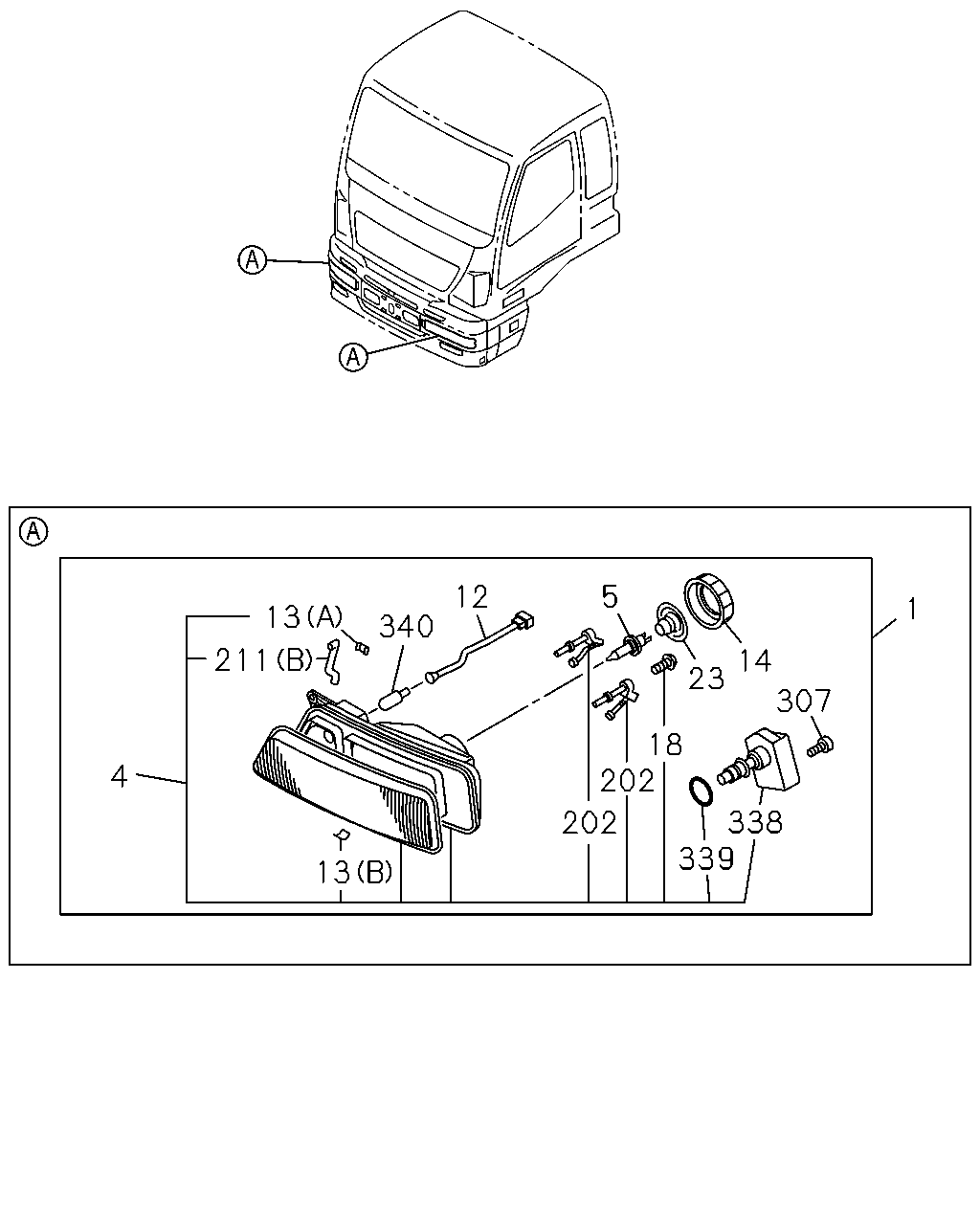

çizim 180729
4 211 13 340 12 5 1 307 14 23 18 202 202 339 338 13
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-372-2 01 1 0710-0711
1 LAMP ASM; HEAD 8-98097-194-0 01 1 0712-
1 LAMP ASM; HEAD 1-82110-373-2 01 1 0710-0711
1 LAMP ASM; HEAD 8-98097-195-0 01 1 0712-
4 HEADLAMP UNIT 1-82119-171-0 01 1 0710-
4 HEADLAMP UNIT 1-82119-172-0 01 1 0710-
5 BULB; HEADLAMP
24V 75/70W 		8-94405-657-0 02 1 0710-
12 HARNESS; HEADLAMP 1-82118-014-0 02 1 0710-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 04 1 0710-0711
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0712-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0710-
14 CAP; BULB,LAMP 1-86830-148-0 02 1 0710-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0710-
23 COVER; BULB,HEADLAMP 1-86830-147-0 02 1 0710-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0710-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0710-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0710-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0710-
338 LEVELING; HEADLAMP 1-86830-138-0 02 1 0710-
339 GASKET; LEVELING 1-86830-158-0 02 1 0710-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0710-
çizim 180730
206 19 28 28 49 1 273 49 273 140 28 49 273 162 1 175 175 162 175 28 16 175 206
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-372-2 01 1 0710-0711
1 LAMP ASM; HEAD 8-98097-194-0 01 1 0712-
1 LAMP ASM; HEAD 1-82110-373-2 01 1 0710-0711
1 LAMP ASM; HEAD 8-98097-195-0 01 1 0712-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0710-
16 BRACKET; HEADLAMP 8-97613-935-0 01 1 0710-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0710-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0710-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0710-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710-
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0710-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0710-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0710-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0710-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0710-
206 HOLDER; HEADLAMP
(A) 		1-65671-817-0 01 1 0710-
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0710-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-

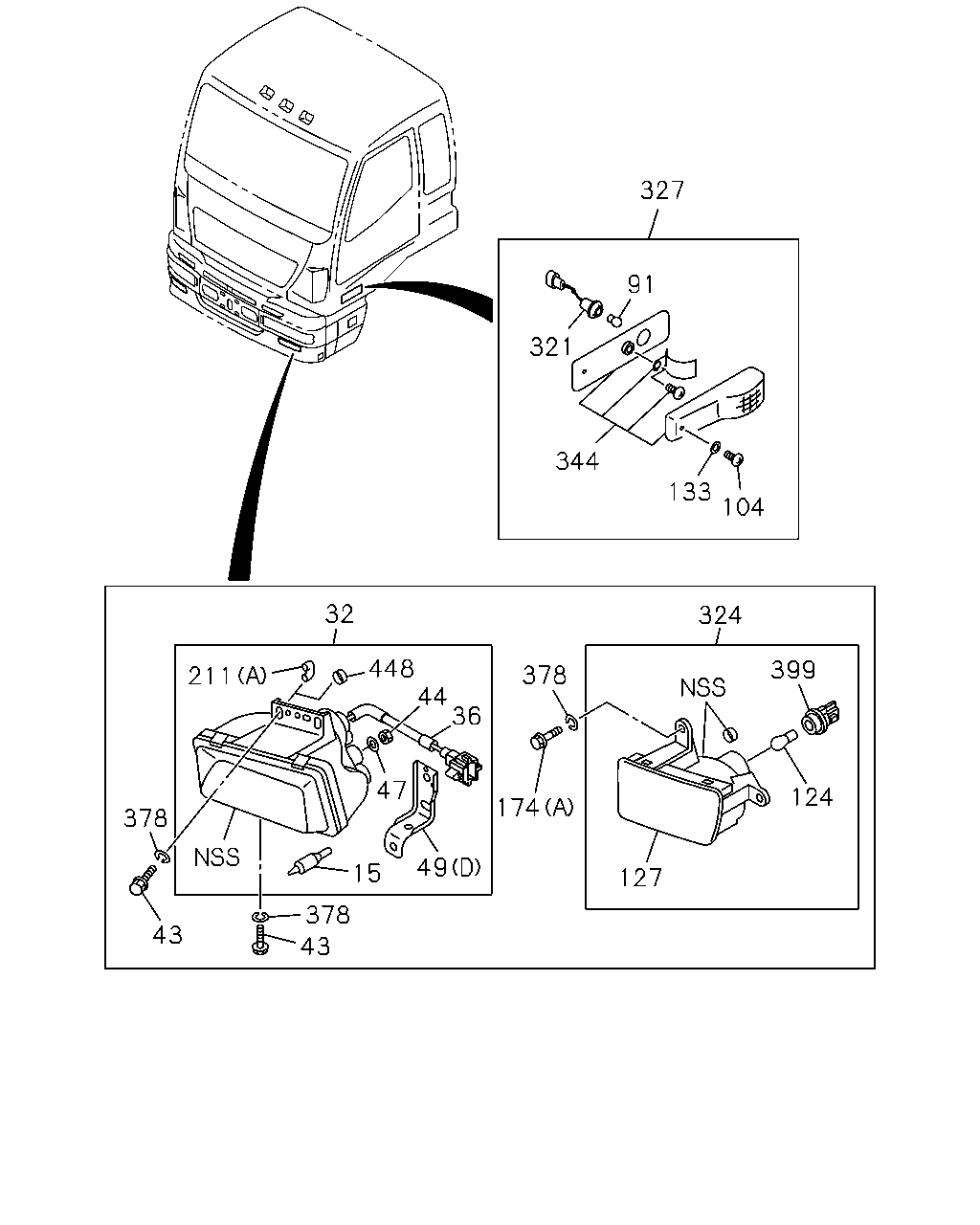

çizim 180737
327 91 321 344 133 104 324 399 124 127 174 378 49 36 44 47 15 378 43 43 378 211 32 448
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0710-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0710-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-1 01 1 1302-
32 LAMP ASM; FOG 1-82110-454-0 01 1 0710-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-1 01 1 1302-
36 CORD; FOG LAMP 1-82118-015-0 01 1 0710-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0710-
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0710-
43 BOLT; FOG LAMP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710-
91 BULB; SIDE TURN SIGNAL
24V 21W 		1-82194-036-0 02 1 0710-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0710-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0710-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0710-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0710-
133 WASHER; PL,SIDE FLASHER LAMP 1-86830-150-0 02 1 0710-
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-
211 TUBE; HEADLAMP
(B) 		1-86830-330-0 01 1 0710-0711
211 TUBE; HEADLAMP
(B) 		8-98101-137-0 01 1 0712-
211 TUBE; HEADLAMP
(B) 		1-86830-331-0 01 1 0710-0711
211 TUBE; HEADLAMP
(B) 		8-98101-138-0 01 1 0712-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906
321 HARNESS; SIDE FLASHER LAMP 1-82218-002-0 02 1 0710-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0710-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0710-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-227-2 01 1 0710-
327 LAMP ASM; SIDE TURN SIGNAL 1-82210-228-2 01 1 0710-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-020-0 01 1 0710-
344 LAMP UNIT; SIDE TURN SIGNAL 1-82213-021-0 01 1 0710-
378 WASHER; PL
ID=6.4 		0-91610-606-0 08 1 0710-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0710-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-
