Sayfa 7-45 - Isuzu EPC

7-45 — CONSOLE BOX (#37611) — 55 parça

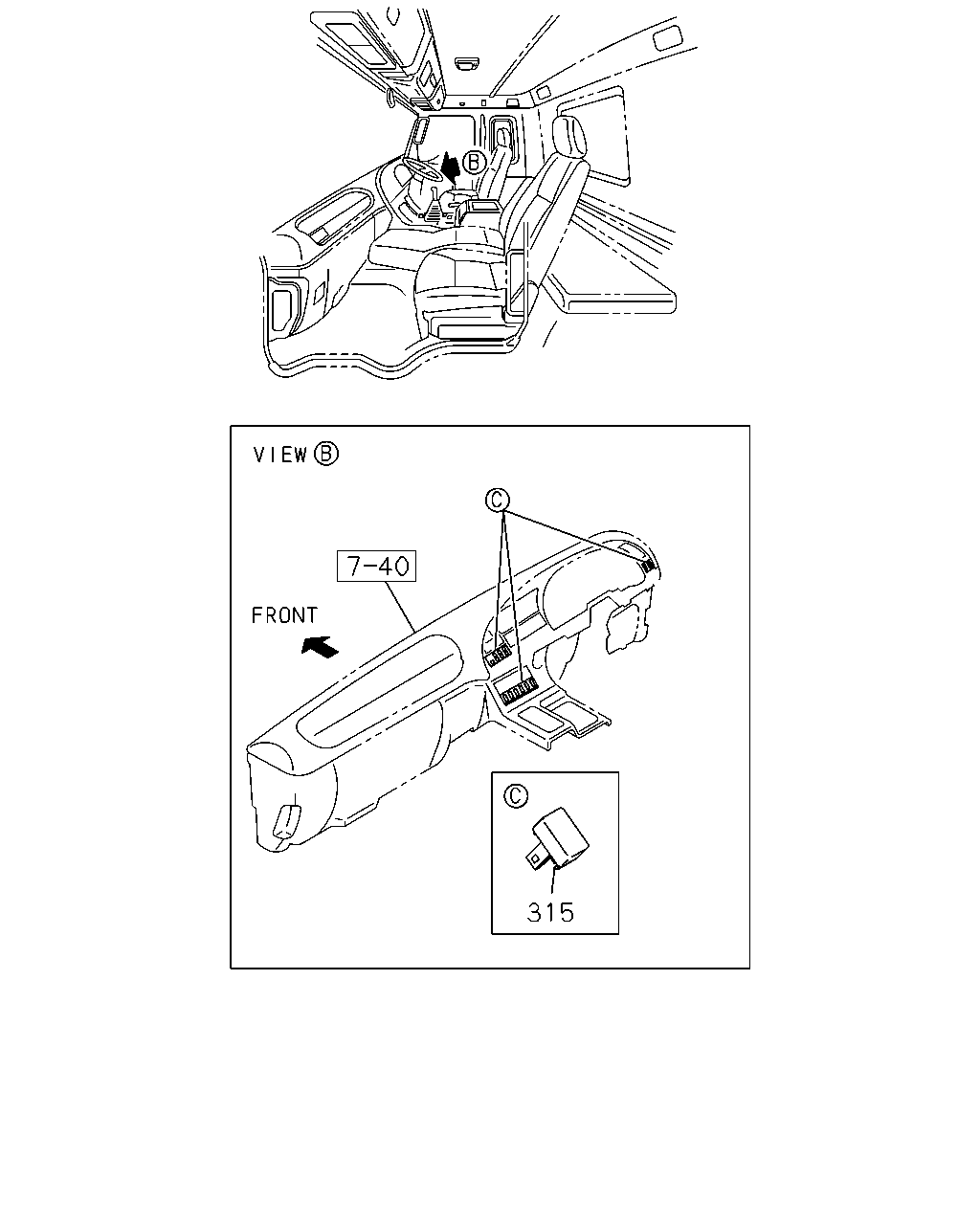

315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
315	COVER; HOLE,SW	1-82359-069-2	14	1	0908-
315	COVER; HOLE,SW	1-82359-069-2	01	1	0908-
315	COVER; HOLE,SW	1-82359-069-2	01	1	0908-
315	COVER; HOLE,SW	1-82359-069-2	01	1	0908-
315	COVER; HOLE,SW	1-82359-069-2	AR	1	0710-

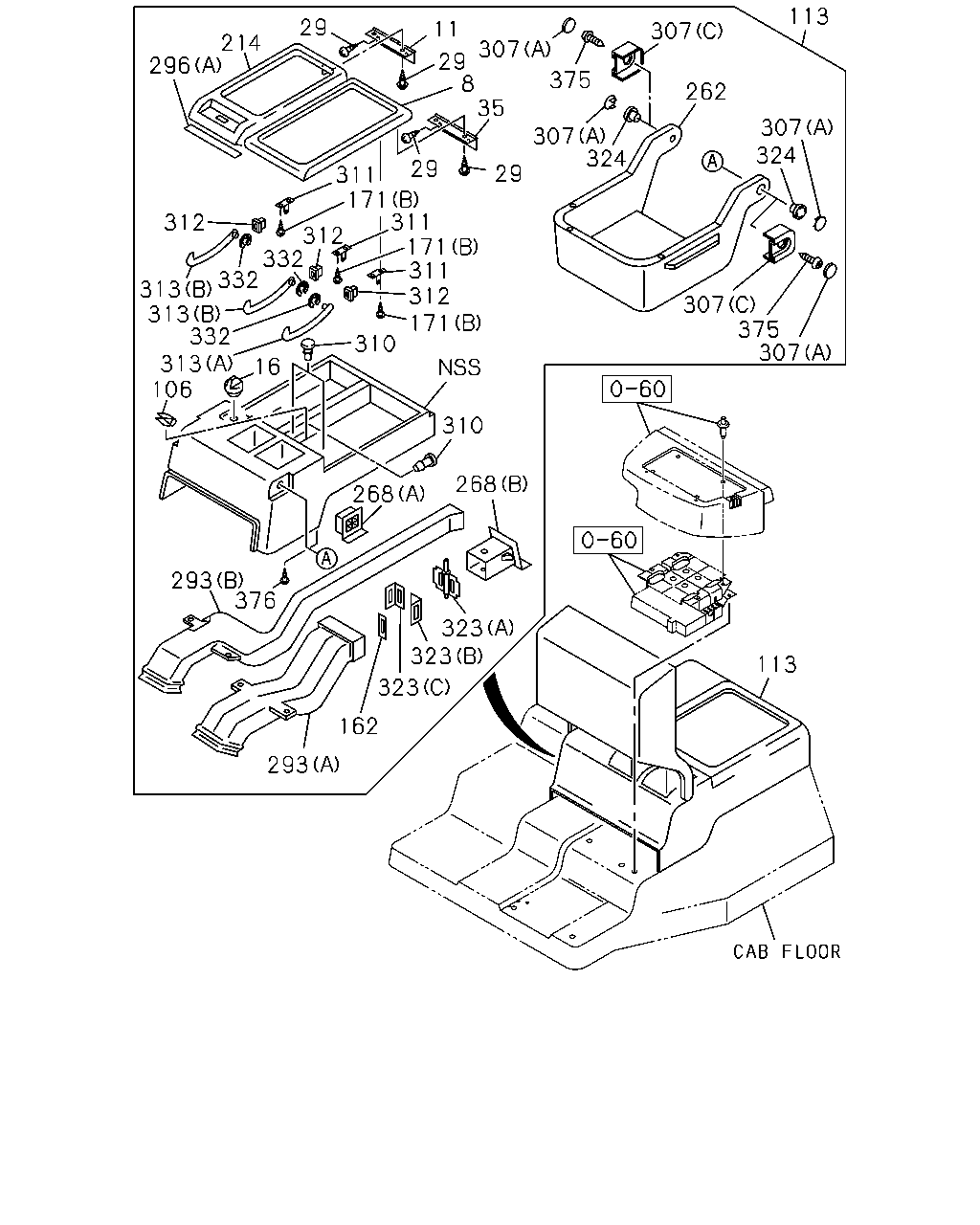

113 307 262 307 324 324 307 375 307 11 29 8 35 29 29 311 29 214 296 312 313 332 332 312 171 311 171 311 312 171 310 16 106 313 332 313 310 268 268 323 323 323 162 293 376 293 113 307 375 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	LID; CENTER CONSOLE COOL & HOT BOX<TMU>	1-72537-332-0	01	1	0710-
11	HINGE; CONSOLE LID COOL & HOT BOX<TMU>	1-72537-070-2	01	1	0710-
16	KNOB ASM COOL & HOT BOX<TMU>	1-72537-189-0	01	1	0710-
29	SCREW; HINGE COOL & HOT BOX<TMU> M5X14 BINDING HEAD	1-72537-168-0	08	1	0710-
35	HINGE; CENTER CONSOLE COOL & HOT BOX<TMU>	1-72538-182-1	01	1	0710-
106	LOCK; CONSOLE LID COOL & HOT BOX<TMU>	1-72537-079-0	02	1	0710-
113	BOX; CONSOLE TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-326-1	01	1	0710-
113	BOX; CONSOLE COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL>	1-72537-324-1	01	1	0710-
162	CUSHION; PARCEL BOX COOL & HOT BOX<TMU>	1-72537-128-0	03	1	0710-
171	SCREW; CONSOLE BOX COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0710-
171	SCREW; CONSOLE BOX (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0710-
214	LID; CONSOLE COOL & HOT BOX<TMU>	1-72537-339-0	01	1	0710-
262	TABLE ASM TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-187-1	01	1	0710-
268	COVER; DUCT COOL & HOT BOX<TMU> (B)	1-72537-183-0	01	1	0710-
268	COVER; DUCT COOL & HOT BOX<TMU> (A)	1-72537-184-0	01	1	0710-
293	DUCT TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A)	1-72537-081-3	01	1	0710-
293	DUCT TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B)	1-72537-083-2	01	1	0710-
296	SEAL COOL & HOT BOX<TMU> (A)	1-72537-094-1	01	1	0710-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0710-
307	COVER; HOLE,CTR CONSOLE COOL & HOT BOX<TMU> (A)	1-72537-188-0	02	1	0710-
307	COVER; HOLE,CTR CONSOLE COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C)	1-72537-270-1	02	1	0710-
307	COVER; HOLE,CTR CONSOLE (B)	1-76337-461-0	04	1	0710-
310	CUSHION; CTR CONSOLE COOL & HOT BOX<TMU>	1-72538-187-0	02	1	0710-
311	HOLDER; CONSOLE COOL & HOT BOX<TMU>	1-72538-188-2	03	1	0710-
312	STOPPER; CONSOLE COOL & HOT BOX<TMU>	1-72538-186-1	03	1	0710-
313	ARM; CTR CONSOLE COOL & HOT BOX<TMU> (A)	1-72538-184-3	01	1	0710-
313	ARM; CTR CONSOLE COOL & HOT BOX<TMU> (B)	1-72538-185-3	02	1	0710-
323	SHUTTER COOL & HOT BOX<TMU> (A)	1-72537-084-1	01	1	0710-
323	SHUTTER COOL & HOT BOX<TMU> (B)	1-72537-126-0	01	1	0710-
323	SHUTTER COOL & HOT BOX<TMU> (C)	1-72537-127-0	01	1	0710-
324	BUSHING TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-116-0	02	1	0710-
332	RING; SNAP,CONSOLE BOX COOL & HOT BOX<TMU>	1-72537-170-0	03	1	0710-
375	SCREW; TAP BUSHING COOL & HOT BOX<TMU> M6X20	1-72537-319-0	02	1	0710-
376	SCREW; TAP DUCT COOL & HOT BOX<TMU> M4X14	1-72537-320-0	03	1	0710-

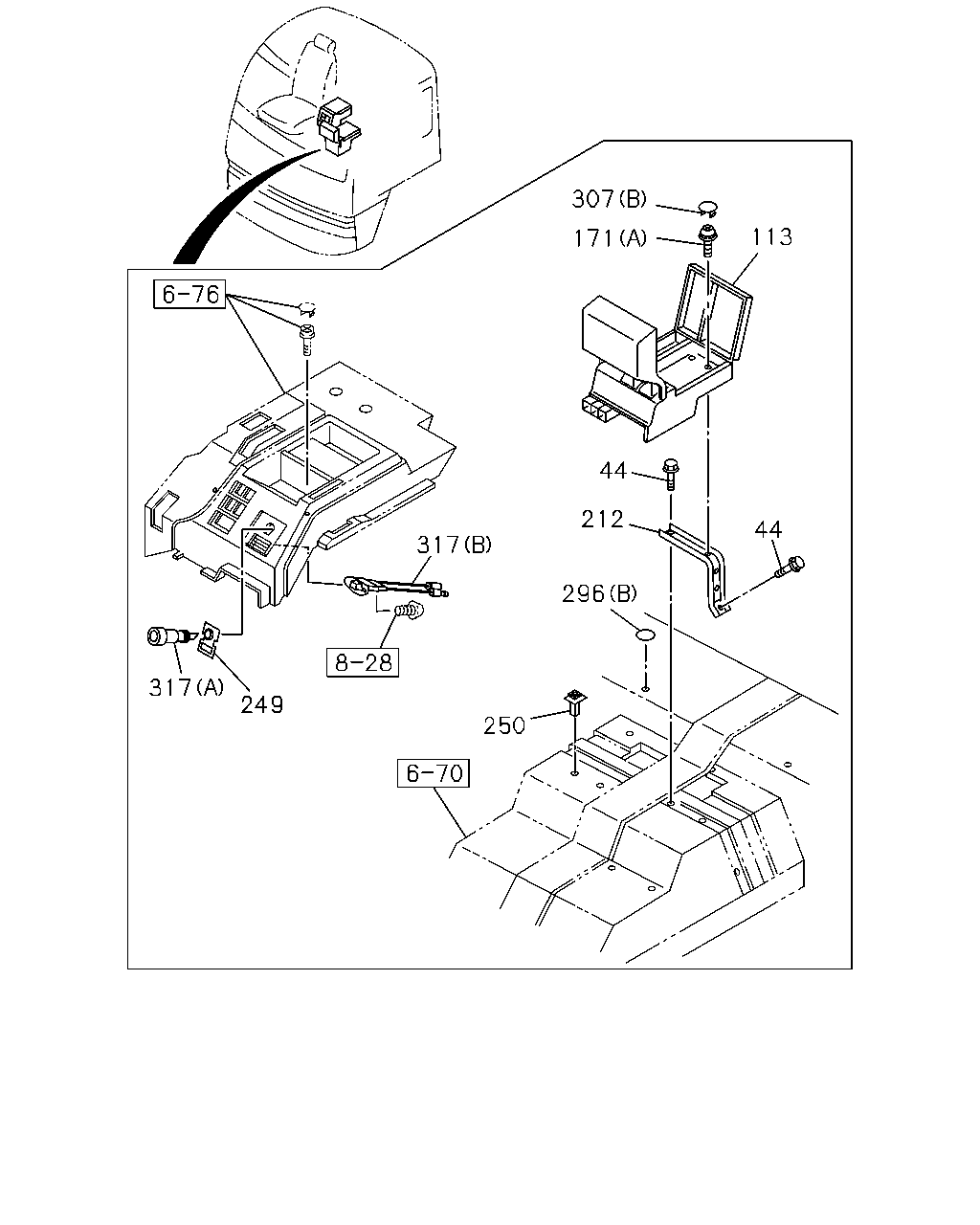

113 307 171 44 212 44 296 250 317 249 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	BOLT; SUPPORT,CTR CONSOLE M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0710-0904
44	BOLT; SUPPORT,CTR CONSOLE M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
113	BOX; CONSOLE TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU>	1-72537-326-1	01	1	0710-
113	BOX; CONSOLE COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL>	1-72537-324-1	01	1	0710-
171	SCREW; CONSOLE BOX COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD	1-72537-169-0	06	1	0710-
171	SCREW; CONSOLE BOX (A) M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0710-
212	SUPPORT; CONSOLE TO COMPT	1-72537-095-1	01	1	0710-
249	COVER	1-82529-001-0	01	1	0710-
250	GROMMET; CONSOLE BOX D=7.8X7.8 L=18 NATURAL	8-94279-043-0	03	1	0710-
296	SEAL COOL & HOT BOX<TMU> (A)	1-72537-094-1	01	1	0710-
296	SEAL (B) OD=25 BLACK	1-76798-019-0	01	1	0710-
307	COVER; HOLE,CTR CONSOLE COOL & HOT BOX<TMU> (A)	1-72537-188-0	02	1	0710-
307	COVER; HOLE,CTR CONSOLE COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C)	1-72537-270-1	02	1	0710-
307	COVER; HOLE,CTR CONSOLE (B)	1-76337-461-0	04	1	0710-
317	CONSENT (B)	1-82523-020-2	01	1	0710-
317	CONSENT (A)	8-94382-451-1	01	1	0710-
