◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶
7-43 — SUN VISOR AND ASSIST GRIP (#37610) — 114 parça

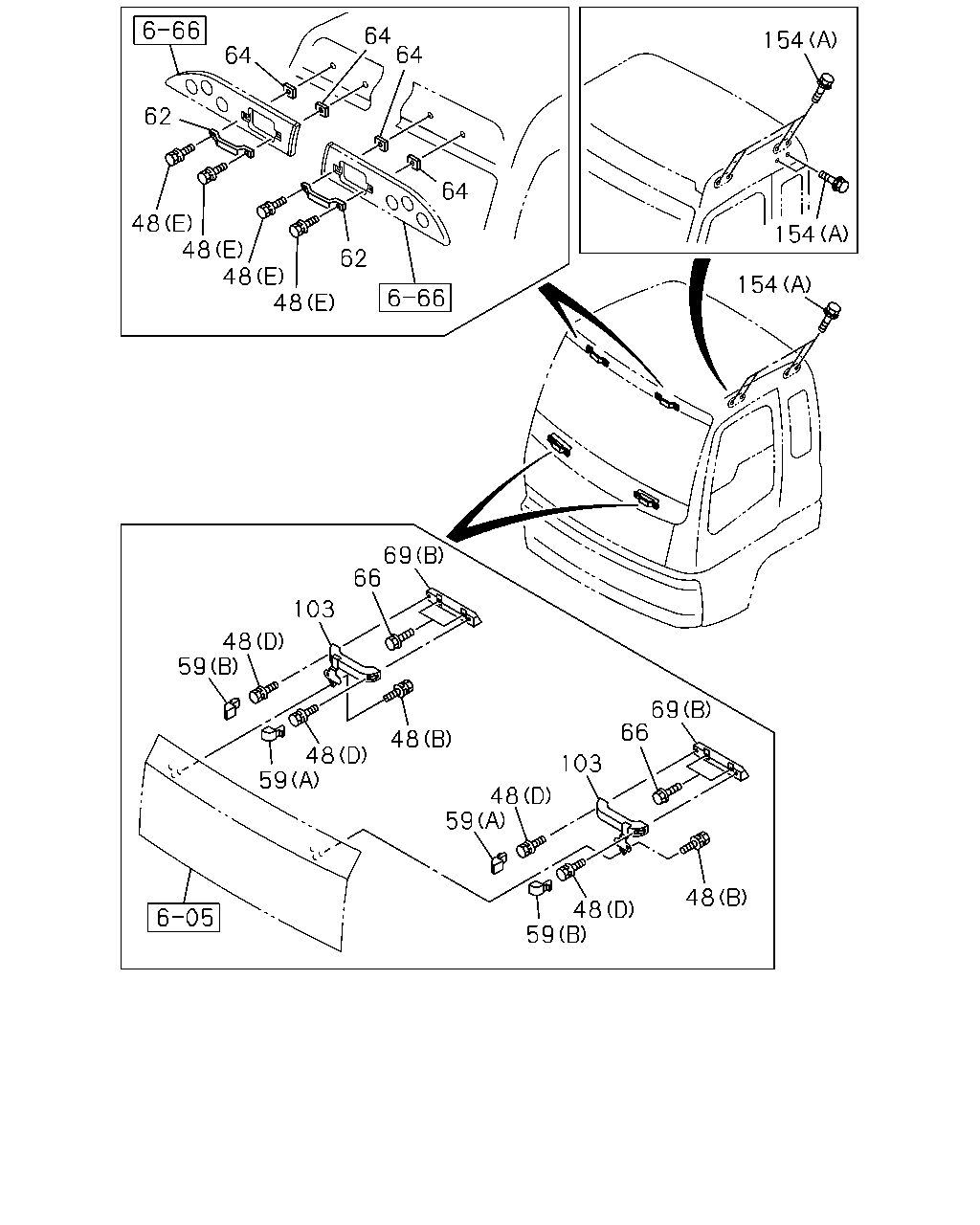

çizim 180722
154 154 154 62 48 48 48 48 62 64 64 64 64 69 66 103 48 59 59 48 48 59 48 103 66 69 48 48 59
BalonParca AdiParca NoAdetTipApplied Date
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0710-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0710-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0710-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0710-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0710-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0710-
62 GRIP; ASSIST,ROOF PANEL 1-71907-492-0 02 1 0710-0908
62 GRIP; ASSIST,ROOF PANEL 8-97630-819-0 02 1 0909-
64 SHEET; ASSIST GRIP
25X25 		8-94272-533-0 04 1 0710-
66 BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-242-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-243-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(A) 		1-73618-178-2 01 1 0710-
103 GRIP; ASSIST,FRT PNL 1-71998-939-3 01 1 0710-
103 GRIP; ASSIST,FRT PNL 1-71998-940-3 01 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0710-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0710-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0710-

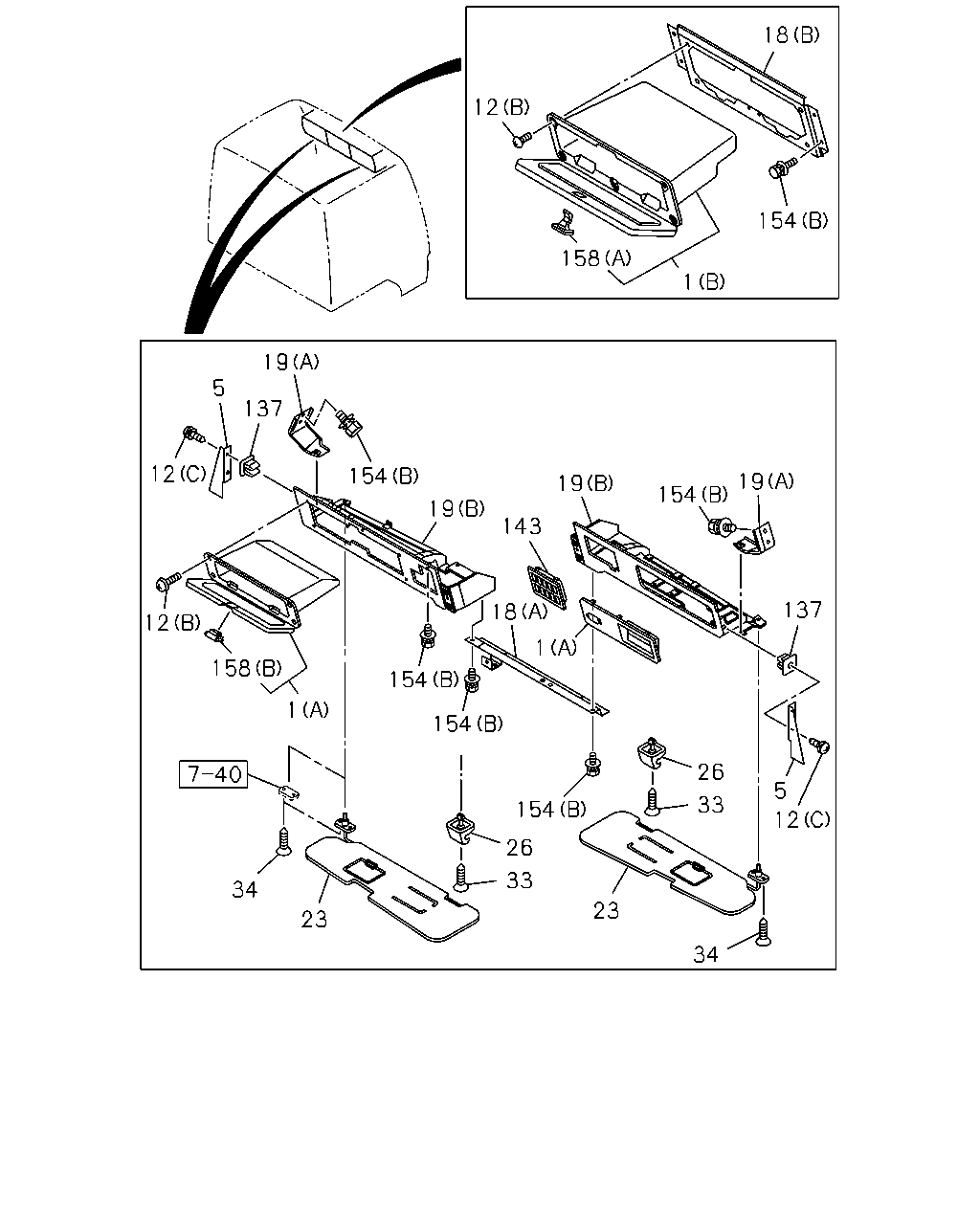

çizim 180740
18 12 158 1 154 19 5 137 12 154 19 143 19 154 19 137 5 12 33 26 1 18 154 154 1 158 12 34 23 26 154 33 23 34
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
TACHOGRAPH 120KM/H<SM8> (A) 		1-72447-760-4 01 1 0710-0803
1 BOARD; HEADER SHELF
(A) 		1-72447-760-4 01 1 0804-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0710-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0710-
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 0710-
1 BOARD; HEADER SHELF
EXC. TACHOGRAPH 120KM/H<SM8> (A) 		1-72447-876-4 01 1 0710-0803
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-932-0 01 1 0710-
5 BRACKET; HEADER SHELF FRAME
HIGH ROOF<S2F> 		1-72447-933-0 01 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0710-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0710-
18 SUPPORT; HEADER SHELF CENTER
(B) 		1-72447-824-2 01 1 0710-
18 SUPPORT; HEADER SHELF CENTER
(A) 		1-72447-877-2 01 1 0710-0909
18 SUPPORT; HEADER SHELF CENTER
(A) 		8-98118-217-1 01 1 0910-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-878-4 01 1 0710-
19 SUPPORT ASM; HEADER SHELF
(B) 		1-72447-879-7 01 1 0710-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-323-1 01 1 0710-
19 SUPPORT ASM; HEADER SHELF
(A) 		1-72448-324-1 01 1 0710-
23 SUN VISOR 1-73138-157-1 01 1 0710-
23 SUN VISOR 1-73138-162-0 01 1 0710-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 0710-
26 HOLDER; SUN VISOR 1-73137-175-0 01 1 0710-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 0710-
33 SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD 		0-70540-420-0 01 1 0710-
34 SCREW; SUN VISOR
M6X25 		1-09981-441-0 04 1 0710-
137 GROMMET; SCREW,HEADER SHELF
HIGH ROOF<S2F> D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0710-
143 BEZEL 1-72447-768-2 01 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
LOW ROOF<6XQ> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 08 1 0710-
154 BOLT; SUPPORT
HIGH ROOF<S2F> EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER 		1-79198-003-2 12 1 0710-
154 BOLT; SUPPORT
GRIP OUT SIDE<W52> LOW ROOF<6XQ> (A) M8X15 W/PL WASHER 		1-79198-003-2 04 1 0710-
154 BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 18 1 0710-
158 LOCK; HEADER SHELF
(B) 		1-72448-376-0 01 1 0710-
158 LOCK; HEADER SHELF
(A) 		1-72538-312-0 01 1 0710-
çizim 180755
135 83 132 135 12 1 157 59 71 156 71 54 76 59 150 87 54 49 69 71 48 71 56 150 72 48 87 142 76 150 142 106 71 55 142 54 79
BalonParca AdiParca NoAdetTipApplied Date
1 BOARD; HEADER SHELF
TACHOGRAPH 120KM/H<SM8> (A) 		1-72447-760-4 01 1 0710-0803
1 BOARD; HEADER SHELF
(A) 		1-72447-760-4 01 1 0804-
1 BOARD; HEADER SHELF
HIGH ROOF<S2F> (C) 		1-72447-886-7 01 1 0710-
1 BOARD; HEADER SHELF
(A) 		1-72447-761-6 01 1 0710-
1 BOARD; HEADER SHELF
(B) 		1-72447-968-0 01 1 0710-
1 BOARD; HEADER SHELF
EXC. TACHOGRAPH 120KM/H<SM8> (A) 		1-72447-876-4 01 1 0710-0803
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (C) M5X20 		5-09981-059-0 04 1 0710-
12 SCREW; HEADER SHELF
HIGH ROOF<S2F> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 07 1 0710-
12 SCREW; HEADER SHELF
(B) M6X24 W/LK&PL WASHER 		8-94279-404-0 08 1 0710-
48 BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER 		1-09980-611-0 04 1 0710-
48 BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER 		1-09980-613-1 04 1 0710-
48 BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
48 BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
48 BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0710-
49 NUT; ASSIST GRIP
M6 FLANGE 		0-91180-106-0 01 1 0710-
54 GRIP; ASSIST,QUARTER SIDE
EXC. ASSIST GRIP A POST<NBK> (B) 		1-73618-185-1 01 1 0710-0904
54 GRIP; ASSIST,QUARTER SIDE
ASSIST GRIP A POST<NBK> (B) 		1-73618-185-1 02 1 0710-0904
54 GRIP; ASSIST,QUARTER SIDE
ASSIST GRIP A POST<NBK> (B) 		1-73618-185-1 01 1 0905-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-563-1 01 1 0710-
54 GRIP; ASSIST,QUARTER SIDE
(A) 		1-73617-564-1 01 1 0710-
55 GRIP; ASSIST,CAB SIDE UPR
GRIP OUT SIDE<W52> 		1-73618-169-1 02 1 0710-
56 GRIP; ASSIST,SIDE SILL 1-73617-570-0 02 1 0710-0804
56 GRIP; ASSIST,SIDE SILL 8-98081-700-0 02 1 0805-
59 COVER; ASSIST GRIP
(B) OUTER 		1-71998-789-2 02 1 0710-
59 COVER; ASSIST GRIP
(A) INNER 		1-71998-790-2 02 1 0710-
59 COVER; ASSIST GRIP
(C) 		1-73617-565-0 02 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-242-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(B) 		1-65570-243-0 01 1 0710-
69 BRACKET; ASSIST GRIP
(A) 		1-73618-178-2 01 1 0710-
71 SCREW
EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER 		5-09981-064-0 02 1 0710-
71 SCREW
EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER 		8-94279-411-0 02 1 0710-0904
71 SCREW
ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER 		5-09981-064-0 04 1 0710-
71 SCREW
ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER 		8-94279-411-0 04 1 0710-0904
71 SCREW
(A) M6X34 W/LK&PL WASHER 		8-94279-411-0 02 1 0905-
71 SCREW
ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER 		8-94279-411-0 02 1 0905-
71 SCREW
(B) M6X20 W/LK&PL WASHER 		1-09981-073-0 03 1 0710-
72 GRIP; ASSIST,CAB ENTRY,BACK
GRIP OUT SIDE<W52> 		1-71907-608-1 01 1 0710-
76 SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> LOW ROOF<6XQ> (B) OD=13 T=4.5 		8-94230-464-1 02 1 0710-
76 SPACER; ASSIST GRIP
LOW ROOF<6XQ> (A) 		1-73618-180-0 02 1 0710-
79 GRIP; ASSIST 1-73618-185-1 01 1 0905-
83 PLUG
HIGH ROOF<S2F> D6X23 LIGHT GRAY 		1-73318-629-0 03 1 0710-
87 GRIP; ASSIST,CANT RAIL SIDE
EXC. ASSIST GRIP A POST<NBK> DARK GRAY 		8-97098-476-2 01 1 0710-
87 GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP A POST<NBK> DARK GRAY 		8-97098-476-2 02 1 0710-
106 SCREW; ASSIST GRIP
GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER 		8-94279-210-0 04 1 0710-
132 FASTENER; BOARD,HEADER SHELF
HIGH ROOF<S2F> D8X13.5 		1-09987-276-0 08 1 0710-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (A) D8X13.5 		1-09987-248-1 01 1 0710-
135 CLIP; HEADER SHELF
HIGH ROOF<S2F> (B) D6X23 LIGHT GRAY 		1-73318-629-0 05 1 0710-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (C) 		1-71907-604-0 01 1 0710-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (B) 		1-71997-691-1 02 1 0710-
142 SEAL; ASSIST GRIP
GRIP OUT SIDE<W52> (A) 25X25 		8-94272-533-0 04 1 0710-
150 CLIP; ASSIST GRIP HOLE
ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0905-
150 CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY 		1-73996-301-0 02 1 0710-
150 CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0710-0904
150 CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY 		1-73996-364-0 04 1 0905-
156 PIPE; HEADER SHELF
HIGH ROOF<S2F> 		1-72447-864-2 01 1 0710-
157 FINISHER; PIPE
HIGH ROOF<S2F> 		1-72447-885-5 01 1 0710-
