◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#37606) — 21 parça

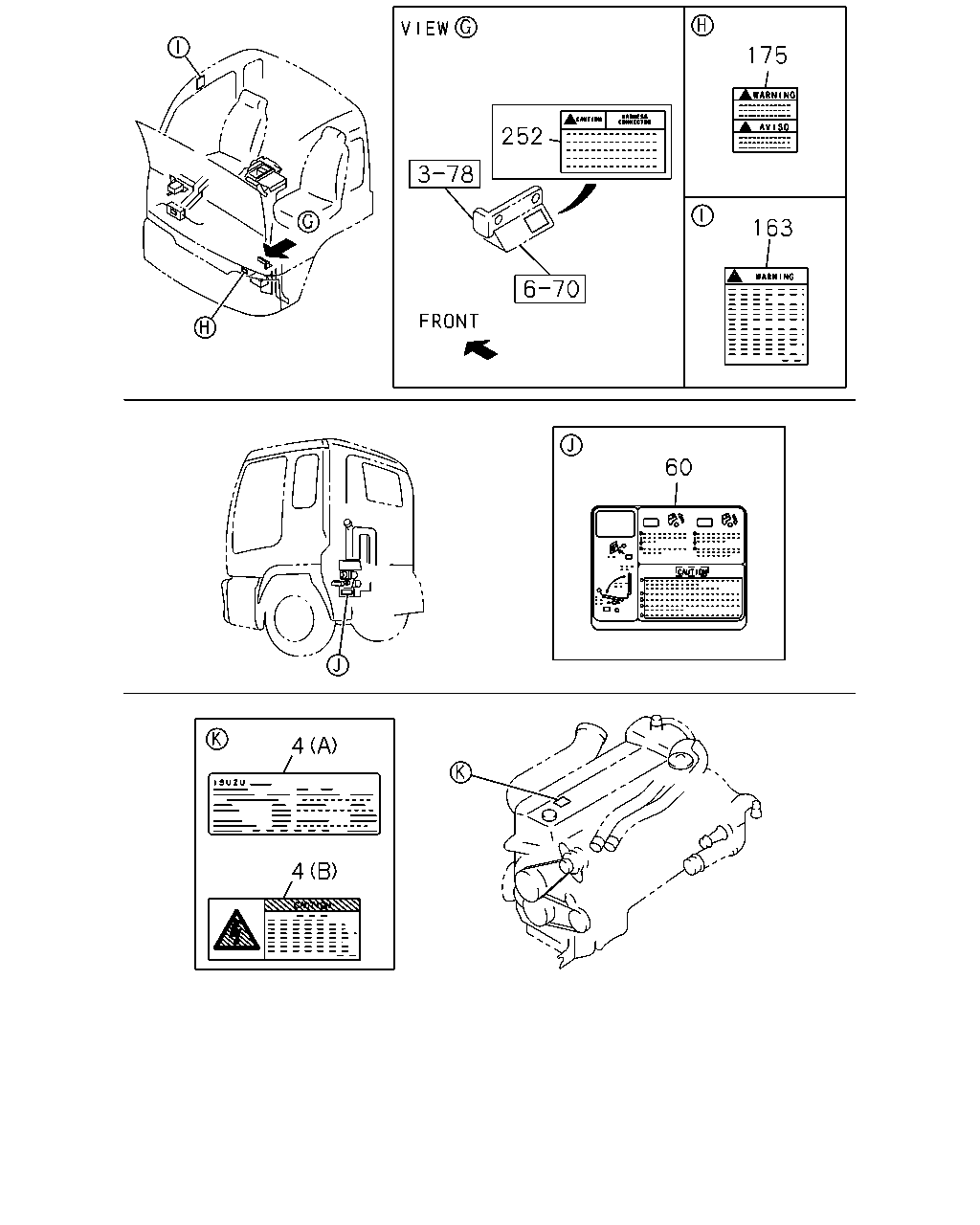

çizim 180706
175 163 252 60 4 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		1-85875-350-2 01 1 0710-
4 LABEL; ENG MAINTENANCE
(B) 		8-94391-524-0 01 1 0710-
60 PLATE; CAUTION,CAB TILT 1-85883-234-0 01 1 0710-
163 PLATE; NAME,AIR BAG 1-85878-485-0 01 1 0710-
175 LABEL; STRG,AIR BAG 1-85878-116-0 02 1 0710-
252 PLATE; CAUTION,HARNESS 1-85878-488-1 01 1 0710-

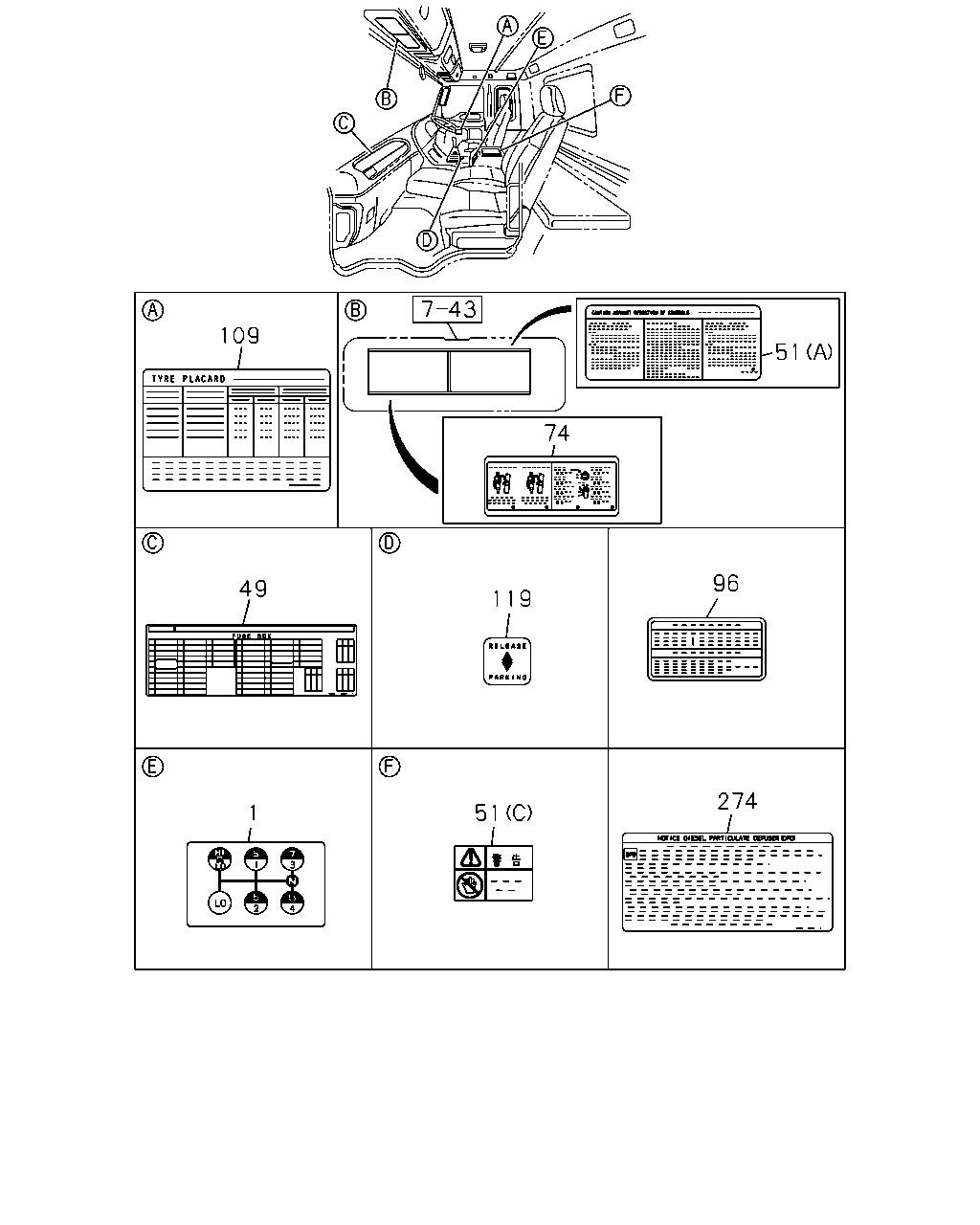

çizim 180708
109 49 1 51 119 96 274 51 74
BalonParca AdiParca NoAdetTipApplied Date
1 PLATE; CAUTION,SHIFT PATTERN 1-85881-519-0 01 1 0710-
49 PLATE; CAUTION,FUSE BOX 8-97619-856-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
74 PLATE; CAUTION,CHANGE LEV 1-85881-846-0 01 1 0710-
96 PLATE; CAUTION,ENGINE OIL 8-98036-732-0 01 1 0710-
109 PLATE; CAUTION,TIRE PLACARD 1-85881-932-0 01 1 0710-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0710-
274 PLATE; CAUTION,DPD 8-97616-473-0 01 1 0710-
çizim 180710
181 181 51
BalonParca AdiParca NoAdetTipApplied Date
51 PLATE; CAUTION,WARNING
(B) 		1-85878-544-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(C) 		1-85878-571-0 01 1 0710-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-725-0 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0710-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
