Sayfa 2-20A - Isuzu EPC

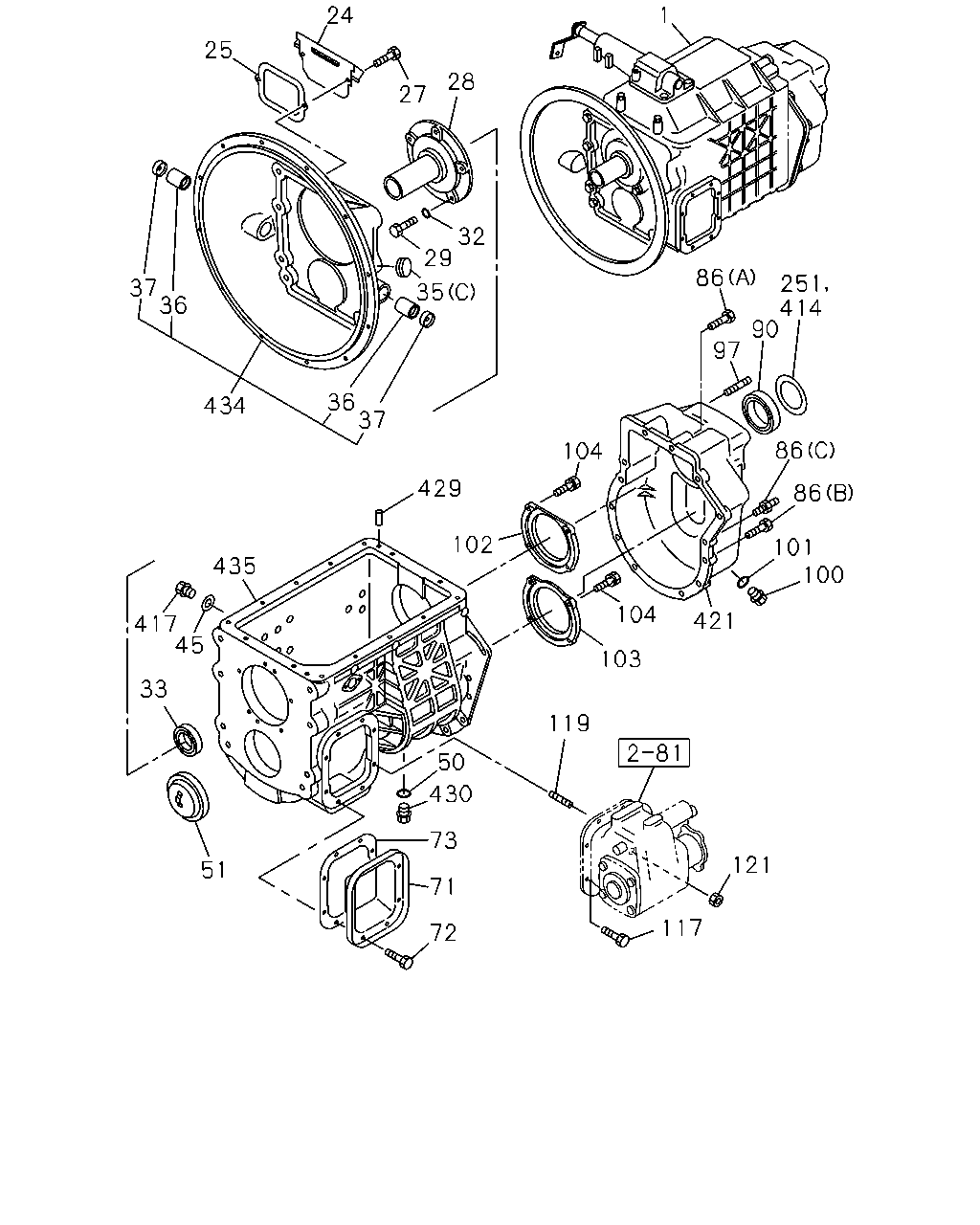

2-20A — MANUAL TRANSMISSION ASM AND CASE (#3760) — 300 parça

1 27 35 24 37 36 434 35 32 429 435 417 45 33 29 430 51 28 62 421 50 97 90 429 86 417 45 73 71 435 86 430 50 102 301 104 421 72 97 103 119 90 117 104 121 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TRANSMISSION ASM; MANUAL	1-33040-534-0	01	1	9601-0011	●
1	TRANSMISSION ASM; MANUAL	1-33040-534-0	01	1	0012-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33040-428-0	01	1	9601-9803		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-554-0	01	1	9804-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-424-0	01	1	9601-9803		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-550-0	01	1	9804-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-570-0	01	1	0005-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> PARKING BRAKE DRUM 10"(B1T)	1-33040-540-0	01	1	9601-9803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> PARKING BRAKE DRUM 10"(B1T)	1-33041-574-0	01	1	9804-0004			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33040-436-0	01	1	9710-9803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33041-570-0	01	1	9804-9806			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33041-570-0	01	1	0608-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33041-570-0	01	1	9807-0004			●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-434-0	01	1	9710-9803			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-572-0	01	1	9804-0004			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-568-0	01	1	0005-			●
1	TRANSMISSION ASM; MANUAL	1-33040-445-0	01	1	9601-9803				●
1	TRANSMISSION ASM; MANUAL	1-33041-579-0	01	1	9804-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-502-0	01	1	9706-9803					●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-504-0	01	1	9706-9803					●
1	TRANSMISSION ASM; MANUAL	1-33041-583-0	01	1	9804-						●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-441-0	01	1	9706-9803						●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-439-0	01	1	9712-9803						●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	1-33041-568-0	01	1	9804-0004			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33041-568-0	01	1	0005-			●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9601-	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9601-9803		●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9804-9807		●	●	●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-1410		●	●	●		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●	●	●		●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9804-0104	●	●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●		●
28	COVER; FRT,TRANS CASE	1-33121-130-0	01	1	9601-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9601-9803		●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9804-		●	●	●		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9601-9803		●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9804-0805		●	●	●		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-		●	●	●		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9601-9803		●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9804-		●	●	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	9601-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9601-9803		●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9804-		●	●	●		●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9601-	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9601-9803		●	●	●	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9804-		●	●	●		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9601-9803		●	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9804-		●	●	●		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9601-9803	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9804-	●	●	●	●		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9601-9803	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9804-1102	●	●	●	●		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1103-	●	●	●	●		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9803	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9804-	●	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9803	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	9601-9803				●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9804-0509	●	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0510-				●		●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9601-9707	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9601-9803		●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9804-		●	●	●		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9601-9803		●	●		●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33132-045-2	01	1	9804-		●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9601-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9601-9803		●	●	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9804-		●	●	●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9601-9803	●	●	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9804-0512	●	●	●	●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●	●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9601-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9601-9803		●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9804-		●	●	●		●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9601-9803	●	●	●		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9804-	●	●	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9601-9803		●	●		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9804-		●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	9601-				●		●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9601-				●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9601-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9601-9705		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9706-9803		●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9804-		●	●	●		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9601-9803		●	●	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9804-		●	●	●		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	03	1	9601-9711			●
97	STUD; PARKING BRK PARKING BRAKE DRUM 10"(B1T) M14X27 L=49	1-09302-099-0	03	1	9712-9803			●			●
97	STUD; PARKING BRK PARKING BRAKE DRUM 10"(B1T) M14X27 L=49	1-09302-099-1	03	1	9804-0004			●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9601-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9601-				●		●
103	RETAINER; BRG	9-33151-014-0	01	1	9601-	●
103	RETAINER; BRG	1-33151-037-0	01	1	9601-				●		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9601-	●			●		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9601-9803		●	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9804-0805		●	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-		●	●			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9601-9803	●	●		●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9804-0604	●	●				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 L=43	9-04411-028-0	02	1	9601-9910			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	9-04411-030-0	02	1	9911-0604			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0605-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9601-9803	●	●	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9804-0602	●	●	●			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●			●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-037-0	01	1	9601-			●
301	PLATE; DIST,PTO TO TRANS TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-38119-039-0	01	1	9601-9803				●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9803	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9804-0201	●	●	●	●		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●	●		●
421	COVER; RR,TRANS	1-33131-123-1	01	1	9601-9605	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9606-1002	●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9601-9604		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9605-9803		●	●		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9804-		●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9601-				●		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9601-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9601-9803		●	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9804-		●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0510-	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-9803	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	9601-9803				●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9804-0509	●	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	0510-				●		●
434	HOUSING; CLU	1-31110-125-1	01	1	9601-	●
434	HOUSING; CLU	1-31110-169-0	01	1	9601-9803		●	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9804-		●	●	●		●
435	CASE; TRANS	1-33111-260-0	01	1	9601-0202	●
435	CASE; TRANS	1-33111-330-0	01	1	0203-	●
435	CASE; TRANS	1-33111-235-0	01	1	9601-9803		●	●		●
435	CASE; TRANS	1-33111-235-0	01	1	9804-0201		●	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303		●	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406		●	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802		●	●
435	CASE; TRANS	1-33111-236-1	01	1	9601-				●		●

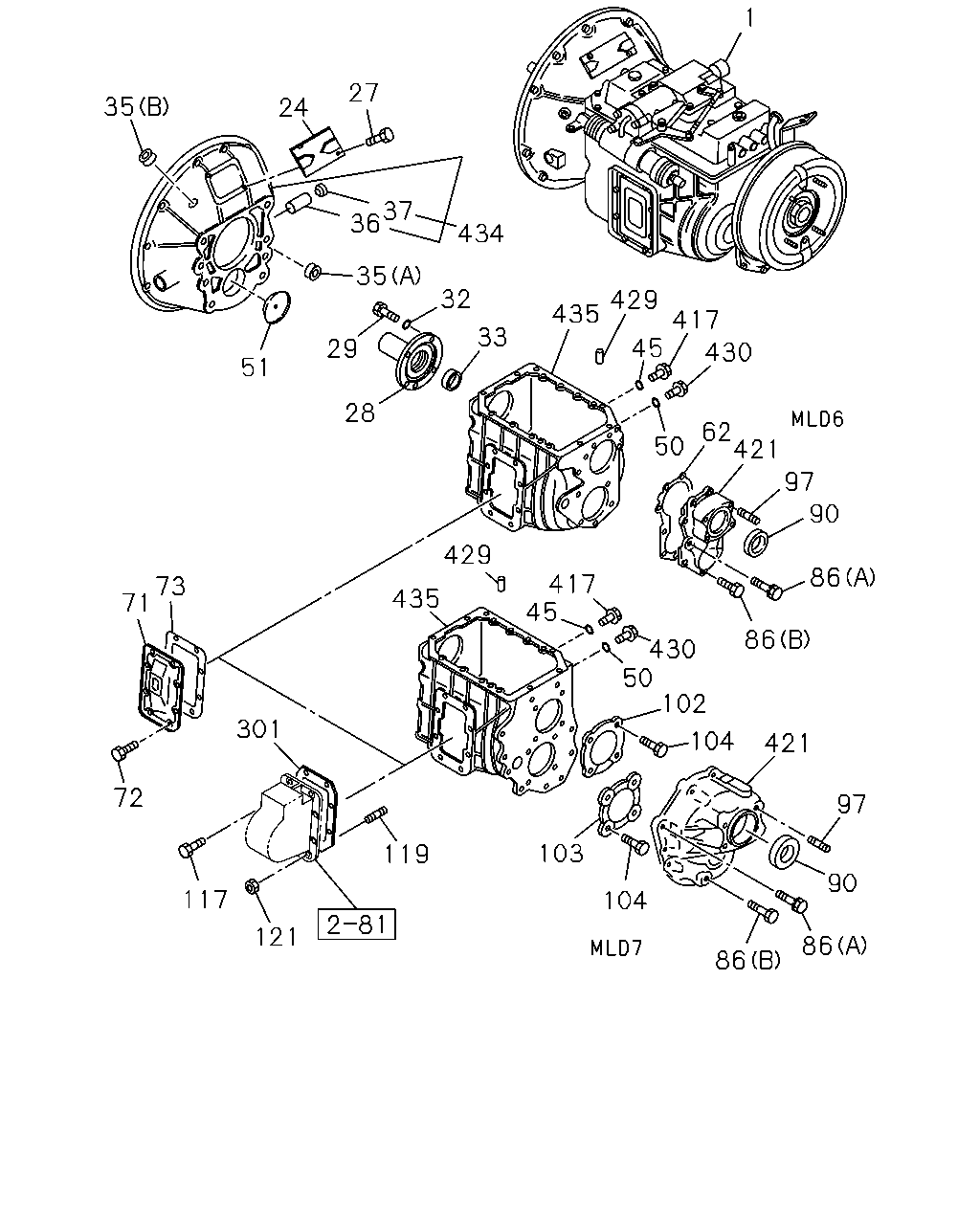

24 1 25 28 27 32 29 86 251 414 90 37 36 35 97 36 37 434 86 104 429 86 102 101 100 435 104 421 417 45 103 33 119 430 73 121 51 71 117 72 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	TRANSMISSION ASM; MANUAL	1-33040-534-0	01	1	9601-0011	●
1	TRANSMISSION ASM; MANUAL	1-33040-534-0	01	1	0012-	●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33040-428-0	01	1	9601-9803		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-554-0	01	1	9804-		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-424-0	01	1	9601-9803		●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-550-0	01	1	9804-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-570-0	01	1	0005-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> PARKING BRAKE DRUM 10"(B1T)	1-33040-540-0	01	1	9601-9803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> PARKING BRAKE DRUM 10"(B1T)	1-33041-574-0	01	1	9804-0004			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33040-436-0	01	1	9710-9803			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33041-570-0	01	1	9804-9806			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33041-570-0	01	1	0608-			●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. PARKING BRAKE DRUM 10"(B1T)	1-33041-570-0	01	1	9807-0004			●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33040-434-0	01	1	9710-9803			●
1	TRANSMISSION ASM; MANUAL PARKING BRAKE DRUM 10"(B1T) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-572-0	01	1	9804-0004			●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-568-0	01	1	0005-			●
1	TRANSMISSION ASM; MANUAL	1-33040-445-0	01	1	9601-9803				●
1	TRANSMISSION ASM; MANUAL	1-33041-579-0	01	1	9804-				●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8>	1-33041-502-0	01	1	9706-9803					●
1	TRANSMISSION ASM; MANUAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33041-504-0	01	1	9706-9803					●
1	TRANSMISSION ASM; MANUAL	1-33041-583-0	01	1	9804-						●
1	TRANSMISSION ASM; MANUAL REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-441-0	01	1	9706-9803						●
1	TRANSMISSION ASM; MANUAL EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)	1-33040-439-0	01	1	9712-9803						●
1	TRANSMISSION ASM; MANUAL EXC. PARKING BRAKE DRUM 10"(B1T),ASSISTOR SHIFT CONTROL<WX8>	1-33041-568-0	01	1	9804-0004			●
1	TRANSMISSION ASM; MANUAL EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5), ASSISTOR SHIFT CONTROL<WX8>	1-33041-568-0	01	1	0005-			●
24	COVER; CHECK HOLE,DUST	1-31131-030-0	01	1	9601-	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9601-9803		●	●	●	●	●
24	COVER; CHECK HOLE,DUST	1-31131-027-0	01	1	9804-9807		●	●	●		●
24	COVER; CHECK HOLE,DUST	1-31131-041-0	01	1	9808-1410		●	●	●		●
24	COVER; CHECK HOLE,DUST	8-98284-107-0	01	1	1411-		●	●	●		●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	9601-1406	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	8-98283-291-0	01	1	1407-	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9601-9803	●	●	●	●	●	●
27	BOLT; COVER TO CLU HSG M8X12 FLANGE	0-28080-812-0	02	1	9804-0104	●	●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	02	1	0105-0512	●	●	●	●		●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●	●	●		●
28	COVER; FRT,TRANS CASE	1-33121-130-0	01	1	9601-	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9601-9803		●	●	●	●	●
28	COVER; FRT,TRANS CASE	1-33121-105-0	01	1	9804-		●	●	●		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	9601-0805	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	05	1	0806-	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-0	04	1	9601-9803		●	●	●	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	04	1	9804-0805		●	●	●		●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	8-97365-375-0	04	1	0806-		●	●	●		●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	9601-	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9601-9803		●	●	●	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	04	1	9804-		●	●	●		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-497-0	01	1	9601-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9601-9803		●	●	●	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-498-0	01	1	9804-		●	●	●		●
35	GROMMET; CLU HSG (C) OD=45	9-31139-007-0	01	1	9601-	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9601-9803		●	●	●	●	●
35	GROMMET; CLU HSG (A) OD=15 T=6.6	8-97037-246-0	01	1	9804-		●	●	●		●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9601-9803		●	●	●	●	●
35	GROMMET; CLU HSG (B)	9-09575-796-0	01	1	9804-		●	●	●		●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9601-9803	●	●	●	●	●	●
36	BEARING; NEEDLE,CLU HSG NTN	1-09811-002-1	02	1	9804-	●	●	●	●		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9601-9803	●	●	●	●	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	9804-1102	●	●	●	●		●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-002-0	02	1	1103-	●	●	●	●		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9803	●	●	●	●	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9804-	●	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0510-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-9803	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	9601-9803				●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9804-0509	●	●	●	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	02	1	0510-				●		●
51	COVER; SEAL,COUNTER,FRT	1-33319-055-1	01	1	9601-9707	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	9708-	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-0	01	1	9601-9803		●	●	●	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-107-1	01	1	9804-		●	●	●		●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	9601-	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9601-9803		●	●	●	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-033-0	01	1	9804-		●	●	●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9601-9803	●	●	●	●	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	9804-0512	●	●	●	●		●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28151-016-0	08	1	0601-	●	●	●	●		●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	9601-	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9601-9803		●	●	●	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-036-0	01	1	9804-		●	●	●		●
86	BOLT; RR COVER (A) M12X65	1-09044-077-0	02	1	9601-0011	●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0012-	●
86	BOLT; RR COVER (C) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	9601-	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9601-9803	●	●	●		●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	08	1	9804-	●	●	●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9601-9803		●	●		●
86	BOLT; RR COVER (A) M12X60	1-09044-084-0	01	1	9804-		●	●
86	BOLT; RR COVER (B) M17X35	1-09044-076-0	09	1	9601-				●		●
86	BOLT; RR COVER (A) M12X50	1-09044-085-0	02	1	9601-				●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	9601-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9601-9705		●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9706-9803		●	●	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	1-09625-513-0	01	1	9804-		●	●	●		●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	9601-	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	01	1	9601-9803		●	●	●	●	●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-1	01	1	9804-		●	●	●		●
97	STUD; PARKING BRK M14X27 L=49	1-09302-099-0	03	1	9601-9711			●
97	STUD; PARKING BRK PARKING BRAKE DRUM 10"(B1T) M14X27 L=49	1-09302-099-0	03	1	9712-9803			●			●
97	STUD; PARKING BRK PARKING BRAKE DRUM 10"(B1T) M14X27 L=49	1-09302-099-1	03	1	9804-0004			●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	9601-	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	9601-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	9601-	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-036-0	01	1	9601-				●		●
103	RETAINER; BRG	9-33151-014-0	01	1	9601-	●
103	RETAINER; BRG	1-33151-037-0	01	1	9601-				●		●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	9601-	●			●		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	9601-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9601-9803		●	●	●	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	0-28181-028-0	06	1	9804-0805		●	●			●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 FLANGE	8-98044-944-0	06	1	0806-		●	●			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9601-9803	●	●		●	●	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	9804-0604	●	●				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	0-44011-025-0	02	1	0605-	●	●				●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X28 L=43	9-04411-028-0	02	1	9601-9910			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	9-04411-030-0	02	1	9911-0604			●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 L=45	0-44011-030-0	02	1	0605-			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9601-9803	●	●	●	●	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	9804-0602	●	●	●			●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●			●
251	RETAINER; OIL,PARKING BRK	1-33139-116-0	01	1	9912-1204	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	9601-9911	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	9601-9802	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9803-9803	●	●	●	●	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	9804-0201	●	●	●	●		●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●	●	●		●
421	COVER; RR,TRANS	1-33131-123-1	01	1	9601-9605	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	9606-1002	●
421	COVER; RR,TRANS	1-33131-192-2	01	1	1003-	●
421	COVER; RR,TRANS	1-33131-089-7	01	1	9601-9604		●	●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9605-9803		●	●		●
421	COVER; RR,TRANS	1-33131-177-1	01	1	9804-		●	●
421	COVER; RR,TRANS	1-33131-087-4	01	1	9601-				●		●
429	PIN; STRAIGHT OD=8 L=16	9-08150-816-0	02	1	9601-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9601-9803		●	●	●	●	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	9804-		●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0510-	●	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9601-9803	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	9601-9803				●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	9804-0509	●	●	●	●		●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	02	1	0510-				●		●
434	HOUSING; CLU	1-31110-125-1	01	1	9601-	●
434	HOUSING; CLU	1-31110-169-0	01	1	9601-9803		●	●	●	●	●
434	HOUSING; CLU	1-31110-169-0	01	1	9804-		●	●	●		●
435	CASE; TRANS	1-33111-260-0	01	1	9601-0202	●
435	CASE; TRANS	1-33111-330-0	01	1	0203-	●
435	CASE; TRANS	1-33111-235-0	01	1	9601-9803		●	●		●
435	CASE; TRANS	1-33111-235-0	01	1	9804-0201		●	●
435	CASE; TRANS	1-33111-323-0	01	1	0202-0303		●	●
435	CASE; TRANS	1-33111-342-0	01	1	0304-0406		●	●
435	CASE; TRANS	8-97381-568-0	01	1	0407-0802		●	●
435	CASE; TRANS	1-33111-236-1	01	1	9601-				●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
