Sayfa 3-78 - Isuzu EPC

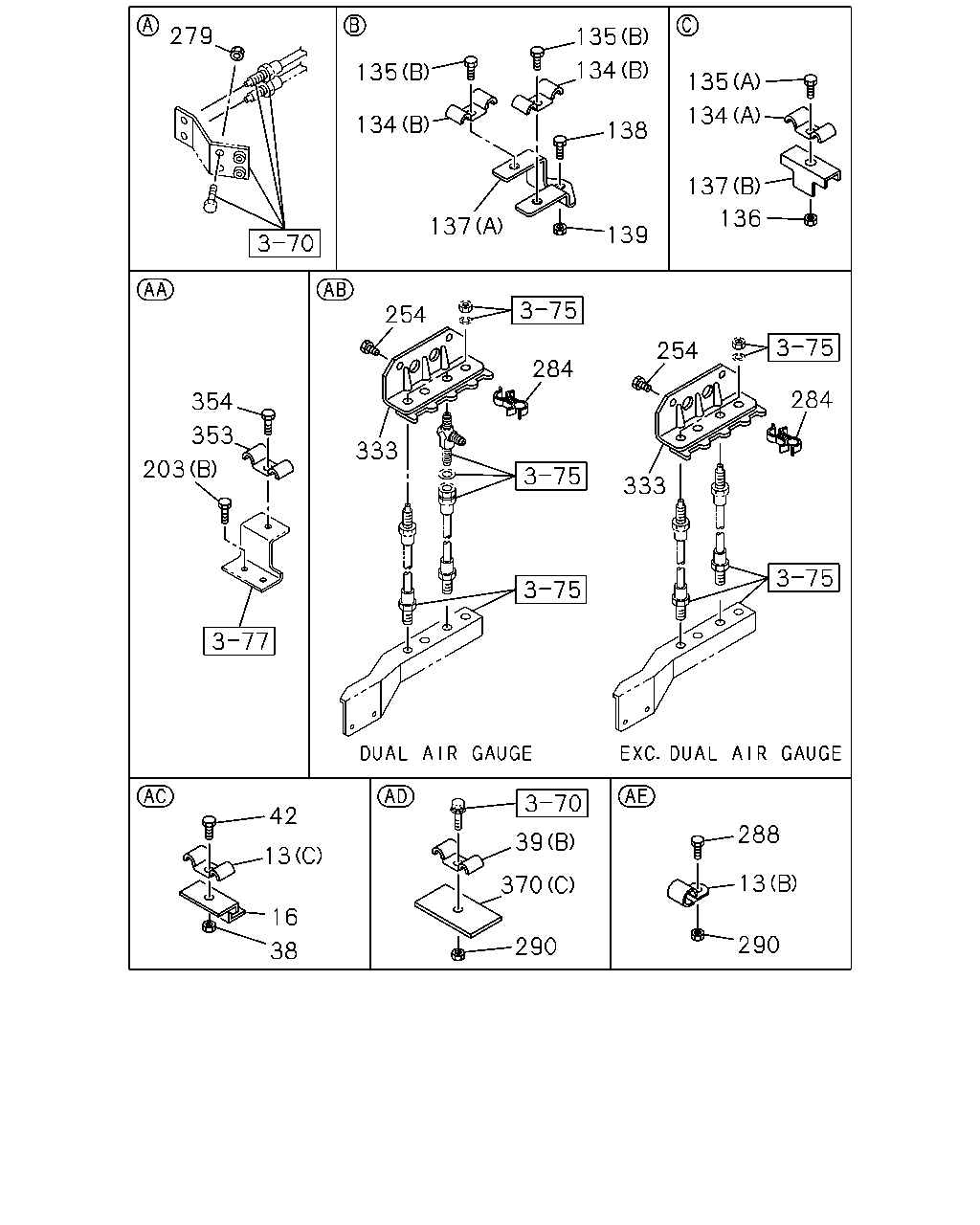

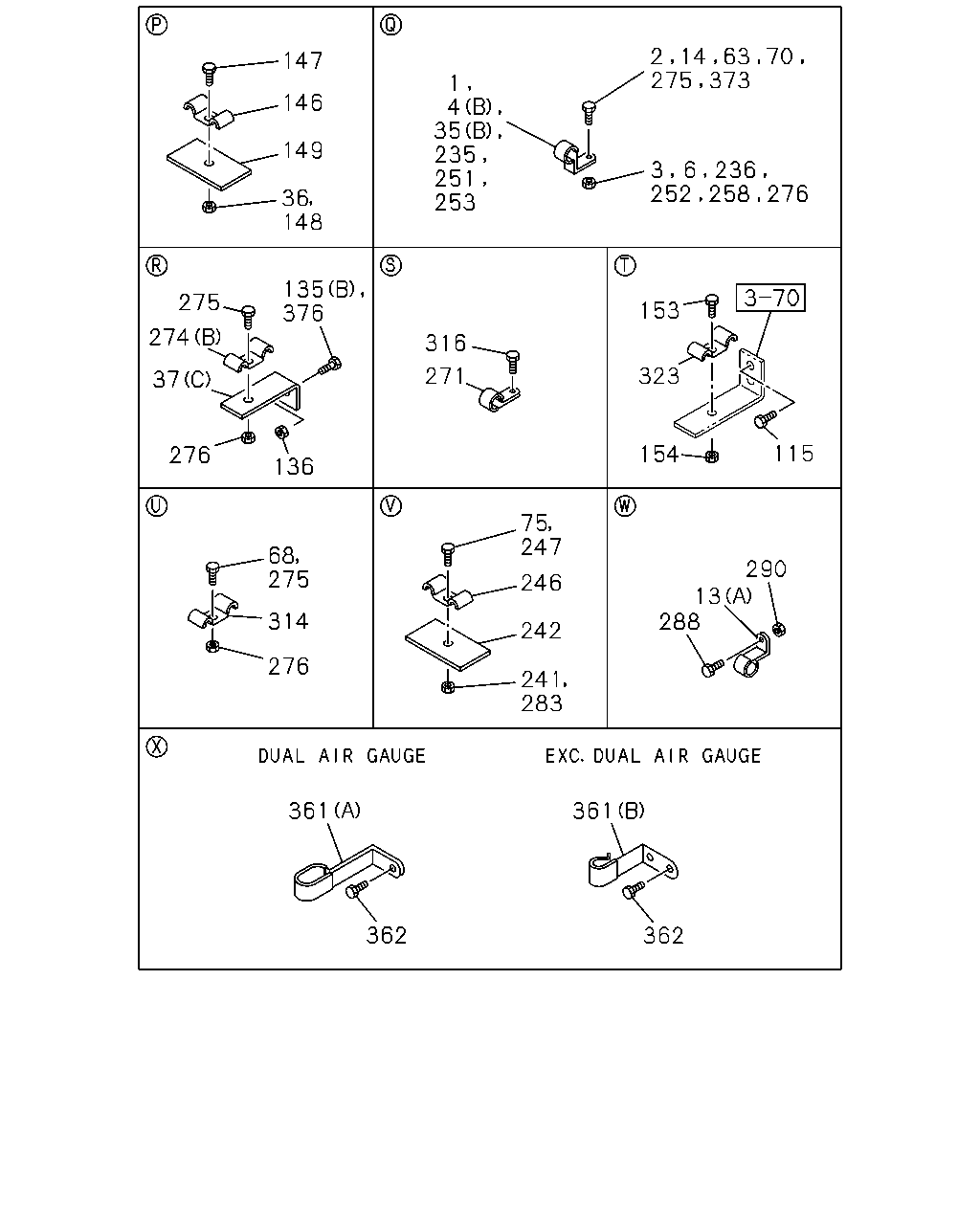

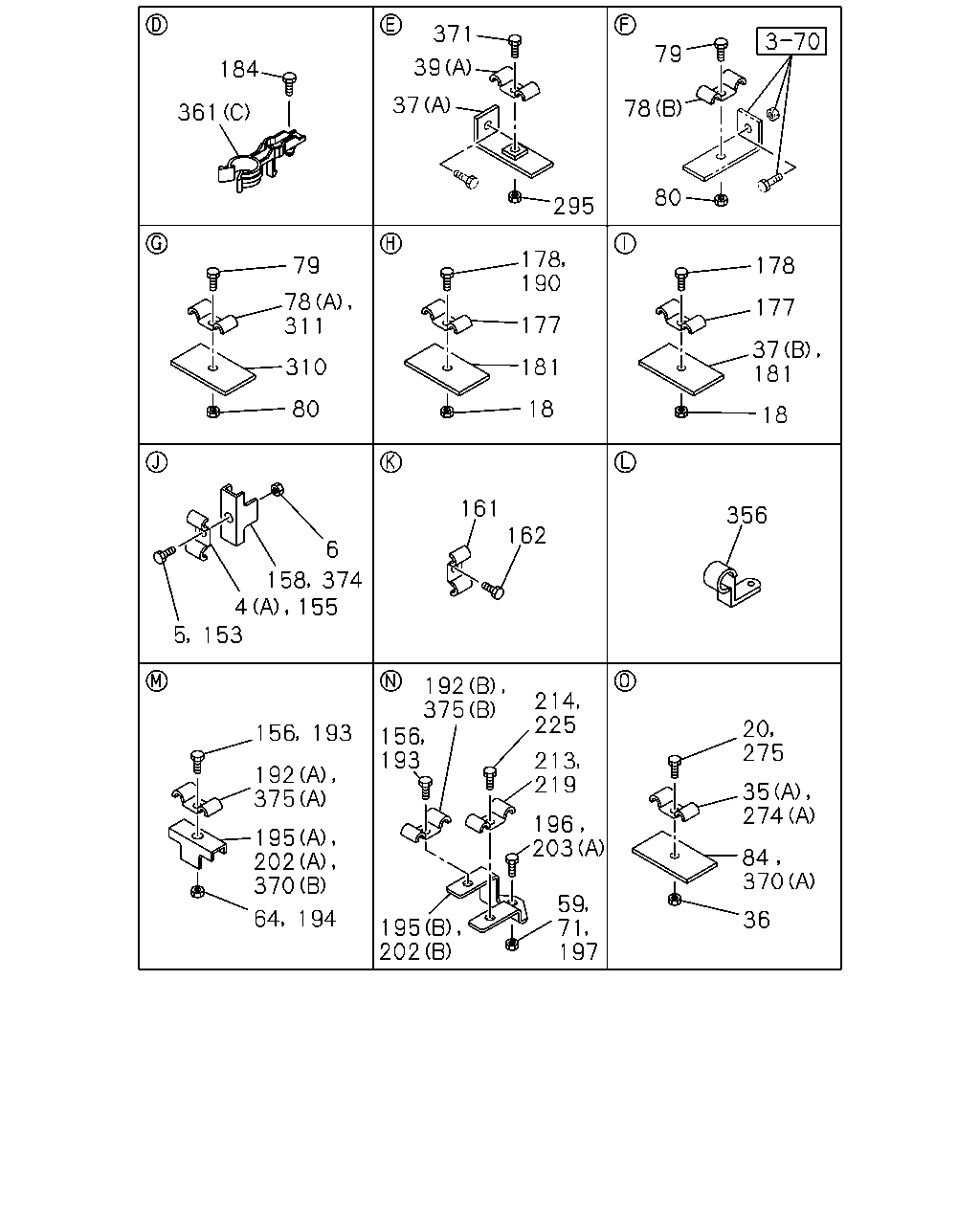

3-78 — FIXING PARTS; AIR PIPING (#376) — 278 parça

371 79 39 184 37 78 361 80 295 178 190 79 178 78 311 177 177 37 181 310 181 80 18 18 161 356 162 6 158 4 155 153 5 192 375 156 193 214 225 20 275 156 193 213 219 192 375 35 274 196 203 195 202 370 84 370 59 71 197 64 194 36 195 202 374

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-	●
4	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-		●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	9202-		●
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) M8X40	0-28010-840-0	01	1	9202-9204		●
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) M8X40 FLANGE	0-28080-840-0	01	1	9205-		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●
6	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-		●
18	NUT; CLIP M8	9-09110-408-0	02	1	9202-	●	●
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
20	BOLT; CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9202-		●
20	BOLT; CLIP AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	01	1	9202-		●
35	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
35	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9202-9211		●
35	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	9212-		●
36	NUT; CLIP AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9202-		●
37	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9202-9205	●
37	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=50	1-47475-299-2	01	1	9202-9205		●
37	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	02	1	9202-9205	●
37	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=55	1-47475-304-0	02	1	9202-9205		●
37	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A) L=55	1-47475-304-0	01	1	9202-9205	●	●
37	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) (C) L=60	1-47475-455-0	01	1	9202-		●
39	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9206-9211	●	●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9206-9211		●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●	●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-		●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9205		●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=18 & 15	1-09700-661-0	03	1	9206-9211	●
39	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	03	1	9206-9211		●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9212-	●
39	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9212-		●
59	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9202-	●	●
64	NUT; CLIP M8	9-09110-408-0	01	1	9202-	●	●
71	NUT; BRKT M8	9-09110-408-0	02	1	9204-	●	●
78	CLIP; AIR PIPE AIR DRYER<PS7> (A) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9202-	●	●
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> (B) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9202-9205	●	●
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-9205	●	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9206-	●	●
80	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9202-9205	●	●
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> M8	9-09110-408-0	01	1	9206-	●	●
84	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) L=50	1-47475-299-2	02	1	9202-		●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
153	BOLT; PIPE CLIP M8X40	0-28010-840-0	01	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
155	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	9202-	●	●
156	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
156	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
156	BOLT; PIPE CLIP M8X40	0-28010-840-0	01	1	9202-9204	●	●
156	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
158	BRACKET; PIPE CLIP	1-47475-427-1	01	1	9202-	●	●
161	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
161	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
162	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
162	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
177	CLIP; AIR PIPE ID=11 & 11 L=15 & 15	1-09700-656-0	01	1	9202-9211	●	●
177	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-9211	●	●
177	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9212-	●	●
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
181	BRACKET; PIPE CLIP L=50	1-47475-299-2	02	1	9202-	●	●
184	BOLT; PIPE CLIP DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9202-	●	●
190	BOLT; CLIP BRKT M8X16 FLANGE	0-28080-816-0	01	1	9202-	●	●
192	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9202-	●	●
192	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-	●	●
192	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
192	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	03	1	9202-9204	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
193	BOLT; PIPE CLIP M8X40	0-28010-840-0	02	1	9202-9204	●	●
193	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9205-	●	●
194	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9202-	●	●
195	BRACKET; PIPE CLIP (A)	1-47475-427-1	02	1	9202-	●	●
195	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	03	1	9202-	●	●
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
196	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-	●	●
202	BRACKET; PIPE CLIP (A)	1-47475-427-1	01	1	9202-	●	●
202	BRACKET; PIPE CLIP (B) M8 W/NUT	1-47475-439-2	02	1	9202-	●	●
203	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
203	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
203	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9202-	●	●
213	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-	●	●
213	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-	●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
219	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
219	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
219	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
219	CLIP; AIR PIPE ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
225	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	03	1	9202-9204	●	●
225	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
274	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9202-	●	●
274	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
275	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9202-	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9202-9205	●
295	NUT; CLIP,AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	03	1	9202-9205		●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9206-	●	●
295	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9202-9205	●	●
295	NUT; CLIP,AIR PIPE AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9202-9205		●
310	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	01	1	9202-	●	●
311	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ID=6 H=20 L=20	9-09527-005-0	01	1	9202-	●	●
370	BRACKET; PIPE CLIP (C)	1-47475-299-2	01	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (C)	1-47475-299-2	01	1	9202-	●	●
370	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-729-0	01	1	9202-	●	●
371	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28080-820-0	03	1	9203-9205	●
371	BOLT; CLIP,AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	03	1	9203-9205		●
371	BOLT; CLIP,AIR PIPE M8X35 FLANGE	0-28080-835-0	02	1	9206-9405	●
371	BOLT; CLIP,AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	02	1	9206-9405		●
371	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	02	1	9406-	●
371	BOLT; CLIP,AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	02	1	9406-		●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) M8X20 FLANGE	0-28080-820-0	01	1	9202-9205	●	●
371	BOLT; CLIP,AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) M8X35 FLANGE	0-28080-835-0	01	1	9206-	●	●
371	BOLT; CLIP,AIR PIPE AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	01	1	9203-9205		●
371	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9206-	●	●
374	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5)	1-47475-427-1	01	1	9202-		●
375	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
375	CLIP; AIR PIPE (B) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-	●	●

275 147 1 4 35 235 251 253 146 149 236 36 148 135 376 275 153 274 316 271 323 37 115 154 276 136 75 247 68 275 290 246 13 288 314 242 276 241 283 361 361 362 362 2 14 373 63 70 6 3 276 258 252

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE EXHAUST BRAKE<NF8> ID=6 H=20 L=20	1-09700-603-0	01	1	9208-	●	●
2	BOLT; CLIP FIX EXHAUST BRAKE<NF8> M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
3	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	01	1	9208-	●	●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-	●
4	CLIP; AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-		●
4	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9202-		●
4	CLIP; AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=8 H=20 L=20	1-09700-604-0	04	1	9202-		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●
6	NUT; PIPE CLIP WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-		●
6	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9202-		●
6	NUT; PIPE CLIP WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-		●
13	CLIP; AIR PIPE (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9202-	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9205-	●	●
35	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (B) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-		●
35	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9202-9211		●
35	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	02	1	9212-		●
36	NUT; CLIP AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9202-		●
37	BRACKET; PIPE CLIP (B) L=50	1-47475-299-2	01	1	9202-9205	●
37	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=50	1-47475-299-2	01	1	9202-9205		●
37	BRACKET; PIPE CLIP (A) L=55	1-47475-304-0	02	1	9202-9205	●
37	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=55	1-47475-304-0	02	1	9202-9205		●
37	BRACKET; PIPE CLIP EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A) L=55	1-47475-304-0	01	1	9202-9205	●	●
37	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) (C) L=60	1-47475-455-0	01	1	9202-		●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
68	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
70	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4600MM(46W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9205-		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5000MM(50W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204		●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 5500MM(55W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9205-		●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
115	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
135	BOLT; PIPE CLIP (B) M8X16 FLANGE	0-28010-816-0	04	1	9202-9204	●	●
135	BOLT; PIPE CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	9205-	●	●
135	BOLT; PIPE CLIP (A) M8X40	0-28010-840-0	01	1	9202-9204	●	●
135	BOLT; PIPE CLIP (A) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
135	BOLT; PIPE CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●
146	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
147	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	01	1	9202-9404	●	●
147	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9405-	●	●
148	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●
149	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9202-	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
153	BOLT; PIPE CLIP M8X40	0-28010-840-0	01	1	9202-9204	●	●
153	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
154	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
241	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	01	1	9202-	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=50	1-47475-299-2	01	1	9202-	●	●
246	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
251	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	03	1	9202-		●
252	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9202-		●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	04	1	9202-	●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	04	1	9202-	●	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9	9-09524-872-0	01	1	9202-	●	●
274	CLIP; AIR PIPE (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9202-	●	●
274	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
275	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	02	1	9202-	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
276	NUT; PIPE CLIP M8	9-09110-408-0	02	1	9202-	●	●
276	NUT; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	01	1	9202-	●	●
283	NUT; CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9202-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9202-	●	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●	●
314	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	9202-	●	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9202-	●	●
323	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9202-9204	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204		●
373	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9205-		●
376	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
376	BOLT; BRKT AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	02	1	9205-		●

279 135 134 135 135 134 134 138 137 136 137 139 254 254 284 284 354 353 333 203 333 42 288 39 13 13 370 16 290 290 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9202-	●	●
16	BRACKET; PIPE CLIP	1-47465-168-1	01	1	9202-	●	●
38	NUT; BRKT M6 FLANGE	1-09984-141-0	01	1	9202-	●	●
39	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-	●	●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9206-9211	●	●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9206-9211		●
39	CLIP; AIR PIPE EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-	●	●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9212-		●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9205		●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=18 & 15	1-09700-661-0	03	1	9206-9211	●
39	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=18 & 15	1-09700-661-0	03	1	9206-9211		●
39	CLIP; AIR PIPE (A) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9212-	●
39	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9212-		●
42	BOLT; CLIP,AIR PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-	●	●
134	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
134	CLIP; AIR PIPE (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	9202-	●	●
135	BOLT; PIPE CLIP (B) M8X16 FLANGE	0-28010-816-0	04	1	9202-9204	●	●
135	BOLT; PIPE CLIP (B) M8X16 FLANGE	0-28080-816-0	04	1	9205-	●	●
135	BOLT; PIPE CLIP (A) M8X40	0-28010-840-0	01	1	9202-9204	●	●
135	BOLT; PIPE CLIP (A) M8X40 FLANGE	0-28080-840-0	01	1	9205-	●	●
135	BOLT; PIPE CLIP (B) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
136	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-	●	●
137	BRACKET; PIPE CLIP (B)	1-47475-427-1	01	1	9202-	●	●
137	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	04	1	9202-	●	●
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●	●
138	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9205-	●	●
139	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9202-	●	●
203	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
203	BOLT; CLIP BRKT (A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
203	BOLT; CLIP BRKT REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M6X20 W/LK&PL WASHER	1-09980-493-0	04	1	9202-	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●
279	NUT; BRKT M8	9-09110-408-0	02	1	9202-	●	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9202-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
290	NUT; CLIP,AIR PIPE M8	9-09110-408-0	01	1	9202-	●	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-79738-179-1	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2>	1-79738-164-2	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-79738-157-2	01	1	9309-		●
353	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9202-	●	●
354	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M6X12 W/LK WASHER	0-50040-612-0	02	1	9202-	●	●
370	BRACKET; PIPE CLIP (C)	1-47475-299-2	01	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (C)	1-47475-299-2	01	1	9202-	●	●
370	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9202-	●	●
370	BRACKET; PIPE CLIP EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-729-0	01	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
