Isuzu WW
▶
TRUCKS
▶
EXY
▶
11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-78 - FLOOR HOLE PLUG
▶

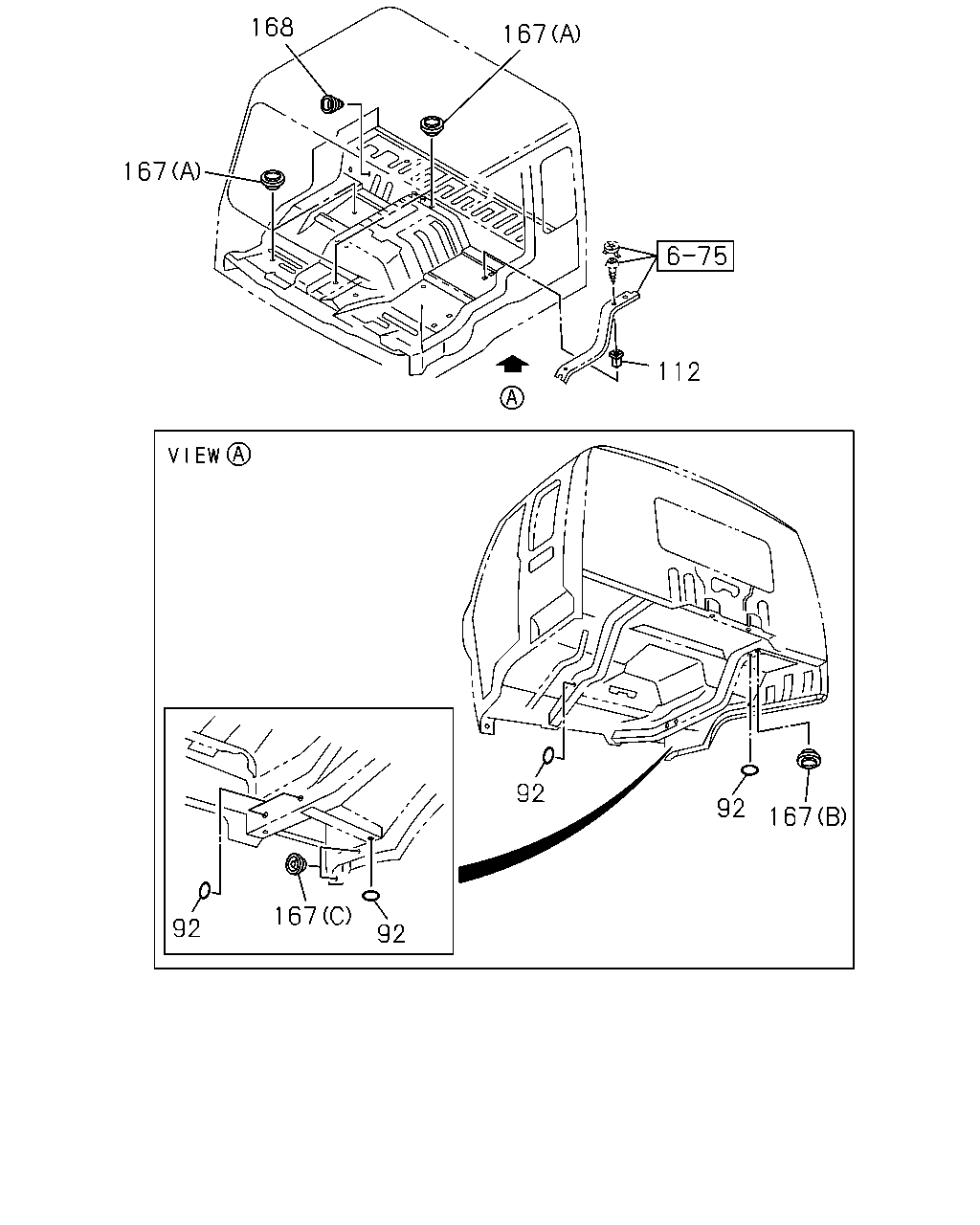

6-78 — FLOOR HOLE PLUG
(#37599) — 10 parça
167
168
167
112
92
167
92
92
167
92
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
92
SEAL; LOCATION HOLE
BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK
1-76798-019-0
04
1
1007-
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
16
1
0710-1006
92
SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
08
1
1007-
92
SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK
1-76798-019-0
01
1
0710-1006
92
SEAL; LOCATION HOLE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> OD=25 BLACK
1-76798-019-0
05
1
1007-
112
GROMMET; SCREW,TRIM COVER
D=7.8X7.8 L=18 NATURAL
8-94279-043-0
08
1
0710-
167
GROMMET; LOCATION HOLE
(A) OD=23.5
1-09983-101-0
06
1
0710-
167
GROMMET; LOCATION HOLE
(B) OD=35
8-94122-971-0
06
1
0710-
167
GROMMET; LOCATION HOLE
(C) OD=15.0
8-94279-040-0
02
1
0710-
168
COVER; HOLE,ANNTENA CABLE
1-79998-891-1
01
1
0710-
