◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 11116 - EXY AUST JNLT05 EXC.HYDRAULIC RETARDER ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#37593) — 158 parça
çizim 180694
130 251 73 74 130 251 251
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0710-1104
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 1105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-1104
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1105-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-1104
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105-
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105-
130 PANEL; SHUTTER NOISE
(A) 		8-98096-299-0 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0710-0909
130 PANEL; SHUTTER NOISE
(E) 		8-98125-819-0 01 1 0910-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		8-98079-170-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-171-0 01 1 0710-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1105-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0710-1104
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1105-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0710-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0710-

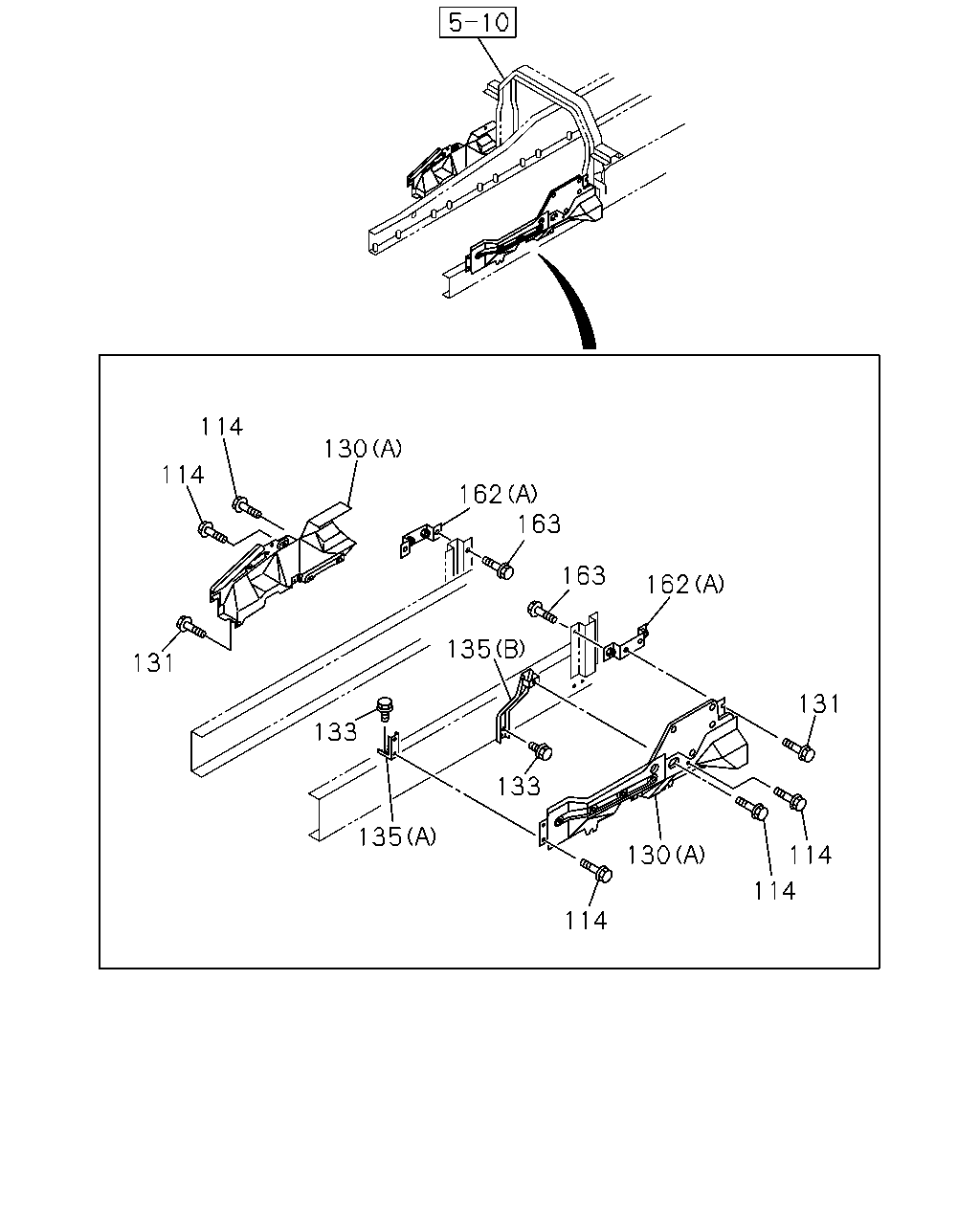

çizim 180697
114 114 131 130 162 163 163 162 135 133 135 133 114 130 114 114 131
BalonParca AdiParca NoAdetTipApplied Date
114 BOLT
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
114 BOLT
M8X22 W/LK&PL WASHER 		1-09030-042-0 05 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		8-98096-299-0 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0710-0909
130 PANEL; SHUTTER NOISE
(E) 		8-98125-819-0 01 1 0910-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		8-98079-170-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-171-0 01 1 0710-
131 BOLT; PANEL
M8X16 FLANGE 		0-28050-816-0 01 1 0809-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
133 BOLT; FRAME
M8X25 FLANGE 		0-28650-825-0 04 1 0710-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 0710-
135 BRACKET; SIDE PANEL
(B) 		1-53441-508-1 01 1 0710-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(B) 		1-71907-815-0 01 1 0710-
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0710-

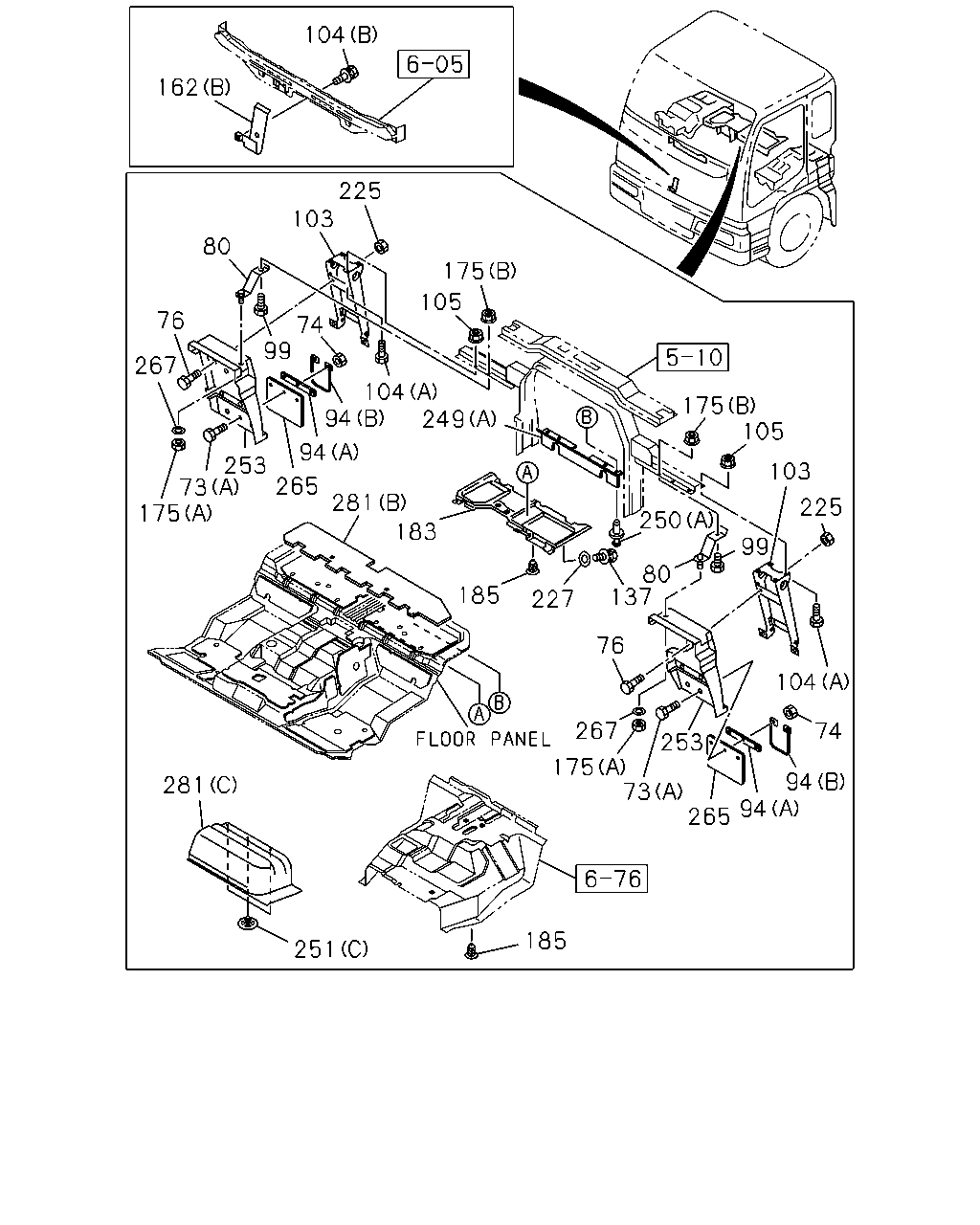

çizim 180700
104 162 225 103 80 76 267 99 74 105 175 104 94 94 253 73 175 265 281 249 183 185 227 137 80 250 175 105 103 225 99 104 74 94 91 265 73 175 267 253 76 281 251 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 03 1 1105-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 08 1 0710-1104
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 03 1 1105-
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0710-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-1104
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 1105-
74 NUT
M8 FLANGE 		0-91180-108-0 08 1 0710-1104
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105-
74 NUT
M8 FLANGE 		0-91180-108-0 04 1 1105-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 0710-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0710-1104
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1105-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 1105-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 02 1 0710-1104
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1105-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 1105-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0710-
103 BRACKET ASM; RR MUD FLAP 1-79931-444-0 01 1 0710-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-892-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-445-0 01 1 0710-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-893-0 01 1 1503-
104 BOLT; BRKT
(A) M10X25 FLANGE 		0-28651-025-0 08 1 0710-
104 BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-0808
104 BOLT; BRKT
(B) M6X16 W/LK&PL WASHER 		0-50640-616-0 01 1 0809-
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0710-
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0710-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
162 BRACKET
(A) 		1-53441-520-0 02 1 0710-
162 BRACKET
(B) 		1-71907-815-0 01 1 0710-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0710-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0710-0909
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0910-
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 07 1 0710-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 0710-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 05 1 1105-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0710-1104
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 04 1 1105-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0710-
251 CLIP; NOISE INSULATOR
(C) ID=6.2 L=11.4 		8-97808-623-0 04 1 0710-
253 GUARD; MUD 1-79931-065-7 01 1 0710-0901
253 GUARD; MUD 8-98134-760-0 01 1 0902-
253 GUARD; MUD 8-98035-096-0 01 1 0710-0901
253 GUARD; MUD 8-98134-765-0 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0710-1104
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1105-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 1105-
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-

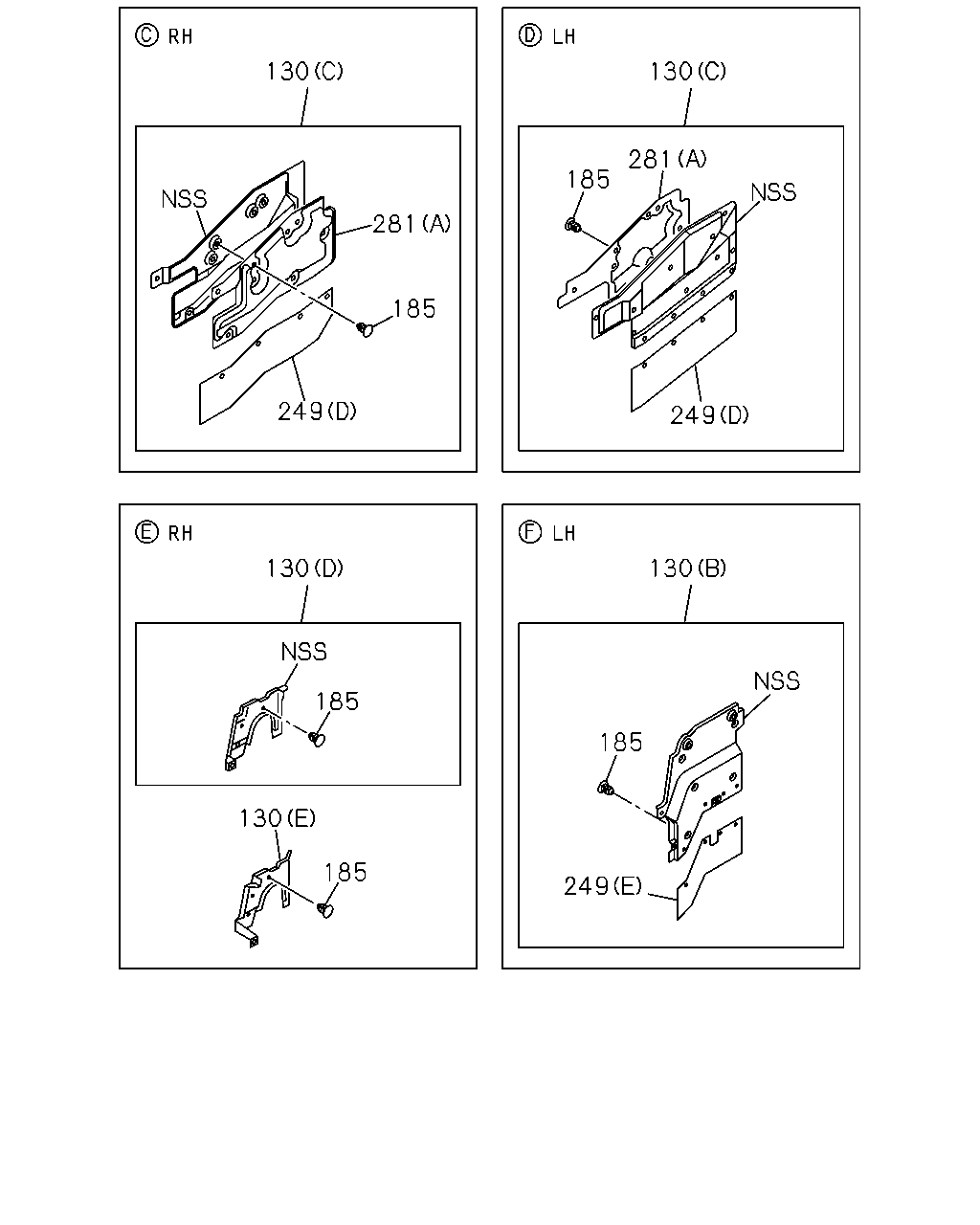

çizim 180707
130 130 281 185 281 185 249 249 130 130 185 185 130 185 249
BalonParca AdiParca NoAdetTipApplied Date
130 PANEL; SHUTTER NOISE
(A) 		8-98096-299-0 01 1 0710-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 0710-0909
130 PANEL; SHUTTER NOISE
(E) 		8-98125-819-0 01 1 0910-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-960-5 01 1 0710-
130 PANEL; SHUTTER NOISE
(A) 		8-98049-055-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(C) 		8-98079-170-1 01 1 0710-
130 PANEL; SHUTTER NOISE
(B) 		8-98079-171-0 01 1 0710-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 35 1 0710-0909
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0910-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 0710-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-170-1 01 1 0710-
281 INSULATOR; NOISE
(A) 		1-71907-171-2 01 1 0710-
281 INSULATOR; NOISE
(C) 		1-71907-671-1 01 1 0710-0808
281 INSULATOR; NOISE
(C) 		8-98097-796-1 01 1 0809-0912
281 INSULATOR; NOISE
(C) 		8-98121-192-0 01 1 1001-1010
281 INSULATOR; NOISE
(C) 		8-98178-867-0 01 1 1011-
281 INSULATOR; NOISE
(B) 		1-73237-445-4 01 1 0710-

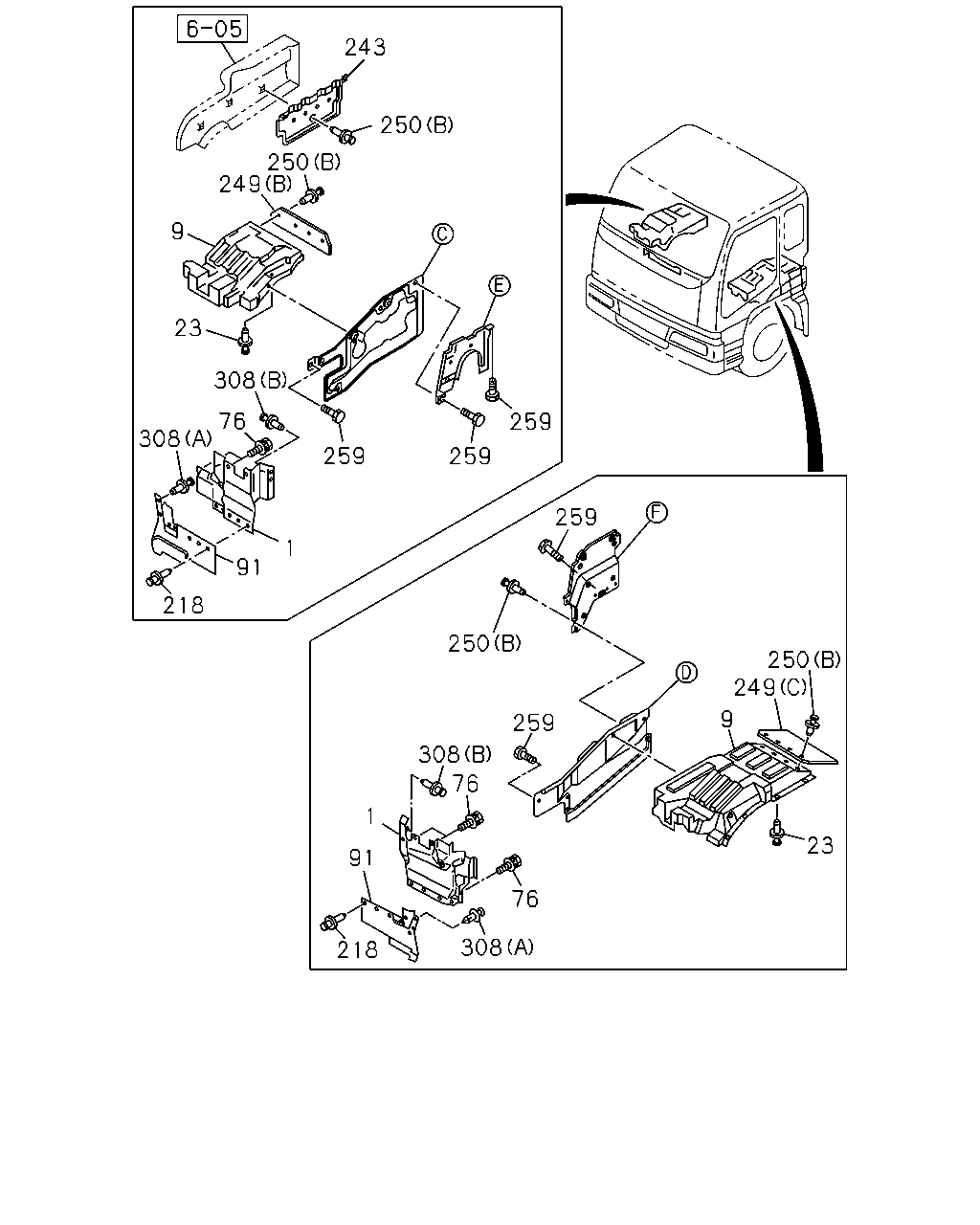

çizim 180750
243 250 250 249 9 23 308 76 308 218 91 1 259 259 259 259 250 259 308 76 1 91 218 308 76 23 9 249 250
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-894-6 01 1 0710-
1 GUARD; MUD,FRT 1-79937-895-5 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 0710-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 0710-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 0710-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 0710-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 0710-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 0710-
91 COVER; MUD,FRT 1-79931-203-1 01 1 0710-
91 COVER; MUD,FRT 1-79931-204-1 01 1 0710-
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0710-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 0710-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 0710-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 0710-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 0710-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 0710-
249 RUBBER; SHUTTER
(D) 		8-98079-172-0 01 1 0710-
249 RUBBER; SHUTTER
(E) 		8-98079-173-0 01 1 0710-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0710-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 10 1 0710-
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 0710-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 0710-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 0710-
