6-20 — SIDE PANEL AND STEP (#37586) — 138 parça

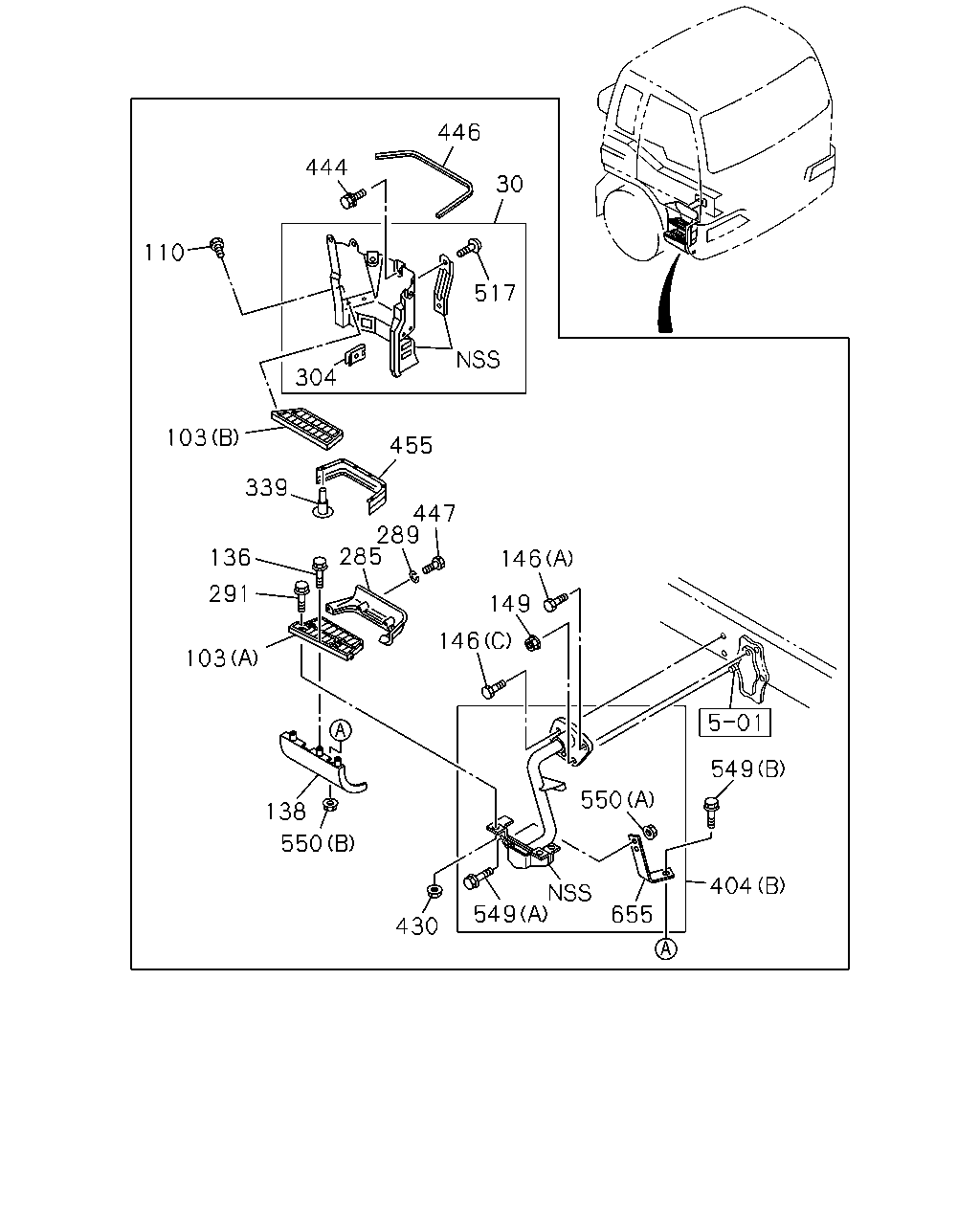

çizim 180681
404 549 550 655 549 430 550 138 146 149 146 455 447 289 285 103 291 136 339 103 110 444 446 30 517 304
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP
BODY COLOR TOLL GREEN(543) 		8-98156-847-0 01 1 1203-
30 CLOSING; SIDE STEP
BODY COLOR TOLL GREEN(543) 		8-98156-848-0 01 1 1203-
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0710-0910
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-1202
30 CLOSING; SIDE STEP
BODY COLOR ARC WHITE(729) 		8-98156-847-0 01 1 1203-
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0710-0910
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-1202
30 CLOSING; SIDE STEP
BODY COLOR ARC WHITE(729) 		8-98156-848-0 01 1 1203-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0710-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0710-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0710-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0710-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0710-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0710-
138 FENDER; OVER
BODY COLOR TOLL GREEN(543) WHITE 		1-79931-447-1 01 1 1203-
138 FENDER; OVER
BODY COLOR TOLL GREEN(543) WHITE 		1-79931-448-1 01 1 1203-
138 FENDER; OVER
WHITE 		1-79931-447-1 01 1 0710-1202
138 FENDER; OVER
BODY COLOR ARC WHITE(729) WHITE 		1-79931-447-1 01 1 1203-
138 FENDER; OVER
WHITE 		1-79931-448-1 01 1 0710-1202
138 FENDER; OVER
BODY COLOR ARC WHITE(729) WHITE 		1-79931-448-1 01 1 1203-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 0710-
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 0710-
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 0710-
146 BOLT; STEP BRKT
(C) M12X35 FLANGE 		0-28651-235-0 03 1 0710-
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 01 1 0710-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0710-
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0710-
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0710-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0710-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0710-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0710-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0710-
404 BRACKET
(B) 		1-53414-287-2 01 1 0710-
404 BRACKET
(A) 		1-53414-288-2 01 1 0710-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0710-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0710-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0710-
455 PROTECTOR; STEP 1-71907-837-1 01 1 0710-
455 PROTECTOR; STEP 1-71907-838-1 01 1 0710-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0710-
549 BOLT; STAY
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
549 BOLT; STAY
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 0710-
550 NUT; STAY
(A) M6 FLANGE 		0-91180-206-0 04 1 0710-
550 NUT; STAY
(B) M5 FLANGE 		1-09984-170-0 02 1 0710-
655 STAY; MUD GUARD 8-97608-965-1 01 1 0710-
655 STAY; MUD GUARD 8-97608-966-1 01 1 0710-

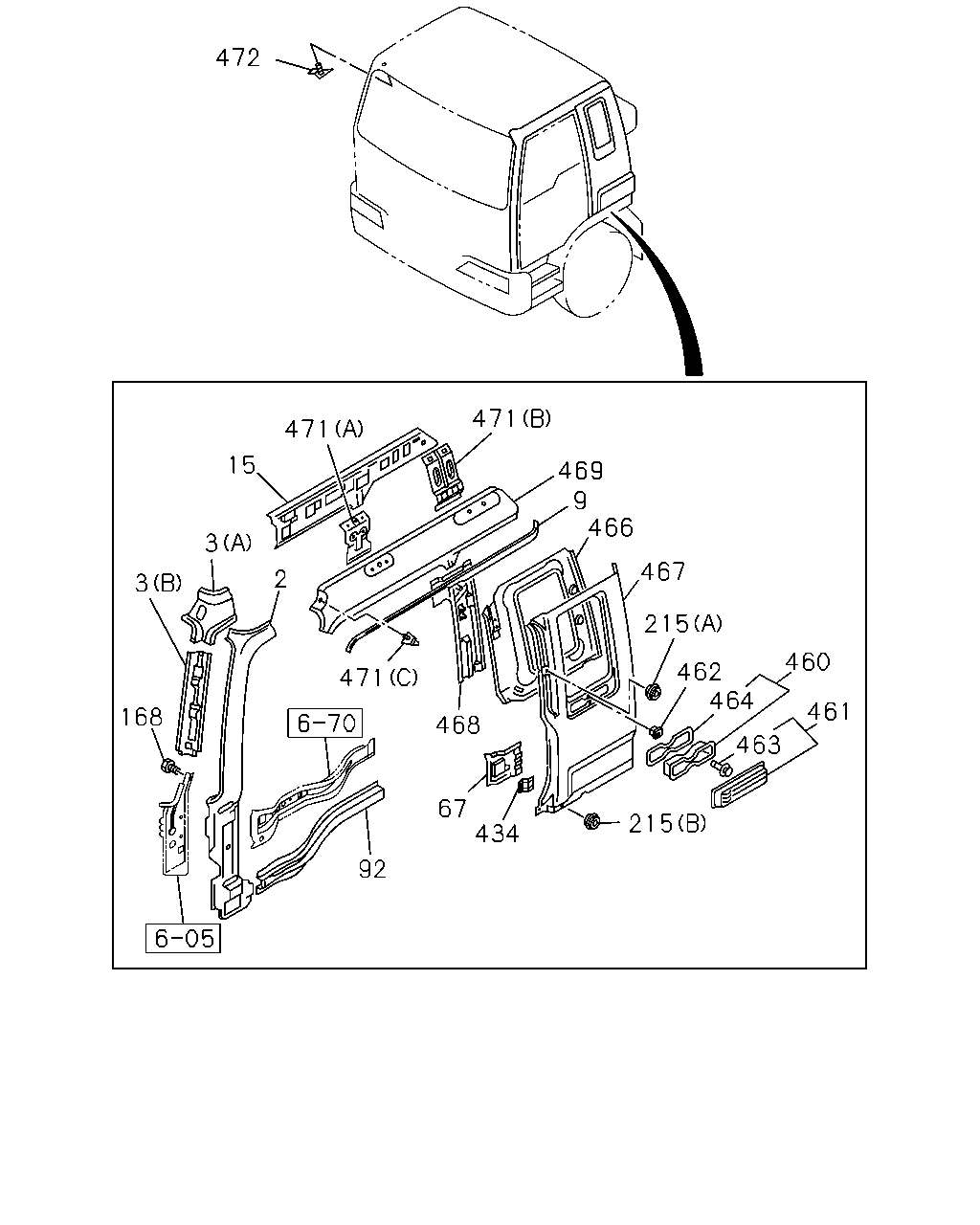

çizim 180682
472 168 3 3 15 471 2 471 92 67 468 434 215 463 461 460 464 462 215 467 466 9 469 471
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-155-4 01 1 0710-
2 PILLAR; FRT 1-61281-410-2 01 1 0710-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0710-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0710-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0710-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0710-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-4 01 1 0710-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-4 01 1 0710-
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-280-5 01 1 0710-
9 MOLDING; DRIP,CAB SIDE
LOW ROOF<6XQ> 		1-61281-281-5 01 1 0710-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0710-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0710-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0710-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0710-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0710-
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0710-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0710-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0710-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0710-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0710-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 0710-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0710-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0710-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0710-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0710-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0710-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0710-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0710-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0710-
467 PANEL; OUTER,BACK CORNER 1-61270-939-2 01 1 0710-0901
467 PANEL; OUTER,BACK CORNER 1-61270-773-3 01 1 0902-
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0710-0901
467 PANEL; OUTER,BACK CORNER 1-61281-203-4 01 1 0902-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0710-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0710-
469 ROOF; SIDE 1-61281-198-8 01 1 0710-
469 ROOF; SIDE 1-61281-199-8 01 1 0710-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0710-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 0710-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 02 1 0710-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0710-0812
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0710-

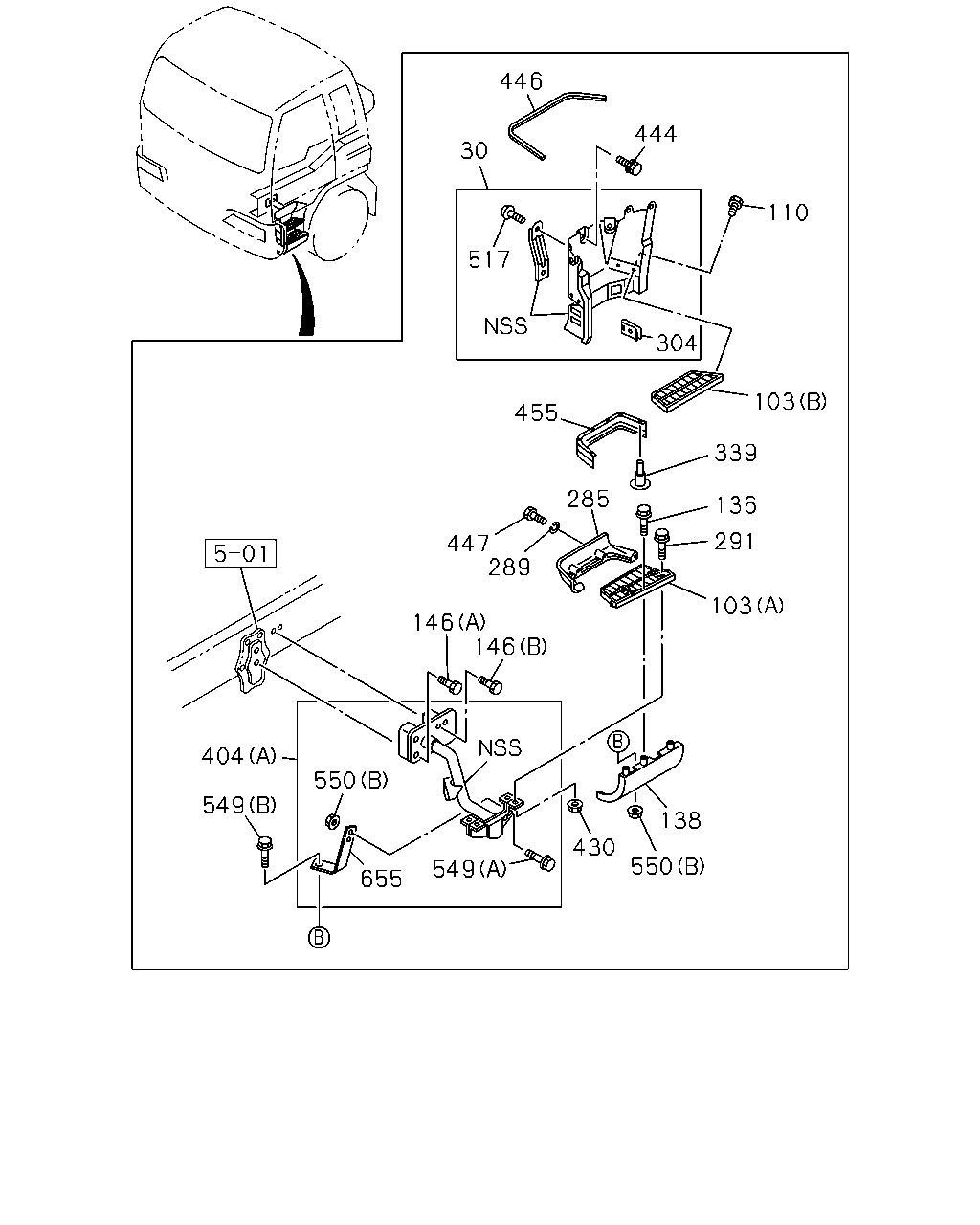

çizim 180683
446 30 517 444 110 304 103 339 136 291 103 285 455 447 289 146 146 404 549 550 655 549 430 550 138
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP
BODY COLOR TOLL GREEN(543) 		8-98156-847-0 01 1 1203-
30 CLOSING; SIDE STEP
BODY COLOR TOLL GREEN(543) 		8-98156-848-0 01 1 1203-
30 CLOSING; SIDE STEP 1-71907-816-1 01 1 0710-0910
30 CLOSING; SIDE STEP 8-98156-847-0 01 1 0911-1202
30 CLOSING; SIDE STEP
BODY COLOR ARC WHITE(729) 		8-98156-847-0 01 1 1203-
30 CLOSING; SIDE STEP 1-71907-817-1 01 1 0710-0910
30 CLOSING; SIDE STEP 8-98156-848-0 01 1 0911-1202
30 CLOSING; SIDE STEP
BODY COLOR ARC WHITE(729) 		8-98156-848-0 01 1 1203-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0710-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0710-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0710-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0710-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0710-
136 BOLT; OVER FENDER
M5X22 		8-97029-303-1 06 1 0710-
138 FENDER; OVER
BODY COLOR TOLL GREEN(543) WHITE 		1-79931-447-1 01 1 1203-
138 FENDER; OVER
BODY COLOR TOLL GREEN(543) WHITE 		1-79931-448-1 01 1 1203-
138 FENDER; OVER
WHITE 		1-79931-447-1 01 1 0710-1202
138 FENDER; OVER
BODY COLOR ARC WHITE(729) WHITE 		1-79931-447-1 01 1 1203-
138 FENDER; OVER
WHITE 		1-79931-448-1 01 1 0710-1202
138 FENDER; OVER
BODY COLOR ARC WHITE(729) WHITE 		1-79931-448-1 01 1 1203-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 03 1 0710-
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 02 1 0710-
146 BOLT; STEP BRKT
(C) M12X80 FLANGE 		0-28051-280-0 02 1 0710-
146 BOLT; STEP BRKT
(C) M12X35 FLANGE 		0-28651-235-0 03 1 0710-
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0710-
285 PLATE; STEP,1ST STEP 8-97619-528-0 01 1 0710-
285 PLATE; STEP,1ST STEP 8-97619-529-0 01 1 0710-
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0710-
291 BOLT; STEP PLATE
M8X40 FLANGE 		0-28050-840-0 08 1 0710-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0710-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0710-
404 BRACKET
(B) 		1-53414-287-2 01 1 0710-
404 BRACKET
(A) 		1-53414-288-2 01 1 0710-
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0710-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0710-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0710-
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0710-
455 PROTECTOR; STEP 1-71907-837-1 01 1 0710-
455 PROTECTOR; STEP 1-71907-838-1 01 1 0710-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0710-
549 BOLT; STAY
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
549 BOLT; STAY
(B) M5X16 W/LK&PL WASHER 		8-94198-538-0 02 1 0710-
550 NUT; STAY
(A) M6 FLANGE 		0-91180-206-0 04 1 0710-
550 NUT; STAY
(B) M5 FLANGE 		1-09984-170-0 02 1 0710-
655 STAY; MUD GUARD 8-97608-965-1 01 1 0710-
655 STAY; MUD GUARD 8-97608-966-1 01 1 0710-
