Sayfa 4-60 - Isuzu EPC

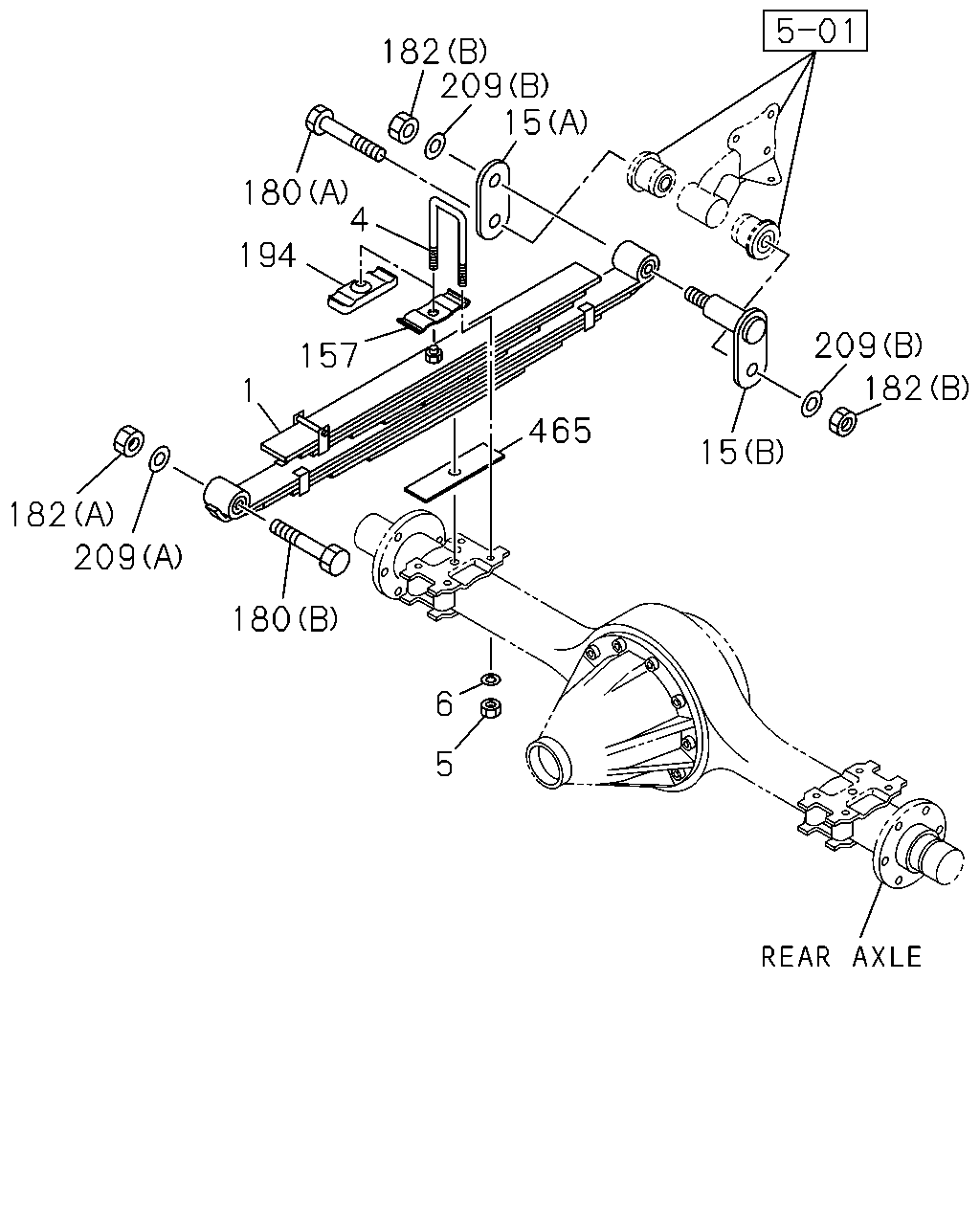

4-60 — REAR SUSPENSION (#37578) — 148 parça

182 209 15 180 4 194 209 157 182 1 465 15 182 209 180 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97073-224-1	02	1	0211-0501	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97073-224-1	02	1	0211-0501		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT.	8-97033-562-3	02	1	0502-	●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> 6-LEAF	8-97033-562-3	02	1	0502-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-97174-307-0	02	1	0211-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> 12-LEAF	8-97122-382-0	02	1	0211-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0211-0501		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> 16-LEAF	8-97073-225-2	02	1	0502-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 16-LEAF	8-97073-225-2	02	1	0502-			●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0211-0501		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0211-0501				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97184-493-0	02	1	0502-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. MINI BUS CHASSIS(V4B) 12-LEAF	8-97184-493-0	02	1	0502-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0211-0501		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0211-0501				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0502-		●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. STABILIZER REAR<GN1>,MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97096-576-0	02	1	0502-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B),TIRE SIZE 8.25-16<7QP> 12-LEAF	8-97287-992-0	02	1	0502-				●
1	07.503 SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> 10-LEAF	8-97251-443-0	02	1	0502-				●
4	07.516 U-BOLT; RR SPR L=285	8-97141-874-0	04	1	0211-0501	●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) L=285	8-97141-874-0	04	1	0211-0501		●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=360	1-51371-173-3	04	1	0211-0501		●
4	07.516 U-BOLT; RR SPR TIRE SIZE 8.25-16<7QP> L=360	1-51371-173-3	04	1	0211-0501				●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=295	8-94132-358-3	04	1	0211-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	0211-1007		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	1008-		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 292MM(G73) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=305	8-94412-505-0	04	1	1008-		●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-2	04	1	0211-0501		●
4	07.516 U-BOLT; RR SPR L=265	8-94127-923-3	04	1	0502-	●
4	07.516 U-BOLT; RR SPR G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=265	8-94127-923-3	04	1	0502-		●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-0	04	1	0211-0501		●
4	07.516 U-BOLT; RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=325	8-94175-946-1	04	1	0502-		●
4	07.516 U-BOLT; RR SPR L=325	8-94175-946-1	04	1	0502-			●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0211-0501		●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 6.0-6.5TON(RPV) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0502-		●
4	07.516 U-BOLT; RR SPR MINI BUS CHASSIS(V4B) FRAME STRAIGHT TYPE<7KJ> L=315	1-51371-194-2	04	1	0502-				●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0211-0501		●
4	07.516 U-BOLT; RR SPR EXC. TIRE SIZE 8.25-16<7QP> L=345	1-51371-195-2	04	1	0211-0501				●
4	07.516 U-BOLT; RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) G.V.W. 7.0-7.5TON(RPX) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0502-		●
4	07.516 U-BOLT; RR SPR G.V.W. 8.0-8.5TON(RPZ) FRAME STRAIGHT TYPE<7KJ> L=345	1-51371-195-2	04	1	0502-		●
4	07.516 U-BOLT; RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. MINI BUS CHASSIS(V4B) L=345	1-51371-195-2	04	1	0502-				●
5	07.529 NUT; U-BOLT,RR SPR 07.516 M16	8-94107-767-0	08	1	0211-0501	●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0211-0501		●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0211-0501		●
5	07.529 NUT; U-BOLT,RR SPR 07.516 M16	8-94107-767-0	08	1	0502-0611	●		●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0502-0611		●		●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.516 M16	8-94107-767-0	08	1	0502-0611		●
5	07.529 NUT; U-BOLT,RR SPR 07.417 M16	8-97360-121-0	08	1	0612-	●		●
5	07.529 NUT; U-BOLT,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0612-		●		●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> 07.417 M16	8-97360-121-0	08	1	0612-		●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0211-0501		●
5	07.529 NUT; U-BOLT,RR SPR M18 FLANGE	1-09440-039-1	08	1	0211-0501				●
5	07.529 NUT; U-BOLT,RR SPR REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0502-		●
5	07.529 NUT; U-BOLT,RR SPR FRAME STRAIGHT TYPE<7KJ> M18 FLANGE	1-09440-039-1	08	1	0502-				●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0211-0501	●
6	07.516 WASHER; PL,U-BOLT REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0211-0501		●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0211-0501		●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-94137-482-1	08	1	0502-0610	●		●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0502-0610		●		●
6	07.516 WASHER; PL,U-BOLT REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-94137-482-1	08	1	0502-0610		●
6	07.516 WASHER; PL,U-BOLT ID=16.4	8-97360-118-0	08	1	0611-	●		●
6	07.516 WASHER; PL,U-BOLT EXC. FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0611-		●		●
6	07.516 WASHER; PL,U-BOLT REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> ID=16.4	8-97360-118-0	08	1	0611-		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0211-0501	●	●		●
15	07.523 SHACKLE; RR SPR (A)	8-94118-511-3	02	1	0502-	●	●	●	●
15	07.523 SHACKLE; RR SPR (B)	8-94118-512-4	02	1	0211-0501	●	●		●
15	07.523 SHACKLE; RR SPR (B)	8-94118-512-4	02	1	0502-0611	●	●	●	●
15	07.523 SHACKLE; RR SPR (B)	8-97360-011-0	02	1	0612-	●	●	●	●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.0-6.5TON(RPV) ENGINE POWER N-SPEC(7QV) EXC. FRAME STRAIGHT TYPE<7KJ> L=130 T=4.5	8-94119-069-2	02	1	0211-0501		●
157	07.518 CLAMP; UPR,RR SPR L=140 T=4.5	8-94118-509-1	02	1	0211-0501	●
157	07.518 CLAMP; UPR,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0211-0501		●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ>,ENGINE POWER N-SPEC(7QV) L=140 T=4.5	8-94118-509-1	02	1	0211-0501		●
157	07.518 CLAMP; UPR,RR SPR 4HF1-S ENG(RLS) L=140 T=4.5	8-94118-509-1	02	1	0502-	●
157	07.518 CLAMP; UPR,RR SPR 4HF1-S ENG(RLS) G.V.W. 6.0-6.5TON(RPV) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-		●
157	07.518 CLAMP; UPR,RR SPR REAR AXLE HEAVY DUTY 292MM(G73) FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-		●
157	07.518 CLAMP; UPR,RR SPR G.V.W. 7.0-7.5TON(RPX) EXC. FRAME STRAIGHT TYPE<7KJ> L=140 T=4.5	8-94118-509-1	02	1	0502-		●
157	07.518 CLAMP; UPR,RR SPR L=140 T=4.5	8-94118-509-1	02	1	0502-			●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0211-0501	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-97033-967-0	02	1	0502-0611	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> (B) M18X130	8-98011-488-0	02	1	0612-	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	0211-0501	●	●		●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	9-51361-602-2	02	1	0502-0611	●	●	●	●
180	07.529 PIN; RR SPR KD PREPARATORY PACK<6HF> 07.427 (A) M16X122	8-98011-487-0	02	1	0612-	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0211-0501	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97076-848-0	02	1	0502-0610	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE	8-97360-112-0	02	1	0611-	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0211-0501	●	●		●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE	8-97076-850-2	02	1	0502-0610	●	●	●	●
180	07.529 PIN; RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE	8-97360-110-0	02	1	0611-	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (B) M16	9-99110-516-0	04	1	0211-0501	●	●		●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 08.915 (B) M16	9-99110-516-0	04	1	0502-0512	●	●	●	●
182	07.529 NUT; PIN,RR SPR KD PREPARATORY PACK<6HF> 06.509 (B) M16	0-91110-516-0	04	1	0601-	●	●	●	●
182	07.529 NUT; PIN,RR SPR 06.216 (A) M18	9-99110-518-0	02	1	0211-0501	●	●		●
182	07.529 NUT; PIN,RR SPR 06.216 (A) M18	9-99110-518-0	02	1	0502-0512	●	●	●	●
182	07.529 NUT; PIN,RR SPR (A) M18	0-91110-518-0	02	1	0601-	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97147-389-0	04	1	0211-0501	●	●		●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97147-389-0	04	1	0502-0610	●	●	●	●
182	07.529 NUT; PIN,RR SPR EXC. KD PREPARATORY PACK<6HF> 07.427 (B) M16 FLANGE	8-97360-125-0	04	1	0611-	●	●	●	●
194	07.158 PAD; CONTACT REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0211-0501		●
194	07.158 PAD; CONTACT 07.518	1-51372-059-0	02	1	0211-0501				●
194	07.158 PAD; CONTACT REAR AXLE HEAVY DUTY 320MM(6CP) FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0502-		●
194	07.158 PAD; CONTACT FRAME STRAIGHT TYPE<7KJ> 07.518	1-51372-059-0	02	1	0502-				●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5	8-97070-925-1	04	1	0211-0501	●	●		●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5	8-97070-925-1	04	1	0502-0611	●	●	●	●
209	07.529 WASHER; PL KD PREPARATORY PACK<6HF> 07.427 (B) ID=16.5	8-98011-489-0	04	1	0612-	●	●	●	●
209	07.529 WASHER; PL (A) ID=19	8-97073-435-1	02	1	0211-0501	●	●		●
209	07.529 WASHER; PL (A) ID=19	8-97073-435-1	02	1	0502-0611	●	●	●	●
209	07.529 WASHER; PL (A) ID=19	8-97360-119-0	02	1	0612-	●	●	●	●
465	07.518 SHIM; ADJ RR BODY FLAT BED<RS6>	8-97072-589-0	AR	1	0211-	●	●

227 230 225 225 225 317 323 62 25 318 323 314 274 294 308 320 285 285 318 308 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97174-089-0	01	1	0502-				●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-97225-578-0	01	1	0502-0912				●
25	07.241 BAR ASM; STAB,RR SUSP STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-98067-239-0	01	1	1001-				●
62	07.243 BUSHING; LINK ROD STABILIZER REAR<GN1>	8-97239-911-0	02	1	0502-				●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-94118-510-4	02	1	0211-0501	●
225	07.535 RUBBER; CUSHION,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94118-510-4	02	1	0211-0501		●
225	07.535 RUBBER; CUSHION,RR SPR (A)	8-94118-510-5	02	1	0502-	●		●
225	07.535 RUBBER; CUSHION,RR SPR EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-94118-510-5	02	1	0502-		●		●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	5-53366-013-0	02	1	0211-0501		●
225	07.535 RUBBER; CUSHION,RR SPR TIRE SIZE 8.25-16<7QP> (C)	5-53366-013-0	02	1	0211-0501				●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (C)	5-53366-013-0	02	1	0502-		●		●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-94379-470-1	02	1	0211-0501		●
225	07.535 RUBBER; CUSHION,RR SPR EXC. TIRE SIZE 8.25-16<7QP> (B)	8-94379-470-1	02	1	0211-0501				●
225	07.535 RUBBER; CUSHION,RR SPR FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-94379-470-1	02	1	0502-		●		●
227	07.535 NUT; CUSHION RUBBER 05.586 M12 FLANGE	0-91150-112-0	02	1	0211-0501	●	●		●
227	07.535 NUT; CUSHION RUBBER 05.586 M12 FLANGE	0-91150-112-0	02	1	0502-0602	●	●	●	●
227	07.535 NUT; CUSHION RUBBER 02.042 M12 FLANGE	0-91180-112-0	02	1	0603-	●	●	●	●
230	07.518 SPACER; CUSHION RUBBER STABILIZER REAR<GN1> FRAME STRAIGHT TYPE<7KJ>	8-97136-852-0	02	1	0502-				●
274	07.243 BUSHING; RR STAB BAR TO LINK STABILIZER REAR<GN1>	8-94440-793-0	02	1	0502-				●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=18	8-97089-556-0	02	1	0502-				●
285	07.243 BUSHING; STAB BAR TO RR AXLE STABILIZER REAR<GN1> L=29	8-97089-557-0	02	1	0502-				●
294	07.242 BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1> 04.686	8-94342-082-0	02	1	0502-0610				●
294	07.242 BOLT; STAB BAR TO RR AXLE STABILIZER REAR<GN1>	8-97360-120-0	02	1	0611-				●
308	07.243 PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1> 07.242	8-94342-084-0	04	1	0502-0610				●
308	07.243 PLATE; END,RUBBER BUSHING STABILIZER REAR<GN1> 07.242	8-97360-055-0	04	1	0611-				●
314	07.242 WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> 00.796 ID=14.2	9-09150-514-0	02	1	0502-0603				●
314	07.242 WASHER; LK,STAB TO BRKT STABILIZER REAR<GN1> 05.605 ID=14.2	0-91510-514-0	02	1	0604-				●
317	07.240 ROD LINK ASM; STABILIZER,RR STABILIZER REAR<GN1>	8-97239-907-0	02	1	0502-				●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> 03.405 (B) M10X25 FLANGE	0-28681-025-0	04	1	0502-0512				●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> 00.029 (B) M10X25 FLANGE	0-28651-025-0	04	1	0601-				●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28881-470-0	02	1	0502-0512				●
318	07.242 BOLT; LINK ROD STABILIZER REAR<GN1> (A) M14X70 FLANGE	0-28851-470-0	02	1	0601-				●
320	07.242 CAP; LINK ROD STABILIZER REAR<GN1>	8-94178-430-2	02	1	0502-				●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0502-0602				●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 04.085 (B) M10 FLANGE	0-91180-210-0	04	1	0603-				●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 07.417 (A) M14 FLANGE	8-94137-483-0	02	1	0502-0610				●
323	07.242 NUT; LINK ROD STABILIZER REAR<GN1> 06.174 (A) M14 FLANGE	8-97360-124-0	02	1	0611-				●
330	07.242 NUT; STAB STABILIZER REAR<GN1> 08.917 M12 LOCK NUT	9-09131-512-0	02	1	0502-0603				●
330	07.242 NUT; STAB STABILIZER REAR<GN1> M12 LOCK NUT	0-91370-012-0	02	1	0604-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
