Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

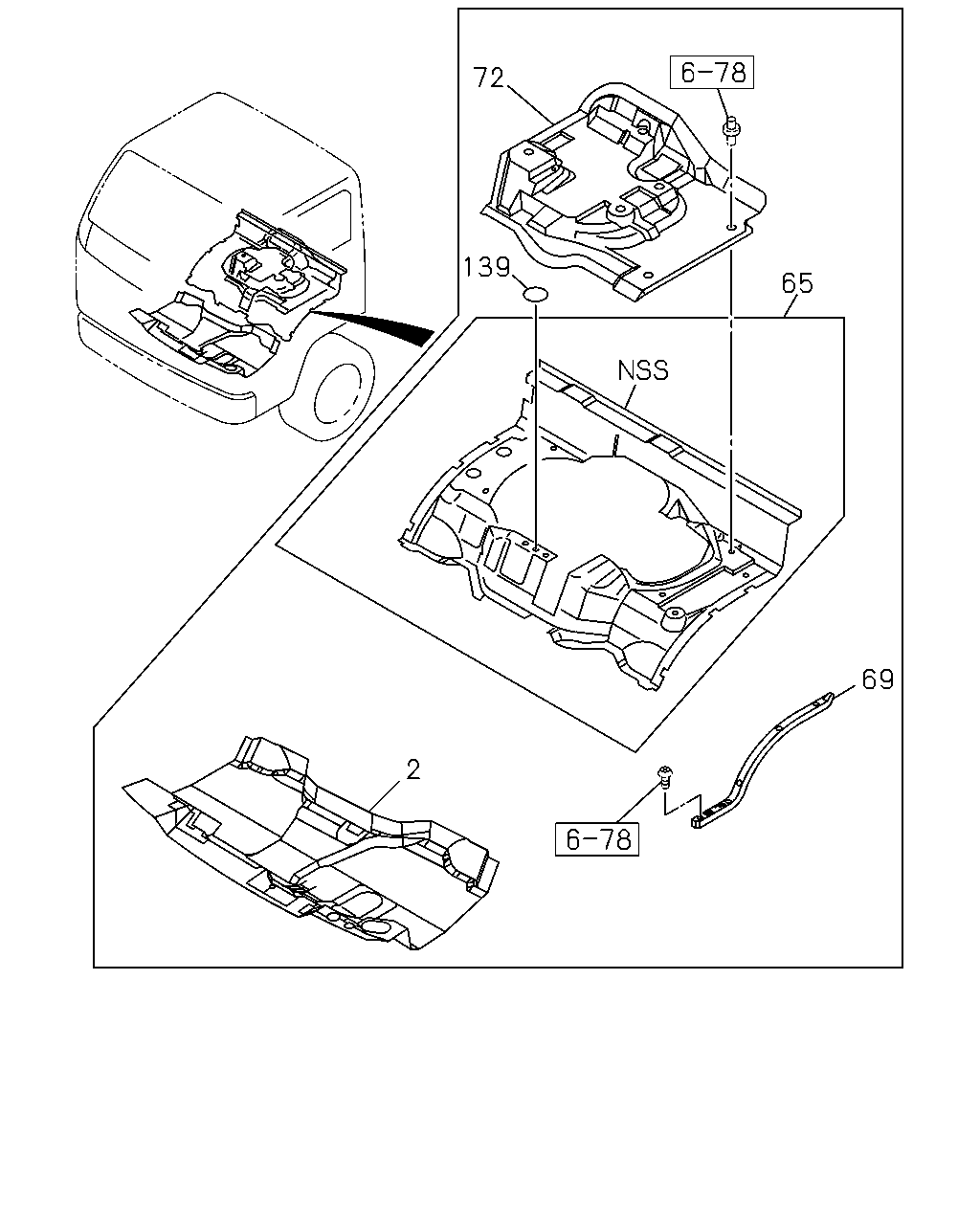

6-75 — MAT AND CARPET
(#37570) — 15 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
72
139
65
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97996-676-1
01
1
0211-0501
●
●
●
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60)
8-97588-858-3
01
1
0502-
●
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) DARK GRAY
8-97996-674-2
01
1
0211-0501
●
●
●
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60)
8-97588-857-4
01
1
0502-
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ>
8-97996-738-0
01
1
0211-0501
●
●
●
65
16.802 MAT ASM; SILENCER,CAB FLOOR
MANUAL TILT CAB<RWZ>
8-97588-861-1
01
1
0502-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-551-0
01
1
0211-0501
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0502-0702
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
DARK GRAY
8-97857-552-0
01
1
0211-0501
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-229-1
01
1
0502-0702
●
●
●
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-479-0
01
1
0703-
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
DARK GRAY
8-97996-745-0
01
1
0211-0501
●
●
●
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-97582-233-1
01
1
0502-
●
●
●
139
16.800 SEAL; FLOOR
16.165 OD=20 T=0.05 BLACK
5-76777-036-0
01
1
0211-
●
●
●
