2-08B — CLUTCH MASTER CYLINDER (#3757) — 17 parça

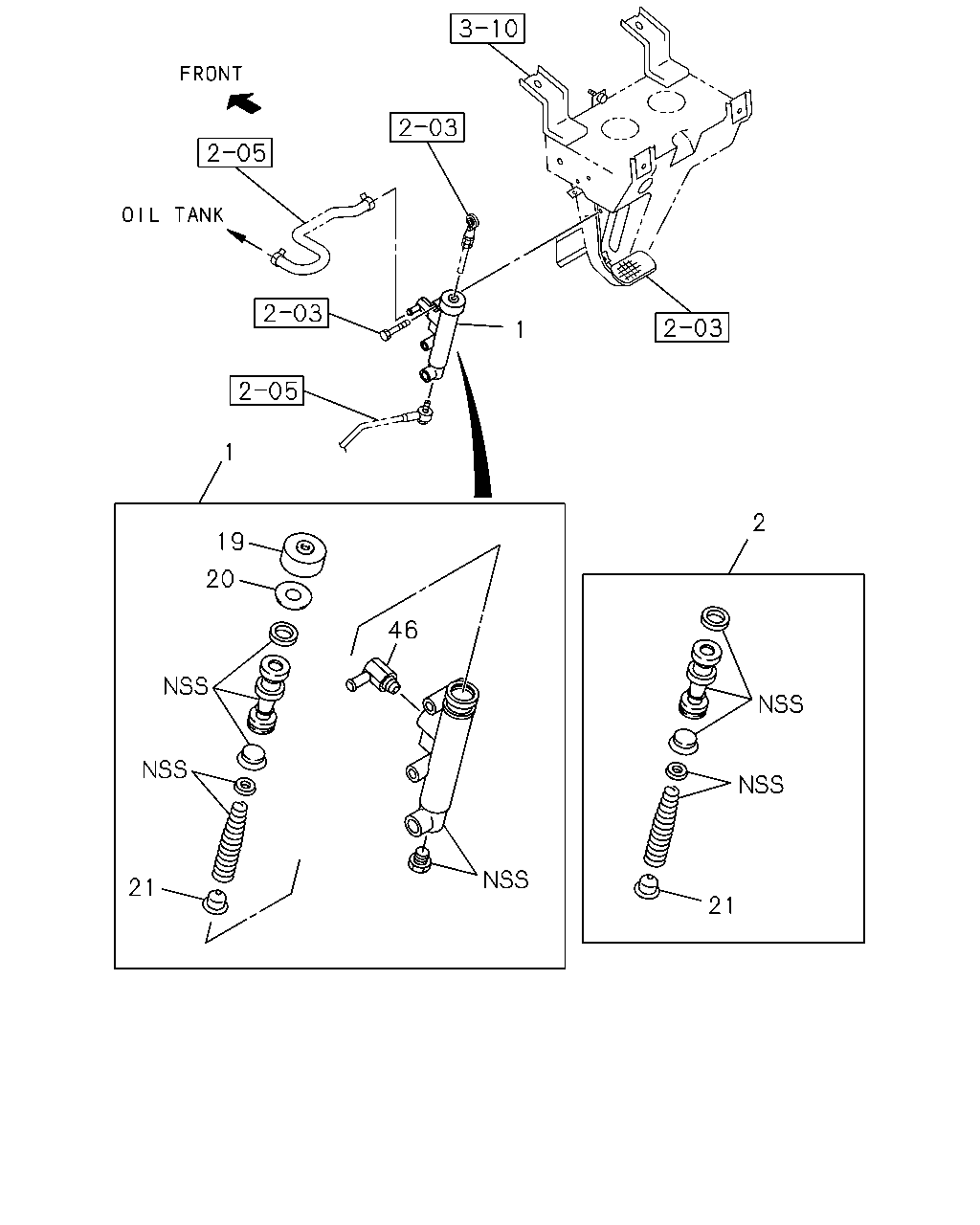

çizim 37657
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER
EXC. AIR ASSIST CLUTCH<PK1> 		1-47500-256-0 01 1 0601-
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-1 01 1 9601-9803
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 9804-0512
1 CYLINDER ASM; CLUTCH MASTER
AIR ASSIST CLUTCH<PK1> 		1-47500-239-2 01 1 0601-
2 REPAIR KIT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-85576-418-0 01 1 0601-
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9601-9803
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9804-0512
2 REPAIR KIT; CLU M/CYL
AIR ASSIST CLUTCH<PK1> 		1-85572-010-0 01 1 0601-
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9601-9803
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9804-
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9601-9803
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9804-
21 VALVE; CHECK 1-47565-004-0 01 1 9601-9803
21 VALVE; CHECK 1-47565-004-0 01 1 9804-0512
21 VALVE; CHECK
AIR ASSIST CLUTCH<PK1> 		1-47565-004-0 01 1 0601-
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9601-9803
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9804-
