6-66 — HEAD LINING AND TRIM (#37567) — 36 parça

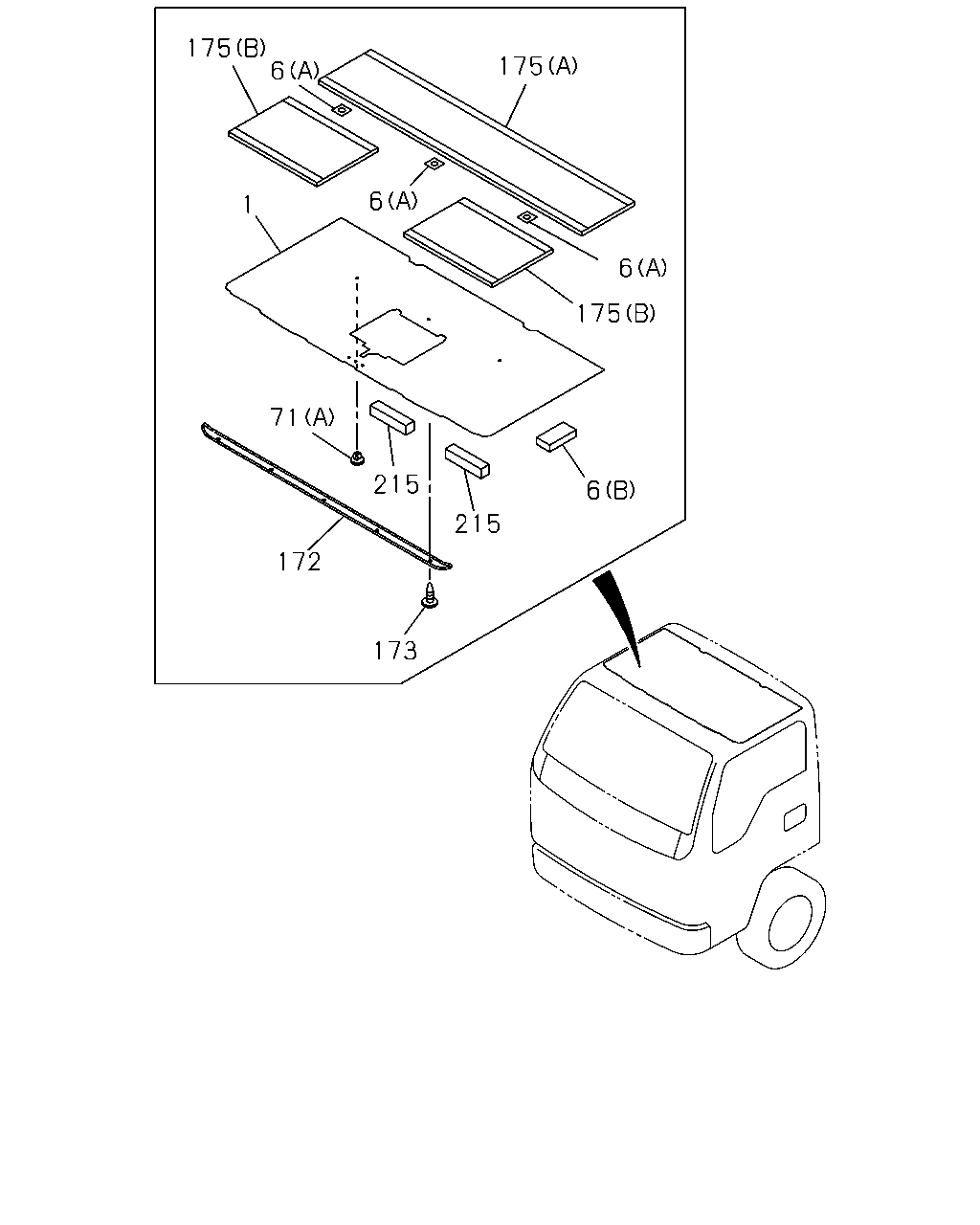

175 6 175 6 1 6 175 71 215 6 215 172 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-646-3	01	1	0502-	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0502-	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY	8-97859-861-4	01	1	0502-	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0502-	●	●	●
1	16.742 LINING; HD LIGHT GRAY	8-97859-858-7	01	1	0211-0501	●	●	●
1	16.742 LINING; HD INTERIOR DELUXE<RBB> LIGHT GRAY	8-97859-858-8	01	1	0502-	●	●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB> (A)	8-94353-014-0	03	1	0502-	●	●	●
6	16.742 SPACER; HD LINING EXC. INTERIOR DELUXE<RBB> 16.588 (B) H=10 L=55	8-97410-832-0	02	1	0502-	●	●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	04	1	0211-0501	●	●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB> (B) D5.8X20	8-97857-353-0	04	1	0502-	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	0211-0610	●	●	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	03	1	0611-	●	●	●
172	16.742 RETAINER; HEAD LINING EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97867-191-4	01	1	0502-	●	●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. INTERIOR DELUXE<RBB> LIGHT GRAY, D6.8X11 PUSH RIVET	8-97867-240-0	04	1	0502-0708	●	●	●
173	16.742 CLIP; RETAINER,HEAD LINING EXC. INTERIOR DELUXE<RBB> DARK GRAY	8-97406-299-0	04	1	0709-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB> (B)	8-97856-791-4	02	1	0502-	●	●	●
175	16.742 CUSHION; HEAD LINING EXC. INTERIOR DELUXE<RBB> (A)	8-97856-792-4	01	1	0502-	●	●	●
215	16.592 CUSHION; TRAY BACK PANEL ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB> 16.587 L=100	8-97866-625-0	02	1	0502-	●	●	●

27 27 1 27 171 71 71 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	16.742 LINING; HD ROOF VENTILATOR<C55> TRAY ROOF HEAD<7EJ> EXC. INTERIOR DELUXE<RBB> LIGHT GRAY	8-97868-646-3	01	1	0502-	●	●	●
1	16.742 LINING; HD ROOF VENTILATOR<C55> EXC. INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-645-3	01	1	0502-	●	●	●
1	16.742 LINING; HD TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB> LIGHT GRAY	8-97859-861-4	01	1	0502-	●	●	●
1	16.742 LINING; HD EXC. ROOF VENTILATOR<C55>,INTERIOR DELUXE<RBB>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-644-3	01	1	0502-	●	●	●
1	16.742 LINING; HD LIGHT GRAY	8-97859-858-7	01	1	0211-0501	●	●	●
1	16.742 LINING; HD INTERIOR DELUXE<RBB> LIGHT GRAY	8-97859-858-8	01	1	0502-	●	●	●
27	16.165 INSULATION; ROOF (A)	8-97856-987-5	02	1	0211-0501	●	●	●
27	16.165 INSULATION; ROOF INTERIOR DELUXE<RBB> (A)	8-97856-987-6	02	1	0502-	●	●	●
27	16.165 INSULATION; ROOF (B)	8-97856-988-2	01	1	0211-0501	●	●	●
27	16.165 INSULATION; ROOF INTERIOR DELUXE<RBB> (B)	8-97856-988-3	01	1	0502-	●	●	●
71	16.742 FASTENER; HD LINING (B) D5.8X20	8-97857-353-0	04	1	0211-0501	●	●	●
71	16.742 FASTENER; HD LINING INTERIOR DELUXE<RBB> (B) D5.8X20	8-97857-353-0	04	1	0502-	●	●	●
71	16.742 FASTENER; HD LINING (A) LIGHT GRAY	8-97867-230-2	03	1	0211-0610	●	●	●
71	16.742 FASTENER; HD LINING (A) DARK GRAY	8-97405-301-2	03	1	0611-	●	●	●
171	16.742 CLIP; HEAD LINING (A) LIGHT GRAY	8-97859-865-0	02	1	0211-0501	●	●	●
171	16.742 CLIP; HEAD LINING INTERIOR DELUXE<RBB> (A) LIGHT GRAY	8-97859-865-0	02	1	0502-	●	●	●
171	16.742 CLIP; HEAD LINING (B) LIGHT GRAY	8-97859-866-0	05	1	0211-0501	●	●	●
171	16.742 CLIP; HEAD LINING INTERIOR DELUXE<RBB> (B) LIGHT GRAY	8-97859-866-0	05	1	0502-	●	●	●
