Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

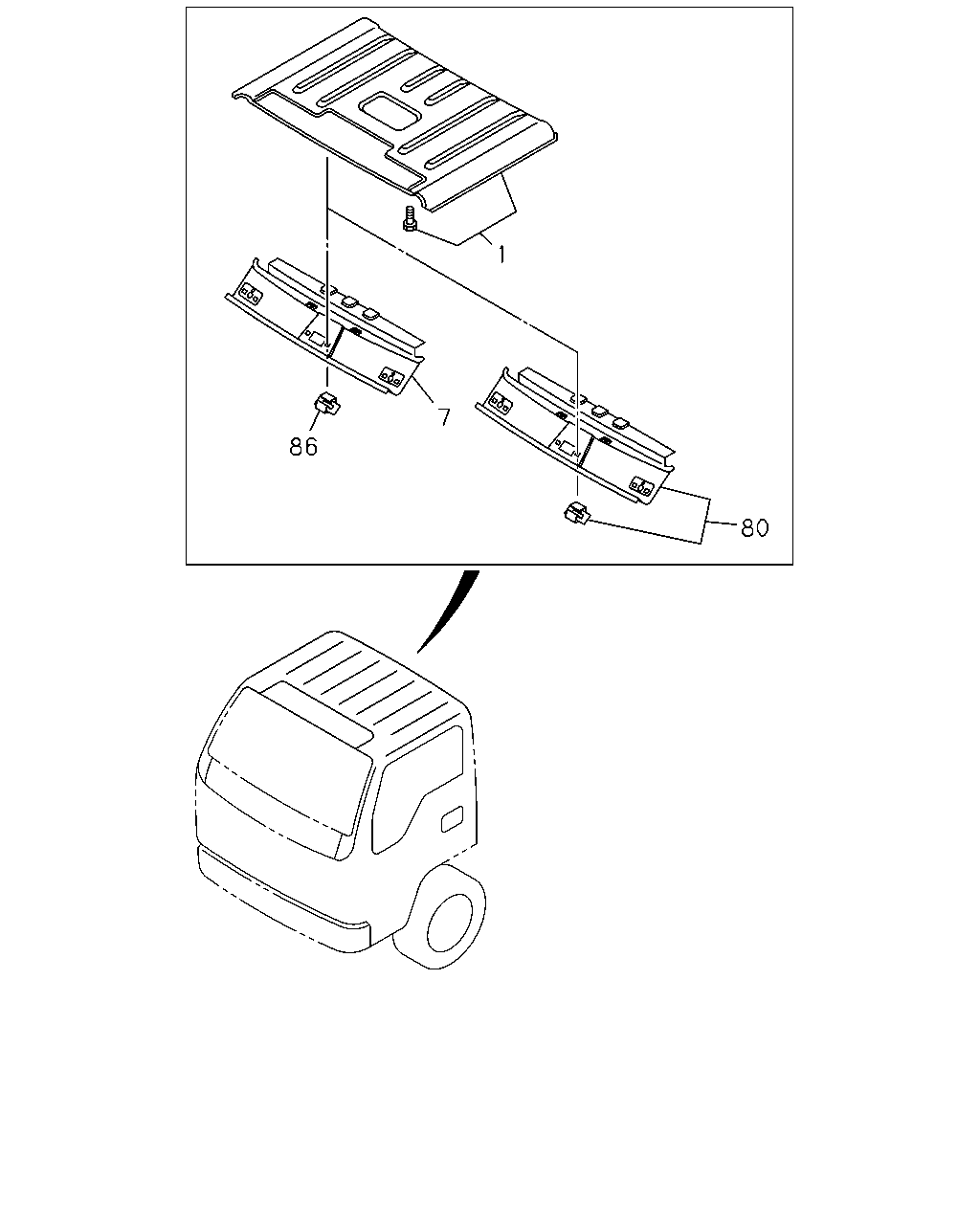

6-60 — ROOF PANEL
(#37566) — 11 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
1
7
86
80
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>
8-97851-450-1
01
1
0502-
●
●
●
1
16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT> EXC. ROOF VENTILATOR<C55>,TRAY ROOF HEAD<7EJ>
8-97851-369-1
01
1
0502-
●
●
●
1
16.585 PANEL; ROOF
TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55>, IDENTIFICATIONLABEL FOR KD<6UT>
8-97892-871-0
01
1
0502-
●
●
●
1
16.585 PANEL; ROOF
EXC. ROOF VENTILATOR<C55>, IDENTIFICATIONLABEL FOR KD<6UT>,TRAY ROOF HEAD<7EJ>
8-97892-873-0
01
1
0502-
●
●
●
1
16.585 PANEL; ROOF
IDENTIFICATION LABEL FOR KD<6UT>
8-97851-109-2
01
1
0211-0501
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55> IDENTIFICATION LABEL FOR KD<6UT>
8-97851-109-2
01
1
0502-
●
●
●
1
16.585 PANEL; ROOF
EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97892-868-0
01
1
0211-0501
●
●
●
1
16.585 PANEL; ROOF
ROOF VENTILATOR<C55> EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97892-868-0
01
1
0502-
●
●
●
7
16.585 PANEL; FRT WINDSHIELD UPR
8-97892-141-1
01
1
0211-0405
●
●
●
80
16.585 PANEL; HEADER,ROOF
8-97583-505-0
01
1
0406-
●
●
●
86
16.585 NUT; ROOF
16.069 M5
8-94279-075-1
01
1
0211-0405
●
●
●
