Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#37565) — 72 parça

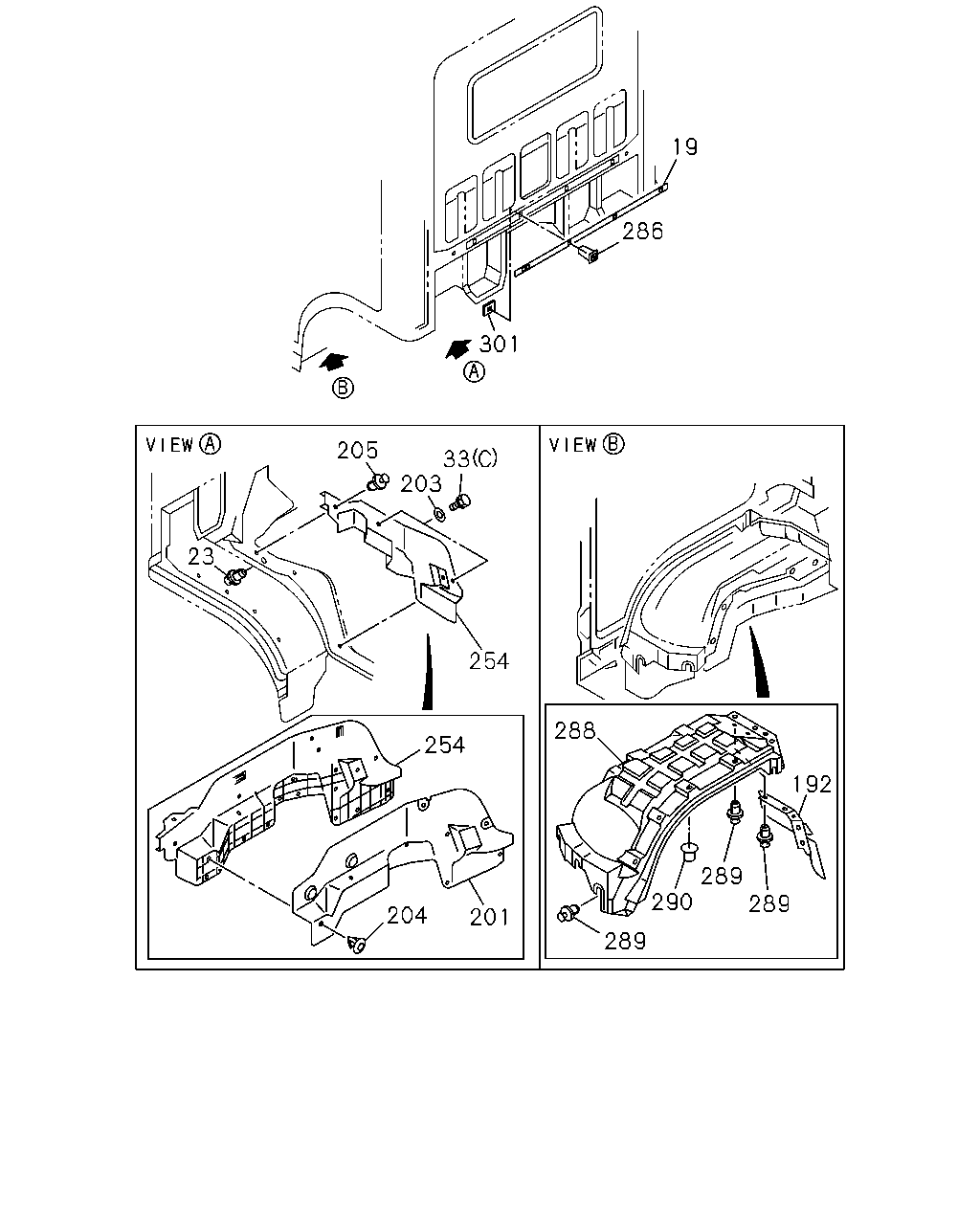

19 286 301 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	0211-0211	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0211-	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0512	●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0512	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-4	02	1	0211-1106	●	●	●
192	08.153 SEAL; MUD COVER	8-98192-031-0	02	1	1107-	●	●	●
201	08.155 INSULATOR; VALANCE 4JH1 ENG(RJX)	8-97853-116-3	01	1	0211-0501	●	●	●
201	08.155 INSULATOR; VALANCE 4JH1-TC ENG(RDM)	8-97853-116-3	01	1	0502-	●	●	●
201	08.155 INSULATOR; VALANCE 4JH1 ENG(RJX)	8-97853-117-3	01	1	0211-0501	●	●	●
201	08.155 INSULATOR; VALANCE 4JH1-TC ENG(RDM)	8-97853-117-3	01	1	0502-	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0211-0604	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0211-0308	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	10	1	0309-	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	0211-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	0211-0501	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	0502-	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	0211-0501	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	0502-	●	●	●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0211-	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	0211-0212	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	0211-0212	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	0211-0212	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0211-	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0211-	●	●	●

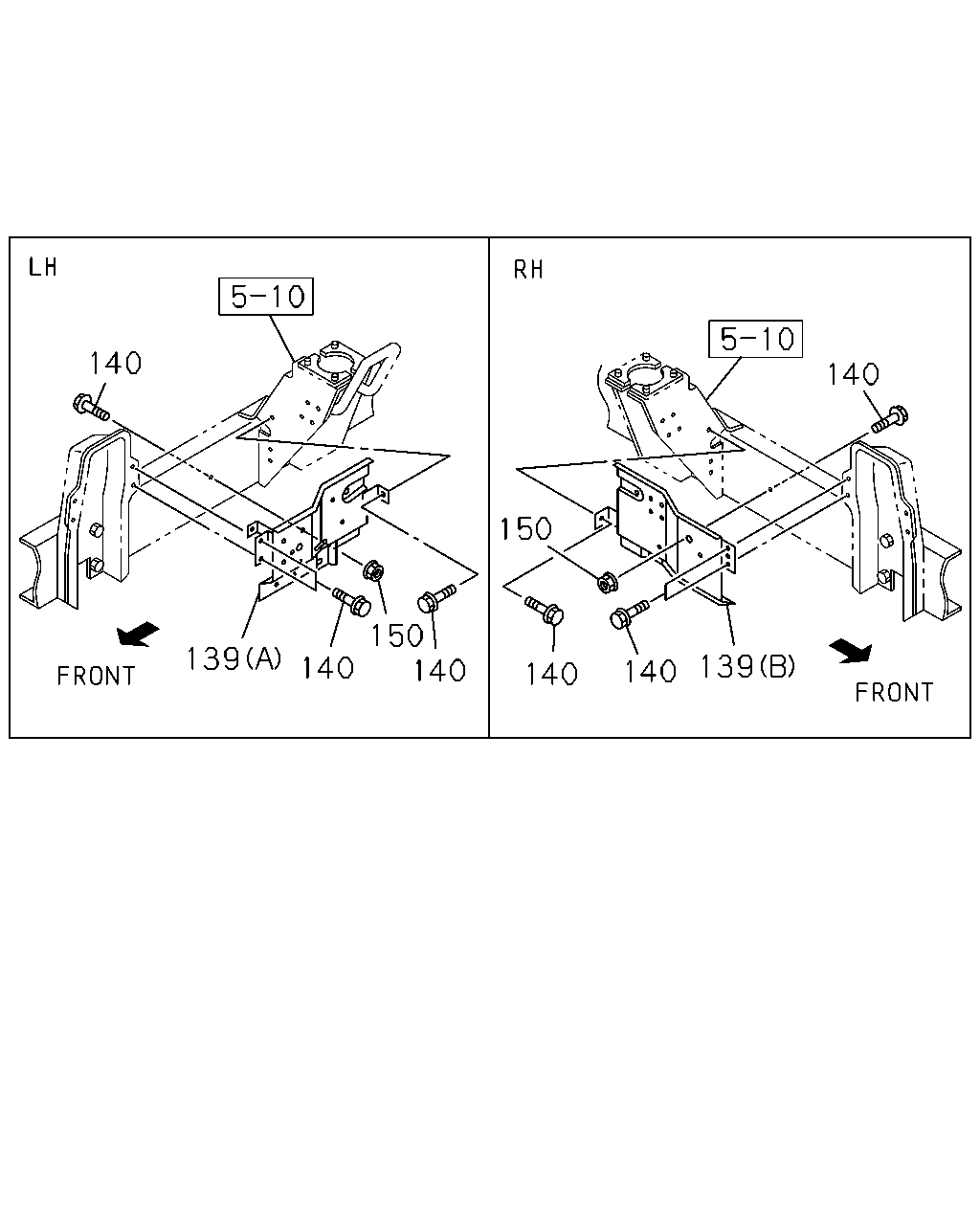

140 140 150 150 140 139 139 140 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
139	08.153 PANEL; SIDE 4JH1 ENG(RJX) (A)	8-97035-774-3	01	1	0211-0501	●	●	●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM) (A)	8-97035-774-3	01	1	0502-	●	●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX) (B)	8-97078-381-1	01	1	0211-0501	●	●	●
139	08.153 PANEL; SIDE 4JH1-TC ENG(RDM) (B)	8-97078-381-1	01	1	0502-	●	●	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	07	1	0211-0512	●	●	●
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	07	1	0601-	●	●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●

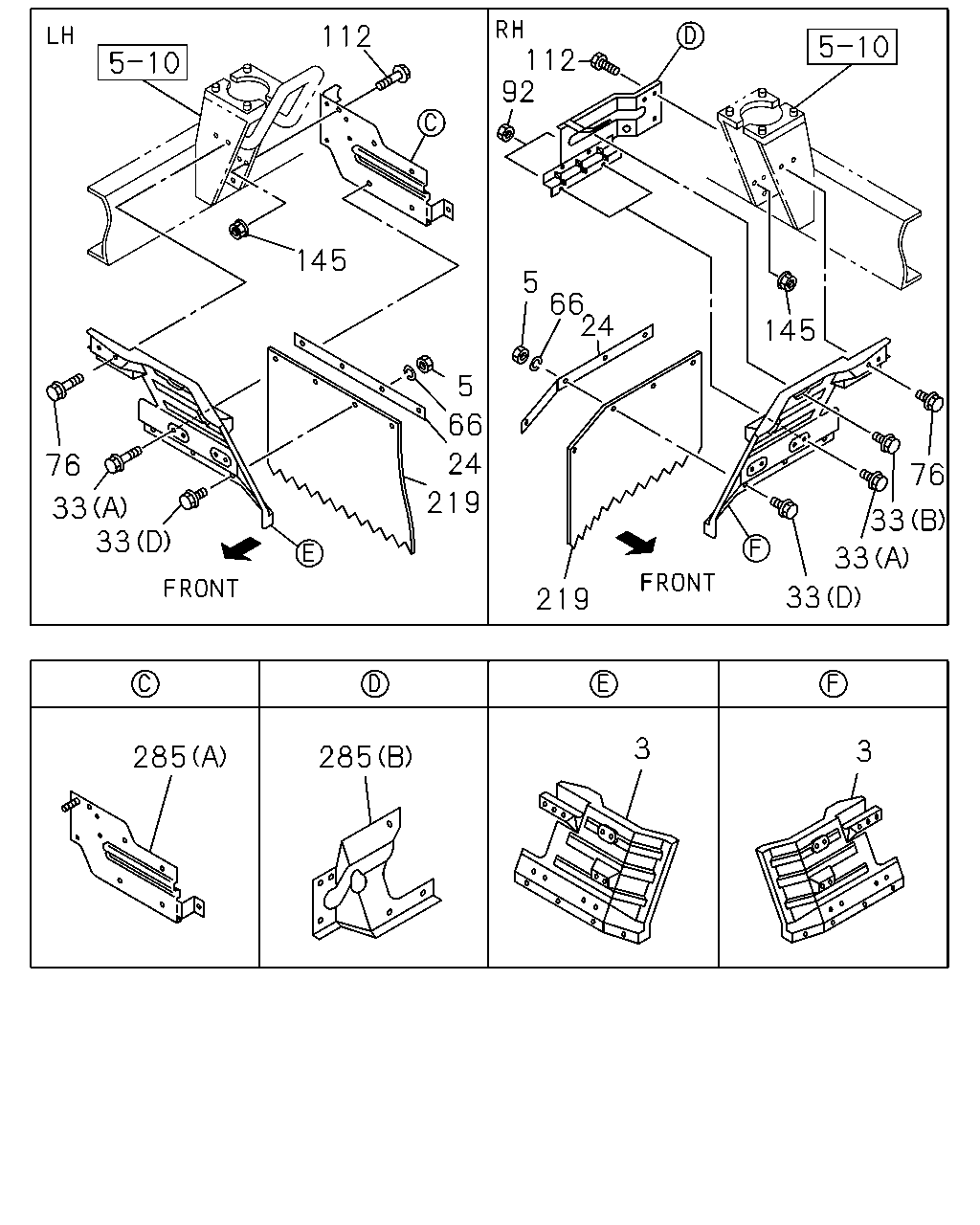

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 3 3 285 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	08.153 GUARD; MUD,RR	8-97048-728-3	01	1	0211-	●	●	●
3	08.153 GUARD; MUD,RR	8-97048-729-1	01	1	0211-0312	●	●	●
3	08.153 GUARD; MUD,RR	8-97366-988-1	01	1	0401-	●	●	●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	0211-0512	●	●	●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	0601-	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	0211-	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	0211-0512	●	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	0211-0512	●	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	05	1	0601-	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	0211-0512	●	●	●
33	08.155 BOLT; MUD COVER 00.685 (C) M6X25 FLANGE	0-28650-625-0	04	1	0601-0604	●	●	●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	0605-	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0211-0805	●	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	0806-	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	0211-0603	●	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	0604-	●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	02	1	0211-0512	●	●	●
76	08.155 BOLT; MUD GUARD 04.338 M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	0211-0512	●	●	●
112	08.155 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	0211-0602	●	●	●
145	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	0211-	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX) (B)	8-97089-653-2	01	1	0211-0501	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM) (B)	8-97089-653-2	01	1	0502-	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX) (A)	8-97225-272-1	01	1	0211-0501	●	●	●
285	08.155 BRACKET; MUD COVER 4JH1-TC ENG(RDM) (A)	8-97225-272-1	01	1	0502-	●	●	●
