2-08A — CLUTCH MASTER CYLINDER (#3756) — 17 parça

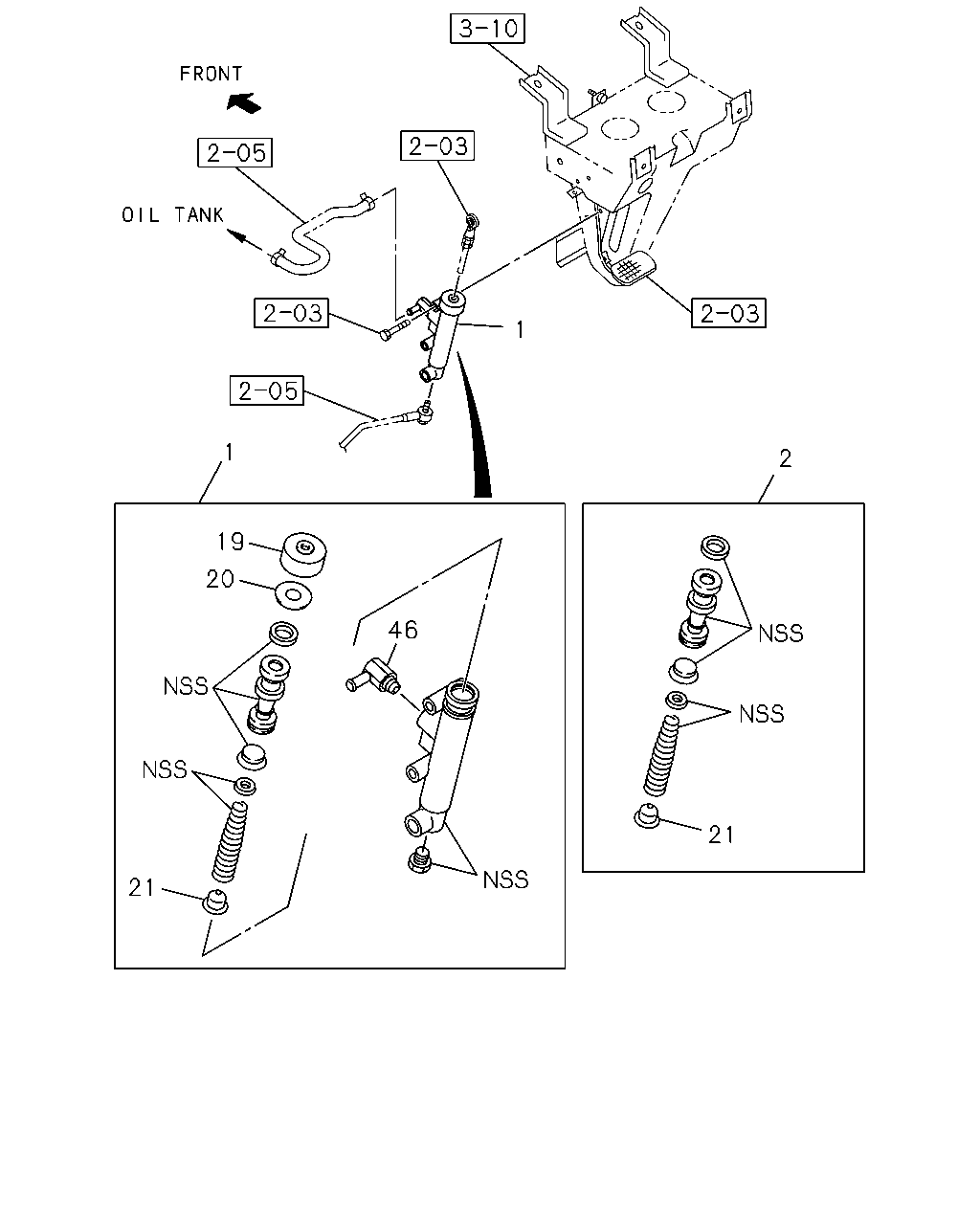

çizim 4949
1 1 2 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 CYLINDER ASM; CLUTCH MASTER
EXC. AIR ASSIST CLUTCH<PK1> 		1-47500-256-0 01 1 0601- ● ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-1 01 1 9601-9803 ● ● ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-239-2 01 1 9804-0512 ● ● ● ● ●
1 CYLINDER ASM; CLUTCH MASTER
AIR ASSIST CLUTCH<PK1> 		1-47500-239-2 01 1 0601- ● ● ●
2 REPAIR KIT; CLU M/CYL
EXC. AIR ASSIST CLUTCH<PK1> 		1-85576-418-0 01 1 0601- ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9601-9803 ● ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL 1-85572-010-0 01 1 9804-0512 ● ● ● ● ●
2 REPAIR KIT; CLU M/CYL
AIR ASSIST CLUTCH<PK1> 		1-85572-010-0 01 1 0601- ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9601-9803 ● ● ● ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 9804- ● ● ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9601-9803 ● ● ● ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 9804- ● ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9601-9803 ● ● ● ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 9804-0512 ● ● ● ● ●
21 VALVE; CHECK
AIR ASSIST CLUTCH<PK1> 		1-47565-004-0 01 1 0601- ● ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9601-9803 ● ● ● ● ● ●
46 CONNECTOR; PIPE 1-47559-016-0 01 1 9804- ● ● ● ● ●
