6-03 — RADIATOR GRILLE (#37556) — 60 parça

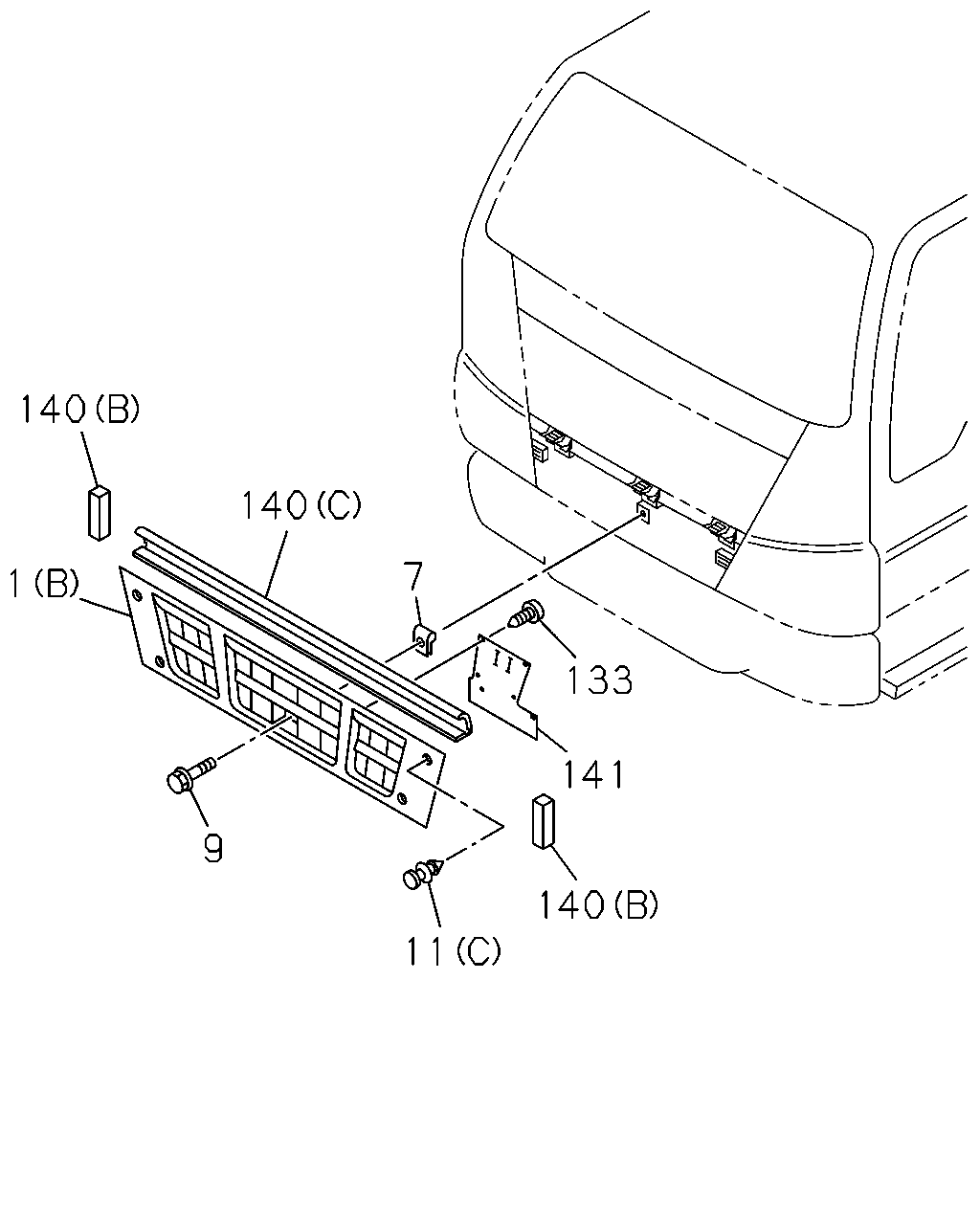

140 140 7 1 133 141 9 140 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.266 GRILLE; RAD BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BEIGE	8-97588-902-4	01	1	0502-	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97581-825-2	01	1	0502-	●	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE	8-97582-414-4	01	1	0502-	●	●	●
1	01.266 GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97890-871-1	01	1	0211-0501	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE 08.155	8-97805-829-0	01	1	0211-0505	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●	●
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0211-0805	●	●	●
9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-	●	●	●
11	01.269 CLIP; RAD GRILLE (A) WHITE	8-97892-730-0	02	1	0211-0501	●	●	●
11	01.269 CLIP; RAD GRILLE (C)	8-97581-651-2	04	1	0502-	●	●	●
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0211-	●	●	●
133	01.269 SCREW; COVER 01.303 M5X12 W/PL WASHER	8-94385-565-0	06	1	0502-	●	●	●
140	01.266 SEAL; RAD GRILLE (C)	8-97581-664-0	01	1	0502-	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-97061-039-3	02	1	0211-0501	●	●	●
140	01.266 SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0502-	●	●	●
141	01.266 COVER; RAD GRILLE	8-97581-648-1	01	1	0502-	●	●	●

2 188 116 188 184 129 128 128 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-327-3	01	1	0211-0501	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97585-545-2	01	1	0502-	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97859-463-3	01	1	0211-0501	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97581-679-5	01	1	0502-	●	●	●
11	01.269 CLIP; RAD GRILLE (A) WHITE	8-97892-730-0	02	1	0211-0501	●	●	●
11	01.269 CLIP; RAD GRILLE (C)	8-97581-651-2	04	1	0502-	●	●	●
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0211-	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE (B)	8-97853-097-4	01	1	0211-0501	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0211-0501	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-655-1	01	1	0502-	●	●	●
128	01.267 COVER; HEADLAMP GRILLE	8-97581-653-3	02	1	0502-	●	●	●
129	01.269 CLIP; COVER HEADLAMP GRILLE D=6.5	8-97855-279-0	02	1	0502-	●	●	●
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	03	1	0502-0602	●	●	●
184	01.269 GROMMET; ORNAMENT	8-97581-668-0	02	1	0603-	●	●	●
188	08.010 SEAL; ORNAMENT	8-97584-800-0	02	1	0502-	●	●	●

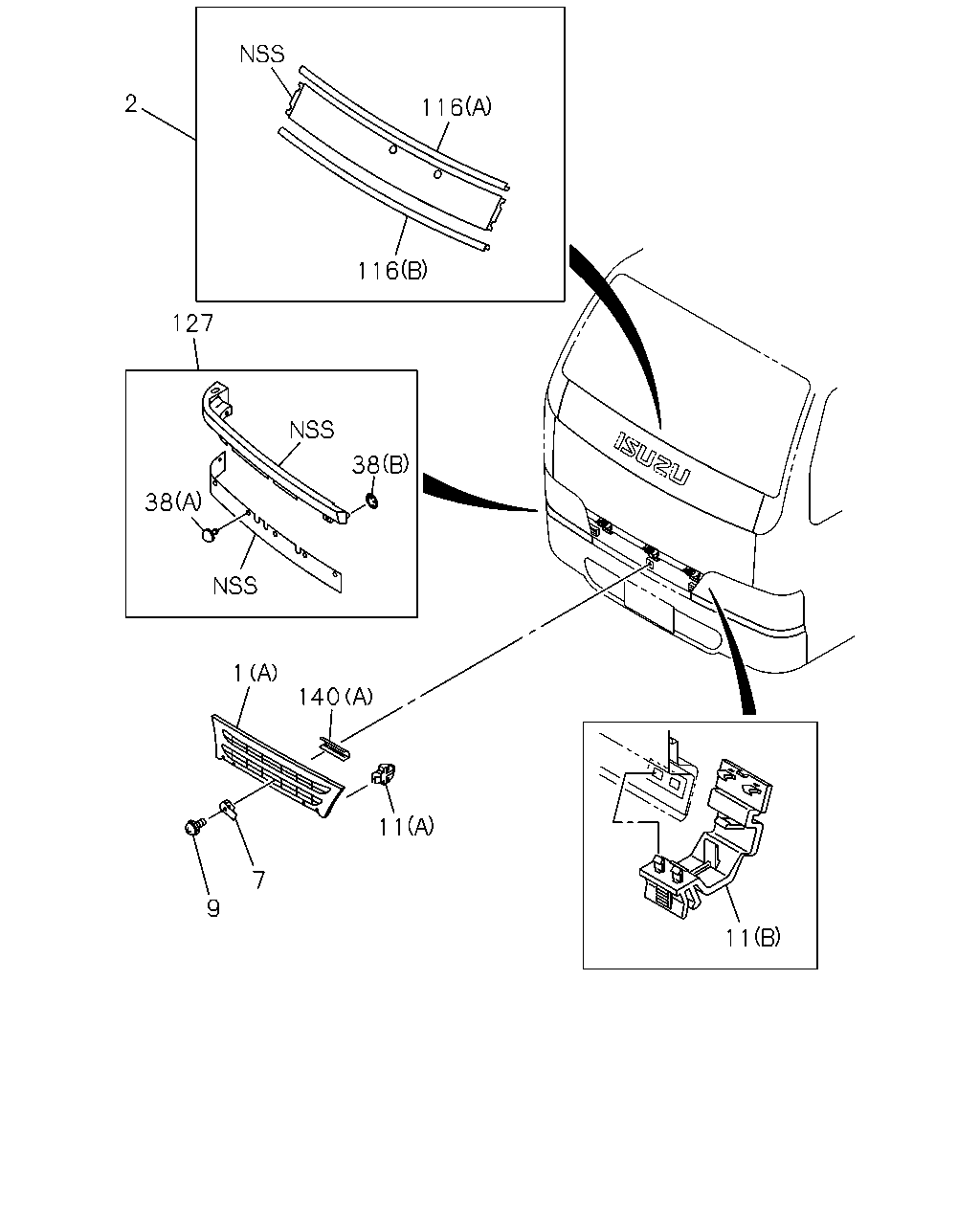

2 116 116 127 38 38 1 140 11 7 9 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	01.266 GRILLE; RAD BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) BEIGE	8-97588-902-4	01	1	0502-	●	●	●
1	01.266 GRILLE; RAD RADIATOR GRILLE NON PAINT<7LB> (B) PLEASE PAINT TO MATCH BODY COLOR	8-97581-825-2	01	1	0502-	●	●	●
1	01.266 GRILLE; RAD BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> (B) WHITE	8-97582-414-4	01	1	0502-	●	●	●
1	01.266 GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97890-871-1	01	1	0211-0501	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97868-327-3	01	1	0211-0501	●	●	●
2	01.266 GRILLE; ORNAMENT WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97585-545-2	01	1	0502-	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97859-463-3	01	1	0211-0501	●	●	●
2	01.266 GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL	8-97581-679-5	01	1	0502-	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE 08.155	8-97805-829-0	01	1	0211-0505	●	●	●
7	01.269 NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●	●
9	01.269 SCREW; RAD GRILLE 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0211-0805	●	●	●
9	01.269 SCREW; RAD GRILLE 08.153 M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-	●	●	●
11	01.269 CLIP; RAD GRILLE (A) WHITE	8-97892-730-0	02	1	0211-0501	●	●	●
11	01.269 CLIP; RAD GRILLE (C)	8-97581-651-2	04	1	0502-	●	●	●
11	01.269 CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0211-	●	●	●
38	01.269 CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (B)	1-09987-180-0	01	1	0211-0501	●	●	●
38	01.269 CLIP; GRILLE EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5	8-97855-279-0	09	1	0211-0501	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE (B)	8-97853-097-4	01	1	0211-0501	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0211-0501	●	●	●
116	01.266 MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-655-1	01	1	0502-	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE	8-97898-525-1	01	1	0211-0501	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE	8-97898-526-1	01	1	0211-0501	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-454-0	01	1	0211-0501	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR	8-97898-455-0	01	1	0211-0501	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-366-1	01	1	0211-0501	●	●	●
127	01.266 GRILLE; HEADLAMP,LWR BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE	8-97898-387-1	01	1	0211-0501	●	●	●
140	01.266 SEAL; RAD GRILLE (C)	8-97581-664-0	01	1	0502-	●	●	●
140	01.266 SEAL; RAD GRILLE (A)	8-97061-039-3	02	1	0211-0501	●	●	●
140	01.266 SEAL; RAD GRILLE (B)	8-97583-411-1	02	1	0502-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
