1 |

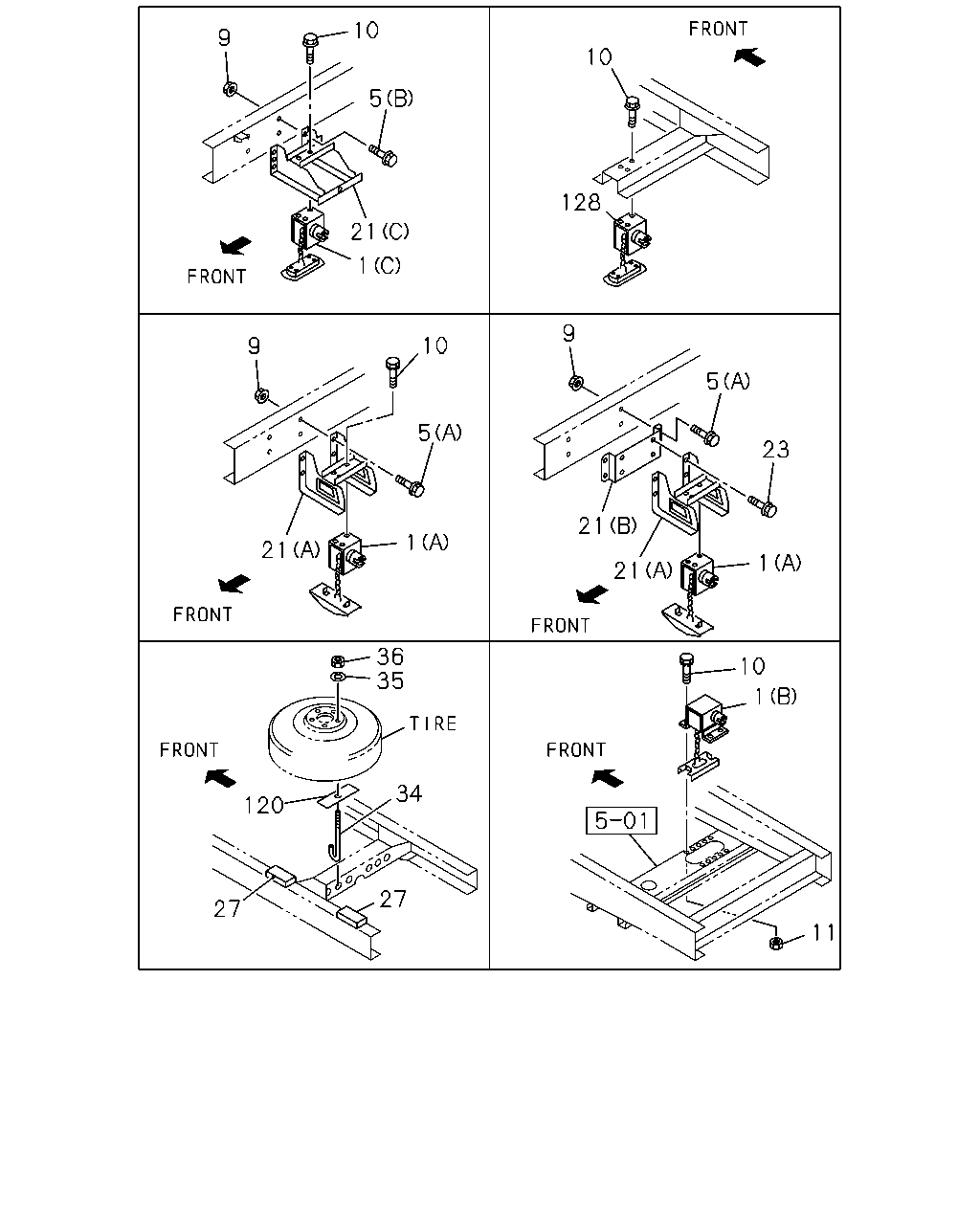

07.629 HANGER ASM; TIRE FT
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(A) FRONT
|
8-94382-875-1 |
01 |
1 |
0211-0501 |
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(A) FRONT
|
8-94382-875-1 |
01 |
1 |
0502-0502 |
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(A) FRONT
|
8-94382-875-1 |
01 |
1 |
0502-0504 |
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(A) FRONT
|
8-94382-875-1 |
01 |
1 |
0502-0504 |
|
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(A) FRONT
|
8-94382-875-1 |
01 |
1 |
0505- |
|
● |
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B) REAR
|
8-97182-113-1 |
01 |
1 |
0211-0504 |
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(B) REAR
|
8-97182-113-1 |
01 |
1 |
0505-0505 |
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B) REAR
|
8-97182-113-1 |
01 |
1 |
0505-0505 |
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
(B) REAR
|
8-97182-113-1 |
01 |
1 |
0506-0506 |
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
4JH1-TC ENG(RDM)
(B) REAR
|
8-97182-113-1 |
01 |
1 |
0507-1404 |
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
(B) REAR
|
8-97182-113-1 |
01 |
1 |
0507-1404 |
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
4JH1-TC ENG(RDM)
(B) REAR
|
8-97182-113-1 |
01 |
1 |
1405- |
● |
|
|
| |
1 |
07.629 HANGER ASM; TIRE FT
F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH
L/NUT(CVS)
(B) REAR
|
8-97182-113-1 |
01 |
1 |
1405- |
|
|
● |
| |
1 |
07.629 HANGER ASM; TIRE FT
(C) FRONT
|
8-94380-175-1 |
01 |
1 |
0211-0501 |
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
03.405
(A)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
0211-0501 |
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
03.405
(A)
M10X30 FLANGE
|
0-28681-030-0 |
04 |
1 |
0502-0504 |
● |
|
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
04.686
(B)
M8X30 FLANGE
|
0-28680-830-0 |
04 |
1 |
0211-0512 |
|
● |
|
| |
5 |
07.632 BOLT; BRKT TO FRAME
03.403
(B)
M8X30 FLANGE
|
0-28650-830-0 |
04 |
1 |
0601- |
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0211-0501 |
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
04.785
M10 FLANGE
|
0-91150-110-0 |
04 |
1 |
0502-0504 |
● |
|
|
| |
9 |
07.633 NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0211-0602 |
|
● |
|
| |
9 |
07.633 NUT; BRKT TO FRAME
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
02.664
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0211-0501 |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
02.664
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0502-0504 |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1-TC ENG(RDM)
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0505-0506 |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0505-0506 |
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1-TC ENG(RDM)
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0507-0512 |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1-TC ENG(RDM)
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0507-0512 |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0507-0512 |
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1-TC ENG(RDM)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
4JH1-TC ENG(RDM)
01.531
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
● |
|
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
04 |
1 |
0601- |
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
M8X20 FLANGE
|
0-28680-820-0 |
04 |
1 |
0211-0504 |
|
|
● |
| |
10 |
07.632 BOLT; TIRE HANGER
02.664
M8X20 FLANGE
|
0-28680-820-0 |
06 |
1 |
0211-0512 |
|
● |
|
| |
10 |
07.632 BOLT; TIRE HANGER
01.531
M8X20 FLANGE
|
0-28650-820-0 |
06 |
1 |
0601- |
|
● |
|
| |
11 |
07.629 NUT; TIRE HANGER
4JH1-TC ENG(RDM)
07.633
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
0507-0602 |
● |
|
|
| |
11 |
07.629 NUT; TIRE HANGER
4JH1-TC ENG(RDM)
01.062
M8 FLANGE
|
0-91180-108-0 |
02 |
1 |
0603- |
● |
|
|
| |
11 |
07.629 NUT; TIRE HANGER
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0211-0504 |
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
4JH1-TC ENG(RDM)
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0505-0602 |
● |
|
|
| |
11 |
07.629 NUT; TIRE HANGER
07.633
M8 FLANGE
|
0-91150-108-0 |
04 |
1 |
0505-0602 |
|
|
● |
| |
11 |
07.629 NUT; TIRE HANGER
4JH1-TC ENG(RDM)
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
● |
|
|
| |
11 |
07.629 NUT; TIRE HANGER
01.062
M8 FLANGE
|
0-91180-108-0 |
04 |
1 |
0603- |
|
|
● |
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(B)
|
8-94176-764-1 |
01 |
1 |
0211-0501 |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(B)
|
8-94176-764-1 |
01 |
1 |
0502-0504 |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(A)
|
8-97230-355-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
(A)
|
8-97230-355-0 |
01 |
1 |
0502-0504 |
● |
|
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4JH1 ENG(RJX)
(C)
|
8-97015-884-1 |
01 |
1 |
0211-0501 |
|
● |
|
| |
21 |
07.629 BRACKET; SPARE TIRE HANGER
4JH1-TC ENG(RDM)
(C)
|
8-94373-755-2 |
01 |
1 |
0502- |
|
● |
|
| |
23 |
07.632 BOLT; BRKT,SPARE TIRE
4JH1 ENG(RJX)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0211-0501 |
● |
|
|
| |
23 |
07.632 BOLT; BRKT,SPARE TIRE
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
03.405
M10X25 FLANGE
|
0-28681-025-0 |
04 |
1 |
0502-0504 |
● |
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4JH1-TC ENG(RDM)
125X50X10
|
8-94341-284-0 |
07 |
1 |
0507- |
● |
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4JH1 ENG(RJX)
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
125X50X10
|
8-94341-284-0 |
04 |
1 |
0211-0501 |
● |
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4JH1-TC ENG(RDM)
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
125X50X10
|
8-94341-284-0 |
04 |
1 |
0502-0504 |
● |
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4JH1-TC ENG(RDM)
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
125X50X10
|
8-94341-284-0 |
04 |
1 |
0505-0505 |
● |
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
125X50X10
|
8-94341-284-0 |
04 |
1 |
0505-0505 |
● |
|
|
| |
27 |
07.629 CUSHION; FRAME TO SPARE TIRE
4JH1-TC ENG(RDM)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
125X50X10
|
8-94341-284-0 |
04 |
1 |
0506- |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
M12X305
|
8-94441-189-0 |
01 |
1 |
0502-0504 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
M12X305
|
8-94441-189-0 |
01 |
1 |
0505-0505 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
M12X305
|
8-94441-189-0 |
01 |
1 |
0505-0505 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
M12X305
|
8-94441-189-0 |
01 |
1 |
0506-0506 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
4JH1-TC ENG(RDM)
M12X305
|
8-94441-189-0 |
01 |
1 |
0507-1209 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
M12X305
|
8-94441-189-0 |
01 |
1 |
0507-1209 |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
4JH1-TC ENG(RDM)
M12X330
|
8-98226-501-0 |
01 |
1 |
1210- |
● |
|
|
| |
34 |
07.629 BOLT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
M12X330
|
8-98226-501-0 |
01 |
1 |
1210- |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0502-0504 |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0505-0505 |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0505-0505 |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0506-0506 |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
4JH1-TC ENG(RDM)
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0507- |
● |
|
|
| |
35 |
07.629 WASHER; PL,SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
07.243
ID=12.5 OD=54
|
8-94466-483-0 |
01 |
1 |
0507- |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0211-0501 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0502-0504 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
4JH1-TC ENG(RDM)
EXC. SPARE TIRE CARRIER INSIDE
MOUNTED<P15>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0505-0505 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15>
EXC. IDENTIFICATION LABEL FOR KD<6UT>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0505-0505 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0506-0506 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
4JH1-TC ENG(RDM)
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0507-0512 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
05.816
M12
|
9-99110-412-0 |
01 |
1 |
0507-0512 |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
4JH1-TC ENG(RDM)
05.002
M12
|
0-91110-512-0 |
01 |
1 |
0601- |
● |
|
|
| |
36 |
07.629 NUT; SPARE TIRE
EXC. IDENTIFICATION LABEL FOR KD<6UT>
05.002
M12
|
0-91110-512-0 |
01 |
1 |
0601- |
● |
|
|
| |
120 |
07.629 PLATE; SPARE TIRE
4JH1-TC ENG(RDM)
07.518
|
1-51377-166-0 |
01 |
1 |
0505-0708 |
● |
|
|
| |
120 |
07.629 PLATE; SPARE TIRE
4JH1-TC ENG(RDM)
|
8-98098-021-0 |
01 |
1 |
0709-0709 |
● |
|
|
| |
120 |
07.629 PLATE; SPARE TIRE
4JH1-TC ENG(RDM)
07.518
|
1-51377-166-0 |
01 |
1 |
0710- |
● |
|
|
| |
128 |
07.629 HANGER ASM; TIRE END
|
8-94380-175-1 |
01 |
1 |
0211- |
|
● |
|
