Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶
5-20 — BATTERY CARRIER
(#37553) — 34 parça
Tümü
A - NKC5SC
B - NKN5SC
C - NKC5SF
◀
[520A] NO.2 (18 parça)
[520A] NO.1 (16 parça)
▶
16
7
24
15
26
15
2
2
14
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
02.333 BRACKET; BATTERY
(A)
8-94176-352-1
01
1
0211-
●
2
02.333 BRACKET; BATTERY
(B)
8-97074-506-0
01
1
0211-
●
7
02.333 BOLT; BRKT TO FRAME
03.417 M10X25 FLANGE
0-28081-025-0
02
1
0211-0512
●
●
7
02.333 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE
0-28051-025-0
02
1
0601-
●
●
14
02.333 NUT; BRKT TO FRAME
08.917 M10 FLANGE
0-91150-210-0
02
1
0211-0602
●
14
02.333 NUT; BRKT TO FRAME
04.085 M10 FLANGE
0-91180-210-0
02
1
0603-1409
●
14
02.333 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
02
1
1410-
●
15
02.333 BRACKET; BATTERY
(A)
8-94176-353-0
01
1
0211-
●
15
02.333 BRACKET; BATTERY
(B)
8-94115-304-3
01
1
0211-
●
16
02.334 BOLT; BRKT TO FRAME
03.417 M10X25 FLANGE
0-28081-025-0
02
1
0211-0512
●
●
16
02.334 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE
0-28051-025-0
02
1
0601-
●
●
24
02.334 NUT; BRKT TO FRAME
08.917 M10 FLANGE
0-91150-210-0
02
1
0211-0602
●
●
24
02.334 NUT; BRKT TO FRAME
04.085 M10 FLANGE
0-91180-210-0
02
1
0603-1409
●
●
24
02.334 NUT; BRKT TO FRAME
03.162 M10 FLANGE
0-91180-110-0
02
1
1410-
●
●
26
02.334 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
04
1
0211-0602
●
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
04
1
0603-
●
26
02.334 NUT; BRKT
08.917 M10 FLANGE
0-91150-210-0
03
1
0211-0602
●
26
02.334 NUT; BRKT
04.085 M10 FLANGE
0-91180-210-0
03
1
0603-
●

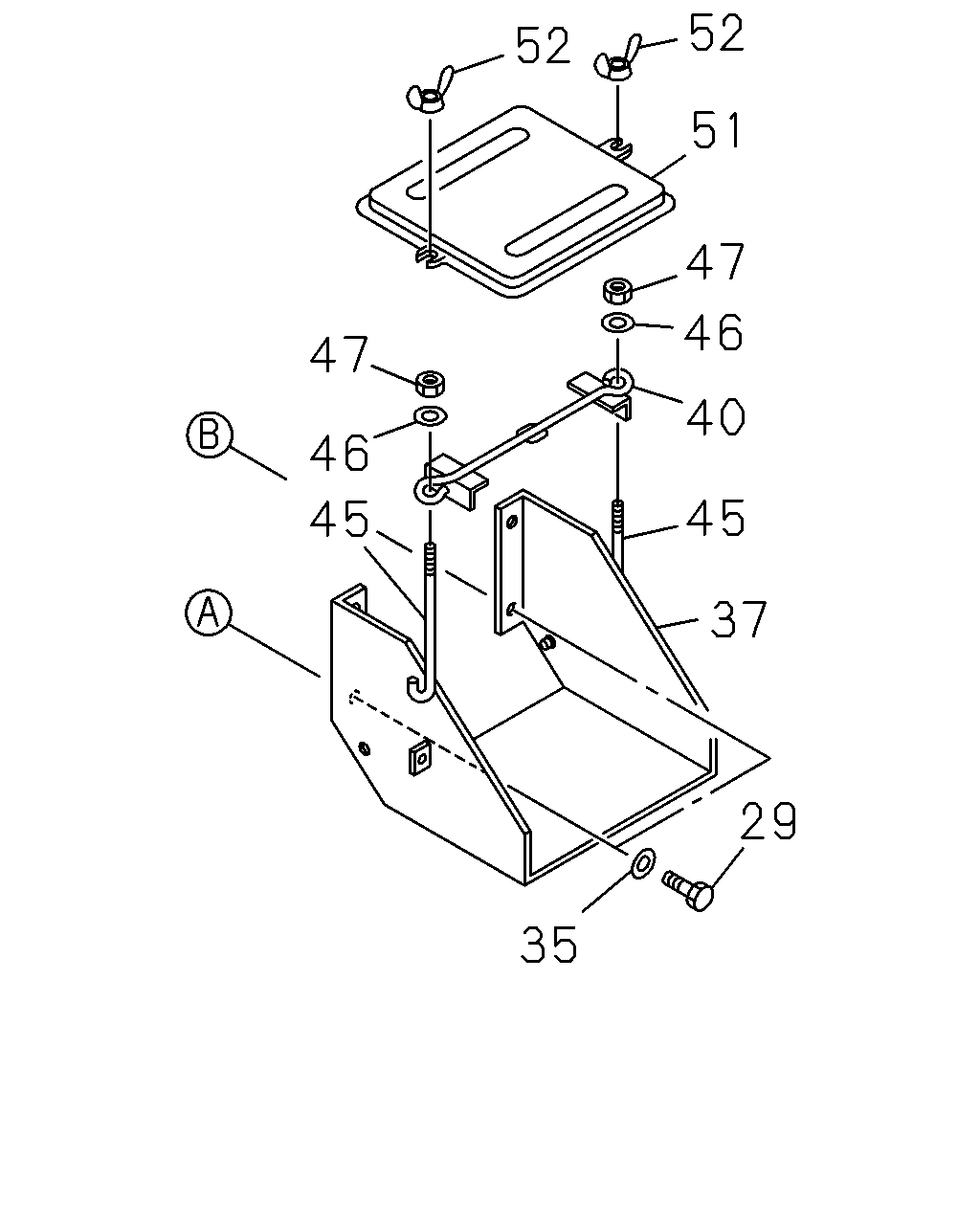

52
52
51
47
46
47
40
46
45
45
37
29
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
29
02.334 BOLT; BRKT TO FRAME
09.171 M10X30 W/LK WASHER
0-50041-030-0
04
1
0211-0512
●
●
●
29
02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER
0-50541-030-0
04
1
0601-
●
●
●
35
02.334 WASHER; PL,BATTERY CARRIER
16.682 ID=10.5 OD=22
9-09160-610-0
04
1
0211-0605
●
●
●
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22 T=1.6
0-91610-610-0
04
1
0606-
●
●
●
37
02.333 BRACKET; BATTERY
8-97356-174-0
01
1
0211-0610
●
●
●
37
02.333 BRACKET; BATTERY
8-97384-068-2
01
1
0611-0612
●
●
●
37
02.333 BRACKET; BATTERY
8-97384-067-2
01
1
0701-
●
●
●
40
02.335 CLAMP; BATTERY
5-53615-004-1
01
1
0211-
●
●
●
45
02.334 ROD; TENSION,BATTERY
9-53616-615-0
02
1
0211-
●
●
●
46
02.334 WASHER; PL,BATTERY TO CARRIER
07.633 ID=8.4 OD=22
9-09164-708-0
02
1
0211-0605
●
●
●
46
02.334 WASHER; PL,BATTERY TO CARRIER
02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0606-
●
●
●
47
02.334 NUT; BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
●
●
47
02.334 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
●
51
02.335 COVER; BATTERY
8-97218-309-0
01
1
0211-
●
●
●
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
9-09118-408-0
02
1
0211-0512
●
●
●
52
02.335 NUT; WING,COVER FIX
M8 WING NUT
0-91118-408-0
02
1
0601-
●
●
●
