Isuzu WW
▶
TRUCKS
▶
NKR
▶
51279 - NKR AUSTRALIA
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#37550) — 89 parça
Tümü
A - NKC5SC
B - NKC5SF
C - NKN5SC
◀

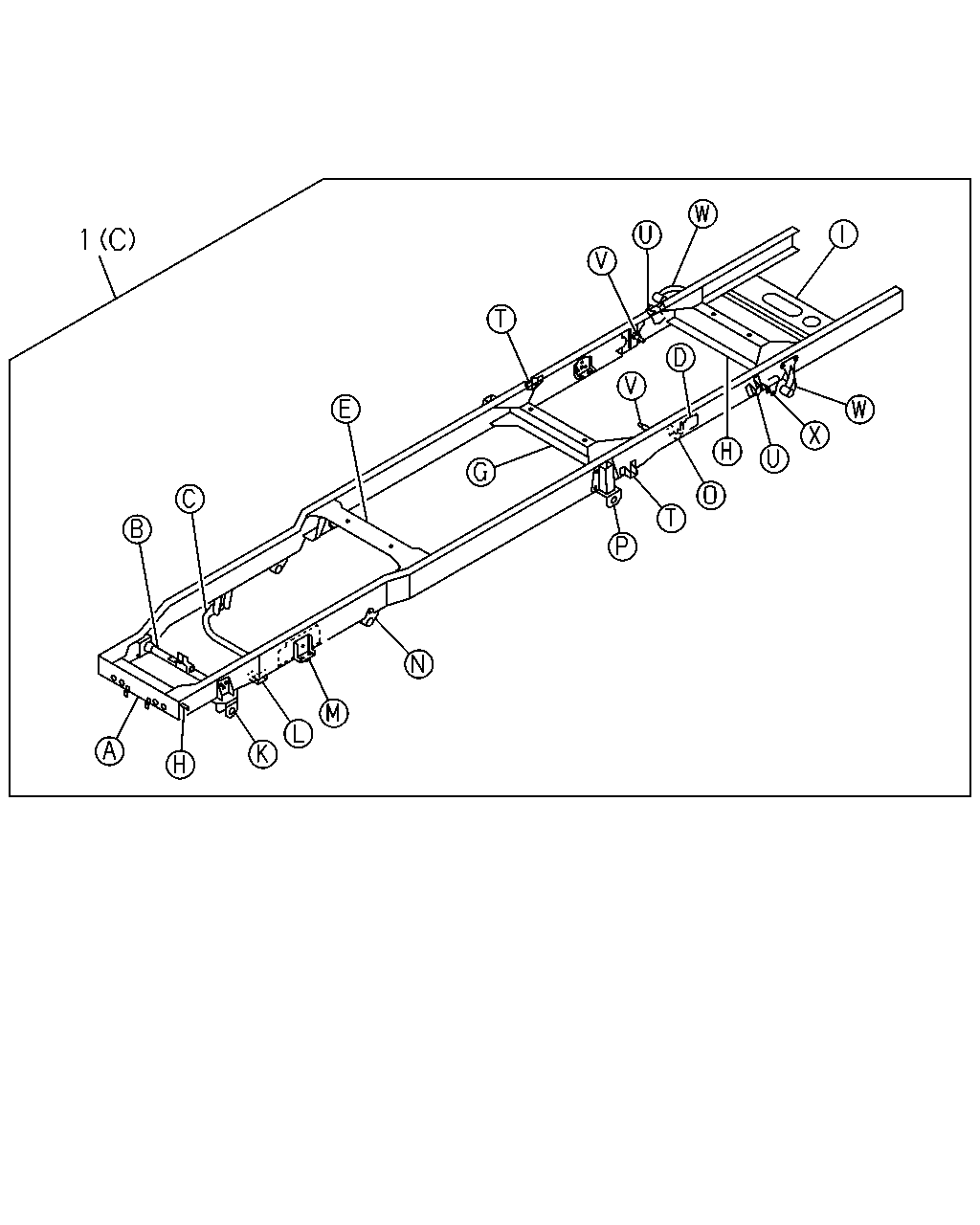

[501A] FRAME ASM(NO.1) (6 parça)
[501A] CROSS MEMBER AND BRACKET(NO.4) (6 parça)

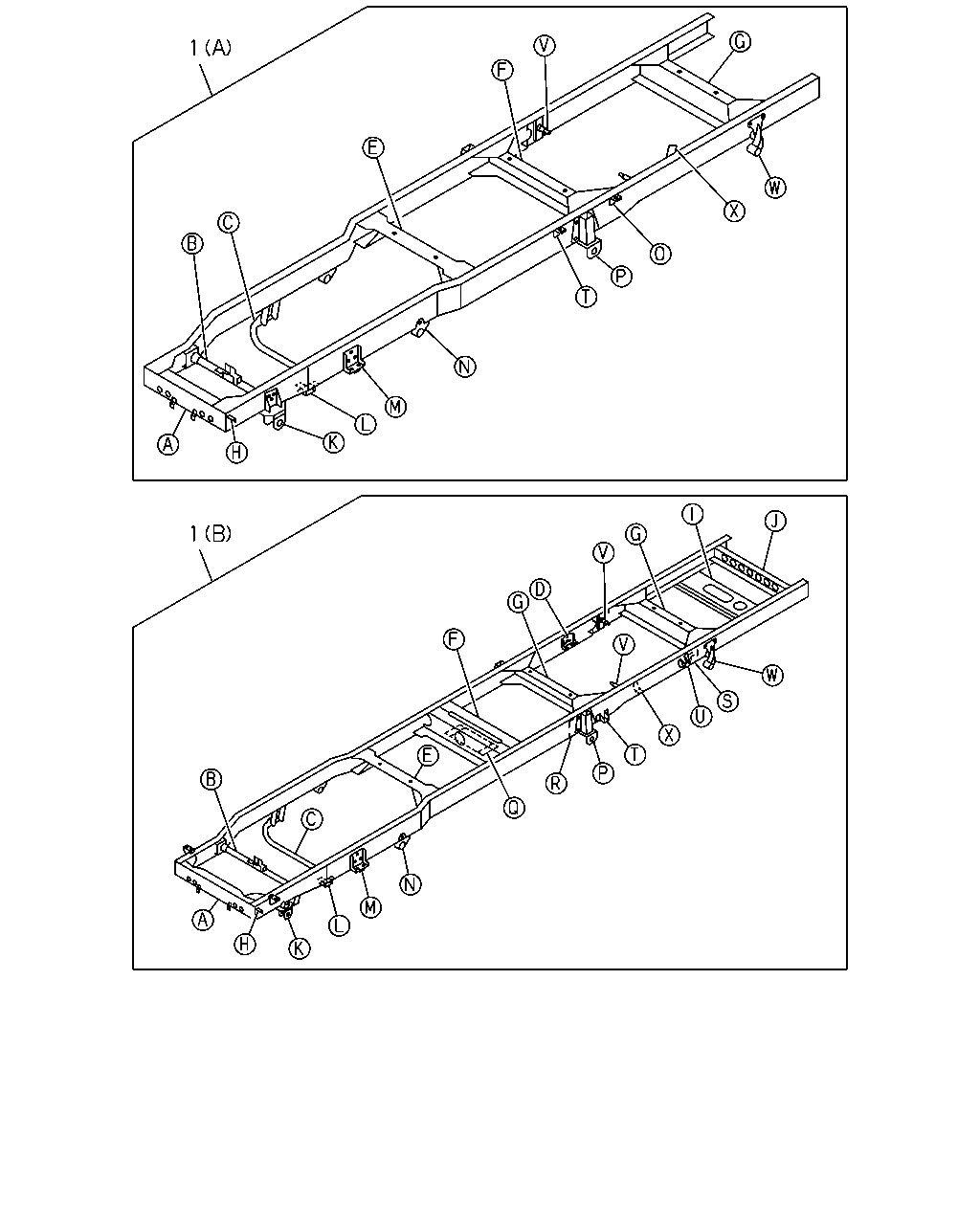

[501A] FRAME ASM(NO.2) (6 parça)
[501A] CROSS MEMBER AND BRACKET(NO.3) (18 parça)
[501A] RIVET,BOLT,NUT (19 parça)
[501A] CROSS MEMBER AND BRACKET(NO.1) (14 parça)
[501A] CROSS MEMBER AND BRACKET(NO.2) (20 parça)
▶
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
07.003 FRAME ASM
(C)
8-97352-161-1
01
1
0211-0501
●
1
07.003 FRAME ASM
(C)
8-98002-675-0
01
1
0502-
●
1
07.003 FRAME ASM
(B)
8-97352-165-1
01
1
0211-0501
●
1
07.003 FRAME ASM
(B)
8-98002-678-0
01
1
0502-
●
1
07.003 FRAME ASM
(A)
8-97352-160-3
01
1
0211-0501
●
1
07.003 FRAME ASM
(A)
8-98002-683-1
01
1
0502-
●
105
215
142
215
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
105
07.112 BRACKET; RR SPR,RR
(A)
8-94459-511-1
01
1
0211-
●
●
105
07.112 BRACKET; RR SPR,RR
(A)
8-94459-512-1
01
1
0211-
●
●
105
07.112 BRACKET; RR SPR,RR
(B)
8-94109-312-0
02
1
0211-
●
142
04.845 BRACKET; FLEX HOSE,BRAKE
8-97035-308-0
01
1
0211-
●
●
142
04.845 BRACKET; FLEX HOSE,BRAKE
8-97264-169-0
01
1
0211-
●
215
07.524 BUSHING; BRKT,RR SPRING
8-97184-699-1
04
1
0211-
●
●
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
07.003 FRAME ASM
(C)
8-97352-161-1
01
1
0211-0501
●
1
07.003 FRAME ASM
(C)
8-98002-675-0
01
1
0502-
●
1
07.003 FRAME ASM
(B)
8-97352-165-1
01
1
0211-0501
●
1
07.003 FRAME ASM
(B)
8-98002-678-0
01
1
0502-
●
1
07.003 FRAME ASM
(A)
8-97352-160-3
01
1
0211-0501
●
1
07.003 FRAME ASM
(A)
8-98002-683-1
01
1
0502-
●
101
101
156
156
173
173
188
103
103
147
147
140
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
101
07.112 BRACKET; RR SPR,FRT
(A)
8-97034-156-1
02
1
0211-
●
●
101
07.112 BRACKET; RR SPR,FRT
(B)
8-94376-080-0
02
1
0211-
●
103
07.420 STOPPER; SUB SPR
(A)
8-97223-748-0
02
1
0211-0501
●
●
103
07.420 STOPPER; SUB SPR
(B)
8-97223-750-0
02
1
0211-0501
●
●
140
07.112 BRACKET; S/ABS,RR
07.395 (C)
8-94101-303-0
01
1
0211-
●
●
140
07.112 BRACKET; S/ABS,RR
(B)
8-97012-285-0
01
1
0211-
●
●
140
07.112 BRACKET; S/ABS,RR
(A)
8-94258-103-1
01
1
0211-
●
140
07.112 BRACKET; S/ABS,RR
(A)
8-94258-104-1
01
1
0211-
●
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
0211-0501
●
●
156
07.330 BRACKET; RR BODY MTG
(A) REAR
8-94101-398-1
04
1
0211-
●
156
07.330 BRACKET; RR BODY MTG
(B) CENTER
8-94258-111-0
01
1
0211-
●
156
07.330 BRACKET; RR BODY MTG
(A) CENTER
8-94258-112-0
01
1
0211-
●
173
07.112 STIFFENER; RR SPRING
(B)
8-94403-508-2
01
1
0211-0211
●
173
07.112 STIFFENER; RR SPRING
(A)
8-94372-324-1
02
1
0211-0501
●
173
07.112 STIFFENER; RR SPRING
(B)
8-94408-191-2
01
1
0211-0211
●
173
07.112 STIFFENER; RR SPRING
(B)
8-94408-191-2
02
1
0212-0502
●
173
07.112 STIFFENER; RR SPRING
(B)
8-97213-460-4
02
1
0503-
●
188
07.039 BRACKET; SUPPORT,CTR BRG
8-97078-869-1
01
1
0211-
●
376
376
376
376
376
376
376
376
376
376
176
176
286
118
288
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
118
07.529 NUT; STOPPER
07.242 M8 LOCK NUT
9-09131-508-0
04
1
0211-0501
●
●
176
04.085 BOLT; C/MBR,ENG MTG
00.685 (B) M10X30 FLANGE
0-28081-030-0
08
1
0211-0512
●
●
176
04.085 BOLT; C/MBR,ENG MTG
03.890 (B) M10X30 FLANGE
0-28051-030-0
08
1
0601-
●
●
176
04.085 BOLT; C/MBR,ENG MTG
03.417 (A) M10X25 FLANGE
0-28081-025-0
08
1
0211-0512
●
176
04.085 BOLT; C/MBR,ENG MTG
09.171 (A) M10X25 FLANGE
0-28051-025-0
08
1
0601-
●
286
07.632 BOLT; SPARE TIRE BRKT
03.023 M10X30 FLANGE
0-28691-030-0
06
1
0505-0512
●
286
07.632 BOLT; SPARE TIRE BRKT
07.068 M10X30 FLANGE
0-28661-030-0
06
1
0601-
●
288
07.632 NUT; SPARE TIRE BRKT
08.917 M10 FLANGE
0-91150-210-0
06
1
0505-0602
●
288
07.632 NUT; SPARE TIRE BRKT
04.085 M10 FLANGE
0-91180-210-0
06
1
0603-
●
376
07.039 RIVET; FRAME
07.011 (A) D8X22 TAPER END
9-06750-822-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
07.395 (B) D8X26 TAPER END
9-06750-826-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
07.395 (C) D8X28 TAPER END
9-06750-828-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
(D) D10X24 TAPER END
9-06751-024-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
(E) D10X26 TAPER END
9-06751-026-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
(F) D10X28 TAPER END
9-06751-028-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
(G) D10X30 TAPER END
9-06751-030-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
(H) D10X36 TAPER END
9-06751-036-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
07.105 (I) D12X30 TAPER END
9-06751-230-0
AR
1
0211-
●
●
●
376
07.039 RIVET; FRAME
07.535 (J) D12X34 TAPER END
9-06751-234-0
AR
1
0211-
●
●
●
17
20
17
2
217
42
34
34
74
75
75
74
344
345
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
2
07.010 MEMBER; CROSS,1ST
8-97034-332-2
01
1
0211-
●
●
●
17
07.039 GUSSET; 1ST C/MBR
8-97088-205-1
02
1
0211-
●
●
●
20
07.012 MEMBER; CROSS,2ND
8-97078-581-1
01
1
0211-
●
●
●
34
07.012 MEMBER; CROSS,3RD
(B)
8-97047-768-2
01
1
0211-
●
●
34
07.012 MEMBER; CROSS,3RD
(A)
8-97352-432-1
01
1
0211-
●
42
07.011 MEMBER; CROSS,ENG MTG
8-97165-923-1
01
1
0211-
●
●
●
74
07.039 GUSSET; 4TH C/MBR
RH-UPPER, LH-LOWER
8-97101-837-1
02
1
0211-
●
74
07.039 GUSSET; 4TH C/MBR
RH-LOWER, LH-UPPER
8-97101-838-1
02
1
0211-
●
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER
8-97062-499-0
02
1
0211-
●
●
●
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER
8-97062-500-0
02
1
0211-
●
●
●
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-94258-963-0
02
1
0211-
●
●
344
07.012 MEMBER; CROSS,4TH
8-97078-707-3
01
1
0211-
●
345
07.012 MEMBER; CROSS,5TH
(A)
8-97062-497-3
01
1
0211-
●
●
345
07.012 MEMBER; CROSS,5TH
(B)
8-97076-793-2
01
1
0211-
●
75
198
75
198
345
139
358
137
24
130
51
39
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
24
07.105 BRACKET; FRT SPR,FRT
8-94366-816-1
01
1
0211-
●
●
●
24
07.105 BRACKET; FRT SPR,FRT
8-97065-788-1
01
1
0211-
●
●
●
39
07.112 BRACKET; FRT SPR,RR
8-94258-091-0
02
1
0211-
●
●
●
51
07.011 BRACKET; ENG SUPPORT,OUTER
00.029
8-94258-086-1
02
1
0211-0501
●
●
●
51
07.011 BRACKET; ENG SUPPORT,OUTER
8-98003-209-0
02
1
0502-
●
●
●
63
01.270 BRACKET; RAD MTG
8-94257-950-1
01
1
0211-
●
●
●
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER,LH-LOWER
8-97062-499-0
02
1
0211-
●
●
●
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER,LH-UPPER
8-97062-500-0
02
1
0211-
●
●
●
130
07.014 MEMBER; CROSS,END
8-94257-620-2
01
1
0211-
●
137
07.629 BRACKET; SPARE TIRE
8-97076-885-1
01
1
0211-
●
137
07.629 BRACKET; SPARE TIRE
8-97205-235-1
01
1
0505-0507
●
139
07.012 MEMBER; CROSS,6TH
8-97062-498-1
01
1
0211-
●
●
139
07.012 MEMBER; CROSS,6TH
8-97045-542-2
01
1
0211-
●
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER,LH-UPPER
8-97062-499-0
02
1
0211-
●
●
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER,LH-LOWER
8-97062-500-0
02
1
0211-
●
●
198
07.039 GUSSET; 6TH C/MBR
8-94258-081-1
02
1
0211-
●
345
07.012 MEMBER; CROSS,5TH
(A)
8-97062-497-3
01
1
0211-
●
●
345
07.012 MEMBER; CROSS,5TH
(B)
8-97076-793-2
01
1
0211-
●
358
07.039 BRACKET; CAB EARTH
8-97065-790-3
01
1
0211-0310
●
●
●
358
07.039 BRACKET; CAB EARTH
8-97210-488-0
01
1
0311-
●
●
●
