2-07B — CLUTCH BOOSTER; MINIPACK (#3755) — 152 parça

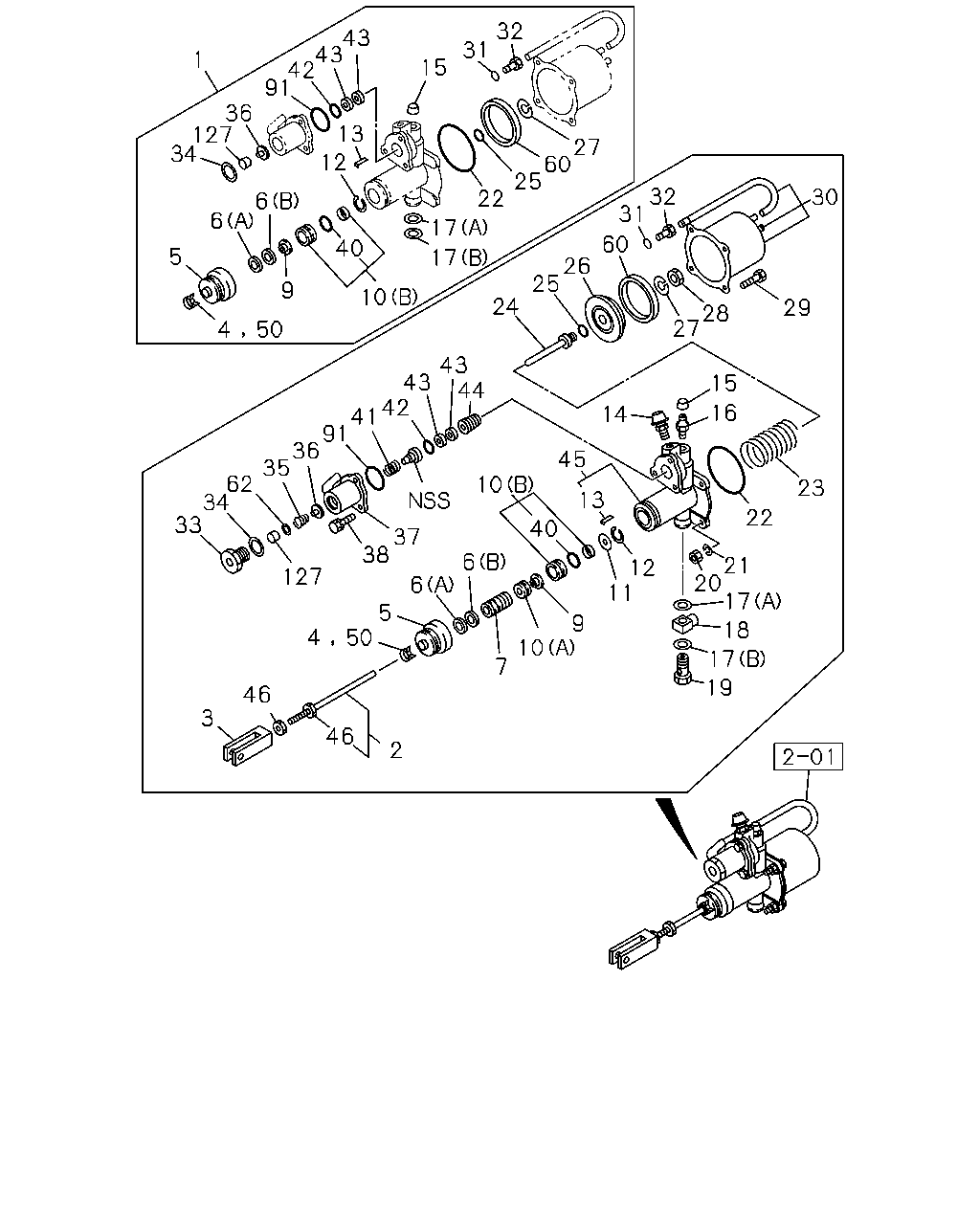

çizim 4765
32 43 43 42 91 31 1 15 36 127 34 13 27 60 25 12 32 31 30 22 6 6 17 60 40 5 17 26 25 9 10 24 29 28 27 50 4 43 43 44 42 41 91 36 35 62 34 33 15 16 14 45 10 23 13 22 40 37 38 6 21 20 17 12 11 127 6 5 50 9 18 4 10 17 7 19 46 3 46 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 REPAIR KIT; CLU BOOSTER 1-31829-326-0 01 1 9601-0106 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 0107-1102 ●
1 REPAIR KIT; CLU BOOSTER 1-31829-543-0 01 1 1103- ● ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9601-9803 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-156-0 01 1 9804-0106 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-208-0 01 1 0107-0501 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 0502-1102 ●
2 ROD; PUSH,CLU BOOSTER 1-31824-233-0 01 1 1103- ● ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9601-9803 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 9804-0106 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-538-0 01 1 0107-0307 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-0 01 1 0308-1102 ●
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1103- ● ●
4 CLAMP; BOOSTER 1-31829-168-0 01 1 9601-0106 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9601-9803 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-174-0 01 1 9804-0106 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 0107-1102 ●
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1103- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9601-9803 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 9804-1102 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-055-0 01 1 1103- ● ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9601-9803 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 9804-1102 ●
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-056-0 01 1 1103- ● ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9601-9803 ●
7 PISTON; CLU BOOSTER 1-31821-013-0 01 1 9804-0106 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 0107-1102 ●
7 PISTON; CLU BOOSTER 1-31821-048-0 01 1 1103- ● ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 9601-1102 ●
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1103- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 9601-1102 ●
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1103- ● ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 9601-1102 ●
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1103- ● ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9601-9803 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 9804-1102 ●
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1103- ● ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9601-9803 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 9804-0106 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 0107-1102 ●
12 RING; RET,CLU BOOSTER 1-31829-142-0 01 1 1103- ● ●
13 PIN; SPR 1-31829-109-0 01 1 9601-9803 ●
13 PIN; SPR 1-31829-109-0 01 1 9804-1102 ●
13 PIN; SPR 1-31829-109-0 01 1 1103- ● ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9601-9803 ●
14 COVER; EXH,CLU BOOSTER 1-31829-102-0 01 1 9804-0106 ●
14 COVER; EXH,CLU BOOSTER 1-31829-365-0 01 1 0107-0307 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 0308-1102 ●
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1103- ● ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9601-9803 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 9804-1102 ●
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1103- ● ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9601-9803 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 9804-1102 ●
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1103- ● ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9601-9803 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 9804-1102 ●
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1103- ● ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9601-9803 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 9804-1102 ●
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1103- ● ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9601-9803 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 9804-1102 ●
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1103- ● ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9601-9803 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 9804-1102 ●
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1103- ● ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 9601-1102 ●
20 NUT; END PLATE TO SHELL,CLU BOOSTER
M10 		9-09111-410-0 04 1 1103- ● ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 9601-1102 ●
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=10.2 		9-09150-510-0 04 1 1103- ● ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 9601-1102 ●
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-322-0 01 1 1103- ● ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9601-9803 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-110-0 01 1 9804-0106 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 0107-1102 ●
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1103- ● ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 9601-1102 ●
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1103- ● ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9601-9803 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 9804-1102 ●
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1103- ● ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-017-0 01 1 9601-0106 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 0107-1102 ●
26 PISTON; SHELL,CLU BOOSTER 1-31821-084-0 01 1 1103- ● ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9601-9803 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 9804-1102 ●
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1103- ● ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9601-9803 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 9804-1102 ●
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1103- ● ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 9601-1102 ●
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 9-83315-099-0 04 1 1103- ● ●
30 SHELL; CYL,CLU BOOSTER 1-31811-061-0 01 1 9601-0106 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 0107-1102 ●
30 SHELL; CYL,CLU BOOSTER 1-31811-124-0 01 1 1103- ● ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 9601-1102 ●
31 GASKET; SHELL,CLU BOOSTER 1-31829-279-0 01 1 1103- ● ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 9601-1102 ●
32 BUSHING; SHELL,CLU BOOSTER 1-31829-280-0 01 1 1103- ● ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 9601-1102 ●
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-214-0 01 1 1103- ● ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9601-9803 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 9804-1102 ●
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1103- ● ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9601-9803 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-077-0 01 1 9804-0106 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 0107-1102 ●
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1103- ● ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9601-9803 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-016-0 01 1 9804-0106 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 0107-1102 ●
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1103- ● ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-053-0 01 1 9601-0106 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 0107-1102 ●
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-085-0 01 1 1103- ● ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 9601-0106 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 0107-1102 ●
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1103- ● ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9601-9803 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 9804-1102 ●
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1103-1412 ● ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-422-0 01 1 9601-0106 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 0107-1102 ●
41 SPRING; DIAPH,CLU BOOSTER 1-31829-545-0 01 1 1103- ● ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 9601-1102 ●
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1103- ● ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9601-9803 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 9804-1102 ●
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1103- ● ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-049-0 01 1 9601-0307 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 0308-1102 ●
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1103- ● ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 9601-1102 ●
45 PLATE; END,CLU BOOSTER 1-31811-060-0 01 1 1103- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 0502-1102 ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 02 1 1103- ● ●
46 NUT; PUSH ROD,CLU BOOSTER
M10 		9-09111-410-0 01 1 9601-0106 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0107-0307 ●
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 0308-0501 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 0107-1102 ●
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1103- ● ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-058-0 01 1 9601-0106 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 0107-1102 ●
60 GASKET; SHELL,CLU BOOSTER 1-31829-544-0 01 1 1103- ● ●
62 RETAINER; POPPET 1-31829-489-0 01 1 0107-1102 ●
62 RETAINER; POPPET 1-31829-489-0 01 1 1103- ● ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9601-9803 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 9804-1102 ●
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1103- ● ●
127 FILTER; POPPET 1-31829-495-0 01 1 0107-1102 ●
127 FILTER; POPPET 1-31829-495-0 01 1 1103- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
