Sayfa 4-80 - Isuzu EPC

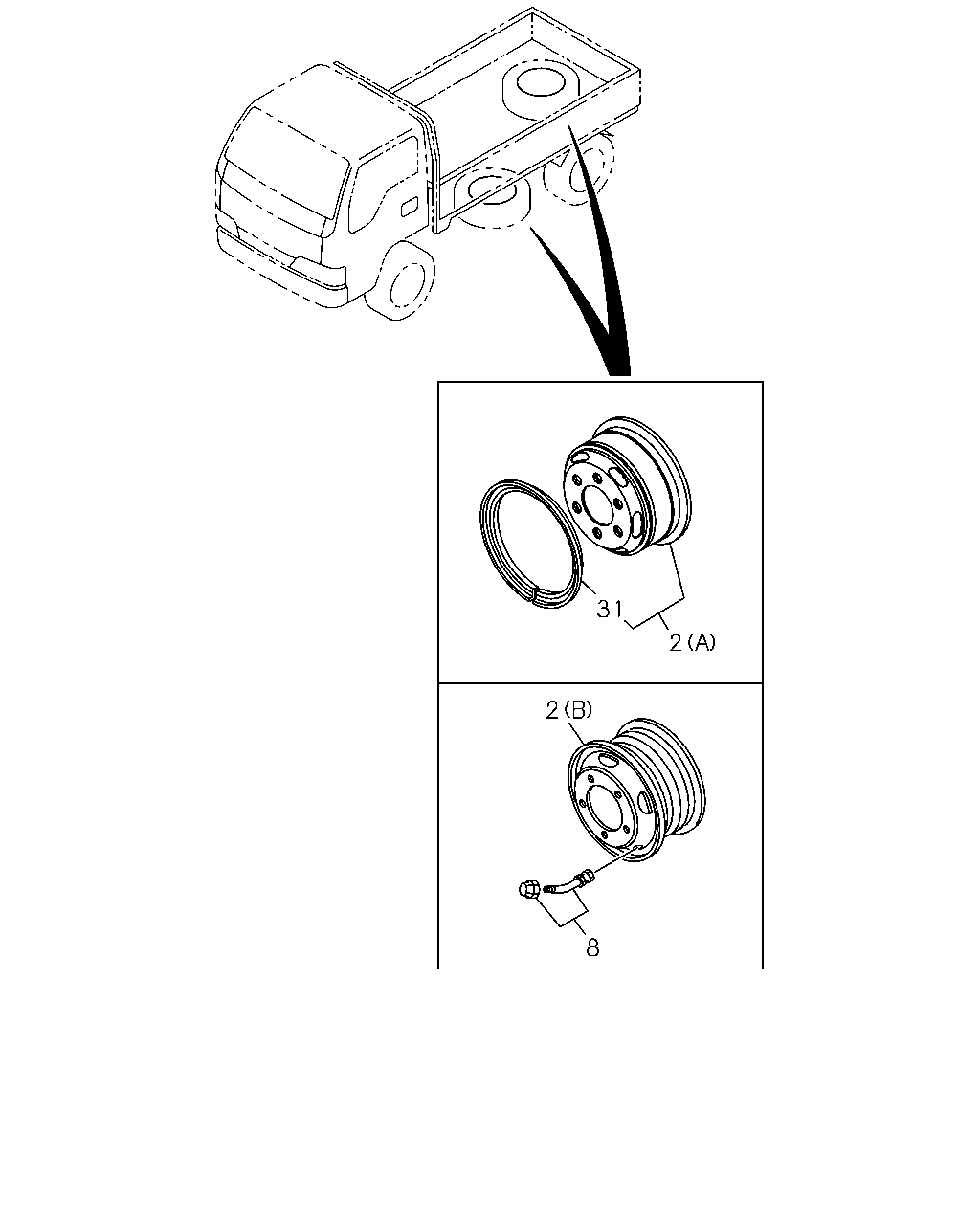

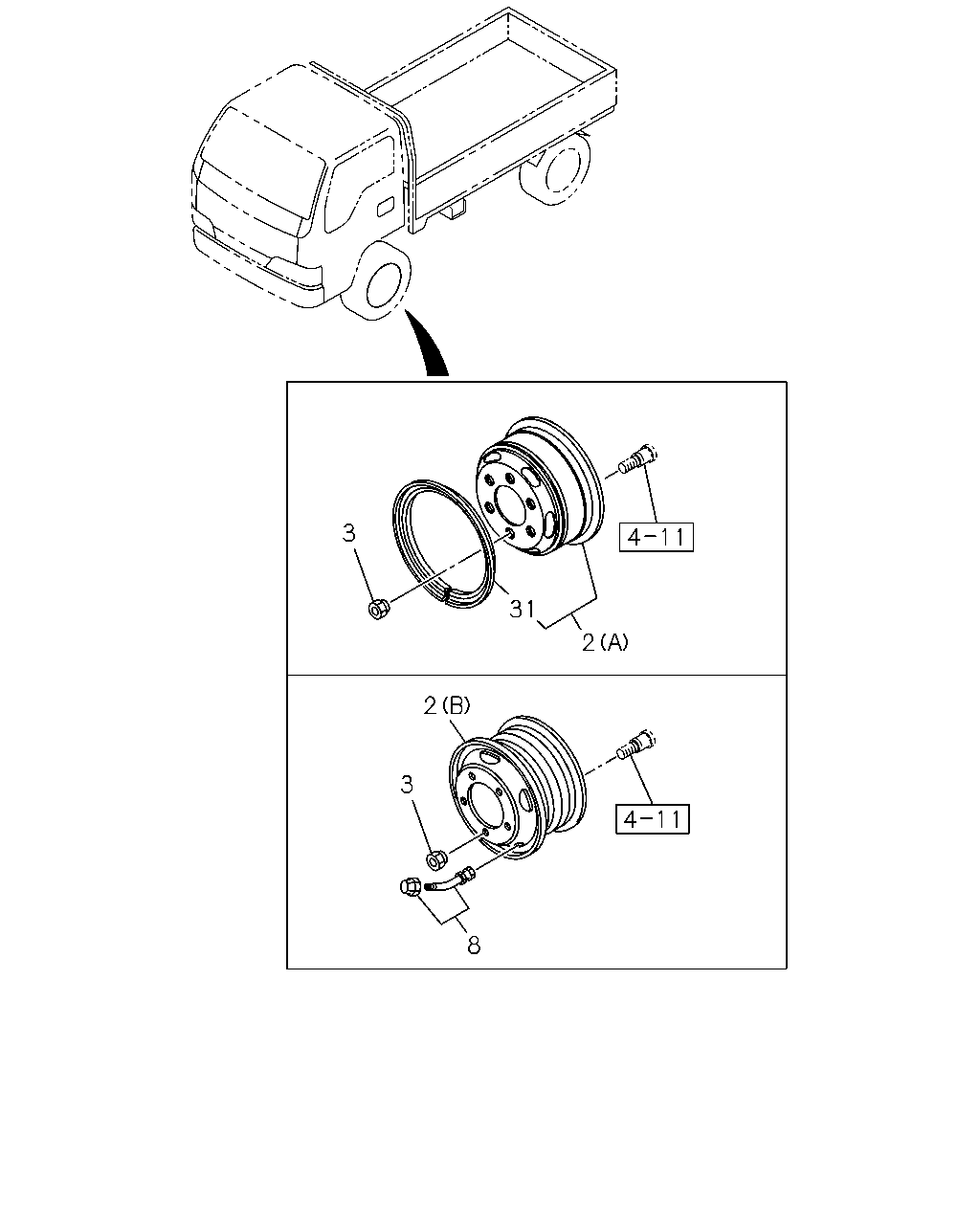

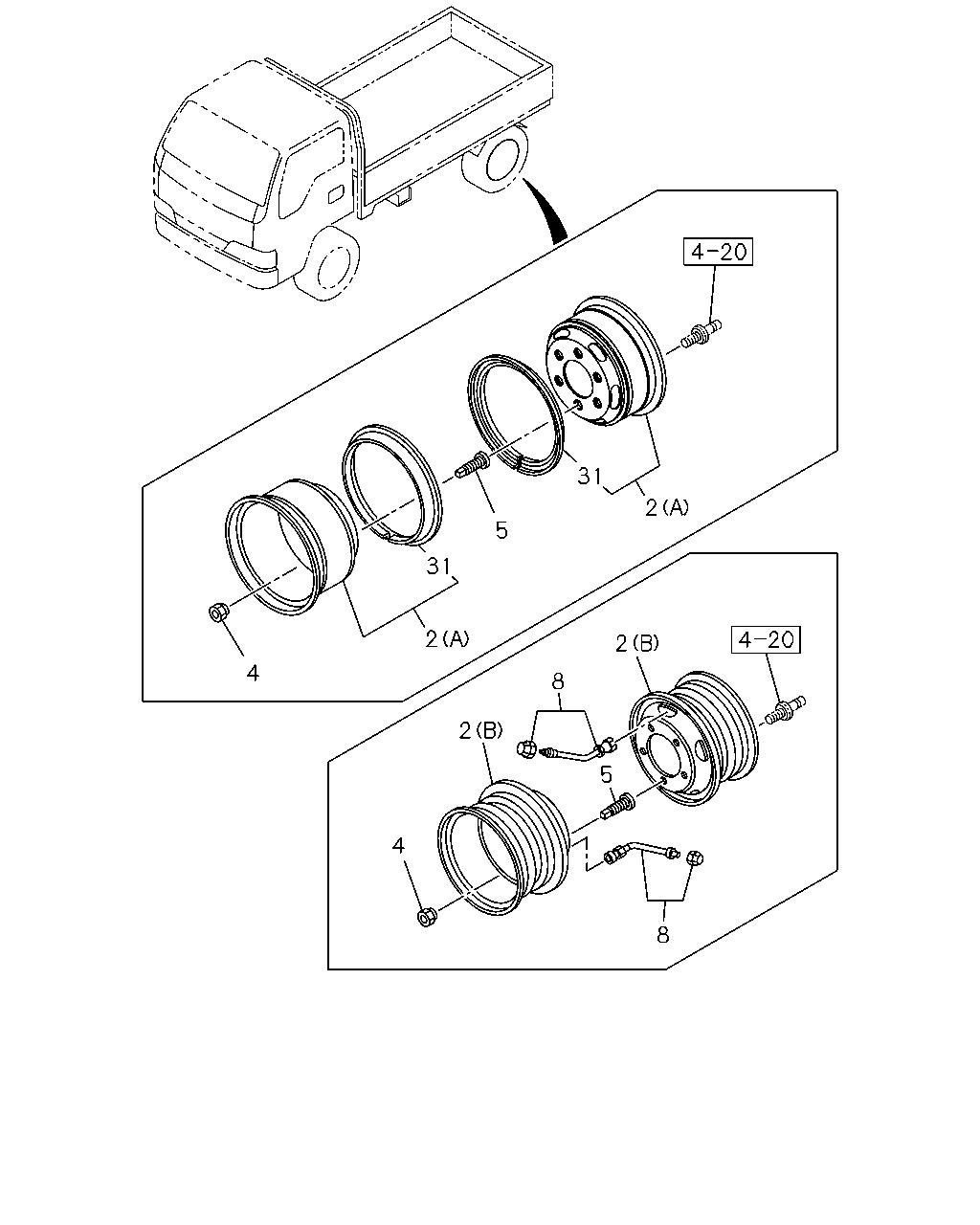

4-80 — ROAD WHEEL (#37549) — 139 parça

3 31 2 2 3 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1405-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1405-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1405-	●
2	05.803 WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-0501	●	●
2	05.803 WHEEL; DISC (B) REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	04	1	0502-0508	●	●
2	05.803 WHEEL; DISC (B) REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	04	1	0509-0910	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-0501	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	02	1	0502-0508	●	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0509-0910	●	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0911-			●
2	05.803 WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	0211-0501			●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	01	1	0502-0508	●	●	●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0509-0910	●	●	●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0911-			●
2	05.803 WHEEL; DISC (A) FRONT 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	02	1	0211-0501			●
2	05.803 WHEEL; DISC (B) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE	8-94385-056-1	01	1	0211-0508			●
2	05.803 WHEEL; DISC (B) SPARE 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	01	1	0509-			●
2	05.803 WHEEL; DISC (B) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE	8-94385-056-1	04	1	0211-0508			●
2	05.803 WHEEL; DISC (B) REAR 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	04	1	0509-			●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) M14 RH THREAD	8-98007-905-0	06	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) M14 LH THREAD	8-98007-906-0	06	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0211-0501	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-94365-147-0	05	1	0502-0610	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	0611-1405	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1406-		●	●
3	05.813 NUT; WHEEL,FRT AXLE F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) M18 RH THREAD	8-98007-907-0	05	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0211-0501	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-94365-148-0	05	1	0502-0610	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	0611-1405	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1406-		●	●
3	05.813 NUT; WHEEL,FRT AXLE F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) M18 LH THREAD	8-98007-908-0	05	1	1406-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0211-0501			●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0211-0501			●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0502-			●
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	0502-			●
8	05.875 VALVE; TIRE SPARE	8-98221-108-0	01	1	0502-			●
8	05.875 VALVE; TIRE REAR	8-98221-108-0	04	1	0502-			●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V) REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0211-0501	●	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0211-0501	●	●	●
31	05.839 RING; SIDE,DISC WHEEL FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	0211-0501			●

31 2 2 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1405-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1405-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1405-	●
2	05.803 WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-0501	●	●
2	05.803 WHEEL; DISC (B) REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	04	1	0502-0508	●	●
2	05.803 WHEEL; DISC (B) REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	04	1	0509-0910	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-0501	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	02	1	0502-0508	●	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0509-0910	●	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0911-			●
2	05.803 WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	0211-0501			●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	01	1	0502-0508	●	●	●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0509-0910	●	●	●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0911-			●
2	05.803 WHEEL; DISC (A) FRONT 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	02	1	0211-0501			●
2	05.803 WHEEL; DISC (B) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE	8-94385-056-1	01	1	0211-0508			●
2	05.803 WHEEL; DISC (B) SPARE 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	01	1	0509-			●
2	05.803 WHEEL; DISC (B) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE	8-94385-056-1	04	1	0211-0508			●
2	05.803 WHEEL; DISC (B) REAR 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	04	1	0509-			●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0502-			●
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	0502-			●
8	05.875 VALVE; TIRE SPARE	8-98221-108-0	01	1	0502-			●
8	05.875 VALVE; TIRE REAR	8-98221-108-0	04	1	0502-			●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V) REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0211-0501	●	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0211-0501	●	●	●
31	05.839 RING; SIDE,DISC WHEEL FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	0211-0501			●

31 2 5 31 2 4 4 2 8 2 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) (A) FRONT 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1405-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1405-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) SPARE 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	01	1	1405-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) (A) REAR 6.0GSX15 OFFSET=25 BLACK 6-HOLE	8-94128-017-0	02	1	1405-	●
2	05.803 WHEEL; DISC FRT&RR 7.5-15-10 5.5FX15-25(09V) (A) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1405-	●
2	05.803 WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	0211-0501	●	●
2	05.803 WHEEL; DISC (B) REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	04	1	0502-0508	●	●
2	05.803 WHEEL; DISC (B) REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	04	1	0509-0910	●	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	0211-0501	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	02	1	0502-0508	●	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0509-0910	●	●	●
2	05.803 WHEEL; DISC (B) FRONT 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0911-			●
2	05.803 WHEEL; DISC (A) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	0211-0501			●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE	8-97213-255-1	01	1	0502-0508	●	●	●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0509-0910	●	●	●
2	05.803 WHEEL; DISC (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0911-			●
2	05.803 WHEEL; DISC (A) FRONT 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	02	1	0211-0501			●
2	05.803 WHEEL; DISC (B) SPARE 4.5JX14 OFFSET=100 BLACK 6-HOLE	8-94385-056-1	01	1	0211-0508			●
2	05.803 WHEEL; DISC (B) SPARE 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	01	1	0509-			●
2	05.803 WHEEL; DISC (B) REAR 4.5JX14 OFFSET=100 BLACK 6-HOLE	8-94385-056-1	04	1	0211-0508			●
2	05.803 WHEEL; DISC (B) REAR 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	04	1	0509-			●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) M14 RH THREAD	8-98007-905-0	06	1	1407-	●
4	05.813 NUT; WHEEL,RR AXLE FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) M14 LH THREAD	8-98007-906-0	06	1	1407-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-94365-145-0	05	1	0211-0610	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	0611-1405	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1406-		●
4	05.813 NUT; WHEEL,RR AXLE F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) M27 RH THREAD	8-98007-824-0	05	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-94365-146-0	05	1	0211-0610	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	0611-1405	●	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1406-		●
4	05.813 NUT; WHEEL,RR AXLE F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) M27 LH THREAD	8-98007-825-0	05	1	1406-	●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	9-42333-015-0	06	1	0211-0610			●
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	8-98007-830-0	06	1	0611-			●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	9-42334-009-0	06	1	0211-0610			●
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	8-98007-831-0	06	1	0611-			●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-94365-143-1	05	1	0211-0610	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	0611-1405	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1406-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1406-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-94365-144-1	05	1	0211-0610	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	0611-1405	●	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1406-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WH L/NUT(CVS) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1406-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	5-42335-001-1	06	1	0211-0610			●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	8-98007-828-0	06	1	0611-			●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	5-42336-001-1	06	1	0211-0610			●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	8-98007-829-0	06	1	0611-			●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	0502-			●
8	05.875 VALVE; TIRE FRONT	8-98221-106-0	02	1	0502-			●
8	05.875 VALVE; TIRE SPARE	8-98221-108-0	01	1	0502-			●
8	05.875 VALVE; TIRE REAR	8-98221-108-0	04	1	0502-			●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT&RR 7.5-15-10 5.5FX15-25(09V),FRT 7-15-10 5.5FX15-25 RR 7.5-15-126GSX15-25(25H) FRONT 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V) REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) SPARE 15X6.00GS STAMP, BLACK	8-94135-600-0	01	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-12 F&R/DISC 5.5F- 15-25(CUQ),FRT 7-15-10 5.5FX15-25 RR 7.5-15-12 6GSX15-25(25H) REAR 15X6.00GS STAMP, BLACK	8-94135-600-0	04	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.5-15-10 5.5FX15-25(09V) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1405-	●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	0211-0501	●	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	0211-0501	●	●	●
31	05.839 RING; SIDE,DISC WHEEL FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	0211-0501			●
