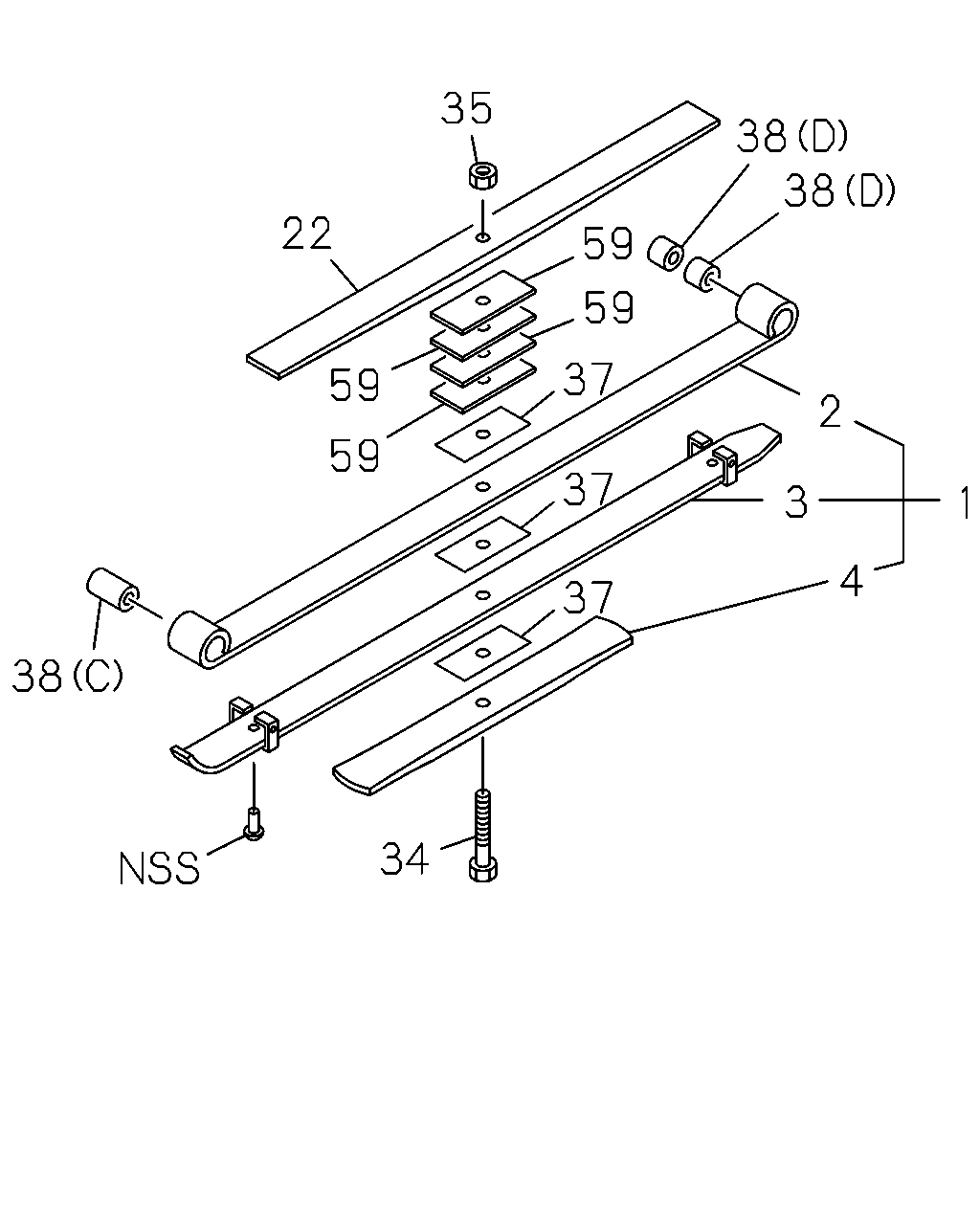

4-65B — REAR LEAF SPRING (#37548) — 14 parça

35 38 38 22 59 59 37 59 2 59 37 3 1 4 37 38 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97033-492-4, 97033492	8-97083-767-0	01	1	-0303
1	07.503 SPRING ASM; LEAF,RR MAIN ASM PART: A = 8-97033-492-4, 97033492	8-97367-623-0	01	1	0304-
2	07.505 SPRING; LEAF,NO 1,RR MAIN ASM PART: A = 8-97033-492-4, 97033492	8-97083-768-0	01	1	-
3	07.505 SPRING; LEAF,NO 2,RR MAIN ASM PART: A = 8-97033-492-4, 97033492	8-97083-769-0	01	1	-
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-492-4, 97033492	8-97083-770-0	01	1	-0303
4	07.505 SPRING; LEAF,NO 3,RR MAIN ASM PART: A = 8-97033-492-4, 97033492	8-97367-624-0	01	1	0304-
22	07.505 SPRING; LEAF,NO 1,RR SUB ASM PART: A = 8-97033-492-4, 97033492	8-97083-772-0	01	1	-
34	07.506 BOLT; CENTER,LEAF SPR,RR MAIN L=105 ASM PART: A = 8-97033-492-4, 97033492	8-94165-307-0	01	1	-
35	07.506 NUT; CENTER BOLT,LEAF SPR,RR 08.917, M12 LOCK NUT ASM PART: A = 8-97033-492-4, 97033492	9-09131-512-0	01	1	-
37	07.518 SPACER; CENTER,LEAF SPR,RR T=1 ASM PART: A = 8-97033-492-4, 97033492	8-97084-102-0	03	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), BEST VALUE PARTS ASM PART: A = 8-97033-492-4, 97033492	5-87610-163-0	01	1	-
38	07.505 BUSHING; LEAF SPR,RR 07.524, (D) ASM PART: A = 8-97033-492-4, 97033492	8-94118-588-1	02	1	-
38	07.505 BUSHING; LEAF SPR,RR (C), OD=42 L=81 ASM PART: A = 8-97033-492-4, 97033492	8-97074-826-0	01	1	-
59	07.513 SEAT; RR SPRING,SUB 07.518, T=8 ASM PART: A = 8-97033-492-4, 97033492	8-97084-668-0	04	1	-
