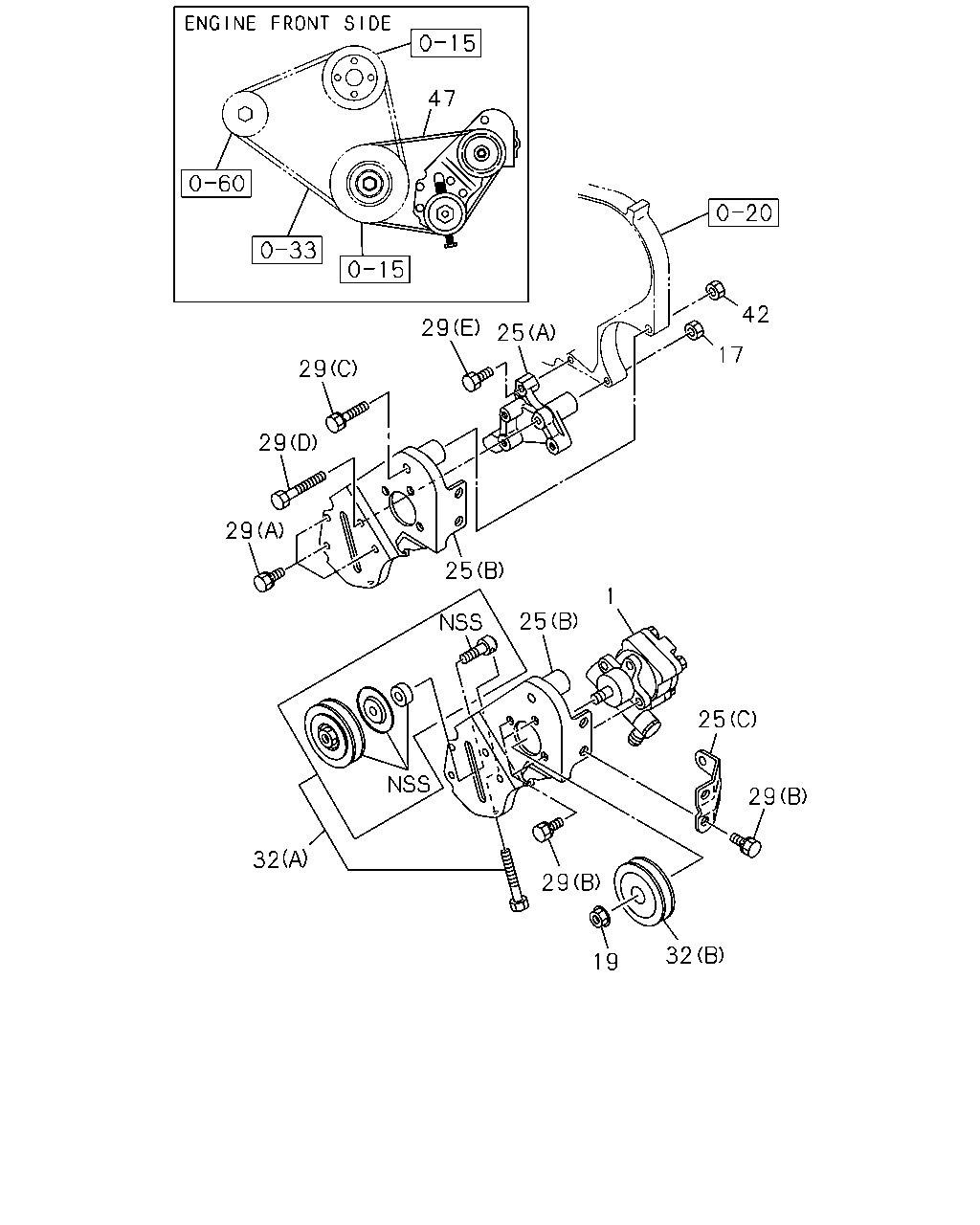

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#37539) — 27 parça

47 29 25 29 29 29 25 17 42 25 1 25 29 32 19 29 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-97354-730-1	01	1	0211-1303	●	●	●
1	06.605 PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	8-98217-772-0	01	1	1304-	●	●	●
17	06.606 NUT; POWER STRG PUMP 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●
17	06.606 NUT; POWER STRG PUMP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 06.606 M12	8-94139-015-0	01	1	0211-0610	●	●	●
19	07.874 NUT; PULLEY,OIL PUMP 07.395 M12	8-97360-126-0	01	1	0611-	●	●	●
25	06.606 BRACKET; P/S PUMP (B)	8-97065-974-0	01	1	0211-	●	●	●
25	06.606 BRACKET; P/S PUMP (A)	8-97107-869-0	01	1	0211-	●	●	●
25	06.606 BRACKET; P/S PUMP (C)	8-97107-872-0	01	1	0211-	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 03.278 (D) M8X100 FLANGE	0-28080-800-0	01	1	0211-0512	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 00.386 (D) M8X100 FLANGE	0-28050-800-0	01	1	0601-	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 01.062 (A) M8X16 FLANGE	0-28080-816-0	03	1	0211-0512	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 01.251 (E) M8X60 FLANGE	0-28080-860-0	01	1	0211-0512	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 04.686 (E) M8X60 FLANGE	0-28050-860-0	01	1	0601-	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 09.198 (C) M10X100 FLANGE	0-28081-000-0	01	1	0211-0512	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 09.181 (C) M10X100 FLANGE	0-28051-000-0	01	1	0601-	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 03.611 (B) M10X20 FLANGE	0-28681-020-0	05	1	0211-0512	●	●	●
29	09.171 BOLT; BRKT,POWER STRG 02.343 (B) M10X20 FLANGE	0-28651-020-0	05	1	0601-	●	●	●
32	06.665 PULLEY; IDLER,P/S 06.655 (A)	8-94128-866-0	01	1	0211-	●	●	●
32	06.665 PULLEY; IDLER,P/S (B)	8-97084-332-2	01	1	0211-1303	●	●	●
32	06.665 PULLEY; IDLER,P/S (B)	8-98217-771-0	01	1	1304-	●	●	●
42	06.672 NUT; ADJ PLATE 04.785 M10 FLANGE	0-91150-110-0	01	1	0211-0602	●	●	●
42	06.672 NUT; ADJ PLATE 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-	●	●	●
47	01.066 BELT; P/S PUMP	8-97085-131-0	01	1	0211-0501	●	●	●
47	01.066 BELT; P/S PUMP	8-97085-131-0	01	1	0211-	●	●	●
47	01.066 BELT; P/S PUMP BEST VALUE PARTS	5-87610-096-0	01	1	0211-	●	●	●
