4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#37538) — 85 parça

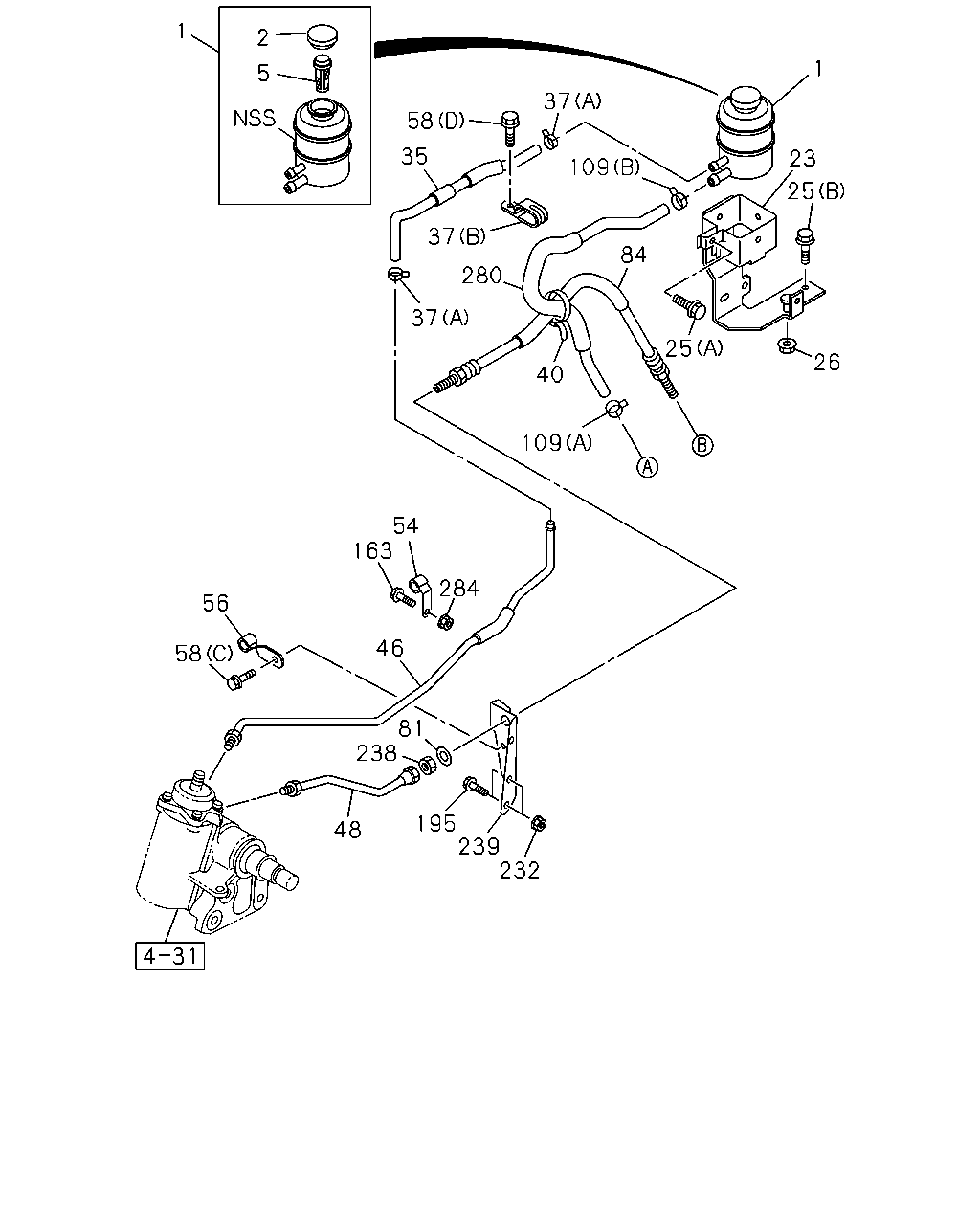

çizim 71584
1 2 1 5 37 58 35 109 23 25 37 84 280 37 25 26 40 109 54 163 284 56 46 58 81 238 195 239 232 48
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.635 TANK ASM; OIL,P/S 8-97107-987-0 01 1 0211- ● ● ●
2 06.672 CAP; OIL TANK,P/S
06.635 		8-94146-153-2 01 1 0211- ● ● ●
5 06.600 STRAINER; OIL TANK,P/S 8-97094-732-0 01 1 0211- ● ● ●
23 06.672 BRACKET; OIL TANK,P/S 8-97289-416-0 01 1 0211- ● ● ●
25 06.635 BOLT; OIL TANK BRKT
00.785 (A) M6X20 FLANGE 		0-28480-620-0 01 1 0211-0512 ● ● ●
25 06.635 BOLT; OIL TANK BRKT
00.785 (A) M6X20 FLANGE 		0-28450-620-0 01 1 0601- ● ● ●
25 06.635 BOLT; OIL TANK BRKT
02.559 (B) M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
25 06.635 BOLT; OIL TANK BRKT
06.216 (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
26 06.635 NUT; OIL TANK TO BRKT
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0602 ● ● ●
26 06.635 NUT; OIL TANK TO BRKT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●
35 06.671 HOSE; RETURN,P/S TANK 8-97289-444-1 01 1 0211- ● ● ●
37 01.762 CLIP; HOSE,P/S
04.047 (B) WO/SCREW 		1-09700-988-0 01 1 0211- ● ● ●
37 01.762 CLIP; HOSE,P/S
04.930 (A) ID=16 		8-94238-568-0 02 1 0211-0911 ● ● ●
37 01.762 CLIP; HOSE,P/S
03.162 (A) ID=16 		8-98008-098-0 02 1 0912- ● ● ●
40 06.672 CLIP; BAND
02.559 L=250 		5-09707-030-1 01 1 0211- ● ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK 8-97262-190-0 01 1 0211-0302 ● ● ●
46 06.671 PIPE; OIL,P/S UNIT TO OIL TANK
05.510 		8-97364-359-0 01 1 0303- ● ● ●
48 06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97261-623-0 01 1 0211-0302 ● ● ●
48 06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 8-97364-352-0 01 1 0303- ● ● ●
54 06.672 CLIP; OIL PIPE
ID=11 L=40 		8-94259-342-0 01 1 0211- ● ● ●
56 06.672 CLIP; OIL PIPE
ID=11 L=40 		8-94123-171-1 01 1 0211-0501 ● ● ●
56 06.672 CLIP; OIL PIPE
ID=11 L=40 		8-94123-171-1 02 1 0502-0702 ● ● ●
56 06.672 CLIP; OIL PIPE
ID=11 L=40 		8-94123-171-1 01 1 0703- ● ● ●
58 06.672 BOLT; CLIP
00.206 (A) M6X20 		8-94279-112-0 01 1 0211- ● ● ●
58 06.672 BOLT; CLIP
00.034 (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0211- ● ● ●
58 06.672 BOLT; CLIP
04.439 (C) M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501 ● ● ●
58 06.672 BOLT; CLIP
04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 0502-0512 ● ● ●
58 06.672 BOLT; CLIP
02.343 (C) M6X16 FLANGE 		0-28650-616-0 02 1 0601-0702 ● ● ●
58 06.672 BOLT; CLIP
02.343 (C) M6X16 FLANGE 		0-28650-616-0 01 1 0703- ● ● ●
58 06.672 BOLT; CLIP
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ● ●
58 06.672 BOLT; CLIP
00.685 (D) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0211-0603 ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0211-0603 ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ● ●
84 06.670 HOSE; FLEX,P/S 8-97260-171-2 01 1 0211-0301 ● ● ●
84 06.670 HOSE; FLEX,P/S 8-97358-340-0 01 1 0302-0302 ● ● ●
84 06.670 HOSE; FLEX,P/S 8-97358-343-0 01 1 0303-0411 ● ● ●
84 06.670 HOSE; FLEX,P/S 8-98002-443-0 01 1 0412- ● ● ●
109 06.672 CLIP; RUBBER HOSE
(A) ID=21 		8-94242-034-0 01 1 0211-0911 ● ● ●
109 06.672 CLIP; RUBBER HOSE
04.681 (A) ID=21 		8-98150-355-0 01 1 0912- ● ● ●
109 06.672 CLIP; RUBBER HOSE
08.846 (B) ID=22 		8-94382-401-0 01 1 0211-1003 ● ● ●
109 06.672 CLIP; RUBBER HOSE
03.278 (B) ID=22 		8-97359-141-0 01 1 1004- ● ● ●
163 06.671 BOLT; OIL PIPE
02.559 M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ● ●
163 06.671 BOLT; OIL PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ● ●
195 06.635 BOLT; BRKT
02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ● ●
195 06.635 BOLT; BRKT
06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ● ●
232 06.672 NUT; BRKT
07.633 M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ● ●
232 06.672 NUT; BRKT
01.062 M8 FLANGE 		0-91180-108-0 02 1 0603- ● ● ●
238 06.670 NUT; FLEX HOSE
06.897 M16 		8-94370-339-0 01 1 0211- ● ● ●
239 06.606 BRACKET; FLEX HOSE 8-97089-879-0 01 1 0211- ● ● ●
280 06.672 HOSE; P/S OIL PUMP,INL 8-97315-641-1 01 1 0211- ● ● ●
284 06.670 NUT; PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0211-0501 ● ● ●
284 06.670 NUT; PIPE
07.633 M8 FLANGE 		0-91150-108-0 02 1 0502-0504 ● ● ●
284 06.670 NUT; PIPE
07.633 M8 FLANGE 		0-91150-108-0 01 1 0505-0602 ● ● ●
284 06.670 NUT; PIPE
01.062 M8 FLANGE 		0-91180-108-0 01 1 0603- ● ● ●

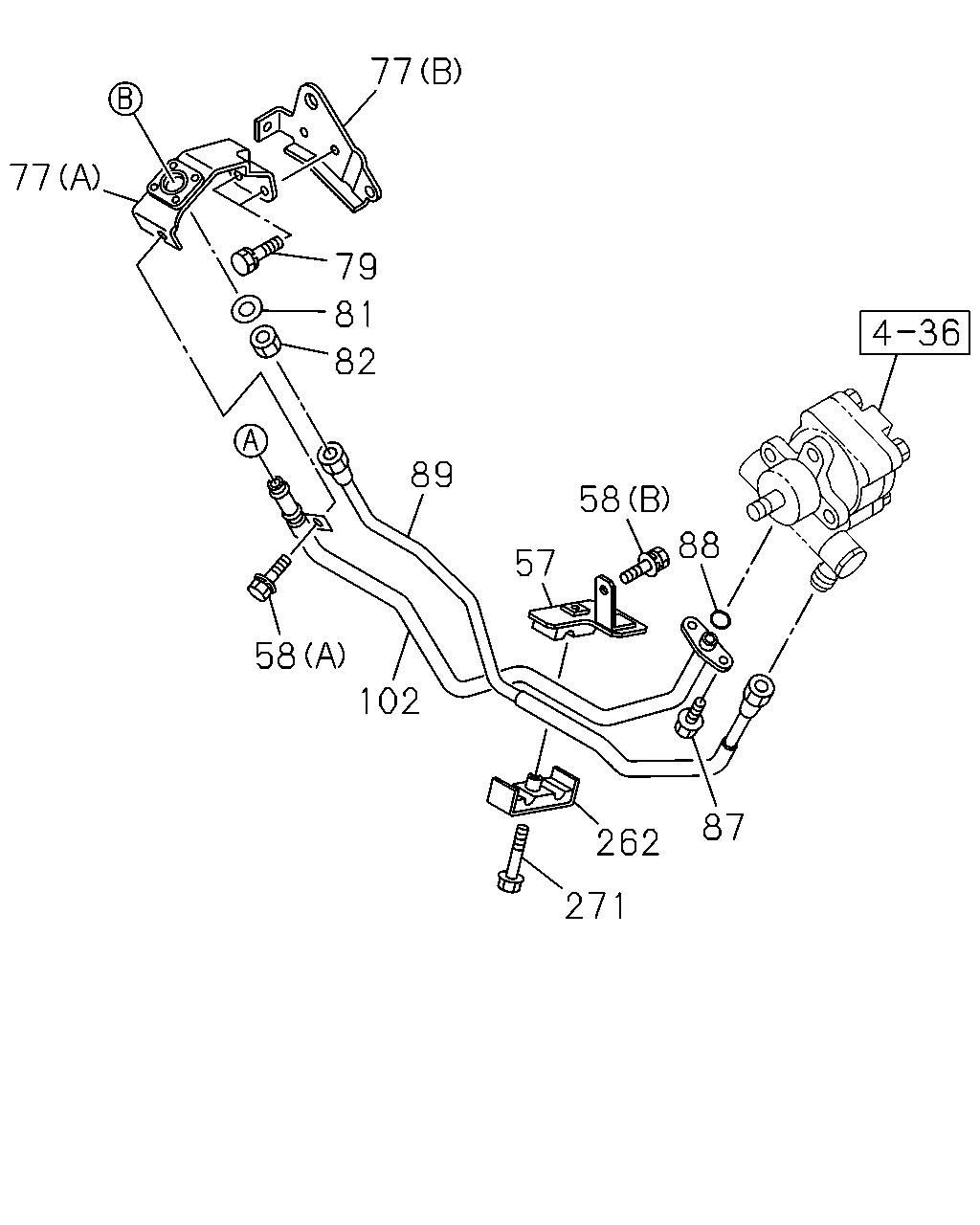

çizim 71585
77 77 79 81 82 89 58 88 57 58 102 87 262 271
BalonParca AdiParca NoAdetTipApplied Date A B C
57 06.672 BRACKET; POWER STRG PIPE 8-97312-558-3 01 1 0211- ● ● ●
58 06.672 BOLT; CLIP
00.206 (A) M6X20 		8-94279-112-0 01 1 0211- ● ● ●
58 06.672 BOLT; CLIP
00.034 (B) M8X22 W/LK&PL WASHER 		8-94329-953-1 01 1 0211- ● ● ●
58 06.672 BOLT; CLIP
04.439 (C) M6X16 FLANGE 		0-28680-616-0 01 1 0211-0501 ● ● ●
58 06.672 BOLT; CLIP
04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 0502-0512 ● ● ●
58 06.672 BOLT; CLIP
02.343 (C) M6X16 FLANGE 		0-28650-616-0 02 1 0601-0702 ● ● ●
58 06.672 BOLT; CLIP
02.343 (C) M6X16 FLANGE 		0-28650-616-0 01 1 0703- ● ● ●
58 06.672 BOLT; CLIP
02.334 (D) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ● ●
58 06.672 BOLT; CLIP
00.685 (D) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●
77 06.672 BRACKET; POWER STEERING HOSE
(A) 		8-97208-424-0 01 1 0211- ● ● ●
77 06.672 BRACKET; POWER STEERING HOSE
(B) 		8-97240-137-0 01 1 0211- ● ● ●
79 06.672 BOLT; BRKT
08.900 M8X20 W/LK WASHER 		0-50040-820-0 02 1 0211-0909 ● ● ●
79 06.672 BOLT; BRKT
00.206 M8X20 W/LK WASHER 		0-50540-820-0 02 1 0910- ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0211-0603 ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		9-09151-216-0 01 1 0211-0603 ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ● ●
81 06.672 WASHER; LK,FLEX HOSE
ID=16.5 TOOTH LK INT 		0-91541-216-0 01 1 0604- ● ● ●
82 06.672 NUT; FLEX HOSE,P/S
06.897 M16 		8-94370-339-0 01 1 0211- ● ● ●
87 06.672 BOLT; POWER STRG PIPE
08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0211-0512 ● ● ●
87 06.672 BOLT; POWER STRG PIPE
02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0601-1303 ● ● ●
87 06.672 BOLT; POWER STRG PIPE
M8X14 FLANGE 		8-98219-171-0 02 1 1304- ● ● ●
88 06.673 RING; OIL PIPE
06.609 ID=11.0 		9-09561-111-0 01 1 0211- ● ● ●
89 06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 8-97312-556-0 01 1 0211-1303 ● ● ●
89 06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 8-98218-675-0 01 1 1304- ● ● ●
102 06.671 PIPE; SUCTION,P/S 8-97312-557-1 01 1 0211-1303 ● ● ●
102 06.671 PIPE; SUCTION,P/S 8-98218-669-0 01 1 1304- ● ● ●
262 06.672 CLIP; P/S PIPE 8-97300-961-1 01 1 0211- ● ● ●
271 06.672 BOLT; P/S OIL PIPE FIX
03.704 M8X40 FLANGE 		0-28680-840-0 01 1 0211-0512 ● ● ●
271 06.672 BOLT; P/S OIL PIPE FIX
00.685 M8X40 FLANGE 		0-28650-840-0 01 1 0601- ● ● ●
