◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#37533) — 89 parça
çizim 17363
67 96 96 67
BalonParca AdiParca NoAdetTipApplied Date A B C
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
(A) 		8-97011-997-3 01 1 0502-0610 ●
96 04.730 BRACKET; LSPV,AXLE CASE
(A) 		8-98030-956-0 01 1 0611- ●
96 04.730 BRACKET; LSPV,AXLE CASE
(A) 		8-97011-997-3 01 1 0211-0501 ●
96 04.730 BRACKET; LSPV,AXLE CASE
(B) 		8-97161-213-1 01 1 0211-0508 ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
(B) 		8-98024-418-0 01 1 0509-0610 ● ●
96 04.730 BRACKET; LSPV,AXLE CASE
(B) 		8-98030-957-0 01 1 0611- ● ●

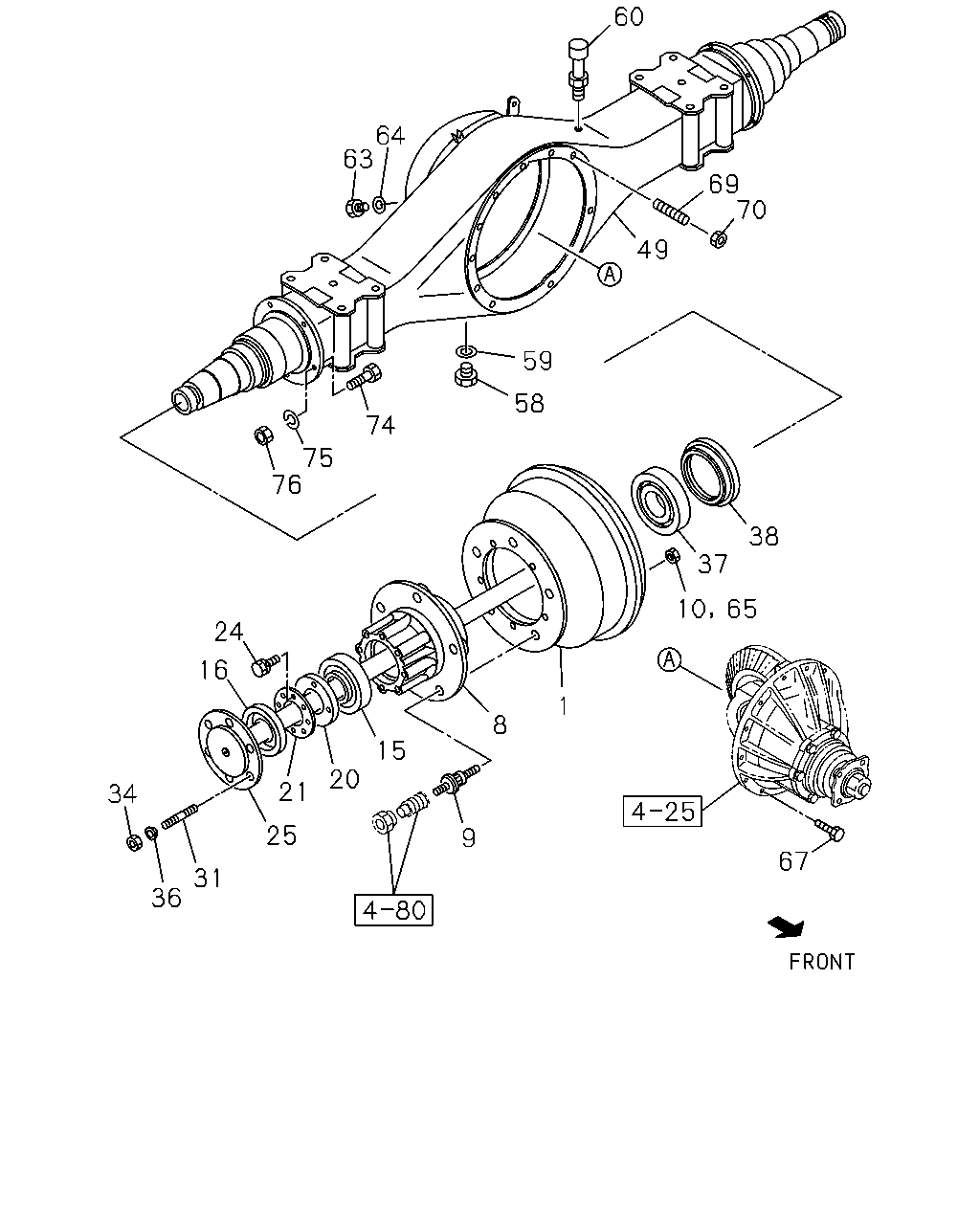

çizim 74031
60 64 63 69 70 49 59 58 74 75 76 38 37 10 65 24 16 1 8 15 20 21 34 25 9 67 31 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 05.809 DRUM; BRK,RR 8-97034-770-3 02 1 0211-1310 ● ●
1 05.809 DRUM; BRK,RR 8-98248-900-0 02 1 1311- ● ●
1 05.809 DRUM; BRK,RR 5-42315-041-4 02 1 0211-0501 ●
1 05.809 DRUM; BRK,RR 8-97169-806-2 02 1 0502- ●
8 05.809 HUB; RR AXLE 8-97026-139-3 02 1 0211-0501 ● ●
8 05.809 HUB; RR AXLE 8-97034-406-4 02 1 0502- ● ●
8 05.809 HUB; RR AXLE 8-97032-606-3 02 1 0211-0501 ●
8 05.809 HUB; RR AXLE 8-97240-322-1 02 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD 		8-94383-436-2 05 1 0211- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-2 05 1 0211- ● ●
9 05.812 PIN; WHEEL,RR AXLE
M16X35,M16X26 RH THREAD 		8-94365-254-0 06 1 0211-0501 ●
9 05.812 PIN; WHEEL,RR AXLE
M16X26,M16X37 RH THREAD 		8-98000-404-1 06 1 0502- ●
9 05.812 PIN; WHEEL,RR AXLE
M16X35,M16X26 LH THREAD 		8-94365-255-0 06 1 0211-0501 ●
9 05.812 PIN; WHEEL,RR AXLE
M16X26 LH THREAD,M16X37 RH THREAD 		8-98000-406-1 06 1 0502- ●
10 05.813 NUT; WHEEL PIN,RR AXLE
M16 LH THREAD 		8-94161-997-0 06 1 0211-0501 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
08.915 M16 		9-99110-516-0 06 1 0211-0501 ●
10 05.813 NUT; WHEEL PIN,RR AXLE
00.050 M20 		9-99110-520-0 10 1 0211-0512 ● ●
10 05.813 NUT; WHEEL PIN,RR AXLE
05.812 M20 		0-91110-520-0 10 1 0601- ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
NSK 		9-00093-082-0 02 1 0211- ● ● ●
15 05.855 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		5-87610-140-0 02 1 0211- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
TKK 		8-94336-315-2 02 1 0211-1207 ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-98202-911-0 02 1 1208- ● ● ●
16 05.822 SEAL; OIL,RR HUB,OUTER
NOK 		8-94367-961-1 02 1 0211-1106 ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-97137-092-0 02 1 0211-1303 ● ● ●
20 05.830 NUT; BRG,RR HUB
M52 		8-98236-850-0 02 1 1304- ● ● ●
21 05.830 WASHER; LK,BRG NUT
ID=52 		9-09853-214-0 02 1 0211- ● ● ●
24 05.830 BOLT; LK WASHER
00.685 M6X12 W/LK WASHER 		0-50040-612-0 04 1 0211-0512 ● ● ●
24 05.830 BOLT; LK WASHER
03.342 M6X12 W/LK WASHER 		0-50540-612-0 04 1 0601-0611 ● ● ●
24 05.830 BOLT; LK WASHER
03.671 M6X10 FLANGE 		0-28050-610-0 04 1 0612- ● ● ●
25 05.420 SHAFT; AXLE,RR 8-97032-496-0 02 1 0211- ● ●
25 05.420 SHAFT; AXLE,RR 8-97030-537-0 02 1 0211- ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 16 1 0211-0709 ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 16 1 0710- ● ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		5-09300-066-1 12 1 0211-0709 ●
31 05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49 		8-97359-803-0 12 1 0710- ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 16 1 0211-0602 ● ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 16 1 0603- ● ●
34 05.387 NUT; AXLE SHAFT
08.917 M10 FLANGE 		0-91150-210-0 12 1 0211-0602 ●
34 05.387 NUT; AXLE SHAFT
04.085 M10 FLANGE 		0-91180-210-0 12 1 0603- ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 16 1 0211-0709 ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 16 1 0710- ● ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		9-09855-207-0 12 1 0211-0709 ●
36 05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5 		8-97360-004-0 12 1 0710- ●
37 05.855 BEARING; HUB INNER,RR AXLE
NSK 		9-00093-081-0 02 1 0211- ● ● ●
37 05.855 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		5-87610-142-0 02 1 0211- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
TKK 		8-94336-314-1 02 1 0211- ● ● ●
38 05.822 SEAL; OIL,RR HUB,INNER
NOK 		8-94367-959-0 02 1 0211- ● ● ●
49 05.387 CASE; RR AXLE 8-97032-861-4 01 1 0211-0501 ● ●
49 05.387 CASE; RR AXLE 8-97251-368-3 01 1 0502- ● ●
49 05.387 CASE; RR AXLE 8-97324-654-1 01 1 0211-0501 ●
49 05.387 CASE; RR AXLE 8-98004-293-1 01 1 0502- ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0211-0611 ● ● ●
58 05.508 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ● ●
59 05.400 GASKET; DRAIN PLUG
01.252 ID=16.2 OD=24 		9-09571-416-0 01 1 0211- ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0211-0409 ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-0606 ● ● ●
60 05.387 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 0211-0611 ● ● ●
63 05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ● ●
64 05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0211- ● ● ●
65 05.387 NUT
05.586 M16 FLANGE 		1-09449-065-0 12 1 0502- ●
67 05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 11 1 0211-0909 ● ● ●
67 05.387 BOLT; FINAL DRIVE SETTING
06.156 M10X40 W/LK WASHER 		0-50561-040-0 11 1 0910- ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0211-0610 ● ● ●
69 05.387 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ● ●
70 05.387 NUT; CARRIER
08.917 M10 FLANGE 		0-91150-210-0 02 1 0211-0602 ● ● ●
70 05.387 NUT; CARRIER
04.085 M10 FLANGE 		0-91180-210-0 02 1 0603- ● ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 12 1 0211-0611 ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 12 1 0612- ● ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		5-09000-078-0 08 1 0211-0611 ●
74 05.002 BOLT; RR BRK ASM SETTING
M12X32 		8-97359-819-0 08 1 0612- ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 12 1 0211-0603 ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=12.2 		0-91510-612-0 12 1 0604-0611 ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 12 1 0612- ● ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
06.515 ID=12.2 		9-09150-612-0 08 1 0211-0603 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
00.002 ID=12.2 		0-91510-612-0 08 1 0604-0611 ●
75 05.002 WASHER; LK,RR BRK ASM SETTING
07.347 ID=12.2 		0-91510-812-0 08 1 0612- ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 12 1 0211-0512 ● ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 12 1 0601- ● ●
76 05.002 NUT; RR BRK ASM SETTING
04.634 M12 		9-99110-512-0 08 1 0211-0512 ●
76 05.002 NUT; RR BRK ASM SETTING
M12 		0-91110-512-0 08 1 0601- ●
