4-11 — FRONT HUB AND DRUM OR ROTOR (#37532) — 66 parça

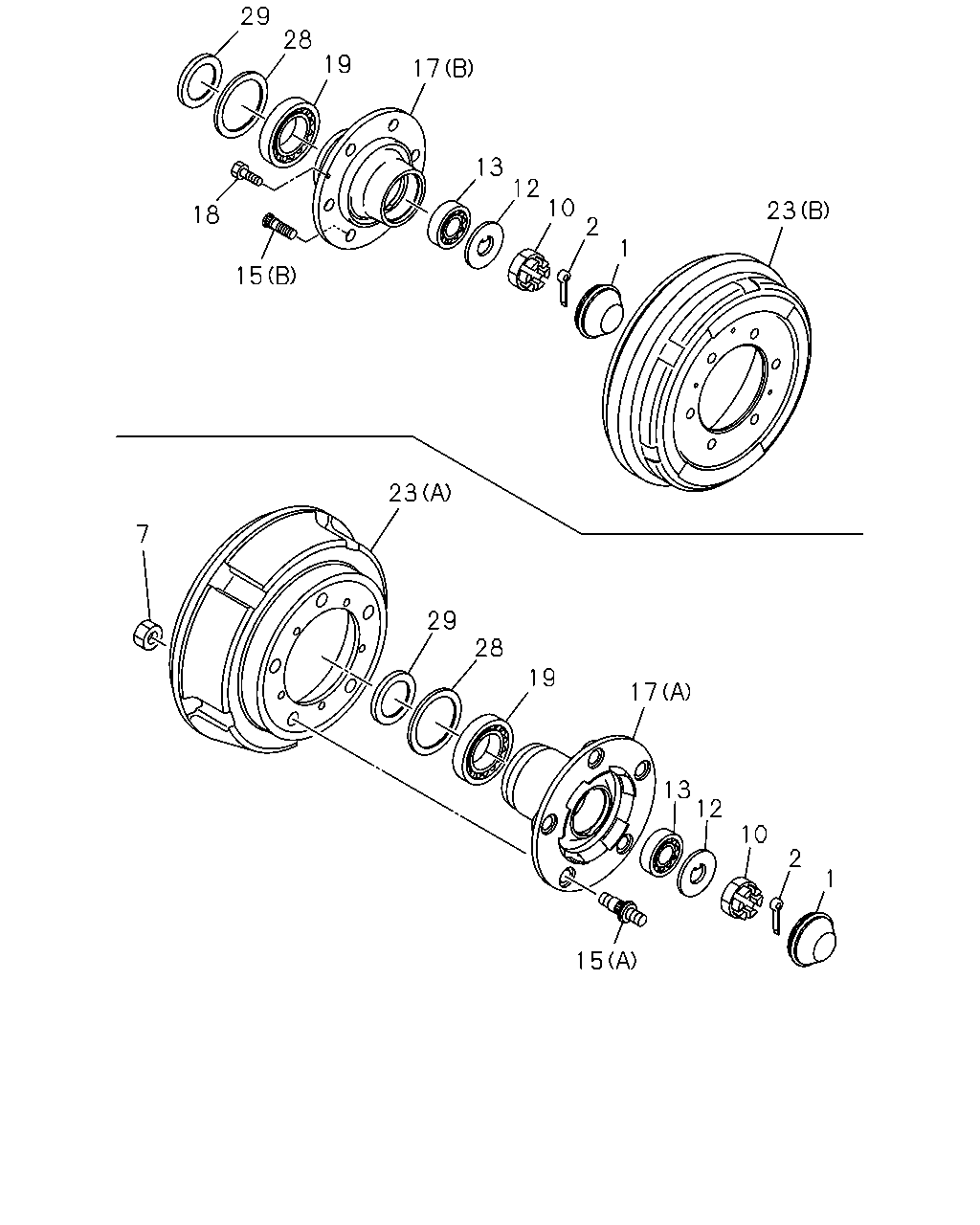

çizim 71911
29 28 19 17 13 12 10 2 23 18 1 15 23 7 29 28 19 17 13 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0611 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0606 ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ●
7 05.812 NUT; FRT HUB
00.050 M20 		9-99110-520-0 10 1 0211-0501 ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211- ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-1502 ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
(A) 		8-94365-459-0 02 1 0211-0501 ● ●
17 06.307 HUB; FRT AXLE
(C) 		8-97035-160-0 02 1 0502- ● ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94420-597-1 02 1 0211-0501 ●
18 06.022 BOLT; DRUM TO HUB
04.012 M8X18 		0-20800-618-0 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
23 05.809 DRUM; BRK,FRT
(A) 		8-94385-650-3 02 1 0211-0501 ● ●
23 05.809 DRUM; BRK,FRT
(B) 		8-97085-071-1 02 1 0211-0501 ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211- ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211- ● ● ●

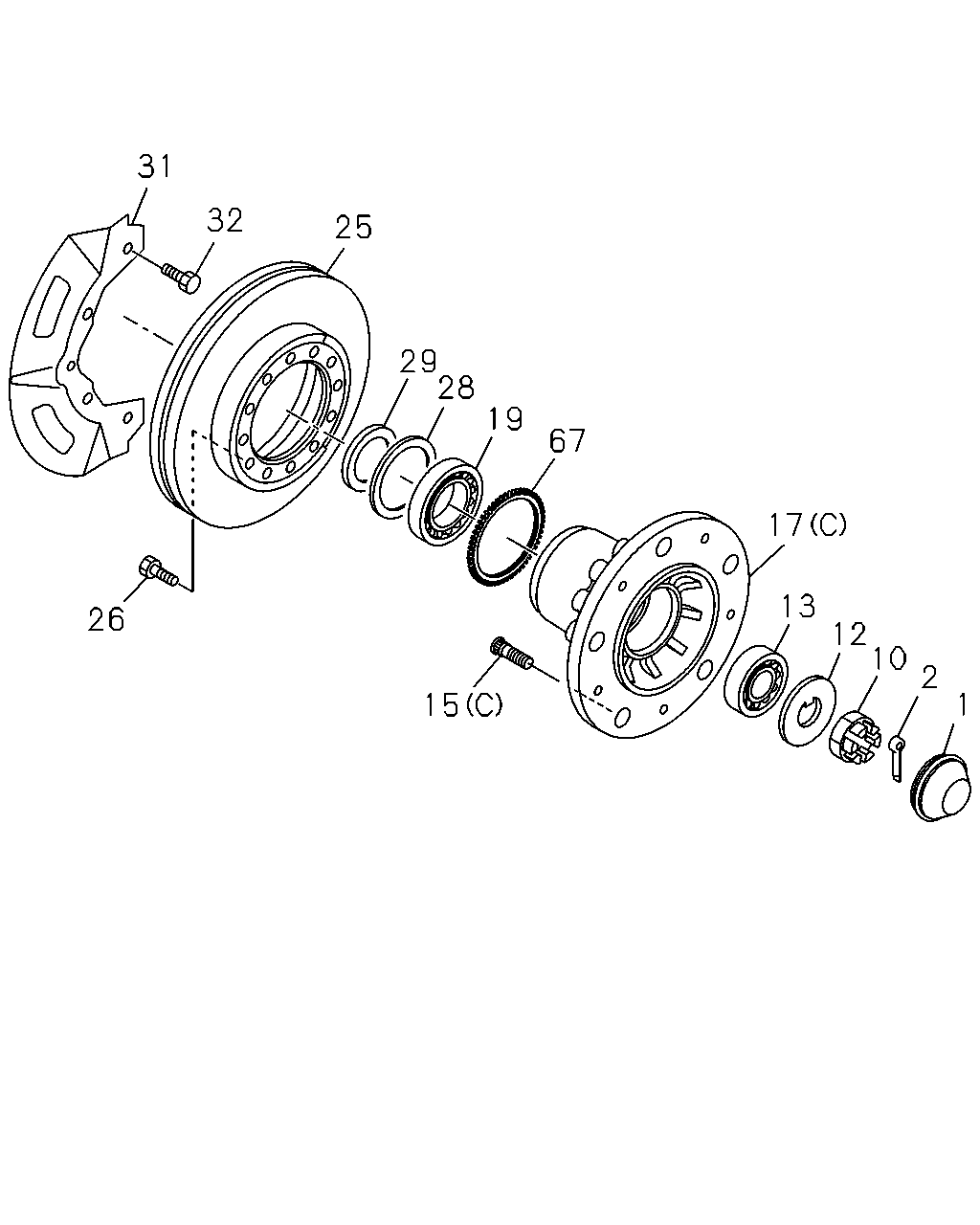

çizim 74030
31 32 25 29 28 19 67 17 13 26 12 10 2 1 15
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0211-0611 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-1407 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-98276-604-0 02 1 1408- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0211-0606 ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0211- ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0211-1502 ● ● ●
12 06.321 WASHER; LK,FRT HUB BRG
05.812 		8-98282-435-0 02 1 1503- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0211- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
BEST VALUE PARTS 		5-87610-134-0 02 1 0211- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M18X29,M20X43.5 RH THREAD 		8-94383-436-1 05 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-97017-041-0 05 1 0502-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(A) M18X29 LH THREAD,M20X43.5 RH THREAD 		8-94383-437-1 05 1 0211-0501 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-97017-042-0 05 1 0502-0605 ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(C) M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X50 RH THREAD 		9-42331-605-4 06 1 0211-0501 ●
15 05.812 PIN; WHEEL,FRT AXLE
(B) M14X50 LH THREAD 		9-42332-605-4 06 1 0211-0501 ●
17 06.307 HUB; FRT AXLE
(A) 		8-94365-459-0 02 1 0211-0501 ● ●
17 06.307 HUB; FRT AXLE
(C) 		8-97035-160-0 02 1 0502- ● ● ●
17 06.307 HUB; FRT AXLE
(B) 		8-94420-597-1 02 1 0211-0501 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-94248-088-2 02 1 0211-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0211-1009 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
BEST VALUE PARTS 		1-87610-134-0 02 1 1010- ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0502-0612 ● ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0502- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0211- ● ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0211- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0502-0703 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0704- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0502-0512 ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ● ●
67 05.811 ROTOR; SENSOR 8-97206-773-0 02 1 0502- ● ● ●
