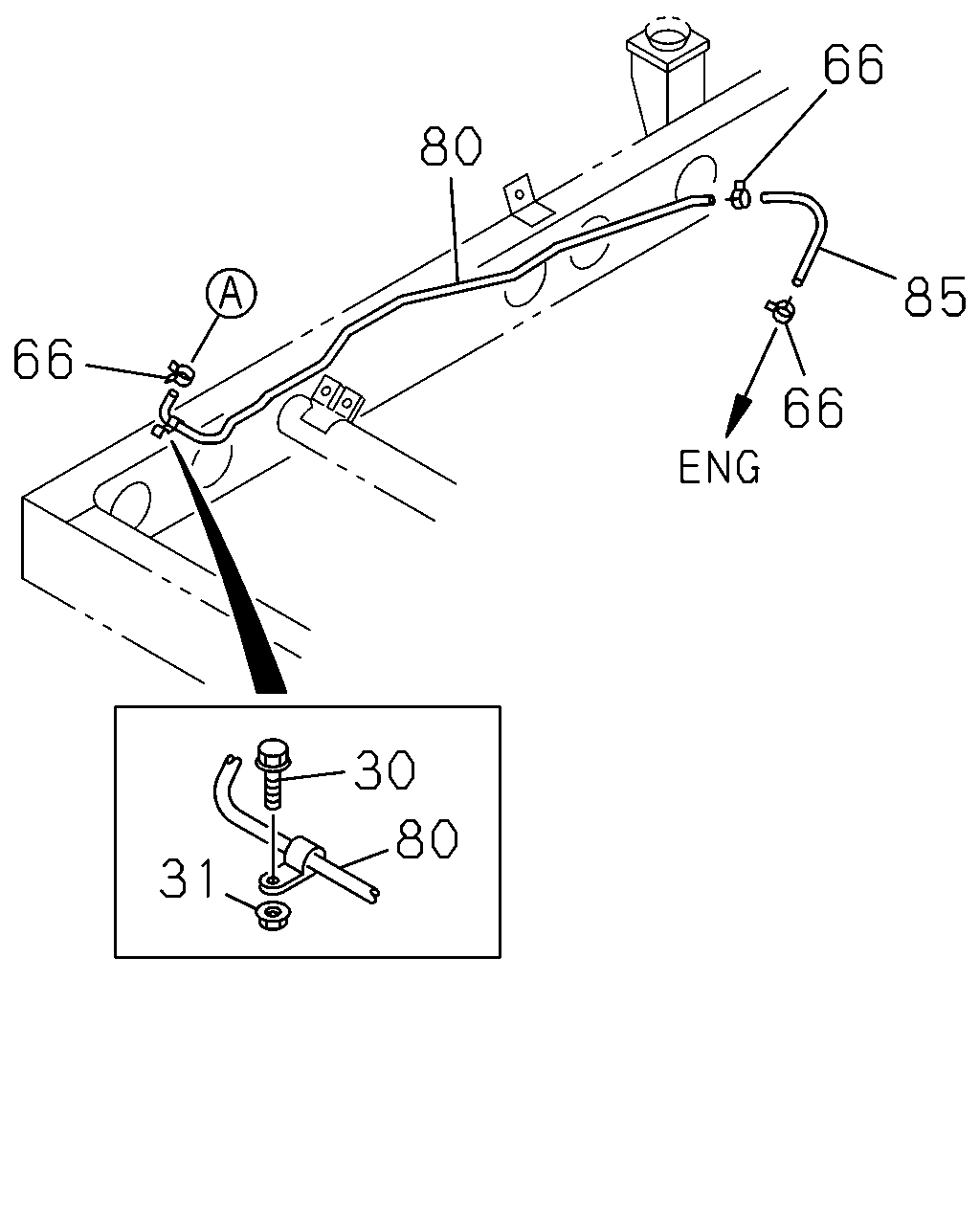

3-60 — BRAKE PIPING; VACUUM (#37529) — 92 parça

66 80 85 66 66 30 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-980-0	01	1	0211-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97325-978-0	01	1	0211-0501	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-979-0	01	1	0211-			●
85	04.931 HOSE; VAC,ENG SIDE	8-97091-965-0	01	1	0211-	●	●	●

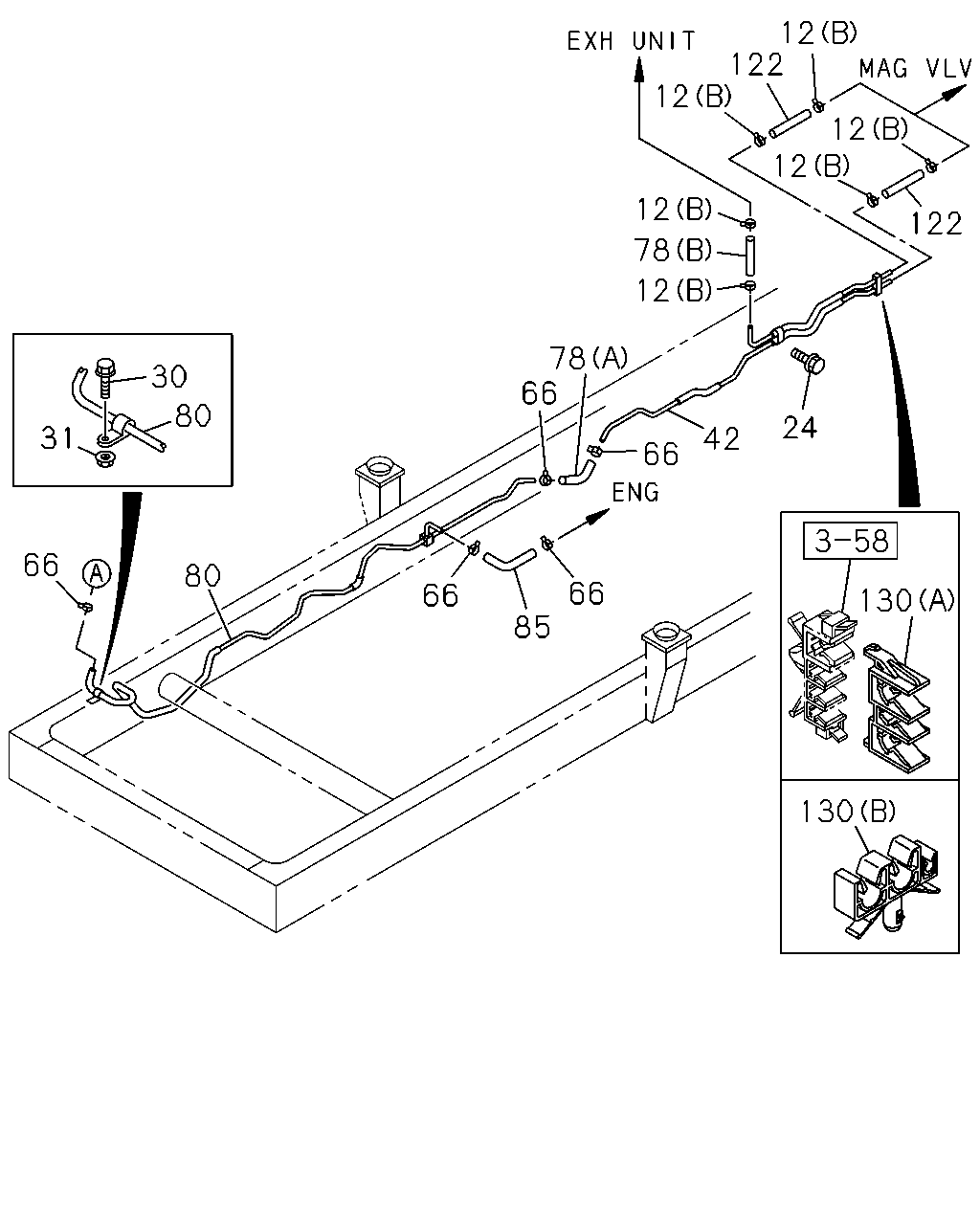

12 122 12 12 12 12 122 78 12 78 66 30 80 24 31 42 66 66 66 80 66 130 85 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●
24	04.686 BOLT; BRKT EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0211-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0211-0602	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-	●	●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0211-	●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV EXHAUST BRAKE<NF8>	8-97325-995-1	01	1	0211-			●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	05	1	0912-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0211-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B) L=260 SERVICED BY L=1000	0-08358-100-0	01	1	0211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (A) L=140 SERVICED BY L=3000	0-08358-300-0	01	1	0211-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B) L=230 SERVICED BY L=1000	0-08358-100-0	01	1	0211-		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> (B) L=400 SERVICED BY L=3000	0-08358-300-0	01	1	0211-			●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-980-0	01	1	0211-	●	●
80	04.930 PIPE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8>	8-97325-978-0	01	1	0211-0501	●	●	●
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8>	8-97325-979-0	01	1	0211-			●
85	04.931 HOSE; VAC,ENG SIDE	8-97091-965-0	01	1	0211-	●	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> L=140 SERVICED BY L=3000	0-08358-300-0	02	1	0211-	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> L=180 SERVICED BY L=1000	0-08358-100-0	02	1	0211-		●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0211-	●	●
130	04.930 CLIP; VAC PIPE TO FRAME EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0211-			●

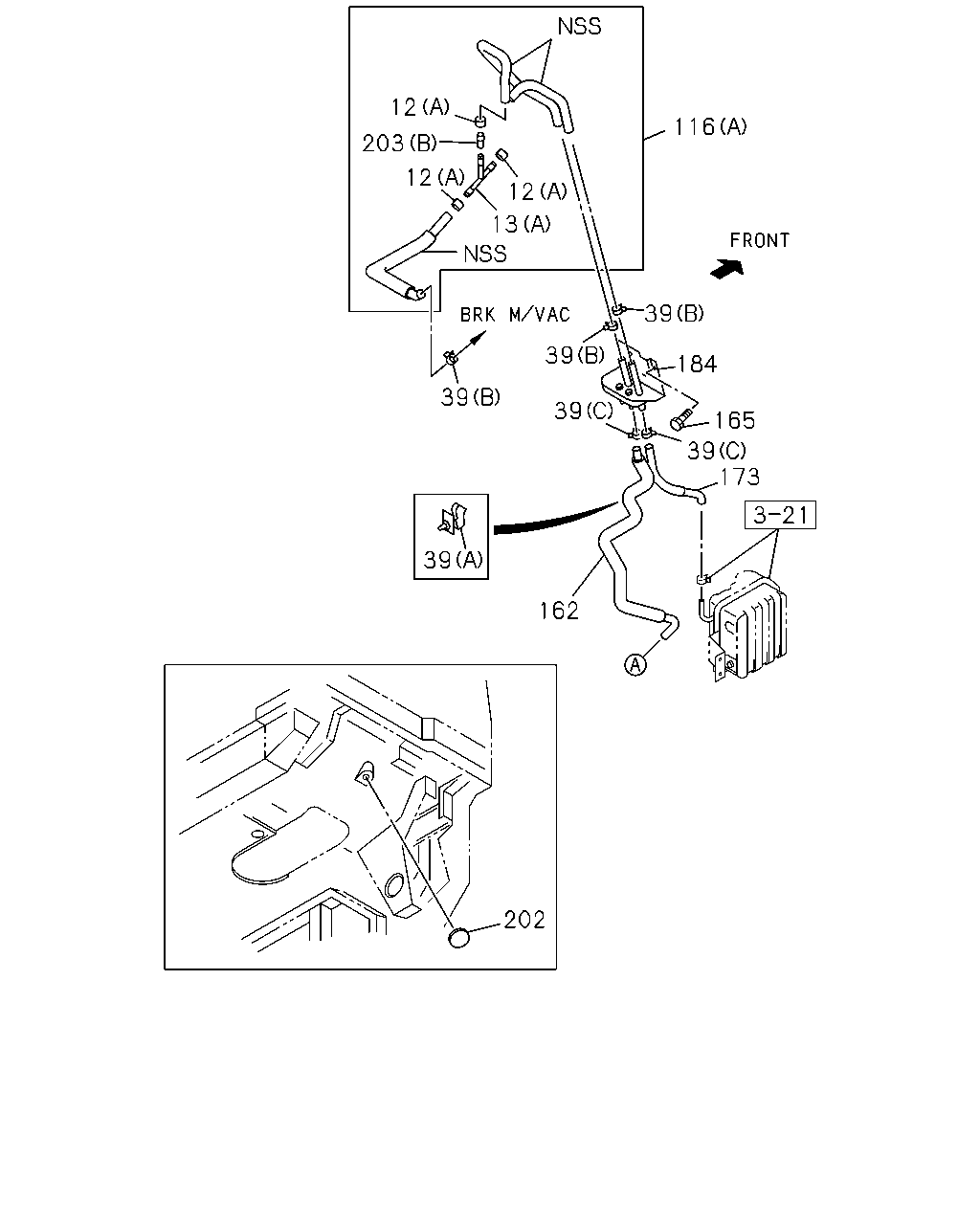

116 12 203 39 12 13 116 12 39 12 13 12 39 39 39 184 165 39 39 156 173 12 162 12 39 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.931 (B) 3WAY	8-94167-478-0	01	1	0211-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	03	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0211-0403	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0404-	●	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> 04.686 3WAY	8-94441-184-0	01	1	0211-	●	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-97178-659-0	01	1	0211-	●	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>	8-97102-370-2	01	1	0211-	●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0211-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0211-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94386-540-0	01	1	0211-0412	●	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0501-	●	●	●

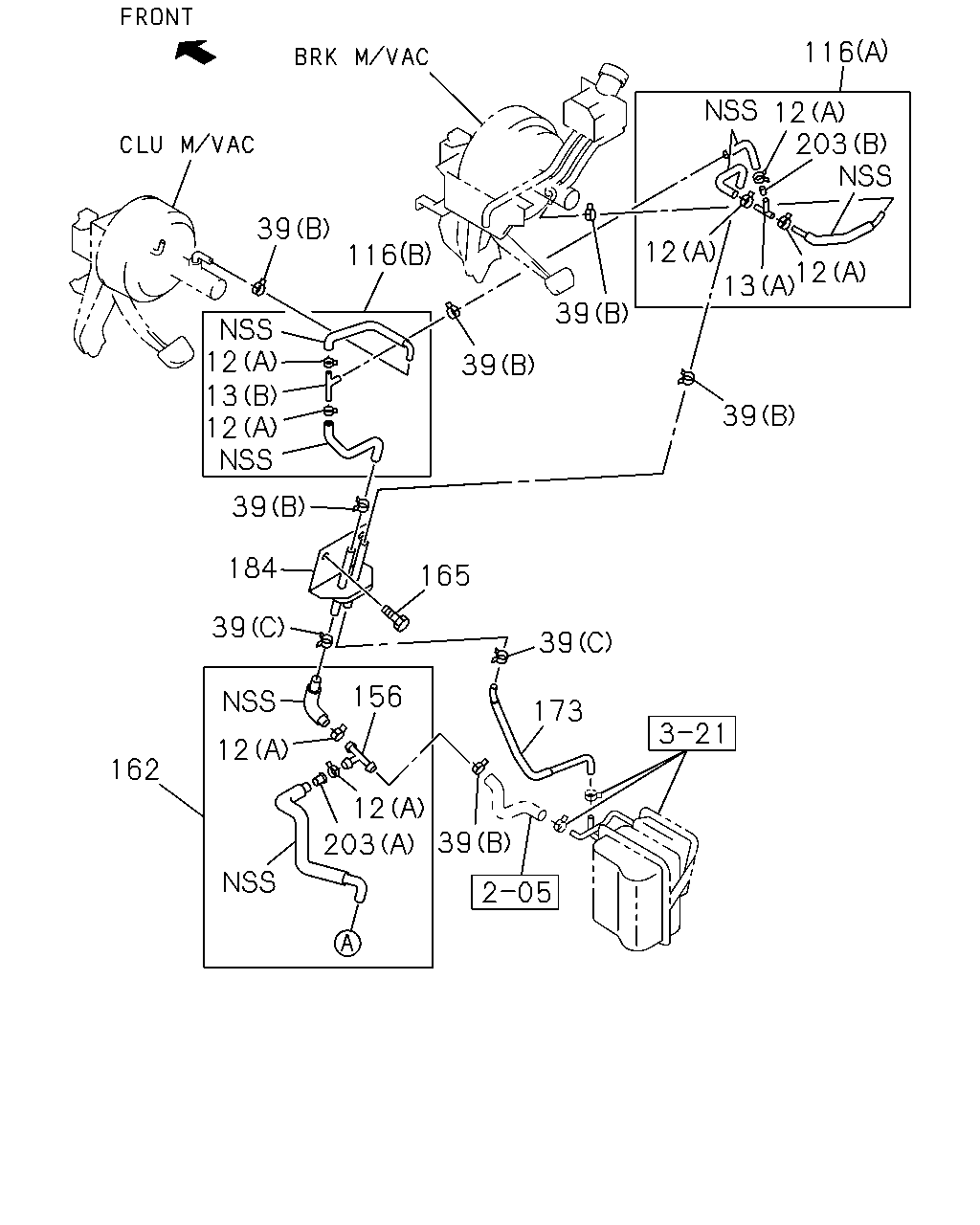

12 116 203 12 12 13 39 39 184 39 39 165 39 173 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH<S2T> 04.930 (A) ID=14.5	8-94167-480-0	02	1	0211-	●	●	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0211-	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-0911	●	●	●
12	04.681 CLIP; HOSE EXHAUST BRAKE<NF8> 03.162 (B) ID=16	8-98008-098-0	06	1	0912-	●	●	●
13	04.681 JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.931 (B) 3WAY	8-94167-478-0	01	1	0211-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 (A) 3WAY	8-94441-184-0	01	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	06	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> 04.930 (B) ID=16	8-94238-568-0	03	1	0211-	●	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-1	01	1	0211-	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0211-0403	●	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97379-286-1	01	1	0404-	●	●	●
162	04.931 HOSE; VAC POWER ASSIST CLUTCH<S2T>	8-97178-659-0	01	1	0211-	●	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>	8-97102-370-2	01	1	0211-	●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0211-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0211-	●	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0211-	●	●	●
202	04.686 SEAL EXC. POWER ASSIST CLUTCH<S2T> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0211-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (A)	8-94104-021-0	01	1	0211-	●	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH<S2T> (B)	8-94386-540-0	01	1	0211-0412	●	●	●
203	04.690 VALVE; CHECK (B)	8-94386-540-0	01	1	0501-	●	●	●
