3-58 — FIXING PARTS; OIL PIPING (#37528) — 90 parça

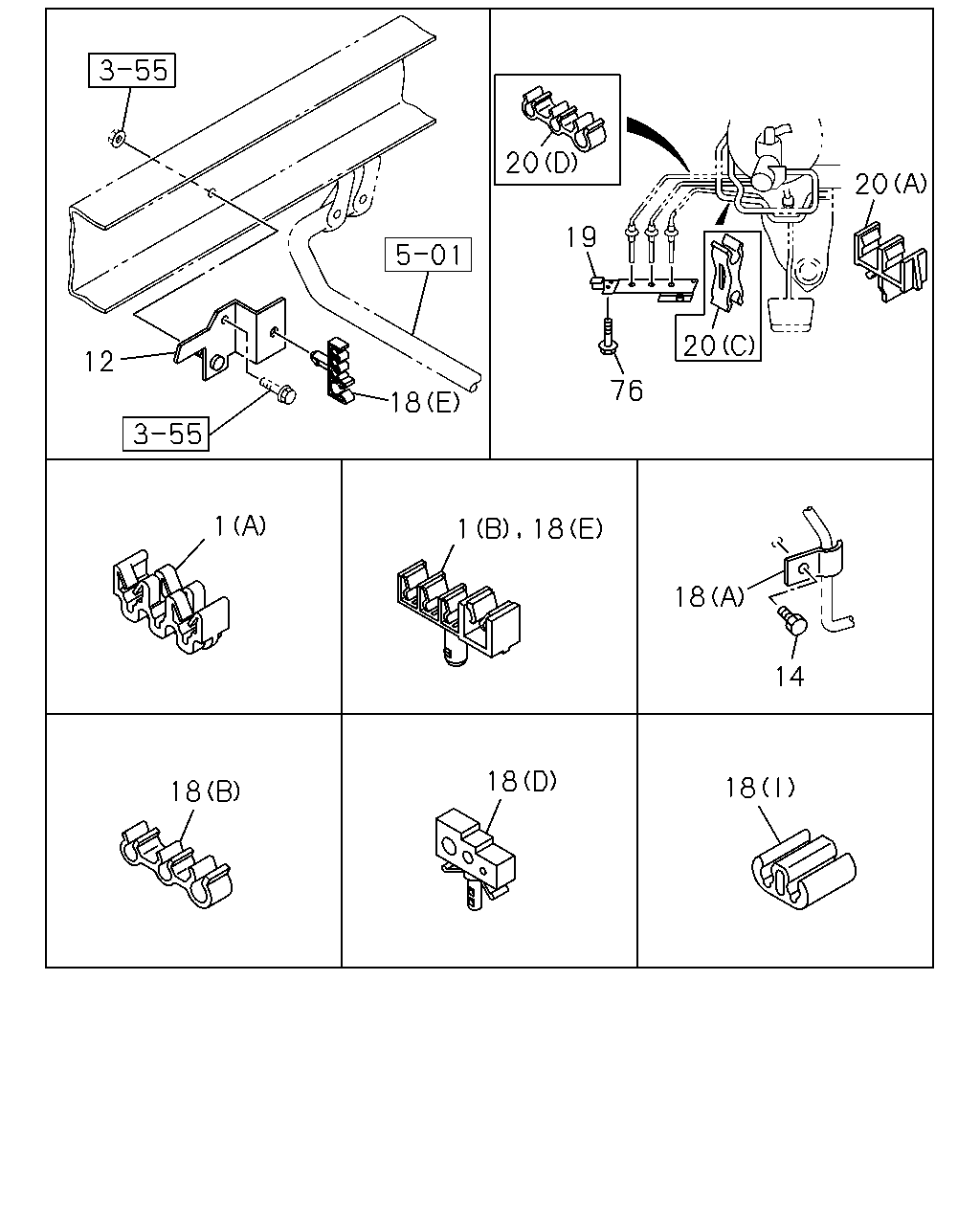

20 20 19 20 12 76 18 1 1 18 18 14 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=4.8X3	8-94487-369-0	01	1	0502-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
12	04.686 BRACKET; OIL PIPE	8-97349-917-1	01	1	0211-	●	●	●
14	04.686 BOLT; CLIP,OIL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●	●
14	04.686 BOLT; CLIP,OIL PIPE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-0504	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-0504			●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0505-	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0505-			●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0505-			●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (A) B=18 L=20	1-09700-372-0	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	05	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	03	1	0211-		●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0211-0501			●
18	04.686 CLIP; BRK PIPE (H) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-0504			●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0211-0501			●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0502-		●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-0	01	1	0211-0301	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-0	01	1	0211-0301	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0501	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0501	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0501	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0502-	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0502-	●
18	04.686 CLIP; BRK PIPE (I) ID=4.8X2	8-94389-060-0	01	1	0302-0910	●	●
18	04.686 CLIP; BRK PIPE (I) ID=4.8X2	8-94389-060-0	01	1	0911-	●	●	●
19	04.686 BRACKET; OIL PIPE	8-97042-258-4	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0211-	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●

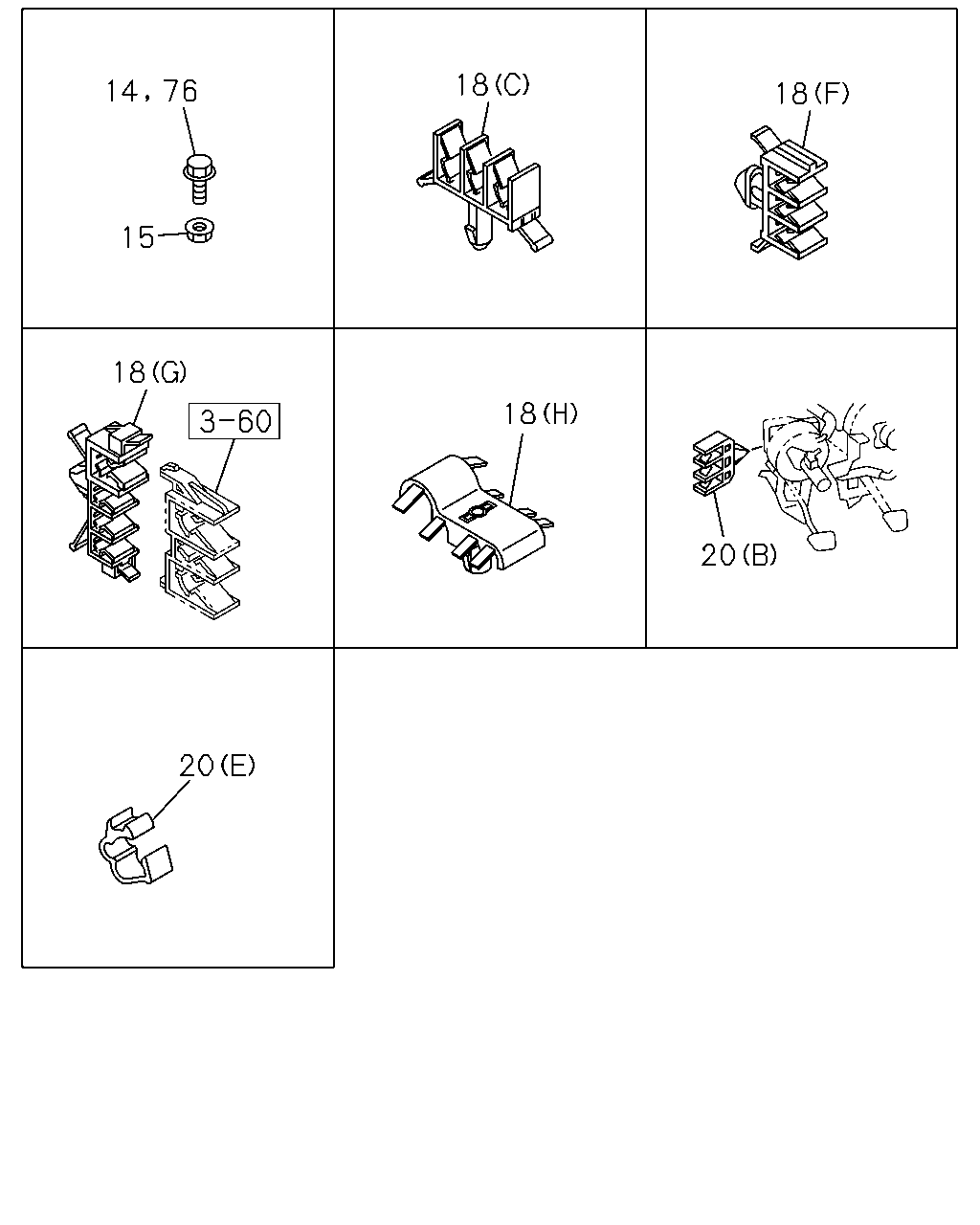

18 18 15 18 18 20 20 14 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	04.686 BOLT; CLIP,OIL PIPE 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●	●	●
14	04.686 BOLT; CLIP,OIL PIPE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●	●
15	04.686 NUT; CLIP,OIL PIPE 07.633 M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
15	04.686 NUT; CLIP,OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-0504	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0502-0504			●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0505-	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0505-			●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0505-			●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (A) B=18 L=20	1-09700-372-0	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-0501	●	●	●
18	04.686 CLIP; BRK PIPE (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	05	1	0211-	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	03	1	0211-		●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0211-0501			●
18	04.686 CLIP; BRK PIPE (H) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0502-0504			●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0211-0501			●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0502-	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	02	1	0502-		●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-0	01	1	0211-0301	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-0	01	1	0211-0301	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0501	●	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0501	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0501	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0502-	●	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97326-158-1	01	1	0502-	●
18	04.686 CLIP; BRK PIPE (I) ID=4.8X2	8-94389-060-0	01	1	0302-0910	●	●
18	04.686 CLIP; BRK PIPE (I) ID=4.8X2	8-94389-060-0	01	1	0911-	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0211-	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0211-	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
