◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51279 - NKR AUSTRALIA ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#37527) — 39 parça

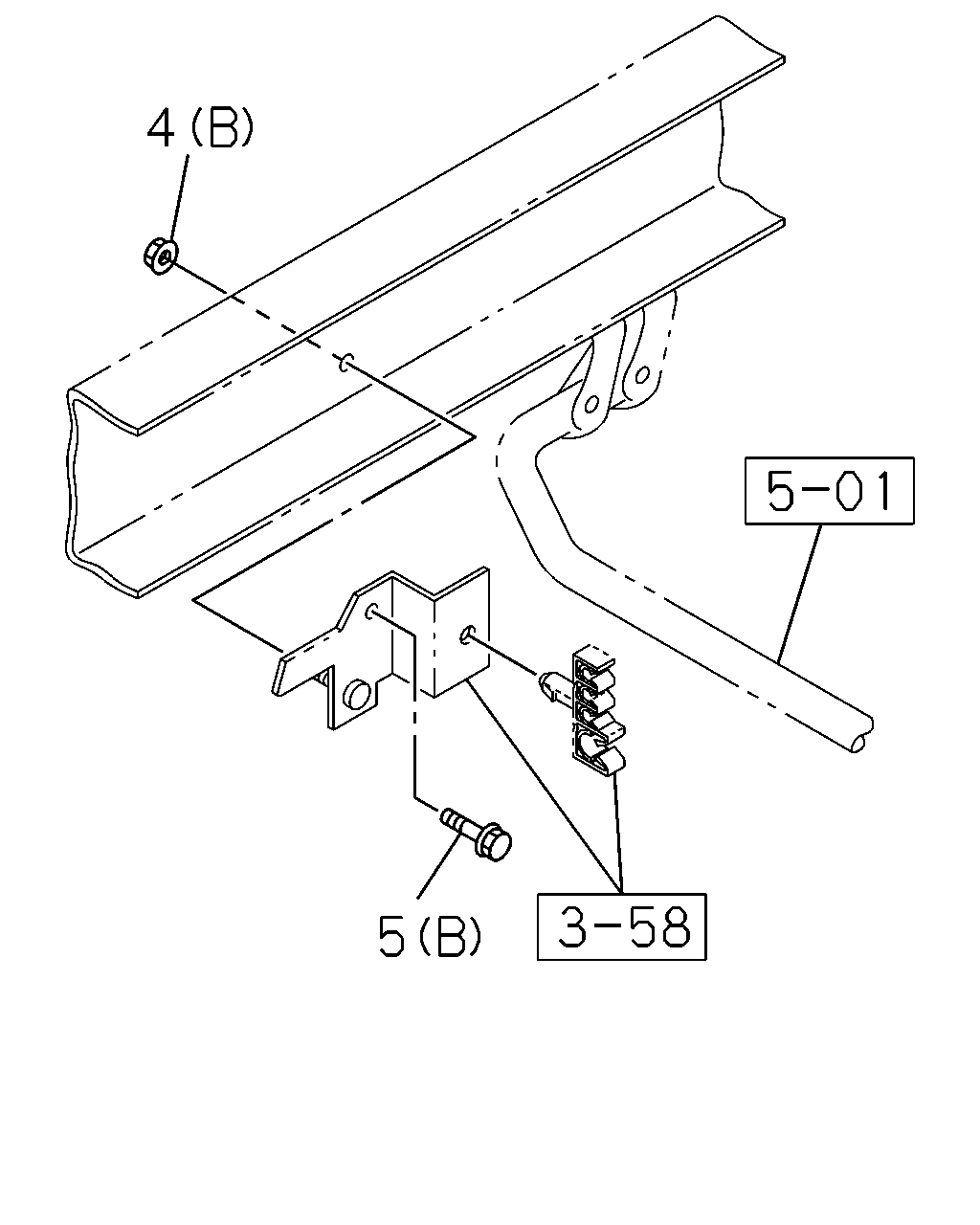

çizim 69340
4 5
BalonParca AdiParca NoAdetTipApplied Date A B C
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
03.405 (A) M10X30 FLANGE 		0-28681-030-0 01 1 0502-0512 ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0601-0611 ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0612- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●

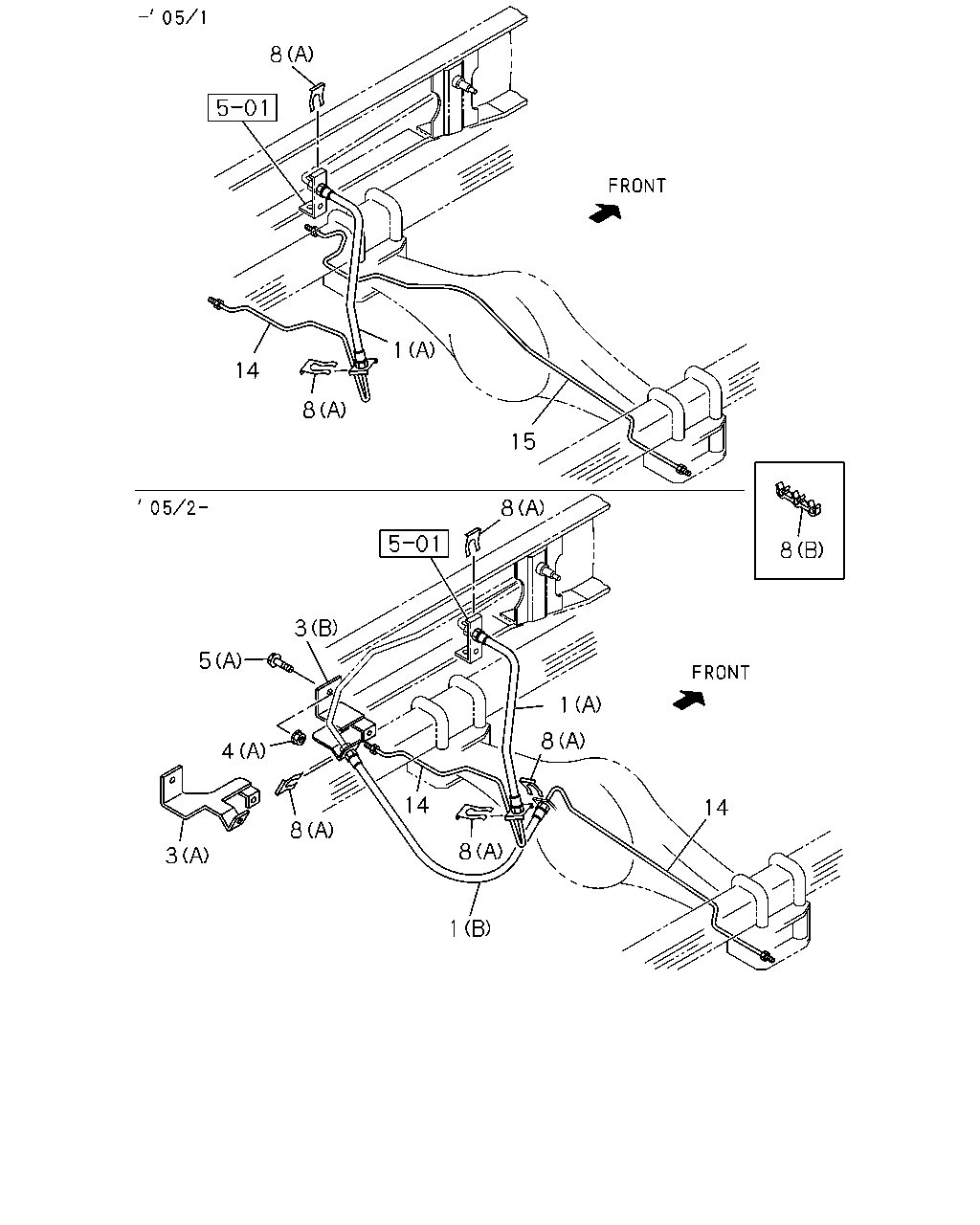

çizim 69364
8 1 14 8 15 8 8 3 5 1 8 4 14 14 8 8 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 0502- ● ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=345 		8-97230-284-1 01 1 0502- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 0211- ● ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=405 		8-97089-061-0 01 1 0211- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(B) 		8-97046-936-0 01 1 0502- ● ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97264-189-0 01 1 0502- ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
04.785 (A) M10 FLANGE 		0-91150-110-0 01 1 0502-0602 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
03.162 (A) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
04.594 (B) M6 FLANGE 		0-91150-106-0 01 1 0211-0602 ● ● ●
4 04.686 NUT; BRKT,FLEX HOSE,RR BRK
01.062 (B) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
03.405 (A) M10X30 FLANGE 		0-28681-030-0 01 1 0502-0512 ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 (A) M10X30 FLANGE 		0-28651-030-0 01 1 0601-0611 ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.029 (A) M10X25 FLANGE 		0-28651-025-0 01 1 0612- ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
02.334 (B) M6X25 FLANGE 		0-28680-625-0 01 1 0211-0512 ● ● ●
5 04.681 BOLT; BRKT,FLEX HOSE,RR BRK
00.685 (B) M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ● ●
8 04.686 CLIP; RR BRK
(B) 		8-97076-471-0 01 1 0211- ● ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 02 1 0211-0501 ● ● ●
8 04.686 CLIP; RR BRK
04.681 (A) 		8-94137-662-0 04 1 0502-0610 ● ● ●
8 04.686 CLIP; RR BRK
(A) 		8-97360-054-0 04 1 0611- ● ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97379-504-0 01 1 0502- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97082-923-0 01 1 0502-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 0211-0501 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97042-077-2 01 1 0502-0610 ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-871-0 01 1 0611- ● ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97324-659-0 01 1 0211-0501 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97239-144-0 01 1 0502-0610 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-878-0 01 1 0611- ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97070-591-0 01 1 0211-0501 ● ●
15 04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL
L=1429 		8-94128-140-3 01 1 0211-0501 ●
